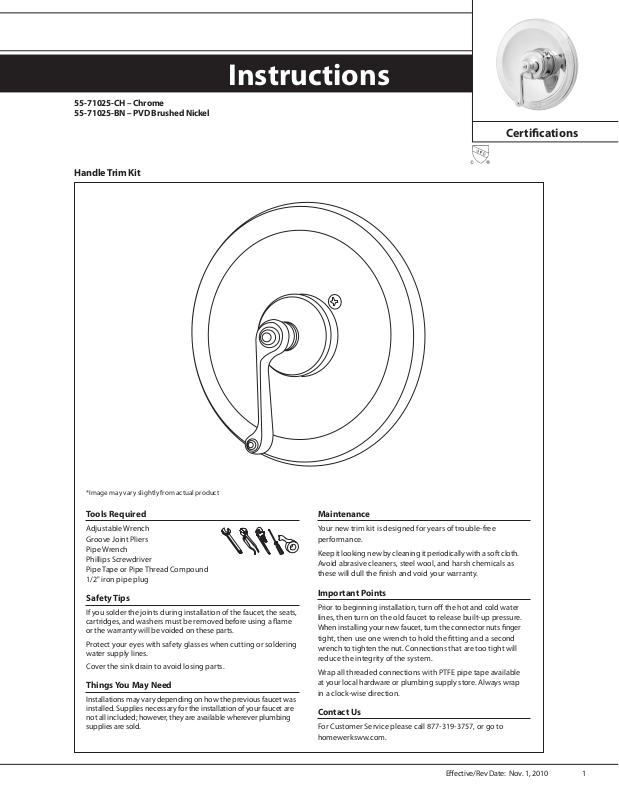

55-71025-CH – Chrome
55-71025-BN – PVD Brushed Nickel
Handle Trim Kit
Certications
*Image may vary slightly from actual product
Tools Required
Adjustable Wrench
Groove Joint Pliers
Pipe Wrench
Phillips Screwdriver
Pipe Tape or Pipe Thread Compound
1/2" iron pipe plug
Safety Tips
If you solder the joints during installation of the faucet, the seats,
cartridges, and washers must be removed before using a ame
or the warranty will be voided on these parts.
Protect your eyes with safety glasses when cutting or soldering
water supply lines.
Cover the sink drain to avoid losing parts.
Things You May Need
Installations may vary depending on how the previous faucet was
installed. Supplies necessary for the installation of your faucet are
not all included; however, they are available wherever plumbing
supplies are sold.
Maintenance
Your new trim kit is designed for years of trouble-free
performance.
Keep it looking new by cleaning it periodically with a soft cloth.
Avoid abrasive cleaners, steel wool, and harsh chemicals as
these will dull the nish and void your warranty.
Important Points
Prior to beginning installation, turn o the hot and cold water
lines, then turn on the old faucet to release built-up pressure.
When installing your new faucet, turn the connector nuts nger
tight, then use one wrench to hold the tting and a second
wrench to tighten the nut. Connections that are too tight will
reduce the integrity of the system.
Wrap all threaded connections with PTFE pipe tape available
at your local hardware or plumbing supply store. Always wrap
in a clock-wise direction.
Contact Us
For Customer Service please call 877-319-3757, or go to
homewerksww.com.
Eective/Rev Date: Nov. 1, 2010 1
55-71025-CH – Chrome
55-71025-BN – PVD Brushed Nickel
Handle Trim Kit
Preparation and Assembly
1 2
Certications
Locate water supply inlet and shut o water supply valve. Remove old
handle trim. Clean and dry surface area where new handle trim will be
mounted.
3 4
UP
(Shower)
DOWN
(Spout)
PRESSURE TESTING:
Install a 1/2" iron pipe plug (not included) on both shower and tub outlets.
Turn hot and cold valve stems to full “on” position and check connections for
leaks. Turn stem to “OFF”. Slowly remove pipe plugs from shower and tub
outlets.
Troubleshooting
PROBLEM: Leaks from under handle
CAUSE: Bonnet is loose or bottom gasket on cartridge is dirty or
twisted.
ACTION:
Remove faucet handle. Tighten the bonnet. Clean or replace O-ring.
Before installing escutcheon, remove the plastic cap from plaster guard by
twisting cap clockwise.
After wall treatment, install escutcheon onto valve then screw in
escutcheon and install handle assembly.
Eective/Rev Date: Nov. 1, 2010 2
Physical Characteristics
• Description: Single metal scroll handle trim with matching
escutcheon, retaining nut and valve sleeve
• Laser-etched hot and cold markings
• Meets ASME A112.18.1/CSA B125 requirements
• Must be used with pressure balance valve
• Total Weight of Item: 258.5g
Certications
55-71025-CH – Chrome
55-71025-BN – PVD Brushed
Nickel
Eective/Rev Date: Nov. 1, 2010 3
55-71025-CH – Chrome
55-71025-BN – PVD Brushed Nickel
Handle Trim Kit
Certications
Eective/Rev Date: Nov. 1, 2010 4
