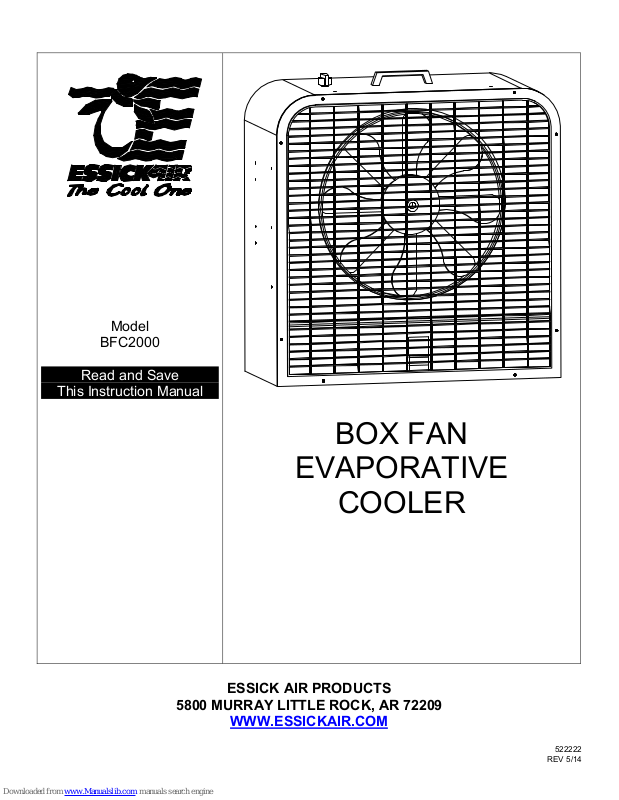

Page 1
Model
BFC2000
Read and Save
This Instruction Manual
BOX FAN
EVAPORATIVE
5800 MURRAY LITTLE ROCK, AR 72209
ESSICK AIR PRODUCTS
WWW.ESSICKAIR.COM
522222
REV 5/14
Page 2
Your Evaporative Cooler
Congratulations. You have purchased Essick’s unique design in evaporative portable cooling. Your new box fan cooler has dual features. First, it is an evaporative cooler that uses the principle of water evaporation to convert hot, dry air into a cool refreshing breeze. Second, since humidity changes from hour to hour and day to day, when it is too humid, you may use you unit as a box fan.
Cooler Operation
After unpacking your Essick Cooler, select the area you wish to cool. Evaporative coolers work best near a partially opened window to draw in fresh air. An equal amount of air should be discharged out of the room to dispel heat and humidity. The cooler can be placed on the floor or on a table. Pour water into the water trough located in the lower portion of the back grille (fig. 2). The reservoir holds 3 ¼ gallons of water. The level can be seen through the front grille (fig. 3). DO NOT OVER FILL. Water will leak out and could cause water damage to the surrounding area. If the reservoir runs dry, it will not harm the pump. When transporting the unit to a different location, be very careful not to spill the water. It is best to re-locate the cooler, then add water. Plug the electrical cord into a 115-120 volt grounded outlet. You may operate your cooler on one of three speeds…low, medium or high (fig. 4). Turn the switch knob clockwise to activate the pump and fan. This will cool the air. Turn the switch counterclockwise to operate as a fan only (pump will be off) (fig. 4).
fig. 1
3 1/4 US GALLONS
ARRÉT
FAN
ONLY
RESERVOIR
CAPACITY
fig. 4
COOL
QUESTIONS COMMENTS
1-800-643-8341
APAGADO
OFF
Fan Operation
Your new portable evaporative cooler, without water circulating, becomes a basic box fan to circulate air (fig. 4).
522222
REV 5/14
Page 3
Trouble Shooting
CAUTION: Always unplug the cooler before attempting service of any kind.
1. If the cooler will not pump water: a. The pump hose may have worked loose. Check the connection at the pump and at the water tube located in the
back grille assembly. Reconnect is necessary. b. The water tube may be blocked. Remove the tube and clean out, making sure water holes are clear. c. The pump or switch may be defective. Replace if necessary.
2. If the fan will not operate: a. Check for 115-volt power at the electrical outlet. Then check the fuse or breaker. b. The fan switch or motor may be defective. Replace if necessary.
End of season care:
Motor
Requires no oil or lubrication…permanently lubricated at the factory
Pump
Requires no oil or lubrication. Clean any debris from under the pump in the inlet area.
Filter
The filter should be replaced each season, if it becomes dirty or clogged.
Water Tank
Drain and clean the water tank. To drain, disconnect the clear hose from the black tube in the back grille. Turn unit on “COOL” and pump out most of the water. Wipe dry and clean with a towel. Then, before reattaching the back grille, reconnect the clear hose to the black water tube.
Touch Up
With spray paint on the interior of the cabinet if necessary.
WARNING: To Reduce The Risk of Fire or Electrical Shock, Do not Use This Fan With Any Solid-State Speed Control
Device.
LIMITED WARRANTY
This warranty is extended to the original purchaser only. It does not cover damages incurred during shipping or through accident,
neglect, or abuse by the owner. Essick Air Products does not authorize any person or representative to assume any other or different liability in connection with this cooler.
TERMS AND CONDITIONS OF WARRANTY
All original parts provided by Essick Air Products are warranted against defects in material or factory workmanship for One Year.
EXCLUSIONS FROM THE WARANTY
Essick Air Products is not responsible for incidental or consequential damage resulting from any malfunction.
Essick Air Products is not responsible for any damage occurring from the use of water softeners, chemicals, descale material, or if a higher horsepower motor than what Essick Air Products recommends is used in the unit.
Essick Air Products is not responsible for the cost of service calls to diagnose cause of trouble, or labor charge to repair and/or replace parts.
HOW TO OBTAIN SERVICE UNDER THIS WARRANTY
Contact the Dealer where you purchased the evaporative cooler. If for any reason you are not satisfied with the response for the Dealer, contact Customer Service Department: Essick Air Products Inc. 5800 Murray Street, Little Rock, Arkansas 72209. 1-800-643-
8341.
522222
REV 5/14
Page 4
No. Part No. Description
1 512473 Front grille 2 514488 Housing
70607 Housing (white)
3 514489 Venturi baffle
70608 Venturi baffle (white) 4 523097 Handle 5 587028 Screw, handle (2 req’d) 6 70817 Switch, fan 7 523128 Knob 8 524196 Clamp 9 523094 Blade
10 523095 Water pan 11 595153 Power cord
70605 Power cord (white)
12 581249 Motor 13 514491 Motor mount (2 req’d) 14 598429 Hose 15 516037 Tube 16 523089 Cap 17 70194 Pad retainer 18 587002 Ground screw 19 581189 Pump 20 See # 22 21 See # 22 22 512462 Pad assembly 23 587026 Cabinet screw 24 523091 Back grille 25 522222 Owner’s manual (not shown)
522222
REV 5/14
