C60SHDW10
Instruction Manual
24 pgs2.56 Mb0

Essentials C60SHDW10, C60SHDB10, C60SHDX10 Instruction Manual

Download
Page 1
INSTRUCTION MANUAL
60CM COOKER HOOD
C60SHDW10 (White) C60SHDB10 (Black) C60SHDX10 (Stainless Steel)
Page 2
Page 3
Contents
The Main Unit .............................................................................................................................................................9
Control Panel ..............................................................................................................................................................9
Air Extraction ........................................................................................................................................................... 10
Air Recirculation ..................................................................................................................................................... 10
To Select the Fan Motor Speed ......................................................................................................................... 10
Cooker hood Lighting .......................................................................................................................................... 10
Acrylic Filters ........................................................................................................................................................... 12
Fitting and Replacing the Carbon Filter ........................................................................................................13
Changing the Internal Light .............................................................................................................................. 14
If cooker hood does not operate ..................................................................................................................... 15
Product Overview .................................................................................................................................................. 16
Safety Distance Between Hob and Cooker hood .......................................................................................17
Connection for Air Extraction ...........................................................................................................................18
Mounting the Cooker hood ............................................................................................................................... 19
Page 4
4
Safety Warnings
• Please be careful when unpacking and installing this appliance as sheet metal and sharp metal edges can cause injury if not handled with care.
• This appliance complies with all relevant local and national safety requirements. Inappropriate use can, however, lead to personal injury and damage to property.
• To avoid the risk of accidents and damage to the appliance, please read these instructions carefully before using it for the rst time. They contain important information on the safety, installation, use and maintenance of the appliance.
• Keep these instructions in a safe place and ensure that all users are familiar with the contents. Pass them on to any future owner of the appliance.
Correct application
• This appliance is not designed for commercial use. It is intended for use in domestic households.
• It must only be used as a domestic appliance to extract vapours and remove odours from cooking.
• Any other usage is not supported by the manufacturer and could be dangerous. The manufacturer cannot be held liable for damage resulting from incorrect or improper use or operation of the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.Do not ambé under the cooker hood.
• Accessible parts may become hot when used with cooking appliances.
• If the supplied cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.
Safety with children
• This appliance is only intended for use by adults who have read these instructions.
• This appliance is not a toy! To avoid the risk of injury, keep children well away and do not allow them to play with it or to use the controls. They will not understand the potential dangers posed by it. They should be supervised whenever you are working in the kitchen.
• Older children may use the cooker hood only when its operation has been clearly explained to them and they are able to use it safely, recognising the dangers of misuse.
Correct use
• Never use an open ame beneath the cooker hood. To avoid the danger of re, do not ambé or grill over an open ame under the cooker hood.
• When switched on, the cooker hood could draw ames into the lter. Fat particles drawn into the cooker hood present a re hazard.
Page 5
5
• When using the cooker hood over a gas hob, ensure that any burners in use are always covered by a pan. Switch the cooking zone o when a pan is removed, even for a short time.
• Regulate the ame so that it does not burn up the sides of the pan.
• Do not allow the pans to overheat excessively (e.g. when using a wok).
• The cooker hood can become damaged when exposed to excessive heat.
• Always switch the cooker hood on when a cooking zone is in use, otherwise condensation may collect in the hood, which could cause corrosion.
• When cooking with oil or fat, chip pans and deep fat fryers etc, do not leave the pans unattended. Never leave an open grill unattended when grilling. Overheated oil and fat can ignite and could set the cooker hood on re.
• Do not use the cooker hood without the lters in place. This way you will avoid the risk of acrylic and dirt getting into the appliance and hindering its smooth operation.
• The lters should be regularly cleaned or changed as appropriate. Saturated lters are a re hazard. See "Cleaning and Maintenance".
• The cooker hood can get very hot during cooking due to heat rising from the hob. Do not touch the housing or the acrylic lters until the cooker hood has cooled down.
• Do not use a steam-cleaner to clean this appliance. Steam could reach the electrical components and cause a short circuit.
Technical safety
• Before installation, check the cooker hood for visible signs of damage. Under no circumstances should you use a damaged appliance. It could be dangerous.
• Before connecting the appliance to the mains supply, make sure that the voltage and frequency details given on the data plate correspond with the on-site electricity supply, otherwise the appliance could be damaged. Consult a qualied electrician if in any doubt.
• The electrical safety of this appliance can only be guaranteed when continuity is complete between the appliance and an eective earthing system complies with the current local and national safety regulations. It is most important that this basic safety requirement is present and tested regularly, and where there is any doubt, the household wiring system should be inspected by a qualied electrician. The manufacturer cannot be held liable for the consequences of an inadequate earthing system (e.g. electric shock).
• For safety reasons, this appliance may only be used when it has been fully installed.
• Only open the housing as described in the instructions. Under no circumstances should any other parts of the housing be opened. Tampering with electrical connections or components and mechanical parts is highly dangerous to the user, and can cause operational faults.
• Installation, maintenance and repairs may only be carried out by an authorised person in accordance with the current national and local safety regulations. Repairs and other work by unqualied persons could be dangerous. The manufacturer cannot be held liable for unauthorised work.
• Faulty components must only be replaced by genuine original parts.
Page 6
6
• Great care should be taken when using the cooker hood at the same time and in the same room or area of the house as another heating appliance which depends on the air in the room. Such appliances include gas, oil, wood or coal-red boilers and heaters, continuous ow or other water heaters, gas hobs, cookers or ovens which draw air in from the room and duct exhaust gases out through a chimney or extraction ducting.
• When used in extraction mode, the appliance draws air in from the room in which it is installed and from neighbouring rooms.
• If there is insucient air, an underpressure will occur. The heating appliance may be starved of oxygen, impairing combustion.
• Harmful gases could be drawn out of the chimney or extraction ducting back into the room, with potentially fatal consequences.
• In order to ensure safe operation, and to prevent gases given o by the heating appliances from being drawn back into the room when the cooker hood and the heater are in operation simultaneously, an underpressure of 0.04 mbar (4 pa) is the maximum permissible in the room.
• During installation, maintenance and repair work, the appliance must be disconnected from the mains electricity supply. It is only completely isolated from the electricity supply when:
– it is switched o at the isolator, or – the mains fuse is disconnected, or – it is switched o at the wall socket and the plug withdrawn, or – the fuse of the fused spur connection unit is withdrawn.
• Do not connect the appliance to the mains electricity supply by a multi-socket unit or an extension lead. These do not guarantee the required safety of the appliance (e.g. danger of overheating). This appliance may only be used in mobile installations if a risk assessment of the installation has been carried out by a suitably qualied engineer.
• In areas which may be subject to infestation by cockroaches or other vermin, pay particular attention to keeping the appliance and its surroundings in a clean condition at all times.
Using at the same time as other heating appliances that depend on the air from the same room.
Warning
Danger of toxic fumes.
• Ventilation can be maintained by air inlets which must not be blocked, in windows, doors and outside wall vents, or by other technical measures, such as ensuring that the cooker hood can only be switched on when the heating appliance is switched o or vice versa. A ventilation brick alone is not generally sucient to ensure safe ventilation.
Page 7
7
The manufacturer cannot be held liable for damage caused by non-compliance with these Warning and Safety instructions.
If in any doubt , the advice of a qualied builder, gas tter (Gas Safe registered in the UK) or electrician must be sought.
• If the only way of ensuring adequate ventilation is via an open window, a window contact switch should be tted to ensure that the cooker hood can only operate when the window is opened suciently. A window contact switch kit is available from good builders' merchants. Take care when ventilating the room through an open window that ventilation is not impaired by a closed blind or curtain. If the hood is being operated in recirculation mode, the above restrictions do not apply.
The overall ventilation condition of the dwelling must be taken into account. If in any doubt, the advice of a competent builder or, for gas, a qualied gas tter (Gas Safe registered in the UK) must be sought.
Correct installation
• Refer to the cooker or hob manufacturer's instructions as to whether a cooker hood may be operated above the cooker/hob.
• The minimum safe distances between the top of the cooker or hob and the bottom of the cooker hood given in the Installation section of this booklet must be maintained, unless the hob/cooker manufacturer states that a greater safe distance is required.
• If more than one appliance is tted beneath the cooker hood, and they have dierent minimum safe distances to the cooker hood, select the greater distance.
• Safety regulations prohibit the tting of a cooker hood over solid fuel stoves.
• All ducting, pipework and ttings must be of non-ammable material. These can be obtained from builders' merchants.
• The appliance must not be connected to a chimney or vent ue which is in use. Neither should it be connected to ducting which ventilates rooms with replaces.
• If exhaust air is to be extracted into a chimney or ventilation duct no longer used for other purposes, seek professional advice.
Accessories
• Only use genuine original spare parts and accessories with this appliance.
Page 8
8
Thank you for purchasing your new Currys Essentials Cooker hood.
We recommend that you spend some time to read this manual in order to fully understand how to install and operate it correctly.
Read all the safety warnings carefully before use and keep this manual for future reference.
Unpacking
Remove all items from the packaging Retain the packaging. If you dispose of it please do so according to local regulations.
The following items are included:
Nuts × 4
Washer × 8 Drill Note Template
Air Outlet Adaptor × 1The Main Unit
4 × 35mm Screws × 4
Air Outlet Cover × 1
4 × 30mm Screws × 4
Plastic Wall Plug Ф8×40mm × 4
Instruction / Installation manual
Instruction
Manual
430
80
2- 8
135
10
8
598
80mm
90mm
220mm
4-Φ5mm
130mm
460mm
If items are missing or damaged please contact Partmaster (UK only). Tel: 0844 800 3456 for assistance.
Page 9
9
Product Overview
The Main Unit
Control Panel
1. Control Panel
2. Illumination
3. Filter Cover
1. Motor speed selector
2. Lamp switch
1 2
1
3
2
Page 10
10
Modes of Operation

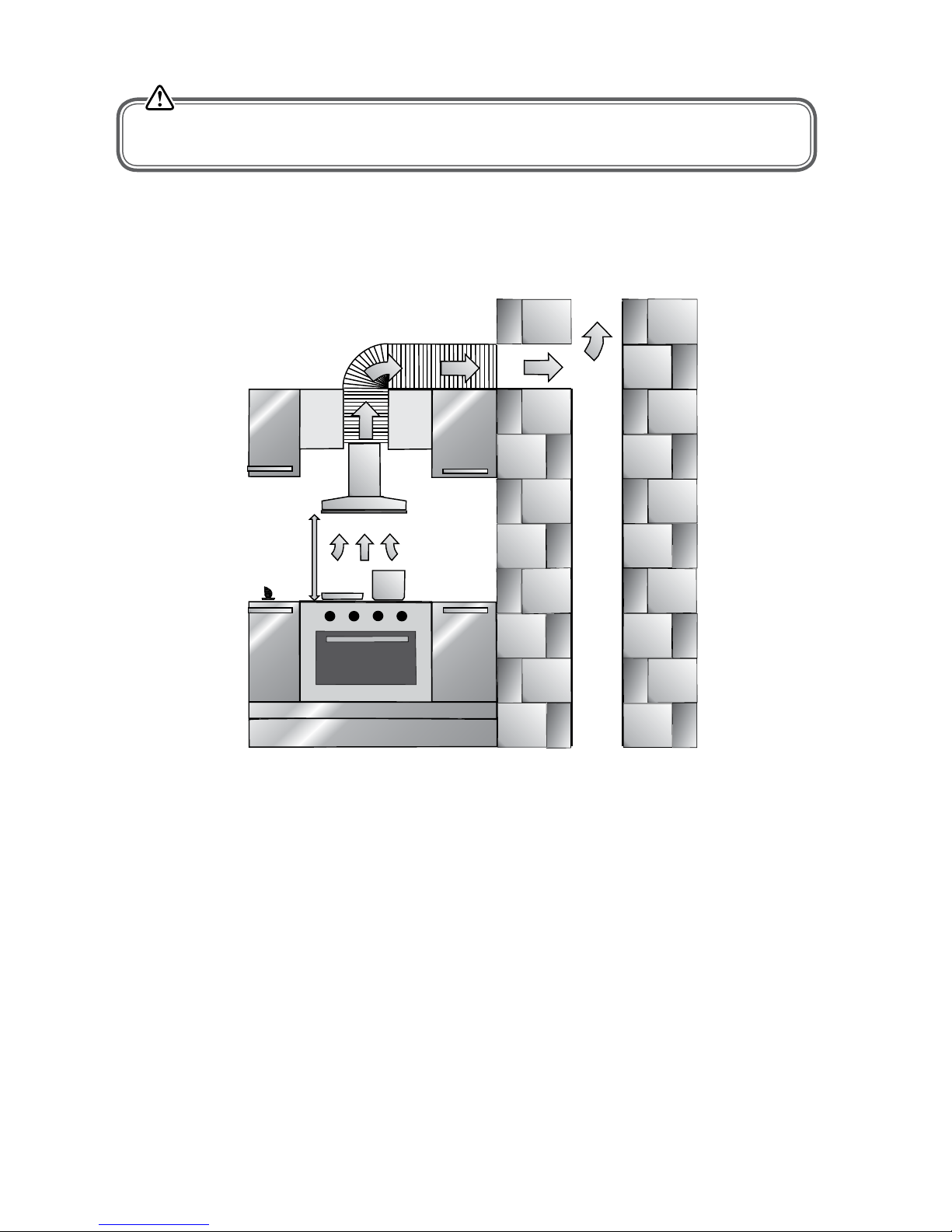

Air Extraction
The air is drawn in and cleaned by the acrylic lters and directed outside.
The non-return ap supplied with the appliance must be tted in the exhaust hole.
Having a non-return ap tted in the ducting ensures that air, once ducted to the outside, cannot get back into the room again.
The ap is closed when the cooker hood is switched o.
When the cooker hood is switched on, the non-return ap opens for the cooking vapours to be ducted away.
Operation
To Select the Fan Motor Speed
Your cooker hood has 3 levels of extraction. Depending on the cooking and frying vapours, you should run the cooker hood with "1" low, "2" medium or "3" high speed. To run the cooker hood, slide the motor speed selector to the desired extraction speed on the front panel.
Slide the motor speed selector to the "0" position to turn the unit o.
• Carbon lters are available as an optional extra, see rear page for ordering details.
• Before using the cooker hood in recirculation mode, ensure that the carbon lter is in place. See “Cleaning and Maintenance”.
• Do not ambé under the cooker hood.
• CAUTION: Accessible parts may become hot when used with cooking appliances.
Ensure there is adequate ventilation in the room when the cooker hood is used at the same time as other appliances burning gas or other fuels.
Air Recirculation
The air is drawn in and cleaned by a carbon lter (optional). The cleaned air is then recirculated back into the kitchen through the recirculation vents in the top of the cooker hood.
Cooker Hood Lighting
Slide the lamp switch to the on position ( 1 ) to switch the lamps on.
Slide the lamp switch to the o position ( 0 ) to switch the lamps o.
Page 11
11
• All external surfaces and controls can be cleaned using a little washing-up liquid applied with a soft sponge or cloth.
Cleaning and Maintenance
• Wipe dry using a soft cloth.
• Before any cleaning or maintenance work is carried out, disconnect the cooker hood from the mains power supply. Ensure that it is switched o at the wall socket and the plug is withdrawn.
• The surfaces and controls are susceptible to scratches and abrasions. Please observe the following cleaning instructions.
Only use a damp cloth as water could get into the unit and cause damage.
Do not use:
• cleaning agents containing soda, acids, chlorides or solvents,
• abrasive cleaning agents, e.g. powder cleaners or cream cleaners and abrasive sponges, as well as pot scourers or sponges which have been used previously with abrasive cleaning agents as these will damage the surface material.
Page 12
12
Acrylic Filters
The acrylic lters in the appliance remove solid particles (acrylic, dust, etc.) from the kitchen vapours, preventing soiling of the cooker hood.
The acrylic lters should be replaced regularly (at least every 3 months) to avoid a build-up of acrylic.
1. Slide the two acrylic lter cover release buttons on the underside of the cooker hood inwards. The lter cover will be released downwards.
2. The thin acrylic lter is removed by releasing it from the U-shape metal hangers. Pull down the U-shaped hanger and remove the lter.
3. Replace the lter and lock the U-shaped hanger in position.
4. Fit the main lter cover by locating the rear pins in their slots. Push the cover upward and push the release buttons outward. It will click back into place.
Dirty lters are a re hazard.
• Be careful of the cover falling down.
• HOLD THE FILTER COVER BEFORE RELEASE.
• Please be careful when replacing and handling the lter as sheet metal and sharp metal edges can cause injury if not handled with care.
Filter cover
Take lter cover out
Page 13
13
Fitting and Replacing the Carbon Filter
If the cooker hood is connected for recirculation, a carbon lter must be used.
5. Replace the lter cover.
Carbon lters are available as an optional extra.
1. Before tting or replacing a carbon lter, the acrylic lters must rst be taken out (see previous section for instructions on how to do this).
2. Take the carbon lter out of its packaging.
3. Install carbon lter.
First, take the lter cover down and take the U-shaped hangers out.
Filter cover
Take lter cover out
4. Put the carbon lter in position. Put the U-shaped hangers back into its position.
Replace the carbon lter when it no longer absorbs kitchen odours eectively. It should, however, be replaced at least every 3 months to prevent a risk of re.
Page 14
14
Changing the Internal Light
Allow the cooker hood to cool for at least 30 minutes after use before changing the light bulb.
1. Slide the acrylic lter cover release buttons o the underside of the cooker hood inwards. The lter cover will be released downwards.
2. Remove the old bulb by unscrewing it in an anti-clockwise direction.
3. Replace with a new bulb (230V/40w) by screwing it in a clockwise direction. Make sure it is securely inserted in the bulb holder. Kindly note that your cooker hood is tted with 2 x 40W (max.) bulbs.
4. Replace the lter cover.
• Be careful of the cover falling down.
• HOLD THE FILTER COVER BEFORE RELEASE THE BUTTONS.
• Please be careful as sheet metal and sharp metal edges can cause injury if not handled with care.
Page 15
15
Hints and Tips
Problem Solution
Cooker hood does not operate
• Check Electric connection. (The supply voltage should be 220-240 V)
• Check motor speed selector. (Motor speed selector should be in position 1, 2 or 3)
Lamp does not light
• Check Electric connection. (The supply voltage should be 220-240 V)
• Check lamp switch. (Lamp switch should be in the on position)
• Check lamp bulbs.
Air suction of cooker hood is weak
• Check acrylic lter. (Acrylic lter should be replaced regularly (at least every 3 months) under normal conditions)
• Check air outlet chimney. (Air outlet chimney should be open)
• Check carbon lter. (If it operating with a carbon lter, the carbon lter should be replaced every 3 months)
If Cooker Hood Does Not Operate
Be sure that the mains plug is connected to the mains socket and the fuse in the installation is in good condition. Check your cooker hood according to the above table. If the problem continues, contact your retailer or an authorised service agent.
Specications
Model C60SHDW10 / C60SHDB10 / C60SHDX10
Rated Voltage 230V~
Rated Frequency 50 Hz
Rated Power 180 W
Extraction rate 150 – 180 m3/h
Lamp (E14) 2 x 40W Max.
Features and specications are subject to change without notice.
Page 16
16
Installation
Product Overview
125 mm
600 mm
430 mm
500 mm
45 mm
360 mm
220 mm
600 mm
460 mm
135 mm
135 mm
500 mm
600 mm
Please be careful when unpacking and installing this appliance as sheet metal and sharp metal edges can cause injury if not handled with care.
Page 17
17
Safety Distance Between Hob and Cooker hood
Min.700 mm
When planning the installation height of your cooker hood, the minimum safe distance between the top of a cooker or hob and the bottom of the cooker hood is 700mm.
• Account should also be taken of the height of the person who will be using the hood most often. The person should have sucient space to work comfortably at the hob, and also be able to reach the hood controls with ease.
• Please be aware that if positioned too high, extraction will be inecient.
Page 18
18
Connection for Air Extraction
Only use smooth pipes or exible hoses made from non-ammable materials for the extraction ducting.
To achieve the greatest possible air extraction with the lowest noise level, please note the following:
• To ensure ecient air extraction, the diameter of the exhaust ducting should not be less than 120mm.
• If at ducting is being used, the cross-sectional area must not be smaller than the cross sectional area of the exhaust connection.
• All ducting, pipework and ttings must be made of non-ammable materials.
• The exhaust ducting should be as short and straight as possible.
• Only use wide radius bends.
• The exhaust ducting should not be kinked or compressed.
• Ensure that all connections are strong and airtight.
• Where ducting is horizontal, it must be laid to slope away at least 1cm per metre. This is to ensure that condensate cannot drain back into the cooker hood.
If the exhaust ducting is to run through rooms, ceiling space etc. where there may be great variations in temperature between the different areas, the problem of condensation will need to be addressed. The exhaust ducting will need to be suitably insulated.
• To avoid the danger of toxic fumes, please observe the safety warnings.
• This is especially crucial when using the cooker hood at the same time as another heating appliance which relies on air from the same room.
• The cooker hood should be installed according to the local and national building regulations. Seek approval from the building inspector where necessary.
Page 19
19
Or top mounted by tting it to the underside of a kitchen cupboard, as shown in the picture opposite.
Min
140mm
Mounting the Cooker hood
The cooker hood can be rear mounted by tting it to an open area of kitchen wall, as shown in the picture opposite.
Extracted Air Installation
If you are tting the unit to an outside wall you need the following items:
• A minimum of 500mm of exible ducting, 120 mm in diameter.
• An external cooker hood.
1. There is a ‘valve’ inside the cooker hood, which diverts the air so that it leaves through one of the exhaust holes. Turn the valve lever download to position E, as shown in the picture A.
Min
650
-
750mm
R
E
A B
Page 20
20
Screw the keyhole positioned screws into your wall or kitchen cupboard so that the top surface of the screw head is approximately 4mm from the surface you are screwing to.
2. Make a 130mm hole on the top of your cabinet. You will have to use a jigsaw to cut a 130mm diameter hole in the kitchen cupboard. It is recommended that a qualied person, experienced in tting cooker hoods, is consulted before installation.
3. Use the card template supplied to mark the position of the xing screws.
4. If you are going to rear-mount the cooker hood, the screws and wall plugs supplied should only be used in a (plastered) brick, breeze block or blockwork wall. They are not suitable for lath and plaster walls or stud and plasterboard walls. Consult a qualied builder for advice on xing to these types of walls. If you are top xing the cooker hood to a kitchen cupboard, use the screws provided.
5. The keyhole slots are designed so the cooker hood locates over the larger area of the hole and is then pushed back, or dropped down onto the smaller area of the hole.
Two extra ‘security screws’ are used to ensure the unit is secure and isn’t accidentally pushed o the keyhole slots.
6. If you are rear mounting the unit, drill all four holes and t the wall plugs, but don’t t the two ‘security screws’ until the unit is in place.
If you are top mounting the unit; drill a 130mm diametre and four 5mm diametre holes as per the picture or the card template. Using the 4 × 35mm screws; washers and M4 nuts to x the cooker hood to a kitchen cupboard.
7. Check that your xings are correctly located, by temporarily tting the cooker hood. If correct, remove the protective lm (if available).
8. Fit the air outlet adaptor in the hole in the cooker hood. Some of the black plastic tabs of the adaptor should be pushed through the hole, while others remain above. This locks the adaptor in place.
screw
washer
nut
washer
board
unit
air outlet adaptor
Page 21
21
9. Fit the exible ducting into the air outlet adaptor.
Fit the unit into position. Tighten the screws if necessary. Feed the exible ducting through the hole into the wall.
10. Fit the main lter cover by locating the rear pins in their slots. Push the cover upward and push the release buttons outward. It will click into place.
11. Connect the cooker hood to the mains power supply, as mentioned earlier in the guide.
The carbon lter is designed to remove ‘odours’ from dirty air. As the ‘odours’ are being extracted to the outside air it is not necessary to t the carbon lter.
Page 22
22
Re-circulated Air Installation
1. The cooker hood must be tted so that it protrudes 140mm from the cupboard it is being tted to. This is to allow the re-circulated air to escape through the grille in the top of the unit.
2. Turn the valve lever upward to position R, as shown in the picture C. Meanwhile; use the air outlet cover to cover the holes on top of cooker hood, as shown in picture D.
3. Use the card template supplied to mark the position of the xing screws.
The keyhole slots are designed so the cooker hood locates over the larger area of the hole and is then pushed back, onto the smaller area of the hole. Two extra ‘security screws’ are used to ensure the unit is secure and isn’t accidentally pushed o the keyhole slots.
Screw the keyhole positioned screws into your wall or kitchen cupboard so that the top surface of the screw head is approximately 4mm from the surface you are screwing to.
If you are top mounting the unit, drill a 130mm diameter and four 5mm diameter holes as per below picture or the card template. Use the 4 × 35mm screws; washers and M4 nuts to x the cooker hood to a kitchen cupboard.
4. Check that your xings are correctly located, by temporarily tting the cooker hood. If correct, t the unit into position. Tighten the screws if necessary.
5. Fit the main lter cover by locating the rear pins in their slots, push the cover upward and push the release buttons outward. It will click into place.
6. Replace the acrylic lter with carbon lter. (not supplied – please contact the store from which you purchased your cooker hood) (Please refer to "Fitting and replacing the carbon lter" section for details in Cleaning and Maintenance section).
7. Fit the main lter cover by locating the rear pins in their slots and pressing the release buttons. It will click into place.
8. Connect the cooker hood to the power supply, as mentioned earlier in the guide.
screw
washer
nut
washer
board
unit
R
E
C D
Page 23
Page 24
DSG Retail Ltd. (co. no. 504877)
Maylands Avenue, Hemel Hempstead, Herts., HP2 7TG, UK
IB-C60SHDW-B-X10-140206V6
The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.
For more information about where you can drop o your waste for recycling, please contact your local authority, or where you purchased your product.
Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit
www.partmaster.co.uk or call 0844 800 3456 (UK customers only). Calls charged at National Rate.
For general information about this appliance
and handy hints and tips, please visit
www.knowhow.com/knowledgebank or call 0844 5611234.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
