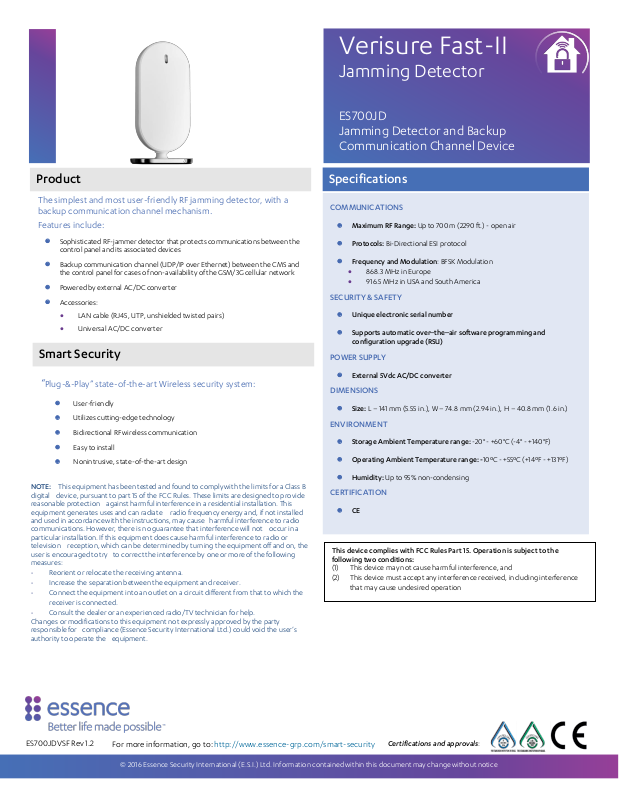

Essence Security ES700JD User Manual
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
For more information, go to: http://www.essence-grp.com/smart-security
ES700JDVSF Rev 1.2
© 2016 Essence Security International (E.S.I.) Ltd. Information contained within this document may change without notice
The simplest and most user-friendly RF jamming detector, with a
•
•
•
•
Certifications and approvals:
NOTE: This equipment has been tested and found to comply with the limits for a Class B
This device complies with FCC Rules Part 15. Operation is subject to the
Verisure Fast-II
Jamming Detector
ES700JD
Jamming Detector and Backup
Communication Channel Device
Product
backup communication channel mechanism.
Features include:
Sophisticated RF-jammer detector that protects communications between the
control panel and its associated devices
Backup communication channel (UDP/IP over Ethernet) between the CMS and
the control panel for cases of non-availability of the GSM/3G cellular network
Powered by e xternal AC/DC converter
Accessories:
• LAN cable (RJ45, UTP, unshielded twisted pairs)
• Universal AC/DC converter
Smart Security
“Plug-&-Play” state-of-the-art Wireless security system:
User-friendly
Utilizes cutting-edge technology
Bidirectional RF wireless communication
Easy to install
Nonintrusive, state-of-the-art design
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications to this equipment not expressly approved by the party
responsible for compliance (Essence Security International Ltd.) could void the user’s
authority to operate the equipment.
Specifications
COMMUNICATIONS
Maximum RF Range: Up to 700 m (2290 ft.) - open air
Protocols: Bi-Directional ESI protocol
Frequency and Modulation: BFSK Modulation
• 868.3 MHz in Europe
• 916.5 MHz in USA and South America
SECURITY & SAFETY
Unique electronic serial number
Supports automatic over–the–air software programming and
configuration upgrade (RSU)
POWER SUPPLY
External 5Vdc AC/DC converter
DIMENSIONS
Size: L – 141 mm (5.55 in.), W – 74.8 mm (2.94 in.), H – 40.8 mm (1.6 in.)
ENVIRONMENT
Storage Ambi ent Temperature range: -20° - +60°C (-4° - +140°F)
Operating Ambient Temperature range: -10ºC - +55ºC (+14ºF - +131ºF)
Humidity: Up to 95% non-condensing
CERTIFICATION
CE
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation
