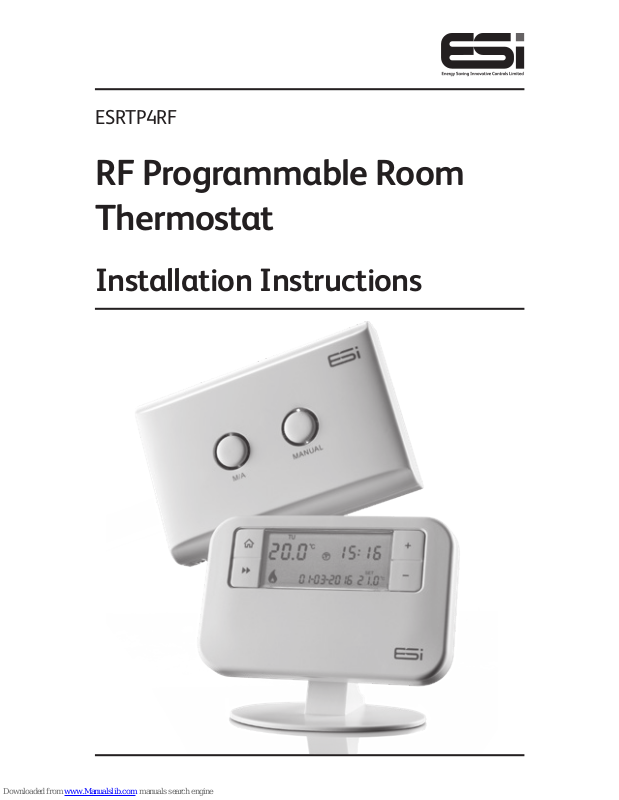

Page 1
ESRTP4RF
RF Programmable Room
Thermostat
Installation Instructions
Page 2
Thank you for choosing ESi Controls.
All our products are tested in the UK so we are
confident this product will reach you in perfect
condition and give you many years of service.
However, for additional peace of mind, we
recommend you register your product online at
www.esicontrols.co.uk/warranty for your
extended warranty.
2
Page 3
Installation Instructions
1 Technical Specification
1.1 Programmable room thermostat 6
Receiver 6
2 Installation Instructions
2.1 Installation 7
2.2 General Safety 7
2.3 Maintenance 8
2.4 Safety Notice 8
2.5 Wiring Diagram (Thermostat) 8
2.6 Fitting the Programmable Room Thermostat 9
2.7 Fitting the Receiver 10
2.8 Commissioning/Configuring 10
2.9 Wiring Diagram (Receiver) 11
3 Technical Settings
3.1 Setting TPI, Delayed & Optimum Start 12
3.2 Setting Sensitivity/Swing and Calibration 13
3.3 Setting the Landlord Service & Time Events 13
3.4 Lockout feature 15
3.5 Setting the Installer Lockout feature 15
Contents
3
Page 4
4
Page 5
5
Installation Instructions
Page 6
6
Programmable Room Thermostat
Programming 7 Day, 5/2 Day & 24Hr
Power Supply
2 x 1.5V Lithium Batteries
(type: AA size
Temperature Sensor Type +/- 1oC at 20oC
Temperature Adjustment Range 5oC to 35oC
Plastic Thermoplastic, flame retardant
Number of programs 4 or 6 (Default: 4)
Protection Rating IP30
Dimensions 127mm(L) x 81mm(W) x 28mm(D)
Number of Events per Day 4 - 6
BST/GMT Time Change Automatic
Factory Pre-Set Programme Yes
Complies with:
EN60730-1 EN 60730-2.7, EMC
Directive 2014/30/EU, LVD
Directive 2014/35/EU
Receiver
Fixing Easy Fit Back Plate
Power Supply Voltage 230VAC, 50Hz
Power Consumption 6W
Contact Type
6 (2)A. 230VAC SPDT (Volt Free
changeover contacts)
Plastic Thermoplastic, flame retardant
Transmission Distance Approx. 30m in open terrain
Protection Rating IP30
Dimensions
135mm(L) x 90mm(W)
x 33mm(D)
Complies with:
EN60730-1 EN 60730-2.7, EMC
Directive 2014/30/EU, LVD
Directive 2014/35/EU, R&TTE
Directive 1999/05/EC.
1. Technical Specification
Page 7
7
2. Installation
2.1 Installation Safety Instructions
The unit must be installed by a suitably qualified person in
accordance with the latest IEE Wiring Regulations.
Isolate mains supply before commencing installation. Please
read all instructions before proceeding.
Ensure that the fixed wiring connections to the mains supply is
via a fuse rated at not more than 6 amps and class ‘A’ switch
having a contact separation of a minimum of 3mm in all poles.
The recommended cable sizes are 1.0mm sqr or 1.5mm sqr. No
earth connection is required as the product is double insulated
but ensure continuity of earth throughout the system.
2.2 General Safety Instructions
When fitting batteries, do not mix old and new batteries
together. Do not use rechargeable batteries.
This product complies with the essential requirements of the
following EC Directives:
• Electro-Magnetic Compatibility Directive 2014/30/EU
• Low Voltage Directive 2014/35/EU
• EC Marking Directive 93/68/EEC
• R&TTE Directive 1999/05/EC
Page 8
8
2.4 Warning Notices
WARNING: Always isolate the AC mains supply before
installing. This product must be fitted by a competent
person, and installation must comply with the guidance
provided in the current editions of BS767 (IEE wiring
regulations) and part “P” of the building regulations.
WARNING: Do not fit the receiver to a back plate that is
live. switch off mains before fitting back plate as live and
neutral contacts may touch while mounting receiver on
plate and damage the product.
2.5 Wiring diagram
1.0-2.5mm
2
6mm MAX
1
2 OFF
3
NC
NO
ON
OFF
2.3 Maintenance
Always isolate the mains supply before commencing any work,
servicing or maintenance on the system. And please read all
instructions before proceeding.
Arrange for an annual maintenance and inspection schedule to
be carried out by a qualified person on every part of the heating
and hot water system.
Page 9
9
1.5m
2.6 Fitting the Programmable Room Thermostat
The ideal position to locate the Programmable Room
Thermostat is about 1.5m above floor level, in a location
where the thermostat is accessible, reasonably lit and free
from extremes of temperature and draughts. Do not position
the thermostat near sources of heat, such as radiators, lights,
TV, direct sunlight or on an outside wall
Installation
1. Remove the front cover using a flat screwdriver in the
two holes at the top of the programmer and separate
from back plate.
2. If required, fix the back plate directly on the wall using
suitable wall plugs and screws or mount over existing
wall box. Replace the thermostat onto the back plate,
securing the bottom of the thermostat first and clicking
the thermostat into place. Alternatively, use the stand
provided.
3. Insert the 2 x AA batteries provided in the battery
compartment on the front of the thermostat,
underneath the facia. The Programmable Room
Thermostat is now installed and will automatically
start to control the room temperature according to
the factory pre-set programme as shown in the User
Instructions. The display shows the correct time and
Page 10
10
date which is automatically set together with the
actual room temperature.
2.7 Fitting the Receiver
Installation
1. Loosen the screws on the back-plate and remove from
the Unit.
2. Fix the back-plate, terminals at the top, either direct
onto a flat wall using wall plugs and screws or on a flush
mounting single conduit box. Route the wires through
the back of the wall plate and fit the wires to the wallplate in accordance with the relevant diagram and in
accordance with I.E.E. regulations.
3. Fit the Unit onto back-plate, and tighten the screws.
4. Ensure an appropriate fuse is fitted to the circuit before
reconnecting to the mains supply.
2.8 Commissioning/Configuring
1. If the receiver and thermostat have been supplied as
a kit, the units have already been paired in the factory
and no pairing is needed.
2. Power up the receiver and press M/A (Manual/Auto)
button
1
for approximately 10 seconds until the
MANUAL (green) light 2 begins to flash.
3. On the thermostat, switch the slider to OFF. Press and
hold the A, H and + buttons for 3 seconds until the
symbol flashes.
4. When the light on the receiver stops flashing the two
units are paired.
5. If unsuccessful, repeat steps 2-3. If still unable to pair,
leave the unit powered on for 5 minutes and repeat the
steps above.
Page 11
11
6. The programmer display will show symbol when it is
able to receive signal and symbol when it is unable
to receive signal.
2.9 Wiring diagram
Programmable Room Thermostat Receiver
M/A MANUAL
1 2
1.0-2.5mm
2
6mm MAX
N L 1 2 3 4
COM N/O N/C
Fused Main
Supply
N.B. Volt free contacts.
Terminal Identifier Description
N Neutral Neutral
L Live Live Feed (230V AC)
1 COM
Linked Live Feed (230V AC Heating
Applications Only)
2 N/O Normally open
3 N/C Normally closed (NC)
Page 12
12
3.1 Setting TPI, Delayed or Optimum Start
1. Switch the slider to OFF. Press and keep holding the A
and H buttons together (under the fascia), then press
the Next
button to enter the technical settings.
Release all buttons.
2. Press the +/– buttons to choose between:-
OFF: The programme will run according to settings
DS (dL StAr DS): When ON, the programmer will run in
Delayed Start mode. The start of the next programme
may be delayed up to 45 minutes depending on the
room temperature
S (OP StAr OS): When ON, the programmer will run in
Optimum Start mode
3. Press the Next
button and press the +/– buttons to
turn OP STOP (Optimum Stop) ON/OFF.
4. Press the Next
button to enter the TPI settings. Press
+/– to choose between:-
OFF: Working under normal swing value
3 Cycles: ON/OFF one cycle is 20 minutes. This is
recommended for oil boilers
6 Cycles: ON/OFF one cycle is 10 minutes. This is
recommended for gas boilers (default setting)
5. Press the Next
button to continue to the Sensitivity/
Swing and Calibration settings below.
3. Technical settings
Page 13
13
3.2 Setting Sensitivity/Swing and Calibration
1. Switch the slider to OFF. Press and keep holding the A
and H buttons together (under the fascia), now press
the Next button and the technical settings menu will
be displayed. Release all buttons.
2. Press the Next
button until you get to the SWING
settings (5U1n9 is displayed at the bottom of the LCD
next to a flashing 0.5). Press +/– to choose between 0.5
to 2.0
3. Press the Next
button to enter the ADJ settings.
Press +/– to choose between -3 to 3 (this calibrates the
temperature).
3.3 Setting the Landlord Service & Time Events
1. Switch the slider to OFF. Press and keep holding the A
and H buttons together (under the fascia), now press
the Next button and the technical settings menu will
be displayed. Release all buttons.
2. Press the Next
button until you get to SER (service
interval) Settings. A numeric password will be required
to enter this section. The factory default password is
0000.
N.B. The screen will display Err if the incorrect password is
entered.
3. Press +/– to enter the first digit of the password. Press
the H button to move to the next digit. Repeat this until
all 4 digits have been entered.
4. Press the Next
button to enter the service interval
settings.
5. Use the +/– buttons to choose between:-
Page 14
14
OFF: Turns the service interval off
1: Reminds the user when the annual service is due by
displaying SER in the screen 30 days before due date
2: Reminds the user when the annual service is due by
displaying SER in the screen 30 days before due date
and only allows the system to run for 45 minutes per
hour after the due date has passed
3: Reminds the user when the annual service is due by
displaying SER in the screen 30 days before due date
and only allows the system to run for 30 minutes per
hour after the due date has passed
4: Reminds the user when the annual service is due by
displaying SER in the screen 30 days before due date
and only allows the system to run for 15 minutes per
hour after the due date has passed
6. Press the Next
button. Use +/– to set the due date
(from 28 - 366 days).
7. The left of the LCD screen will display the recorded
running time. Holding the C button for 2 seconds will
zero to the time.
8. To change the code, go to the Due Date setting (in SER
settings), press the A button for 2 seconds. NEU CODE
will appear at the bottom of the LCD display. Press
+/– to set the first digit, then press the H button. Repeat
this for all four digits. Press the A button for 2 seconds
again to set the new code. The screen will display SET
to confirm the change.
9. The system will start timing after the thermostat is
powered on (Running Time). When the running time
reaches 30 days from the Due Date, the screen will
display SER. When the running time is more than or
Page 15
15
equal to the Due Date, the screen will display SER
constantly and the system ON time will be controlled by
the SER SET.
N.B. When the system is running to the ON condition, but is
limited by the SER SET (and therefore cannot be ON),
the screen will flash the ON symbol.
10. Press Next
to enter the PROGRAMMES setting,
press +/– to choose either 4 or 6 time temperature
events per day.
11. To exit the installer setting press the
Home button.
3.4 Lockout Feature:
The RTP4 and RTP4RF comes with a lockout feature which
enables the installer to disable certain functions of the
thermostat to a complete lockdown depending on the mode
selected.
3.5 Setting the Installer lockout mode
1. Follow steps 1 to 4 above
2. Press the Next
button to enter the installer lock
settings.
3. Use the +/– buttons to choose between: -
Default Setting 1
This mode works as a standard Programmable Room
Thermostat.
Partial Lockout 2
This mode allows the installer to set the Maximum
temperature Setpoint (factory default 21°c), and allows
the end user to adjust all other settings apart from
maximum temperature set point.
Page 16
16
Partial Lockout 3
This mode allows the installer to set the Maximum
temperature Setpoint (factory default 21°c), and locks
all keys/slider except, to change the time and date, off
(frost protection) and allow temporary manual override
(temperature Up/Down arrows).
Partial Lockout 4
This mode allows the installer to set the Maximum
temperature Setpoint (factory default 21°c), and locks
all keys/slider except from off (frost protection) and
allow temporary manual override (temperature Up/
Down arrows).
Full Lockout 5
This mode locks all keys/slider. The End user cannot
adjust anything.
4. To exit the Installer Menu, press the Home Button.
N.B. *Temperature can be adjusted up to the installer
set limits.
Number
Time /
Date
Program
Permanent
Manual
Override
Temp
Manual
Override
All Day Holiday
1
✓ ✓ ✓ ✓ ✓ ✓
2
✓ ✓
✓* ✓* ✓* ✓*
3
✓ ✗ ✗
✓*
✗ ✗
4
✗ ✗ ✗
✓*
✗ ✗
5
✗ ✗ ✗ ✗ ✗ ✗
Page 17
17
Page 18
18
Page 19
19
WARNING: Interference with sealed parts renders the
guarantee void.
In the interests of continuous product improvement we reserve
the right to alter designs, specifications and materials without
prior notice and cannot accept liability for errors.
We are continuously developing our products to
bring you the very latest in energy saving technology
and simplicity. However, should you have any questions
setting up your controls please email us at sales@
esicontrols.co.uk or for technical queries call us on our
dedicated technical helpline 07539 117468.
Page 20
Version 6.10.1
Loading...
