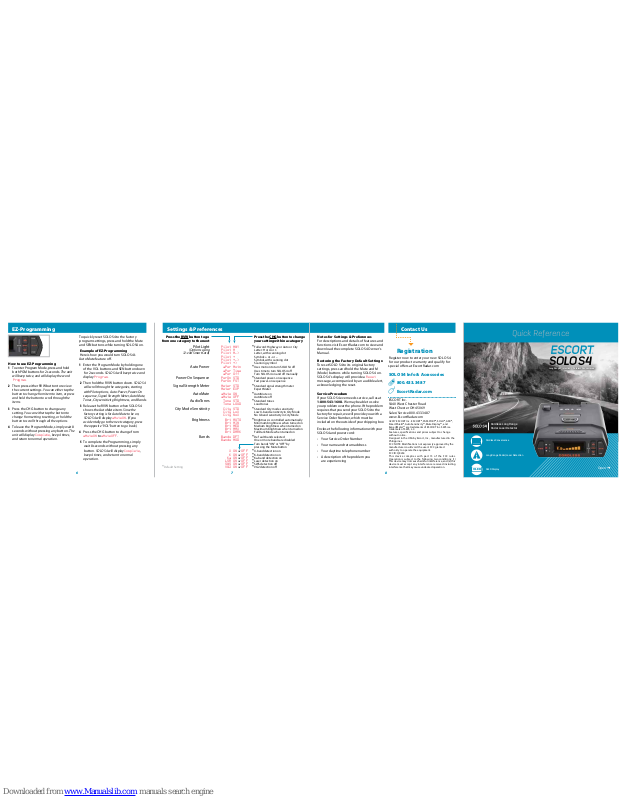

Escort SOLO S4 Quick Reference
RADAR•LASER•SAFETY•DETECTO
Cordless Long Range
Radar Laser Detector
Cordless Convenience
Long Range Radar/Laser Detection
OLED Display
OLED
Long Range Protection + Cordless Convenience
Contact Us
Registration
Register now to enter your new SOLO S4
for our product warrant y and qualify for
special oers at EscortRadar.com
SOLO S4 Info & Accessories
80 0.433.3487
EscortRadar.com
ESCORT In c.
5440 West Chester Road
West Chester OH 45069
Sales/Service 800.433.3 487
www.EscortRadar.com
©2017 ESCORT Inc. ESCORT®, PASSPORT®, SOLO®, AFR®,
SmartShield®, AutoSen sitivity™, MuteDi splay™, and
ExpertMeter™ a re trademarks of E SCORT Inc. SWS is a
trademark of SWS, L. C.
Features, specic ations and prices subj ect to change
without notice.
Designed in the USA by Es cort, Inc., manu factured in the
Philippines.
FCC NOTE: Modication s not expressly app roved by the
manufacturer coul d void the user’s FCC grant ed
authority to oper ate the equipment.
FCC ID: QKLS4
This device complies w ith part 15 of the FCC rules.
Operation is subjec t to the following two conditions: (1)
This device may not cause h armful inter ference, and (2) this
device must accept any interference received including
interference that may cause undesired operation.
6 8
Settings & Preferences
Press the RVW button to go Press the CHG button to change
from one category to the next your setting within a category
Pilot Light Pilot HWY * Full word: Highway or Auto or City
(Options using Pilot H Letter: H or A or C
12-volt SmartCord) Pilot H.> Letter, with scanning dot
Pilot + Symbol: + or
•
or –
Pilot +.> Symbol, with scanning dot
Pilot +> Scanning symbol
Auto Power aPwr Motn * Uses motion to turn SOLO S4 o
aPwr Time Uses time to turn SOLO S4 o
aPwr Off Turn SOLO S4 on and o manually
Power-On Sequence
PwrOn STD * Standard power-on sequence
PwrOn FST Fast power-on sequence
Signal Strength Meter
Meter STD * Standard signal strength meter
Meter EXP Expert M eter
AutoMute
aMute ON * AutoMute on
aMute OFF AutoMute o
AudioTones
Tone STD * Standard tones
Tone LOUD Loud tones
City Mode Sensitivity
City STD * Standard City mode sensitivity
City LoX Low X-band sensitivity in City Mode
City NoX No X-band sensitivity in City Mode
Brightness
Brt AUTO * Brightness is controlled automatically
Brt MIN Minimum brightness when turned on
Brt MED Medium brightness when turned on
Brt MAX Maximum brightness when turned on
Brt DARK Full Dark Mode when turned on
Bands
Bands DFT * Def ault bands selected
Bands MOD One or more bands are disabled
Turn bands “ON” or “OFF” by
pressing the Mute button
X ON or OFF * X-band detection on
K ON or OFF * K-band detection on
Ka ON or OFF * Ka-band detection on
LSR ON or OFF * Laser detection on
SWS ON or OFF * SWS detection o
VG2 ON or OFF * VG2 detection o
EZ-Programming
How to use EZ-Programming
1 To enter Program Mode, press and hold
both PGM buttons for 2 seconds. The unit
will beep twice, and will display the word
Program.
2 Then press either RVW b utton to review
the current settings. You can either ta p the
button to change from item to item, or press
and hold the button to scroll through the
items.
3 Press the CHG button to change any
setting. You can either tap the button to
change from setting to setting, or hold the
button to scroll through all the options.
4 To leave the Program Mode, simply wait 8
seconds without pressing any button. The
unit will display Com plete, beep 4 times,
and return to normal operation.
To quickly reset SOLO S4 to the factory
program settings, press and h old the Mute
and SEN buttons while turning SOLO S4 on .
Example of EZ-Programming
Here is how you would turn SOLO S4’s
AutoMute feature o.
1 Enter the Program Mode by h olding one
of the VOL buttons and SEN button down
for 2 seconds. SOLO S4 will beep twice and
display Program.
2 Then hold the RV W button down. SOLO S 4
will scroll through the categories, starting
with Pilot options, Auto-Power, Power-On
sequence, Signal Strength Meter, AutoMute,
Tones, City sensitivity, Brightness, and Bands.
3 Release the RVW b utton when SOLO S4
shows the AutoMute item. Since the
factory setting is for AutoMute to be on,
SOLO S4 will display aMuteON. (If you
accidentally go to the next category, press
the opposite “VOL” button to go back.)
4 Press the CHG but ton to change from
aMuteON to aMuteOFF.
5 To complete the Programming, simpl y
wait 8 seconds without pressing any
button. SOLO S4 will display Complet e,
beep 4 times, and return to normal
operation.
*Default Setting
7
Open ➜
Notes for Settings & Preferences
For descriptions and details of feat ures and
functions visit EscortR adar.com to view and
download the complete SOLO S4 Ow ner’s
Manual.
Restoring the Fact ory Default Set tings:
To reset SOLO S4 to its original factor y
settings, press and hold the M ute and M
(Mode) buttons while turning SOLO S4 o n.
SOLO S4’s display will provide a Reset
message, accompanied by an audibl e alert,
acknowledging the reset.
Service Procedure
If your SOLO S4 ever needs servi ce, call us at
1-800-543-1608. We may be able to solve
your problem over the phone. If the problem
requires that you send your SOLO S4 to the
factory for repair, we will provide yo u with a
Service Order Number, which must b e
included on the outside of your ship ping box.
Enclose the following information with your
SOLO S4 and power cord:
• Your Service Order Number
• Your name and return address
• Your daytime telephone number
• A description of the problem you
are experiencing
Quick Reference
Congratulations
The SOLO S4 introduces a new level of
revolutionary cordless performance
and innovative features:
• Long-range cordless
performance for both
radar and laser
• AutoPower feature maximizes
batter y life
• Brilliant high-resolution OLED
display
• Advanced EZ-Programming lets you
customize up to 9 featu res
• Exclusive AutoSensitivity mode
virtually e liminates false alarms, plus
Highway and City s ettings
• ExpertMeter tracks and displays up to
8 radar signals simultaneously
• Detects and displays up to 64 Safety
Warning System messag es
Continued ➜
SOLO S4 Features
2
Your n ew
SOLO S4 is
the most advanced cordless radar, laser and
safety detector availab le.
The SOLO S4 includes full X, K, Su perWide Ka,
and Safety Warning System radar cap ability,
front and rear laser detection , digital signal
processing (DSP) for superior range and
reduced false alarms, our patented M ute and
AutoMute, audible and visual band aler ts,
and all the performance you’d expe ct from
ESCO RT.
Go to EscortRadar.com/manuals for full
featured owner’s manual.
Please drive safely.
Windshield Mount
SOLO S4’s EasyMount windshield bracket is
designed for unobtrusive and hassle-free
mounting.
SOLO S4 Mounting Loca tion
WARNING: ESCORT canno t anticipate th e
many ways SOLO S4 can be moun ted. It is
important that yo u mount SOLO S4 where i t
will not impair you r view nor present a
hazard in case of an accident.
For optimum detection performance, we
recommend the following:
•
Using the supplied Windshield Mount, stick
the suction cups to the windshield, a nd
mount your SOLO S4 level and high enough
on your front windshield to provide a clea r
view of the road ahead.
•
Mount SOLO S4 away from windshield
wipers, other solid objec ts, and heavily
tinted areas that might obstruct the r adar
antenna or laser lens.
3 4 5
Radar Antenna and Laser Lens
The rear panel of your SOLO S4 should have a
clear view of the road ahead. For bes t
performance, do not mount SOLO S4
directly behind windshield wipers
or tinted areas.
Graphic OLED Display
During an alert, the display will tu rn on and
indicate radar band, and a precise ba r-graph
of signal strength. Programming o ptions and
SWS messages are also displayed.
NOTE: When using SOLO S4 in battery mode,
the display will turn o automatically until a
signal is detected, or you enter program mode.
This maximizes battery life. When using the
optional 12-volt SmartCord, the display will
remain on and provide several pilot options for
power-on indication.
12-volt Power Jack
For 12-volt operation, plug the optional
SmartCord into this connector.
Mute / Battery Sta tus Button
Briey press this button (loc ated on top) to
silence the audio for a specic aler t.
Ear Phone Jack
A standard 1/8 inch (or 3.5 mm) earphone
jack is located on the right front side of th e
SOLO S4.
SEN Button
Switches sensitivity bet ween Highway,
AutoSensitivity, and City settin gs. In general,
we recommend the AutoSensitivity mode.
Volume Control
Press the up or down button to adjust the
volume.
EZ-Programming
SOLO S4 is ready to go, just plug it in and
turn it on. If you prefer, you can also easily
customize up to 9 features for your speci c
driving preferences.
AutoMute
SOLO S4’s patented AutoMute automatically
reduces the volume level of the audio aler t
after a brief period.
If you prefer, you can turn AutoMute o.
EasyMount Slot
Insert SOLO S4’s adjustable Windshi eld
mount into this slot.
EasyRelease Button
Press the release button, and slide t he
Windshield mount into one of its four l ocking
positions.
Rear Laser Port
Receives laser signals from behin d the vehicle.
Power-On Indication
Three LED's (green, yellow, red) mounted
between the PWR button an d the display,
indicate power (blinking in bat tery mode,
solid when optional 12-volt power cord is
used). These also indicate the sensiti vity
mode that the unit is in,( "H" for highway, "A"
for AutoSensitivity, and "C" for city).
PWR
Press the PWR button to turn SOLO S4 on.
Press and hold the PWR button to turn SO LO
S4 o.
AutoPwr Feature
The SOLO S4 will automatically shut o
once the vehicle has
stopped moving for
approximately
25 minutes.
Controls & Features Installation
1 Depress the adjus tment button on the top
of SOLO S4 (above the word “RELEASE”) and
slide the EasyMount bracket into the sl ot
until mount is locked into the position whic h
best ts the angle of your windshie ld (there
are four settings available). For extremely
horizontal or extremely sloped windshields,
the EasyMount bracket can be be nt.
To ensure that the suction cups adhere to the
windshield rmly, be sure to keep both your
windshield and the suction cups clean.
2 To adjust SOLO S4 on your windshield, use
the EasyMount adjustment but ton located
on the top of the SOLO S4, and slide SOLO S4
forward or backward to obt ain a level
horizontal position.
When installed and adjusted pro perly, the
back top edge of the SOLO S4 should rest
solidly against your windshield.
User’s Tip: You can leave the EasyMount
bracket in place on your windshield, and
easily remove SOLO S4 by pressing the
adjustment button and sliding SO LO S4 o
the mount. Again, be sure to position the
bracket where it won't present a haz ard in
the event of an accident. Additional mount s
are available at EscortRadar.com.
Battery Installation
Remove the battery door, locate d on the
bottom of the detector, and install (2) AA
batteries (supplied). Be sure to note the
correct polarity for ea ch battery
(See legends inside battery compartment).
Optional 12-volt SmartCord
To power SOLO S4 using 12-volts, simply
remove the power connector plug, and
insert the small end of the optiona l
SmartCord, (telephone-type connector) into
the modular jack on SOLO S4’s right side.
Plug the lighter plug adapter into your
vehicle’s lighter socket or accessory socket.
The SmartCord allows you to oper ate the
SOLO S4 on 12 volts DC negative ground only.
The lighter plug is a standard size and w ill
work in most vehicles. Of course,
your lighter socket must be clean
and properly connected for proper
operation.
NOTE: Depending on your vehicle the power
socket may either be continuously on, or it may
be switched on and off with your ignition switch.
C
o
r
d
l
e
s
s
Loading...
