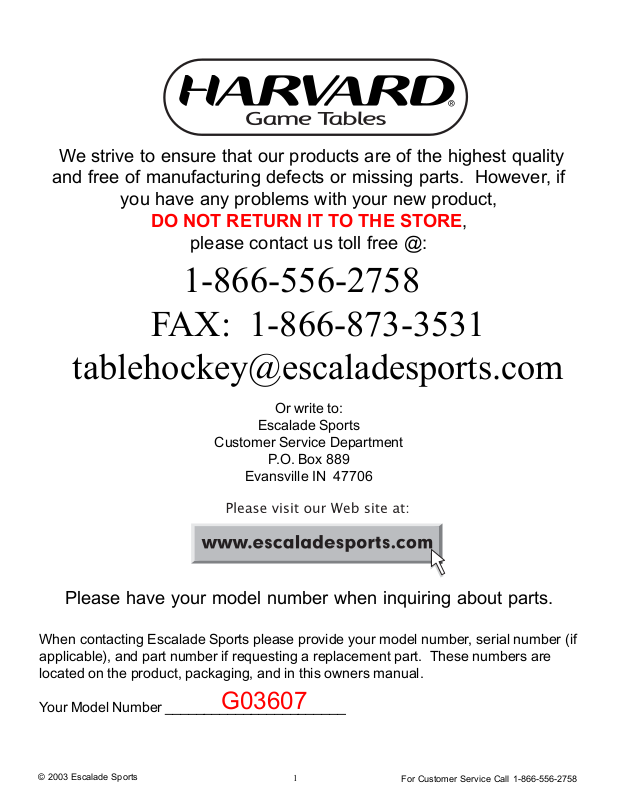

Escalade Sports G03607 User Manual
We strive to ensure that our products are of the highest quality
and free of manufacturing defects or missing parts. However, if
you have any problems with your new product,
DO NOT RETURN IT TO THE STORE,
please contact us toll free @:
1-866-556-2758
FAX: 1-866-873-3531
tablehockey@escaladesports.com
Or write to:
Escalade Sports
Customer Service Department
P.O. Box 889
Evansville IN 47706
Please have your model number when inquiring about parts.
When contacting Escalade Sports please provide your model number, serial number (if
applicable), and part number if requesting a replacement part. These numbers are
located on the product, packaging, and in this owners manual.
Your Model Number _______________________
© 2003 Escalade Sports
G03607
1
For Customer Service Call 1-866-556-2758
IMPORTANT! READ THIS MANUAL ALL THE
WAY THROUGH BEFORE BEGINNING TO
PUT YOUR GAME TABLE TOGETHER! THEN
READ EACH STEP BEFORE STARTING
THAT STEP.
TWO ADULTS ARE REQUIRED TO ASSEMBLE
THIS GAME TABLE
Tools Required:
Allen Wrench H4 Included with the Accessory Kit
Philips Screwdriver
Furniture Polish and Cloth
An electric screwdriver is helpful in assembly. However, please set at low torque and use
extreme caution with an electric screwdriver because you could overtighten the hardware
and strip the screws.
Assembly Tips
Make sure you understand the following tips before you begin to assemble your soccer table.
1. When installing parts that have more than one bolt, start ALL the bolts in that part by
hand before tightening anything.
2. Some drawings or images in this manual may not look exactly like your product. Please
read and understand the text before starting each assembly step.
READ AND FOLLOW ALL ASSEMBLY, OPERATION, AND
SAFETY INSTRUCTIONS CAREFULLY. AT LEAST TWO
ADULTS ARE NEEDED TO PUT THIS GAME TABLE
TOGETHER.
© 2003 Escalade Sports
2
For Customer Service Call 1-866-556-2758
© 2003 Escalade Sports
3
For Customer Service Call 1-866-556-2758
1. Find a clean, level place to begin the assembly of your hockey table. We
recommend building the table on the box top to protect the parts during
assembly. Place the main cabinet P1 on the ground with the playing surface
facing down.
Dessous
Meuble
P1
2. Using the Allen Wrench provided H4, attach the legs P2 and P3 to the main
cabinet P1 using bolts H1 and washers H2 as shown in FIGURE 1.
Leave the hardware HANDTIGHT at this point. Repeat this step for all four
legs.
CAUTION:
DO NOT TIGHTEN LEG
HARDWARE AT THIS
TIME.
Figure 1
© 2003 Escalade Sports
4
For Customer Service Call 1-866-556-2758
3. Attach the end panels P4 to the inside of the legs using screws H3 as
shown in FIGURE 2. Make sure to center the panel and have it towards
the bottom of the legs as shown.
Figure 2
MAIN CABINET NOT SHOWN
4. Tighten all hardware at this time.
THIS STEP REQUIRES TWO OR MORE ADULTS.
VERY CAREFULLY TURN THE TABLE OVER AND SET IT ON
ITS LEGS. BE CAREFUL, THE TABLE IS VERY HEAVY.
FOR CLARITY.
© 2003 Escalade Sports
5
For Customer Service Call 1-866-556-2758
5. After you have turned to the table over to its upright position attach the
puck catchers P5 using screws H3 as shown in FIGURE 3.
Figure 3
7. After you have attached the puck catcher set the table where you want it
in your Game Room. Plug the cord into a suitable 120v household outlet
and turn the motor on by turning the switch that is built into the cord.
© 2003 Escalade Sports
