INSTRUCTIONS for
F-12-218-G
August, 1995
ST-21
MIG WELDING TORCH
These INSTRUCTIONS are for experienced operators. If you are not fully familiar with the principles of operation and safe practices for arc welding equipment, we urge you to read our booklet, “Precautions and Safe Practices for Arc Welding, Cutting, and
Gouging” Form 52-529. Do NOT permit untrained persons to install, operate, or maintain this equipment. Do NOT attempt to install
or operate this equipment until you have read and fully understand these instructions. If you do not fully understand these
instructions, contact your supplier for further information. Be sure to read the Safety Precautions on page 2 before installing or
operating this equipment.
I. INTRODUCTION
The ST-21 (Part No . 995950) is a rugged all purpose,
water-cooled, manual mig welding torch designed to
operate at welding currents up to 600 amperes continuous duty using all types of shielding gases. The torch
utilizes a pistol grip design for convenient start-stop welding control and easy handling, and its in-line type construction allows all service lines to enter through the torch
barrel.
The ST-21 is intended for use with ESAB wire feeders
which have provision for water cooling and will handle
all types of welding wires from .035-in. diameter through
7/64-in. diameter including flux cored wires.
II. DESCRIPTION
T o provide maximum resist ance to the abuses of day to
day service, the torch is of heavy duty construction with
all metal parts welI insulated from current carrying mem-
F-12-218-G
bers. The in-line body and adjustable pistol grip handle
allows the ST-21 to be used in a variety of applications
with easy maneuverability and comfortable operation.
The torch handle is easy to reposition along the barrel
to satisfy operator preference, and a trigger lock incorporated in the grip enables the operator to lock the trigger in a depressed position during long welds.
To facilitate maneuverability , all service lines are internally connected to the torch body and exit from the rear
of the torch barrel.
The torch can use either threaded contact tips (long or
short) or slip-in contact tubes which are secured with a
collet nut supplied with the torch (see T able 2). The contact tube can be quickly and easily replaced by unscrewing the metal nozzle and collet nut, and removing the
tube. Five metal nozzles are available for use with the
ST-21; four for continuous fusion welding, and one for
spot welding applications. Nozzle sizes 8 and 10, require a spatter liner . The water-cooling requirements for
the ST-21 are described in Section V.
III. ACCESSORY EQUIPMENT
A. REQUIRED
The ST-21 requires a nozzle (see Table 1), nozzle spatter liner, and several wire feed accessories of the proper
size for the wire being used. (These accessories are
listed in Table 2.) One other accessory whose selection
depends upon wire size is the feedroll on the wire feeder
itself. Selection of this accessory is covered in the appropriate wire feeder instruction booklet.
Table 1- Nozzles
Description Part No.
No. 8 Nozzle* ...................................... P/N 598739
No. 10 Nozzle*..................................... P/N 598721
No. 12 Nozzle......................................P/N 633985
No. 12M Med. Length Nozzle ..............P/N 997310
No. 12 Spot W elding Nozzle................P/N 993757
* Requires Spatter Liner, P/N 633603.
Be sure this information reaches the operator.
Y ou can get extra copies through your supplier.
SAFETY PRECAUTIONS
WARNING: These Safety Precautions are for
your protection. They summarize precautionary information from the references listed in
Additional Safety Information section. Before
performing any installation or operating procedures, be
sure to read and follow the safety precautions listed below
as well as all other manuals, material safety data sheets,
labels, etc. Failure to observe Safety Precautions can result
in injury or death.
PROTECT YOURSELF AND OTHERS --
Some welding, cutting, and gouging
processes are noisy and require ear
protection. The arc, like the sun, emits
ultraviolet (UV) and other radiation and
can injure skin and eyes. Hot metal can cause burns.
Training in the proper use of the processes and equipment is essential to prevent accidents. Therefore:
1. Always wear safety glasses with side shields in any work
area, even if welding helmets, face shields, and goggles
are also required.
2. Use a face shield fitted with the correct filter and cover
plates to protect your eyes, face, neck, and ears from
sparks and rays of the arc when operating or observing
operations. Warn bystanders not to watch the arc and
not to expose themselves to the rays of the electric-arc
or hot metal.
3. Wear flameproof gauntlet type gloves, heavy long-sleeve
shirt, cuffless trousers, high-topped shoes, and a welding helmet or cap for hair protection, to protect against
arc rays and hot sparks or hot metal. A flameproof apron
may also be desirable as protection against radiated
heat and sparks.
4. Hot sparks or metal can lodge in rolled up sleeves,
trouser cuffs, or pockets. Sleeves and collars should be
kept buttoned, and open pockets eliminated from the
front of clothing
5. Protect other personnel from arc rays and hot sparks
with a suitable non-flammable partition or curtains.
6. Use goggles over safety glasses when chipping slag or
grinding. Chipped slag may be hot and can fly far.
Bystanders should also wear goggles over safety glasses.
FIRES AND EXPLOSIONS -- Heat from
flames and arcs can start fires. Hot slag
or sparks can also cause fires and explosions. Therefore:
1. Remove all combustible materials well away from the
work area or cover the materials with a protective nonflammable covering. Combustible materials include wood,
cloth, sawdust, liquid and gas fuels, solvents, paints and
coatings, paper, etc.
2. Hot sparks or hot metal can fall through cracks or
crevices in floors or wall openings and cause a hidden
smoldering fire or fires on the floor below. Make certain
that such openings are protected from hot sparks and
metal.“
3. Do not weld, cut or perform other hot work until the
workpiece has been completely cleaned so that there
are no substances on the workpiece which might produce flammable or toxic vapors. Do not do hot work on
closed containers. They may explode.
4. Have fire extinguishing equipment handy for instant use,
such as a garden hose, water pail, sand bucket, or
portable fire extinguisher. Be sure you are trained in its
use.
5. Do not use equipment beyond its ratings. For example,
overloaded welding cable can overheat and create a fire
hazard.
6. After completing operations, inspect the work area to
make certain there are no hot sparks or hot metal which
could cause a later fire. Use fire watchers when necessary.
7. For additional information, refer to NFPA Standard 51B,
"Fire Prevention in Use of Cutting and Welding Processes", available from the National Fire Protection Association, Batterymarch Park, Quincy, MA 02269.
ELECTRICAL SHOCK -- Contact with live
electrical parts and ground can cause
severe injury or death. DO NOT use AC
welding current in damp areas, if movement is confined, or if there is danger of
falling.
1. Be sure the power source frame (chassis) is connected
to the ground system of the input power.
2. Connect the workpiece to a good electrical ground.
3. Connect the work cable to the workpiece. A poor or
missing connection can expose you or others to a fatal
shock.
4. Use well-maintained equipment. Replace worn or damaged cables.
5. Keep everything dry, including clothing, work area, cables,
torch/electrode holder, and power source.
6. Make sure that all parts of your body are insulated from
work and from ground.
7. Do not stand directly on metal or the earth while working
in tight quarters or a damp area; stand on dry boards or
an insulating platform and wear rubber-soled shoes.
8. Put on dry, hole-free gloves before turning on the power.
9. Turn off the power before removing your gloves.
10. Refer to ANSI/ASC Standard Z49.1 (listed on next page)
for specific grounding recommendations. Do not mistake the work lead for a ground cable.
ELECTRIC AND MAGNETIC FIELDS —
May be dangerous. Electric current flowing through any conductor causes localized Electric and Magnetic Fields
(EMF). Welding and cutting current creates EMF around welding cables and
welding machines. Therefore:
1. Welders having pacemakers should consult their physician before welding. EMF may interfere with some pacemakers.
2. Exposure to EMF may have other health effects which are
unknown.
3. Welders should use the following procedures to minimize
exposure to EMF:
A. Route the electrode and work cables together. Secure
them with tape when possible.
B. Never coil the torch or work cable around your body.
C. Do not place your body between the torch and work
cables. Route cables on the same side of your body.
D. Connect the work cable to the workpiece as close as
possible to the area being welded.
E. Keep welding power source and cables as far away
from your body as possible.
2
10/98
FUMES AND GASES -- Fumes and
gases, can cause discomfort or harm,
particularly in confined spaces. Do
not breathe fumes and gases. Shielding gases can cause asphyxiation.
Therefore:
1. Always provide adequate ventilation in the work area by
natural or mechanical means. Do not weld, cut, or gouge
on materials such as galvanized steel, stainless steel,
copper, zinc, lead, beryllium, or cadmium unless positive mechanical ventilation is provided. Do not breathe
fumes from these materials.
2. Do not operate near degreasing and spraying operations. The heat or arc rays can react with chlorinated
hydrocarbon vapors to form phosgene, a highly toxic
gas, and other irritant gases.
3. If you develop momentary eye, nose, or throat irritation
while operating, this is an indication that ventilation is not
adequate. Stop work and take necessary steps to improve ventilation in the work area. Do not continue to
operate if physical discomfort persists.
4. Refer to ANSI/ASC Standard Z49.1 (see listing below)
for specific ventilation recommendations.
5. WARNING: This product, when used for welding or
cutting, produces fumes or gases which
contain chemicals known to the State of
California to cause birth defects and, in
some cases, cancer. (California Health &
Safety Code
CYLINDER HANDLING -- Cylinders, if
mishandled, can rupture and violently
release gas. Sudden rupture of cylinder, valve, or relief device can injure or
kill. Therefore:
1. Use the proper gas for the process and use the proper
pressure reducing regulator designed to operate from
the compressed gas cylinder. Do not use adaptors.
Maintain hoses and fittings in good condition. Follow
manufacturer's operating instructions for mounting regulator to a compressed gas cylinder.
2. Always secure cylinders in an upright position by chain
or strap to suitable hand trucks, undercarriages, benches,
walls, post, or racks. Never secure cylinders to work
tables or fixtures where they may become part of an
electrical circuit.
3. When not in use, keep cylinder valves closed. Have
valve protection cap in place if regulator is not connected. Secure and move cylinders by using suitable
hand trucks. Avoid rough handling of cylinders.
4. Locate cylinders away from heat, sparks, and flames.
Never strike an arc on a cylinder.
5. For additional information, refer to CGA Standard P-1,
"Precautions for Safe Handling of Compressed Gases in
Cylinders", which is available from Compressed Gas
Association, 1235 Jefferson Davis Highway, Arlington,
VA 22202.
§25249.5 et seq.)
EQUIPMENT MAINTENANCE -- Faulty or
improperly maintained equipment can
cause injury or death. Therefore:
1. Always have qualified personnel perform the installation, troubleshooting, and maintenance work. Do not
perform any electrical work unless you are qualified to
perform such work.
2. Before performing any maintenance work inside a power
source, disconnect the power source from the incoming
electrical power.
3. Maintain cables, grounding wire, connections, power
cord, and power supply in safe working order. Do not
operate any equipment in faulty condition.
4. Do not abuse any equipment or accessories. Keep
equipment away from heat sources such as furnaces,
wet conditions such as water puddles, oil or grease,
corrosive atmospheres and inclement weather.
5. Keep all safety devices and cabinet covers in position
and in good repair.
6. Use equipment only for its intended purpose. Do not
modify it in any manner.
ADDITIONAL SAFETY INFORMATION -- For
more information on safe practices for electric arc welding and cutting equipment, ask
your supplier for a copy of "Precautions and
Safe Practices for Arc Welding, Cutting and
Gouging", Form 52-529.
The following publications, which are available from the
American Welding Society, 550 N.W. LeJuene Road, Miami, FL 33126, are recommended to you:
1. ANSI/ASC Z49.1 - "Safety in Welding and Cutting"
2. AWS C5.1 - "Recommended Practices for Plasma Arc
Welding"
3. AWS C5.2 - "Recommended Practices for Plasma Arc
Cutting"
4. AWS C5.3 - "Recommended Practices for Air Carbon
Arc Gouging and Cutting"
5. AWS C5.5 - "Recommended Practices for Gas Tungsten Arc Welding“
6. AWS C5.6 - "Recommended Practices for Gas Metal Arc
Welding"“
7. AWS SP - "Safe Practices" - Reprint, Welding Handbook.
8. ANSI/AWS F4.1, "Recommended Safe Practices for
Welding and Cutting of Containers That Have Held
Hazardous Substances."
MEANING OF SYMBOLS - As used throughout this manual: Means Attention! Be Alert!
Your safety is involved.
Means immediate hazards which, if
not avoided, will result in immediate,
serious personal injury or loss of life.
Means potential hazards which could
result in personal injury or loss of life.
Means hazards which could result in
minor personal injury.
3
SP98-10
B. OPTIONAL
tering bushing. The wrench employs a stop-pin to
assure proper position of contact tube when tighten-
1. Zippered Hose Sheath, Part No. 41V98 - Reduces
ing the collet nut.
abrasive wear of the cables and eliminates the need
for taping the service lines together .
IV . INST ALLA TION
2. Centering Bushing, Part No. 994330 (for use with
No. 8 and No. 10 nozzles) - Eliminates any possibility
A. WIRE FEED ACCESSORIES
of spatter bridging in the torch. This is accomplished
by using this one-piece centering and spatter liner in
place of the two individual pieces normally used. Note
Select the wire size and type. Refer to T able 2 and Fig. 1
and install the proper wire feed components as follows:
that it can only be used at maximum currents of 350
amps with argon or 550 amps with carbon dioxide.
1. Insert the jumper liner through the rear of the torch
barrel and as far into the brass conduit connection
3. Collet Nut Wrench, Part No. 996109 - Permits loos-
fitting (see Figure 2) as it will go.
ening of the collet nut without removing nozzle. Particularly recommended when using the above cen-
Table 2 - ST-21 Wire Feed Accessories
Wire
Contact Contact Tip Self-Lined Outlet Guide Outlet
Wire Wire Tube (Threaded) Jumper Conduit MIG-35, Guide
Type Size (Slip-ln) Long Short Liner 10-ft.x(1.D.) DIGIMIG Insert
Hard 0.030 — 20123 632791 996413 633455 993860u —
0.035 996104 632794 632793 996413 633455 (.063) 993860u —
0.045 996105 632796 632795 995951 633456 (.093) 39N15n —
0.052 996816 948335 948308 995951 633456 (.093) 39N15n —
1/16 996106 632798 632797 995951 598922 (.195) 39N15n —
3/32 996108 — 632800 995952 598922 (.195) 62N17l —
Cored* 0.045 996105 — 632795 995951 633456 (.093) 39N15n —
0.052 996816 — 948308 995951 633456 (.093) 39N15n —
1/16 996106 — 632797 995951 598806 (.140) 39N15n —
5/64 996107 — 632799 995952 598806 (.140) 62N17l —
3/32 996108 — 632800 995952 598922 (.195) 62N17l —
7/64 — — 633611 — 598922 (.195) 39N16 —
Soft 0.035 996104 632794 632793 996414‡ 633578 (.060) 29N13 993902
3/64 996105 632796 632795 995953 633578 (.060) 29N13 05N57
1/16 996106 632798 632797 995953 634777 (.093) 29N13 12N75
3/32 996108 — 633611 995954 46V68 (.128) 29N13 05N58
* Use No. 12M Nozzle (997310) for proper setback. u Includes replacement sleeve (995651).
‡ Requires spring support liner P/N 996415. n Includes replacement sleeve (995692).
l Includes replacementsleeve (995693).
JUMPER LINER (SPRING)
for all Hard and Cored Wire
JUMPER LINER
(PLASTIC)
CONDUIT
CONDUIT
SIZE & TYPE
WIRE USED
HARD
and
CORED
SOFT
OUTLET GUIDE ASSEMBLY FOR
MIG-35, DIGIMIG
CONDUIT
METAL
CONDUIT
PLASTIC
Fig. 1 - ST-21 Wire Feed Accessory Installation
4
WIRE OUTLET GUIDE
GUIDE INSERT
WIRE OUTLET GUIDE
2. Insert the bayonet (torch) end of the conduit through
the rear of the torch barrel and into the conduit connection fitting. As the conduit is inserted it will fully
seat the jumper liner.
3. Referring to Figure 2, loosen the two No. 10-32 screws
on locking nut (598787), slide barrel back, and then
lock the conduit in place by tightening the No. 10-32in. setscrew on the conduit connection fitting. Reassemble barrel to locking nut and tighten setscrews.
4. Assemble the wire outlet guide, as illustrated in Figure 1, and screw the guide into the driver (wire feeder)
end of the conduit.
5. Secure the outlet guide in the front clamp of the accessory support assembly on the wire feeder (refer
to wire feeder instruction booklet).
6. With the nozzle and contact tube removed and wire
in the wire feeder feed rolls, use the inching switch
on the wire feeder to feed wire through the conduit
and torch until it protrudes from the torch.
7. Select the correct tube or tip. If using a contact tube,
slip the contact tube (small diameter and first) over
the wire and through the collet nut (63281 1, supplied
with the torch). Tighten the collet nut firmly to hold the
contact tube in place.
If using a contact tip, the collet nut is not needed.
Remove and discard the collet nut. Slip the contact
tip over the wire and screw it into the torch.
8. Place a spatter liner (633603, if one is required) in
the proper size nozzle and install into front end of torch.
V . ADJUSTMENT AND OPERA TION
Before adjustments are made, disengage the pressure
roll to prevent wire from feeding and arcing to an accidental ground. To set the shielding as flow rate, press
the torch trigger to open the gas solenoid valve and adjust the flowmeter to the desired flow rate.
For proper operation, torch cooling water should be
maintained at an inlet temperature at 60° F. (15° C) or
less and at a flow rate of .40 gpm ( 1.5L/min ), measured at the power cable outlet hose, if the torch is to
perform at rated capacity . A torch inlet water pressure of
25 psi (172 kPa) minimum will provide adequate flow.
Make sure that inlet water pressure does not exceed 75
psi (517 kPa) which may cause damage to the hoses.
Check these water flow requirements before starting. It
is also advisable to use a water flow switch to prevent
damage to the torch and power cable in case of water
supply failure.
composition), make sure you refer to the Wire Feed
Accessories Table. The listed parts are to be used for a
particular wire. DO NOT SUBSTITUTE PARTS.
Vl. MAINTENANCE & REPLACEMENT P ARTS
If this equipment does not operate properly , stop work
immediately and investigate the cause of the malfunction. Maintenance work must performed by an experienced person, and electrical work by a trained electrician. Do not permit untrained persons to inspect, clean,
or repair this equipment. Use only recommended replacement parts.
A. POWER CABLE
If the power cable assembly becomes damaged, it is
recommended that (1) a new one be purchased, or (2)
the damaged unit be turned over to an authorized repair
station for repair . The connection fittings are crimped on
at the factory by special crimping tools to ensure strong
connections and prevent leakage. A satisfactory job
cannot be done without these tools.
B. GAS AND WA TER HOSE ASSEMBLIES
(Refer to Fig. 2)
If shielding gas (46V63) or water hose assemblies
(46V25) required replacement, loosen the two No. 10—
32 x 3/16-in. set screws on the handle locking nut and
pull back handle. To replace gas hose assembly, proceed as follows:
1. Clip off wire hose clamp (53N56) and remove hose.
2. Clean off fitting, and then brush on some 3M type
1711 adhesive (P/N 71200733-5 oz. tube) onto the
fitting.
3. Slide new wire hose clamp on the new hose and insert the hose over the grooved sealing area of the
hose fitting on the torch.
4. Using a pair of pliers, pull on the hose clamp tightly
over the grooved sealing surface and apply 1/2 twist.
Be sure to position the wire hose clamp so that the
twist does not interfere with another part or the inside
of the handle.
5. Reposition the pliers about l/8-in. from the hose and
twist an additional 1-1/2 turns.

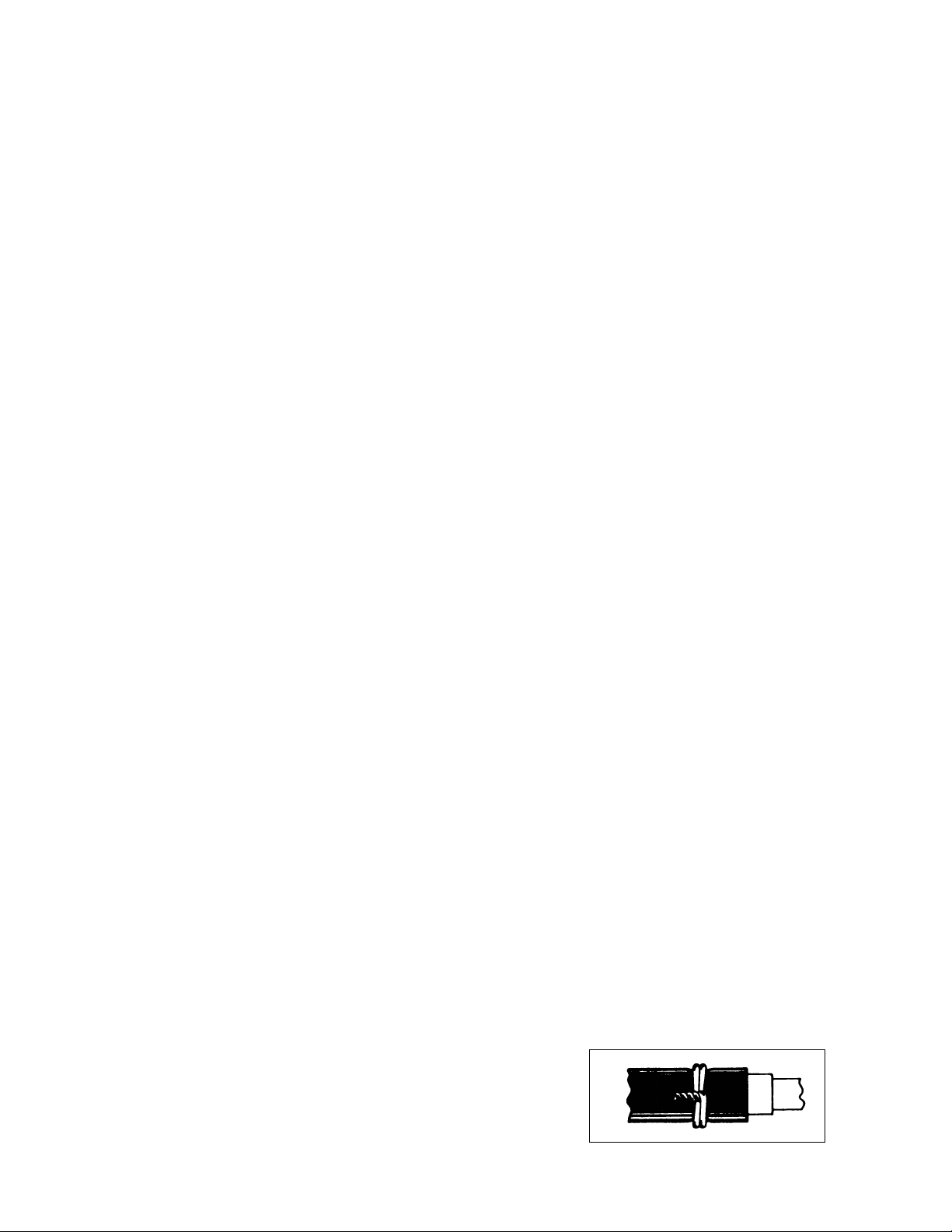

6. Snip off excess wire about l/8-in. from hose and bend
the twisted ends as shown below.
To replace the water hose assembly, proceed as follows:
Specific operation of the torch depends on the particular
wire feeder with which it is to be used. Therefore, consult the instruction booklet supplied with the wire feeder.
When changing wire (switch to one of different size and
5
1. Snip off the ear of the hose clamp by cutting into the
sides with pincers.
2. Clean off barbed fitting, and then brush on some 3M
type 1711 adhesive (P/N 71200733-5oz. tube) onto
the fitting.
3. Slide the hose clamp over the hose.
4. Push hose onto the short water connection tube of
the torch body and tube assembly . Position the hose
clamp over the grooved section of the short tube.
5. Crimp the ear of the hose clamp with pincers.
6. Rotate the hose clamp so the ear is positioned close
to the power connection tube as shown in Section “AA” of Figure 2.
service lines.
2. Remove nozzle, contact tube, and collet nut.
3. Loosen the two setscrews on locking nut (598787)
and pull back torch barrel (pistol grip attached) enough
to allow locking nut to rotate freely .
4. Unscrew the locking nut from the nozzle body
(633881).
5. Pull the nozzle body away from wire guide assembly
(20468). The centering bushing (598785) will fall free
at this point.
6. Check the gasket for cracks and deformed sealing
surfaces. When replacing the old, or installing a new
gasket, apply a thin film of Dow Corning DC111 silicone grease (73585007) or its equivalent to the O.D.
and sealing surfaces of the gasket.
C. NOZZLES
Nozzle spatter will be minimal and will wipe off easily
due to efficient nozzle cooling. If necessary , occasional
tightly adhering spatter can be removed from the inside
of nozzles with a hand reamer or file. Exercise care not
to break the insulator (spatter) liner or that spatter does
not drop back into the nozzle or contact tube. Ideally , the
nozzle should be removed for cleaning. Adherence of
spatter can be further minimized and removal mad easier
by thinly coating the inside of the nozzle with 65 Nozzle
Compound (4 oz. container - 08N65; 1 quart container 08N75). If insulator liner is damaged or cracked it should
be replaced.
D. CENTERING BUSHING (Refer to Fig. 2)
T o remove the centering bushing (17782) for inspection
or replacement, first shut off power supply and then remove nozzle, contact tube, collet nut or contact tip. Insert the centering bushing removal tool (996300, supplied with the torch) through two adjacent bushing slots
and then hook over two opposite bushing ribs. The centering bushing can then be removed by pulling the tool
straight out.
E. GASKET , INSULATOR, AND END FITTING
(Refer to Fig. 2)
T o reassemble gasket for proper seating over the pliable silicone rubber insulator (997031), pull the insulator out partially and then slide the gasket over the
insulator until the side of the gasket, that will seat
against the torch body, and the end of the insulator
are flush. Push the gasket and insulator together until the gasket is properly seated against the torch body .
7. T o remove the wire guide and fitting (996403), clamp
the torch body in a vise or use a vise-grip type pliers
on the wire guide and then unscrew the end fitting
using a 7/16-in. open-end wrench (note that the end
fitting and wire guide are connected via 1/8-in. tapered
pipe thread). Before installing a new end fitting, apply
a thin film of Dow Corning Heat Sink Compound No.
340 (73585976) to both the male and female threads.
8. Reassemble the torch in reverse order. When reassembling, tighten the locking nut hand tight, and then
tighten another 3/16 to 1/4 of a turn (approx. 125 in.lbs.) with a wrench. This should provide enough loading on gasket to prevent water and gas leakages.
F. TORCH GAS SHIELDING (Refer to Fig. 2)
Excellent gas coverage is assured by laminar gas flow
techniques and efficient cooling. Any water leakage into
the gas stream area, however slight, will disturb gas
coverage and weld quality. If gas coverage falls below
the desired level, tighten the torch locking nut a quarter
turn, purge the torch with shielding gas for a moment
and return to service. If this does not correct the condition, the entire body and tube assembly should be removed to permit cleaning the internal components of
any collected spatter particles and then reassembling.
To remove gasket (633884), insulator (997031) or wire
guide end fitting (996403) for replacement or inspection
purposes proceed as follows:
1. With power supply turned off, disconnect all torch
6
7
Hand tighten locking nut 598787; then another 3/16 to 1/4 turn
with a wrench (approx. 125-in. - lbs).
SUPPLIED
CENTERING BUSHING
REMOVAL TOOL
996300
Fig. 2 - ST-21 (Series A) Torch, Part No. 995950
COVER - 2062337
(Opt. Acc’y.)
SWITCH CORD ASSEM. -
INCLUDES
PLUG - 2062336
(2) LUG - 98W39
GROMMET - 36N05
BLACK LEAD
* IF TRIGGER BEGINS TO
BIND, LUBRICATE TRIGGER
PIN WITH ANTI-FRICTION
COMPOUND - 163Z25
996269
"A"
RED LEAD
SCREW - 6130 - 7900
Fig. 3 - Pistol Grip Assembly, Part No. 996268
NUT - 6329-6916
(#10 - 24)
(4) SCREW - 6130 - 7900 (#10-24 x 3/4")
SCREW - 6130 - 3904 (#10-24 x 3/4")
PIN - 6239 - 9997 (7/64" DIA. x 1/2")
*TRIGGER - 59N96
SPRING - 85W09
"A"
SWITCH - 85W08
(2) PIN - 6239 - 9997
(7/64" DIA. x 1/2")
SCREW - 6130 - 3733
(#10-24 x 7/8")
NOTE
PISTOL GRIP HALVES TO BE SOLD AS A
SET ONLY. ORDER BOTH HALVES
SPRING - 182W85
PISTOL GRIP HALF
36N04 (RIGHT SIDE)
SEE NOTE
SECTION “A” - “A”
PISTOL GRIP HALF
36N03 (LEFT SIDE)
SEE NOTE
NUT
6339-6916
(#10-24)
PIN - 59N95*
LITERA TURE CHANGES
“E” Edition — Covers change from 2-piece water hose clamp (639532) and grip (639531) to one-piece, one-ear
clamp (950626).
“F” Edition — Covers the following changes:
1. Removed discontinued plug cover P/N 2062337.
2. Added wire feed accessories for 0.030" hard wire.
3. Wire guide, body and tube assembly P/N 995030 changed to 20468. The “water-in” and “water-out” fittings were
reversed for improved service line arrangement and handle assembly .
“G” Edition — printed to delete discontinued Heat Shield (59N97), Flow Switch (40V51), long-life contact tips, and
accessories for discontinued Mig-31A and Mig-34 wire feeders.
F-12-218-G 8/95 1M Printed in U.S.A.
Loading...
