ESAB PRG 25, PRG 45 A21 PRG 25, A21 PRG 45 Spare parts list (Replacement parts)

Download
A21 PRG 25- 45
101103105107109111102021110025108024042106023061104022041100020040060001
Bruksanvisning Brugsanvisning Bruksanvisning Käyttöohjeet Instruction manual Betriebsanweisung
ПдзгЯет чсЮуещт
Valid for Serial NO 452 XXX--XXXX0443 415 001 990803
SVENSKA 3..............................................
DANSK 14................................................
NORSK 25................................................
SUOMI 36................................................
ENGLISH 47..............................................
DEUTSCH 58.............................................
FRANÇAIS 69.............................................
NEDERLANDS 80.........................................
ESPAÑOL 91..............................................
ITALIANO 102..............................................
PORTUGUÊS 113..........................................
ЕЛЛЗНЙКБ 124.............................................
Rätt till ändring av specifikationer utan avisering förbehålles. Ret til ændring af specifikationer uden varsel forbeholdes. Rett til å endre spesifikasjoner uten varsel forbeholdes. Oikeudet muutoksiin pidätetään. Rights reserved to alter specifications without notice. Änderungen vorbehalten. Sous réserve de modifications sans avis préalable. Recht op wijzigingen zonder voorafgaande mededeling voorbehouden. Reservado el derecho de cambiar las especificaciones sin previo aviso. Ci riserviamo il diritto di variare le specifiche senza preavviso. Reservamo--nos o direito de alterar as especificações sem aviso prévio.
ДйбфзсеЯфбй фп дйкбЯщмб фспрпрпЯзузт рспдйбгсбцюн ЧщсЯт рспейдпрпЯзуз.
-- 2 --
Måttskiss Målskitse Målskisse Mittapiirustus Dimension drawing Mass ­bild Cotes d’encombrement Maatschets Croquis acotado Dimensioni Esboço com dimensões УчедйЬгсбммб мегеиюн
УЧЕДЙБСБММБМЕГЕИЩН
dsa7m11a
dsa7m002
-- 1 3 5 --
sida
-- 1 3 6 --
Reservdelsförteckning Reservedelsfortegnelse Reservedelsliste Varaosaluettelo Spare p arts list Ersatzteilliste Liste de pièces détachées Reserveonderdelenlijst Lista de repuestos Elenco ricambi Lista d e peças sobressalentes РЯнбкбт бнфбллбкфйкюн месюн
РЙнбКБУ бнфблл бкфйкЩн месЩн
Edition 990803
Ordering no. Denomination Notes
0441 800 880 A21 PRG 25--45 Tube welding tools
(W) = This is a wear component
-- 1 3 7 --
dsa7s11a
Item
Qty Ordering no. Denomination Notes
no.
0441 800 880 Tube welding tool A21 PRG 25--45
1 1 0441 801 880 Tool 2 1 0441 730 880 Welding head 3 1 0333 374 002 Cable protection, hose Ø 31/28 4 1 0332 863 880 Connection cable (current/gas/water) 5 2 0441 770 882 Support
dsa7s11a
-- 1 3 8 --
dsa7s11a
-- 1 3 9 --
Item
Qty Ordering no. Denomination Notes
no.
0441 801 880 Tool
1 1 0441 313 001 Fork 2 1 0441 315 001 Cover plate, top 3 1 0441 314 001 Cover plate, bottom 4 1 0441 324 001 Nut 5 1 0441 325 001 Screw 6 1 0441 326 001 Link 7 1 0441 327 001 Clamping jaw 8 8 0192 238 291 Screw
9 1 0441 319 001 Cyl. gear wheel 10 1 0441 318 003 Cyl. gear wheel 11 2 0441 318 002 Cyl. gear wheel 12 2 0441 318 001 Cyl. gear wheel 13 1 0441 710 001 Gear collar 14 2 0441 337 001 Tapered gear 15 1 0441 331 880 Tensioning shaft 16 1 0441 498 880 Back stop 17 1 0441 330 001 Bar 18 1 0441 728 135 Ball thrust screw 19 1 0211 101 108 Cyl. pin 20 4 0211 101 101 Cyl. pin 21 2 0192 327 015 Cyl. roller 22 5 0215 100 011 Washer 23 1 0193 577 102 Slide bearing 24 1 0154 163 881 Drive unit 25 14 0212 108 836 Screw 26 5 0190 509 285 Screw 27 1 0153 878 028 Plate
dsa7s11a
-- 1 4 0 --
dsa7s11a
-- 1 4 1 --
Item
Qty Ordering no. Denomination Notes
no.
0441 730 880 Welding head
1 1 0441 686 001 Yok e
2 1 0441 685 880 Arm
3 1 0441 728 135 Ball thrust screw
4 1 0441 684 880 Insulation, compl.
5 5 0215 100 008 Washer
6 4 0192 238 224 Screw
7 1 0193 611 319 Pressure spring
8 1 0441 688 001 Spacer
9 1 0212 108 087 Screw 10 1 0441 680 880 Wire holder 11 1 0441 689 002 Wire nozzle 12 3 0190 509 320 Screw 13 1 0211 101 054 Cyl roller 14 1 0441 729 143 Draw spring 15 1 0192 238 232 Screw 16 2 0212 108 080 Screw 17 2 0211 101 029 Cyl. roller 18 1 0441 687 001 Sliding shoe 19 1 0219 206 824 Spiral 20 0190 685 803 Teflon hose 21 1 0441 763 001 Wire clamp 22 1 0154 485 001 Connector fitting 23 2 0441 770 882 Support
dsa7s11a
-- 1 4 2 --
dsa7s11a
-- 1 4 3 --
Item
Qty Ordering no. Denomination Notes
no.

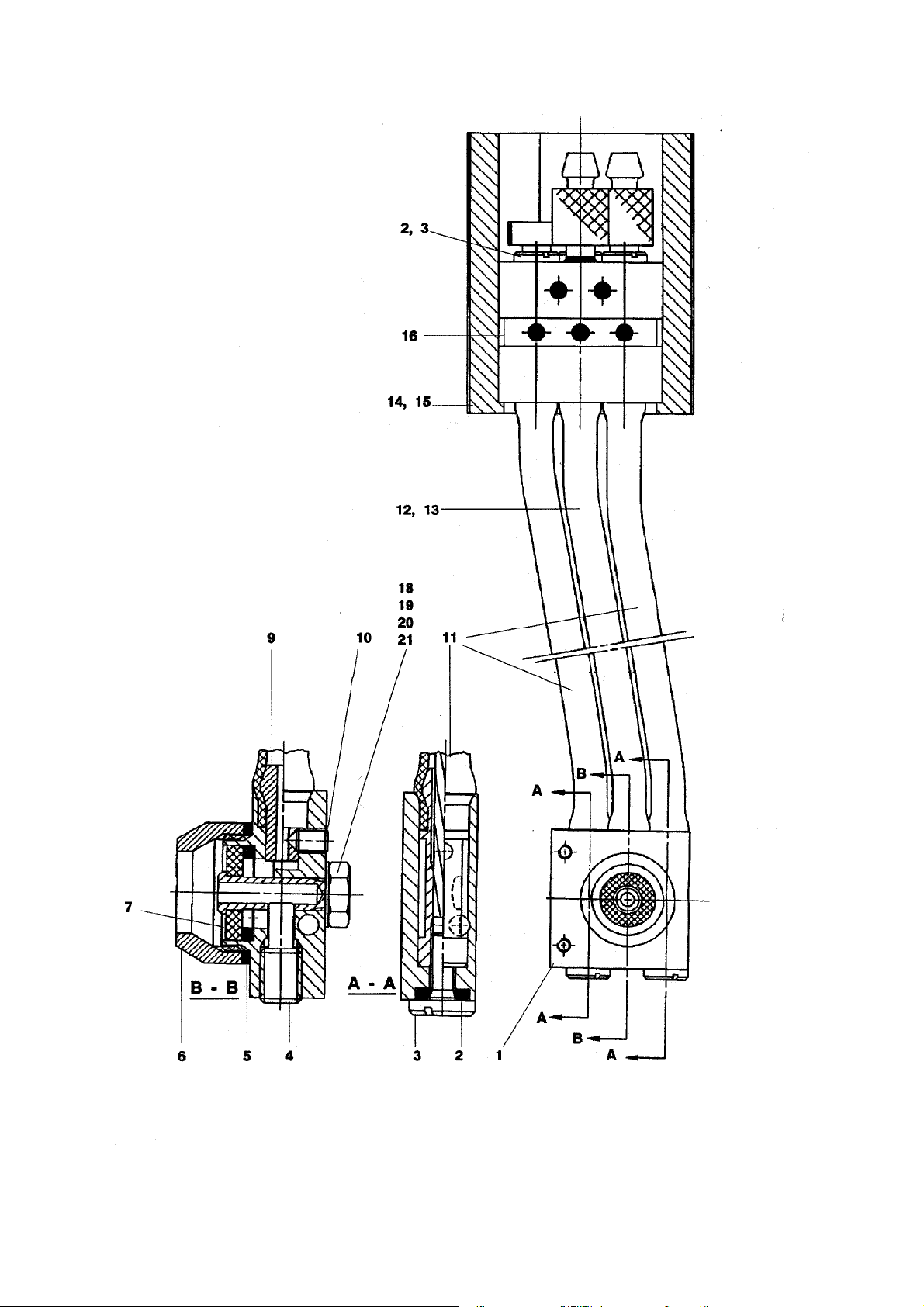

0441 680 880 Wire holder
1 1 0441 682 880 Torch body
2 5 0190 680 201 O--ring Ø 3.1x1,6
3 5 0441 781 104 Slotted screw M3x8
4 1 0441 775 001 Locking screw
5 1 0441 766 001 Sealing washer
6 1 0441 767 001 Gas cup
7 1 0441 739 001 Gas lens
9 1 0441 769 001 Coller 10 1 0193 051 219 Stop screw M5x5 11 2 0441 740 880 Current/water/hose 12 1 0441 738 104 Hose, viton 13 1 0441 768 001 Contact sleeve 14 1 0441 727 001 Insulation bushing 15 2 0212 204 546 Stop screw M5x8 16 1 0441 776 880 Adapter, compl. 18 1 0441 108 001 Electrode sleeve 19 1 0219 504 301 Cup spring 20 1 0441 766 002 Sealing washer 21 1 0212 602 005 Nut
dsa7s11a
-- 1 4 4 --
dsa7s11a
-- 1 4 5 --
ESAB subsidiaries and representative offices
Europe
AUSTRIA
ESAB Ges.m.b.H Vienna--Liesing Tel: +43 1 888 25 11 Fax: +43 1 888 25 11 85
BELGIUM
S.A. ESAB N.V. Brussels Tel: +32 2 745 11 00 Fax: +32 2 726 80 05
THE CZECH REPUBLIC
ESAB VAMBERK s.r.o. Prague Tel: +420 2 819 40 885 Fax: +420 2 819 40 120
DENMARK
Aktieselskabet ESAB Copenhagen--Valby Tel:+4536300111 Fax:+4536304003
FINLAND
ESAB Oy Helsinki Tel: +358 9 547 761 Fax: +358 9 547 77 71
FRANCE
ESAB France S.A. Cergy Pontoise Tel:+33130755500 Fax:+33130755524
GERMANY
ESAB GmbH Solingen Tel: +49 212 298 0 Fax: +49 212 298 204
GREAT BRITAIN
ESAB Group (UK) Ltd Waltham Cross Tel: +44 1992 76 85 15 Fax: +44 1992 71 58 03
ESAB Automation Ltd Andover Tel: +44 1264 33 22 33 Fax: +44 1264 33 20 74
HUNGARY
ESAB Kft Budapest Tel:+3612044182 Fax:+3612044186
ITALY
ESAB Saldatura S.p.A. Mesero (Mi) Tel:+3902979681 Fax:+390297289181
THE NETHERLANDS
ESAB Nederland B.V. Utrecht Tel: +31 30 248 59 22 Fax: +31 30 248 52 60
NORWAY
AS ESAB Larvik Tel:+4733121000 Fax:+4733115203
POLAND
ESAB Sp.z.o.o Warszaw Tel: +48 22 813 99 63 Fax: +48 22 813 98 81
PORTUGAL
ESAB Lda Lisbon Tel: +351 1 837 1527 Fax: +351 1 859 1277
SLOVAKIA
ESAB Slovakia s.r.o. Bratislava Tel:+421744882426 Fax:+421744888741
SPAIN
ESAB Ibérica S.A. Alcobendas (Madrid) Tel: +34 91 623 11 00 Fax: +34 91 661 51 83
SWEDEN
ESAB Sverige AB Gothenburg Tel:+4631509500 Fax:+4631509222
ESAB International AB Gothenburg Tel:+4631509000 Fax:+4631509360
SWITZERLAND
ESAB AG Dietikon Tel: +41 1 741 25 25 Fax: +41 1 740 30 55
North and South America
ARGENTINA
CONARCO Buenos Aires Tel: +54 11 4 753 4039 Fax: +54 11 4 753 6313
BRAZIL
ESAB S.A. Contagem--MG Tel: +55 31 333 43 33 Fax: +55 31 361 31 51
CANADA
ESAB Group Canada Inc. Missisauga, Ontario Tel: +1 905 670 02 20 Fax: +1 905 670 48 79
MEXICO
ESAB Mexico S.A. Monterrey Tel: +52 8 350 5959 Fax: +52 8 350 7554
USA
ESAB Welding & Cutting Products Florence, SC Tel: +1 843 669 44 11 Fax: +1 843 664 44 58
Asia/Pacific
AUSTRALIA
ESAB Australia Pty Ltd Ermington Tel: +61 2 9647 1232 Fax: +61 2 9748 1685
CHINA
Shanghai ESAB A/P Shanghai Tel: +86 21 6539 7124 Fax: +86 21 6543 6622
INDIA
ESAB India Ltd Calcutta Tel: +91 33 478 45 17 Fax: +91 33 468 18 80
INDONESIA
P.T. Esabindo Pratama Jakarta Tel: +62 21 460 01 88 Fax: +62 21 461 29 29
MALAYSIA
ESAB (Malaysia) Snd Bhd Selangor Tel: +60 3 703 36 15 Fax: +60 3 703 35 52
SINGAPORE
ESAB Singapore Pte Ltd Singapore Tel: +65 861 43 22 Fax: +65 861 31 95
ESAB Asia/Pacific Pte Ltd Singapore Tel: +65 861 74 42 Fax: +65 863 08 39
SOUTH KOREA
ESAB SeAH Corporation Kyung--Nam Tel: +82 551 289 81 11 Fax: +82 551 289 88 63
UNITED ARAB EMIRATES
ESAB Middle East Dubai Tel: +971 4 338 88 29 Fax: +971 4 338 87 29
Representative offices
BULGARIA
ESAB Representative Office Sofia Tel/Fax: +359 2 974 42 88
EGYPT
ESAB Egypt Dokki--Cairo Tel: +20 2 390 96 69 Fax: +20 2 393 32 13
ROMANIA
ESAB Representative Office Bucharest Tel/Fax: +40 1 322 36 74
RUSSIA--CIS
ESAB Representative Office Moscow Tel: +7 095 937 98 20 Fax: +7 095 937 95 80
ESAB Representative Office St Petersburg Tel: +7 812 325 43 62 Fax: +7 812 325 66 85
Distributors
For addresses and phone numbers to our distributors in other countries, please visit our home page
www.esab.net
ESAB AB SE--695 81 LAXÅ SWEDEN Phone +46 584 81 000 Fax +46 584 123 08
www.esab.net
020219
