Ericsson RBS 2409 Installation Instruction

RBS Installation Instructions

RBS 2409

INSTALLATION INSTRUCTION

Copyright

© Copyright Ericsson AB 2007. All rights reserved.

Disclaimer

No part of this document may be reproduced in any form without the written
permission of the copyright owner.

The contents of this document are subject to revision without notice due to
continued progress in methodology, design and manufacturing. Ericsson shall
have no liability for any error or damage of any kind resulting from the use
of this document.

41/1531-LZA 701 0001 Uen D 2008-04-23

Contents

Contents

1 Introduction 1

1.1 Revision Information 1

2 Preconditions 1

3 Tools and Instruments 3

3.1 Tools for Installation 3

4 Installation Procedure 3

4.1 Unpacking RBS 4

4.2 Installing the RBS 4

4.3 Attaching the RBS 6

4.4 Installing DC power 8

4.5 Connecting Cables 8

4.6 Replacing Front Cover 9

4.7 Testing the Installation 10

4.8 Performing Concluding Routines 10

41/1531-LZA 701 0001 Uen D 2008-04-23

RBS Installation Instructions

41/1531-LZA 701 0001 Uen D 2008-04-23

Preconditions

1 Introduction

This document provides instructions for installing an RBS 2409.

The RBS 2409 can be installed either on a wall, or hanging from a ceiling. Both
stand-alone and master-extension configurations are possible.

Target Group

The target group for this instruction is personnel involved in the installation of
an RBS.

Technicians working on Ericsson products or systems must have the necessary
training and competence required to perform their work correctly.

1.1 Revision Information

Other than editorial changes, this document has been revised as follows:

• Information about chapter Preconditions updated

2 Preconditions

This section provides preconditions that must be met before starting the
installation work.

Documentation

This section presents additional documents required for the installation
procedure.

The following documentation is referenced in this document.

Ensure that the following documents are read and understood:

• Personal Health and Safety Information, 124 46-2885

• System Safety Information, 124 46-2886

Ensure that the following documents are available:

1

41/1531-LZA 701 0001 Uen D 2008-04-23

RBS Installation Instructions

• Completed and approved record prepared during site preparation

• Site Installation Documentation, specific for the site (prepared by the
Installation Engineering department)

• Setting IDB Parameters, 46/1543-LZA 701 0001

• Verifying RBS Installations at Site, 11/1532-LZA 701 0001

General Preconditions

Before starting site work, ensure the following:

• Site access permission has been received

• Ordered RBS, equipment, specified tools and other necessary facilities
have been delivered

• Site power is available

• Transmission line from the BSC is available

If any of the above preconditions cannot be complied with, then contact the site
supervisor or person responsible for the activity that has been missed.

Additional Preconditions for Wall or Ceiling Mounted RBS

Before installing the RBS, ensure that the following preconditions are met:

• The type of fasteners are suitable for the kind of material on which the
RBS is to be mounted

• Vertical installation, which is important for correct cooling

• 100 mm free distance from top and/or bottom, if medium generates heat

• 75 mm free distance from top and/or bottom, if medium does not generate
heat

• 200 mm free distance from the sides

Note: Horizontal distance between two operational BSU is also possible

with less distance. However, the opening mechanism requires
insertion of a tool from the side of the cabinet. So, the actual
minimum horizontal distance is depending on the tool used to
open the cabinet.

If any of the above preconditions cannot be complied with, then contact the site
supervisor or person responsible for activity that has been missed.

2

41/1531-LZA 701 0001 Uen D 2008-04-23

Installation Procedure

3 Tools and Instruments

This section contains lists of all tools and instruments recommended for the
complete installation of the RBS.

3.1 Tools for Installation

Table 1 Basic Tools for Installation

Description

Specification

Drilling machine

–

Screwdriver Torx: T10

Knife

–

Screws for installation 4 screws for plate, and 2 screws for adapter

4 Installation Procedure

This section describes the installation procedure for the RBS.

3

41/1531-LZA 701 0001 Uen D 2008-04-23

RBS Installation Instructions

Installing the

Ceiling Bracket

Performing

Concluding Routines

Installing the Wallplate

Unpacking the RBS

Attaching the RBS

Installing DC Power

Connecting Cables

Testing the Installation

Replacing Front

P018294B

Figure 1 Installation Flowchart

4.1 Unpacking RBS

Unpack the RBS on-site. To avoid damage, the RBS must not be unpacked
elsewhere and then transported to site.

Ensure that the correct material has been delivered. If the material is damaged,
then complain immediately to the supervisor or the transport company.

4.2 Installing the RBS

This section describes how to install the RBS attached on a wall or to a ceiling.

Note: When installing, keep in mind the minimum required distances around
the RBS.

4

41/1531-LZA 701 0001 Uen D 2008-04-23

Installation Procedure

4.2.1 Installing the Wall Plate

1.

Place the wall plate in a vertical
position where the RBS is to be
located.

Make sure the hole for the cable
cover is facing upwards.

P018100A

Up

2. Install the wall plate and secure it in position.

Note: Depending on the wall, it may be necessary to drill holes for the
screws.

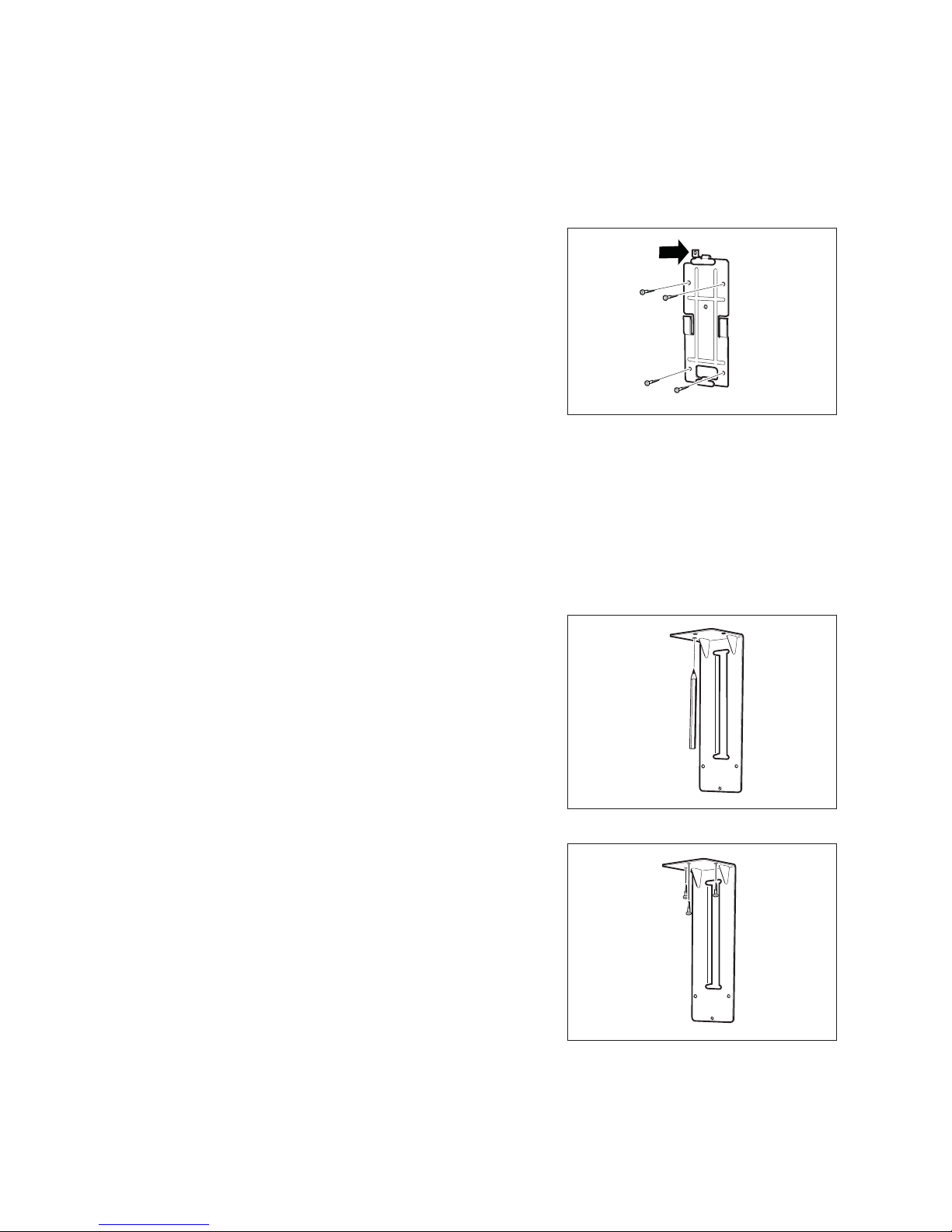

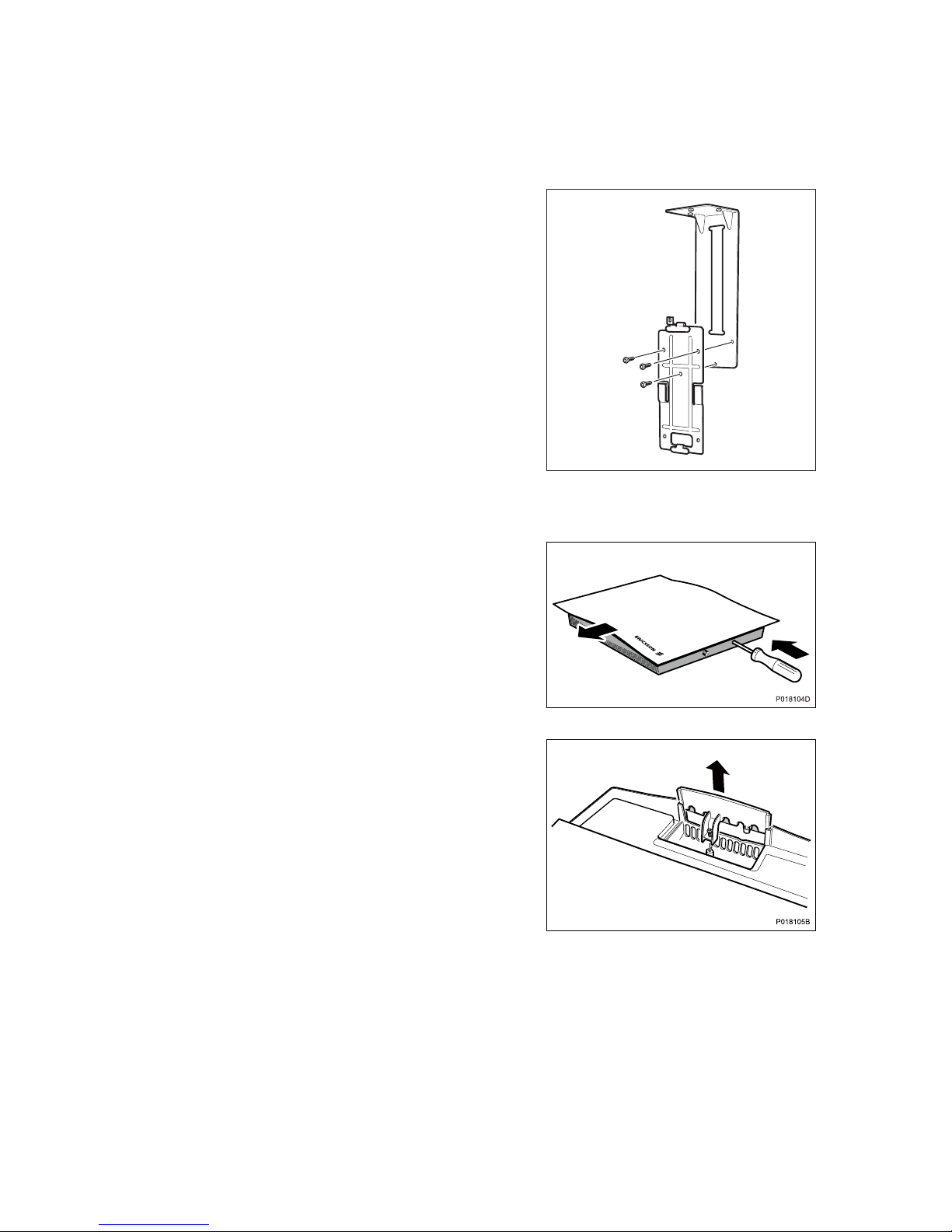

4.2.2 Installing the Wall Plate on a Ceiling Bracket (Optional)

1. Place the ceiling bracket in the position where the RBS is to be located.

2. Mark the position of the holes to be
drilled.

P018101A

3.

Remove the mount and drill the
holes for the screws.

Note: Depending on the surface,
it may be possible to secure it into
position without drilling any holes.

P018102A

4. Install the bracket and secure it in position.

5

41/1531-LZA 701 0001 Uen D 2008-04-23

RBS Installation Instructions

5.

Attach the plate and secure it.

P018103A

4.3 Attaching the RBS

1.

Insert and press a screwdriver in
the upper hole to release the front
cover, and slide the cover down 75
mm.

2. Detach the cable cover without
releasing the screw.

6 41/1531-LZA 701 0001 Uen D 2008-04-23

Installation Procedure

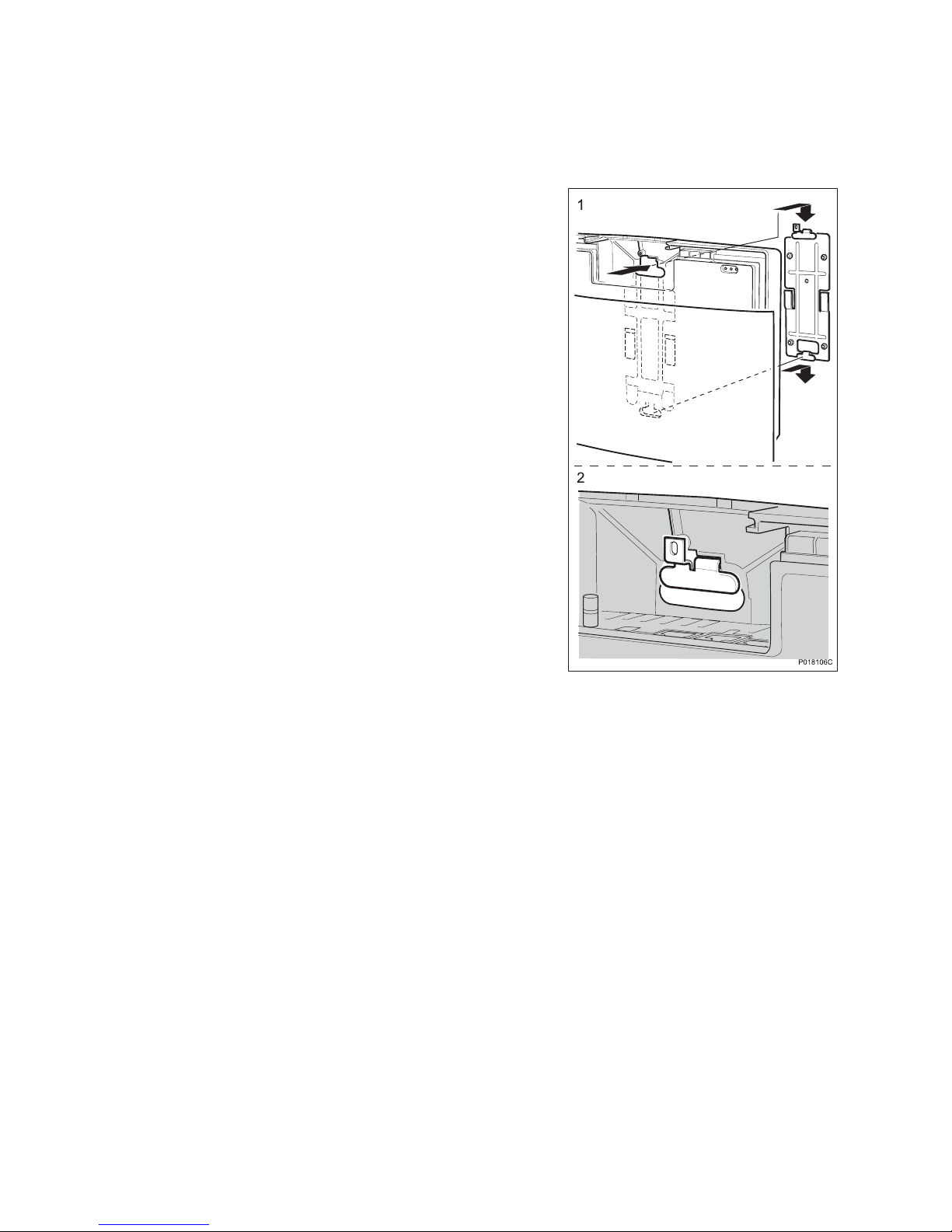

3.

Attach the RBS in its position and
press it down.

Make sure the hole on the bracket
and the hole on the RBS are aligned
(see 2 in figure to right).

741/1531-LZA 701 0001 Uen D 2008-04-23

RBS Installation Instructions

4.4 Installing DC power

1. Install the PSU-AC-41 in the position
where it is to be located.

Note: Depending on the wall, it may
be necessary to drill the holes for
the screws.

P018111B

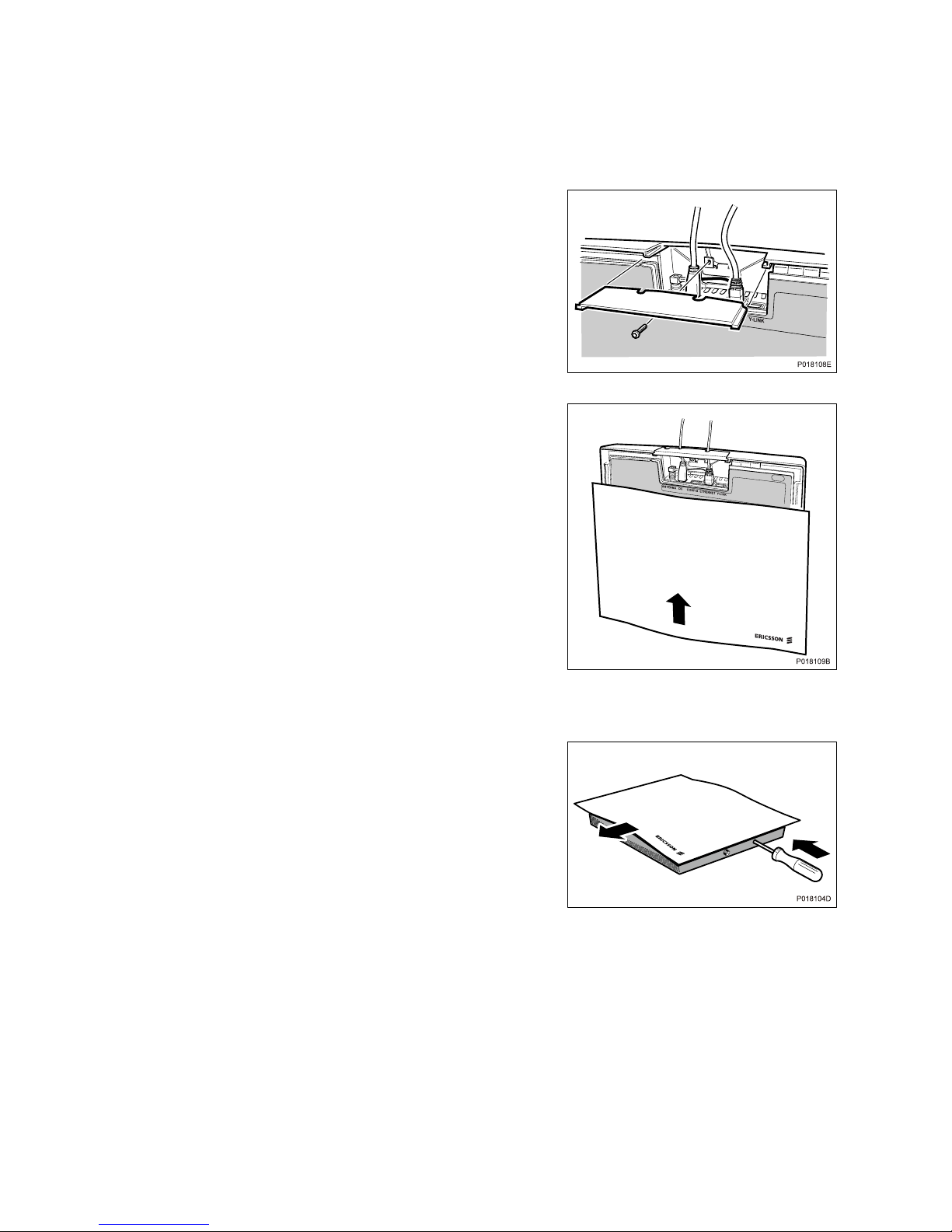

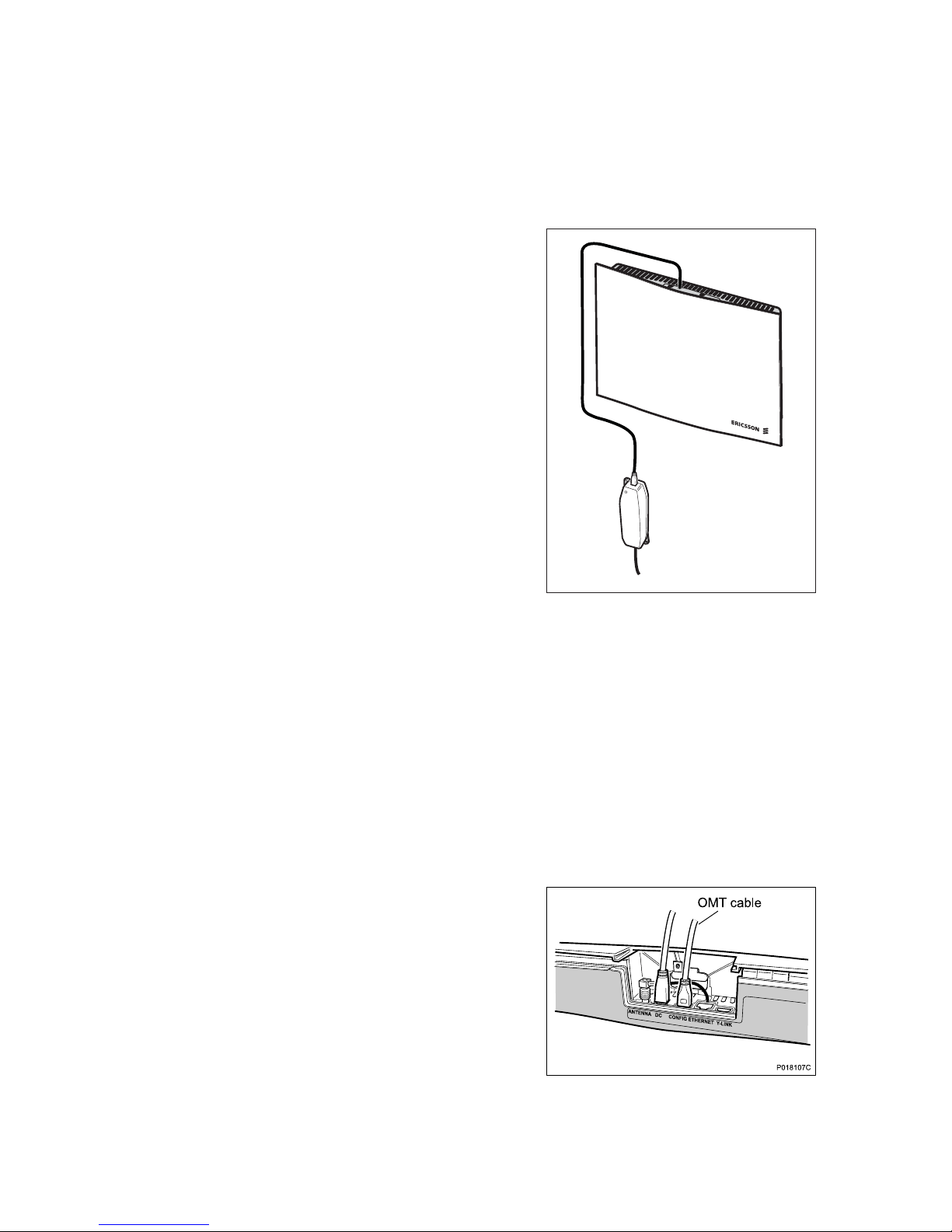

4.5 Connecting Cables

Following interfaces in the RBS 2409 are available:

• Ethernet (transmission)

• DC power

• External Antenna (optional)

• Y-link (if using extension RBS)

• Configuration (Configuring the RBS or the STN)

1. Connect the OMT cable to the
configuration port for configuration
of the RBS.

Make sure the RBS is powered up.

For parameter settings, see the
Site Installation Documentation and
document Setting IDB Parameters.

When finished configuring, detach
the OMT cable.

8 41/1531-LZA 701 0001 Uen D 2008-04-23

Installation Procedure

2.

Connect the ethernet cable and
attach the cable cover.

3. Close the front cover, by sliding it up
until there is a clicking sound.

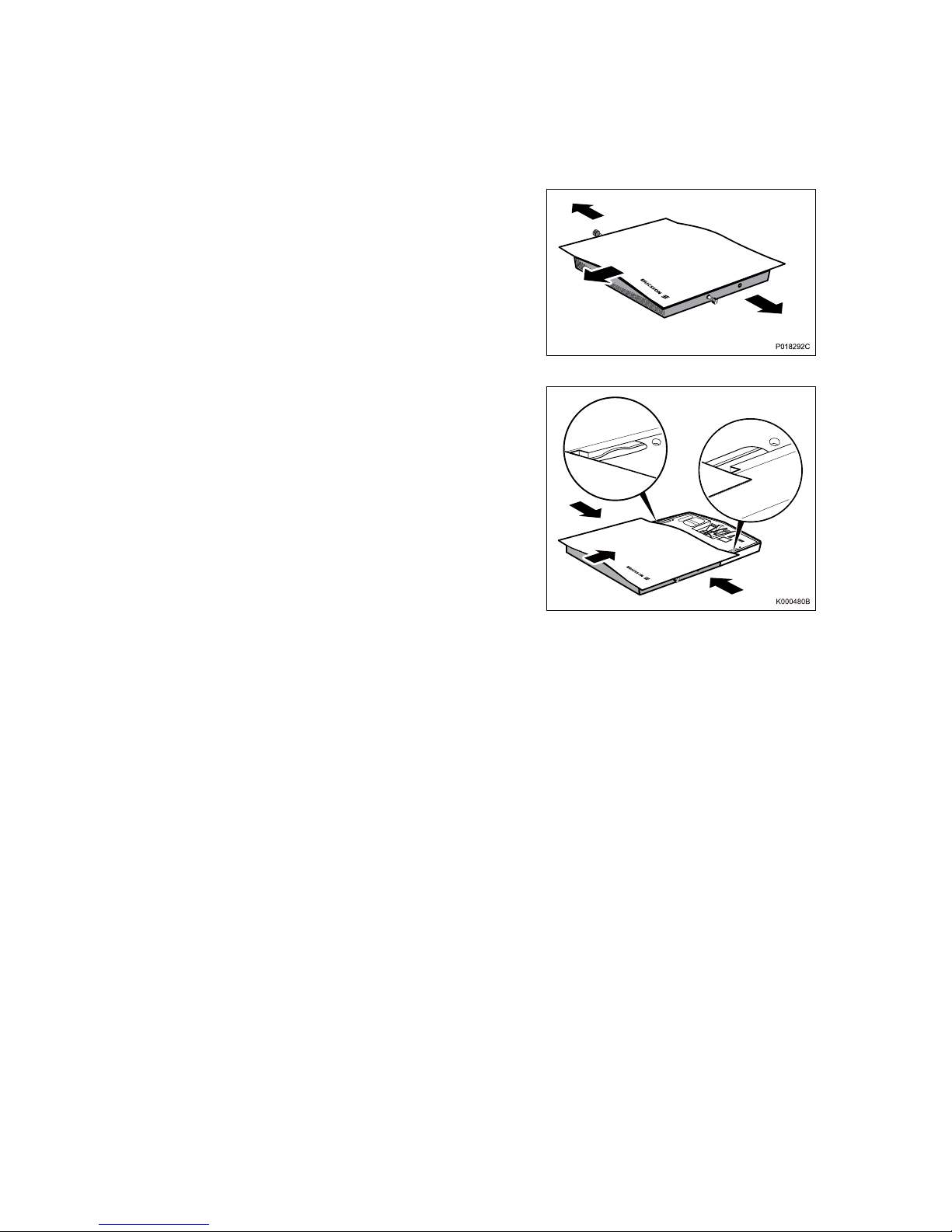

4.6 Replacing Front Cover

1. Insert and press a screwdriver in
the upper hole to release the front
cover, and slide the cover down 75
mm.

941/1531-LZA 701 0001 Uen D 2008-04-23

RBS Installation Instructions

2.

Loosen the captive screws on
both sides to release the front
cover, using a hand or a Torx 10
screwdriver.

3. Align the upper edge of the new
front cover with the two marks on the
rear cover, and slide the cover up all
the way. Tighten the captive screws
fingertight or tighten them properly
using a Torx 10 screwdriver.

4.7 Testing the Installation

The RBS is now ready for verification of the site installation.

The verification must be performed directly after the completion of the RBS
installation, see document Verifying RBS Installations at Site.

After the installation and integration testing is completed, perform concluding
routines as described below.

4.8 Performing Concluding Routines

This section describes the routines to be completed before leaving the site.

Note: Ericsson strongly advises that when cleaning up after installing the

RBS, the personnel performing the installation pay particular attention
to the environment. Primarily, recycle all waste materials that can be
recycled and sort waste so that it can be disposed of according to local
regulations.

10

41/1531-LZA 701 0001 Uen D 2008-04-23

Installation Procedure

Table 2 Objects to Be Recycled or Disposed of After RBS Installation

Item

Sort or Recycle?

Cable insulation from
crimping, brazing or
welding

Packing chips

Foam

Polystyrene

Bubble plastic

Cable tie clippings

Sorted with plastics

Paper and wood Paper recycling

Waste metal from cable
ladders

Pieces of cable

Nuts, bolts, washers and
screws

Recycled or sorted as metals

Note: All packing material must be recycled, and shock absorbers disposed

of, in accordance with local recycling regulations.

4.8.1 Updating the Site Installation Documentation

1. Check the Site Installation Documentation for deviations from the
installation.

2. Update the documents with the changes that apply.

3. Send the documents to the person responsible for Site Installation
Engineering.

4.8.2 Performing Final Checks

Before leaving the site, make sure that the following tasks have been completed:

Table 3 Checklist

Check the following: OK

1.

All cables are properly routed and connected.

3.

The site is clear of waste materials.

4.

The Site Installation Documentation is updated.

1141/1531-LZA 701 0001 Uen D 2008-04-23

RBS Installation Instructions

Check the following: OK

5.

The modified Site Installation Documentation has been handed
over to the person responsible for the site.

6.

The RBS is powered up if the surrounding temperature
changes between hot and cold and the RBS installation is not
completed within 48 hours.

(1)

(1) See document Verifying RBS Installations at Site

.

12 41/1531-LZA 701 0001 Uen D 2008-04-23
