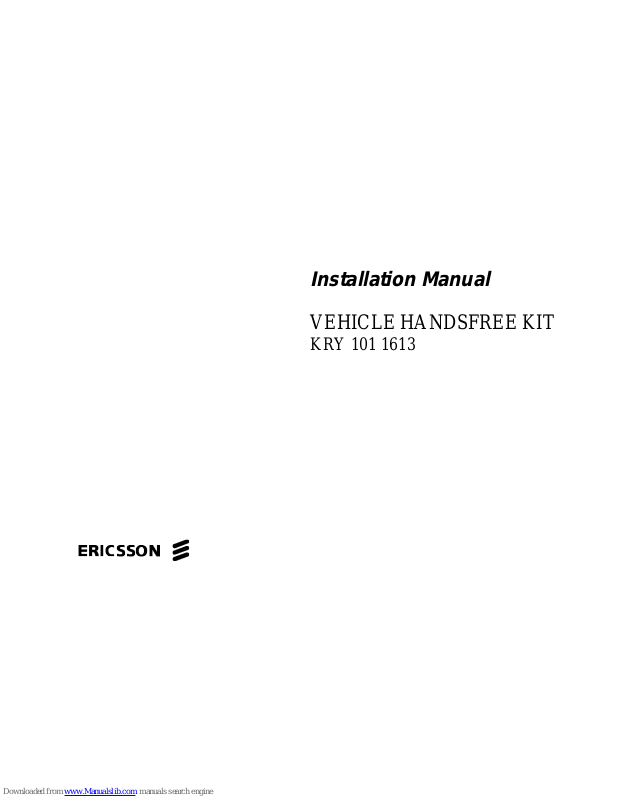

Installation Manual

VEHICLE HANDSFREE KIT

KRY 101 1613

NOTICE!

This manual covers Ericsson and General Electric

products manufactured and sold by Ericsson Inc.

This manual is published by Ericsson Inc., without any warranty.
Improvements and changes to this manual necessitated by
typographical errors, inaccuracies of current information, or
improvements to programs and/or equipment, may be made by
Ericsson Inc., at any time and without notice. Such changes will be
incorporated into new editions of this manual. No part of this manual
may be reproduced or transmitted in any form or by any means,
electronic or mechanical, including photocopying and recording, for
any purpose, without the express written permission of Ericsson Inc.

TABLE OF CONTENTS

Page

GENERAL.....................................3

WIRING TO AN EXTERNAL

ANTENNA...............................4

MOUNTING THE CRADLE............5

WIRING TO THE VEHICLE'S

BATTERY................................6

MOUNTING THE MICROPHONE..7
INSERTING AND REMOVING

THE RADIO.............................8

SPECIFICATIONS.........................9

TROUBLESHOOTING...................10

Copyright © September 1995, Ericsson Inc.

2

GENERAL

The VEHICLE HANDSFREE KIT
provides for the safe and easy use o f the
DPE-100 portable radio in a vehicle.

• The kit includes the following

• Handsfree cradle

• Mounting brackets

• Microphone and clip

The VEHICLE HANDSFREE KIT
powers the radio with the vehicle's battery
and provides a microphone and speaker
for handsfree use.

• Antenna interface cable with TNC
connector

• Cradle power cable

• Fuse kit

3

WIRING TO AN EXTERNAL ANTENNA

An external antenna (to be purchased

separately) greatly improves performance.

NOTE

1. Remove the plastic insert from the
antenna connection hole at the top
back of the cradle.

2. Push the long connector on the
antenna cable through the hole.

The package includes an external
antenna cable, but do not install it unless
the external antenna is installed. When
the external antenna cable is connected,
the radio's internal antenn a is byp assed.

Take the following steps to install the

antenna cable:

4

3. Press the connector into the hole until
it snaps into place and close the
opening of the back of the cradle with
the grommet found on the antenna
cable. Press the antenna cable into
the retainer at the bottom of the
cradle.
