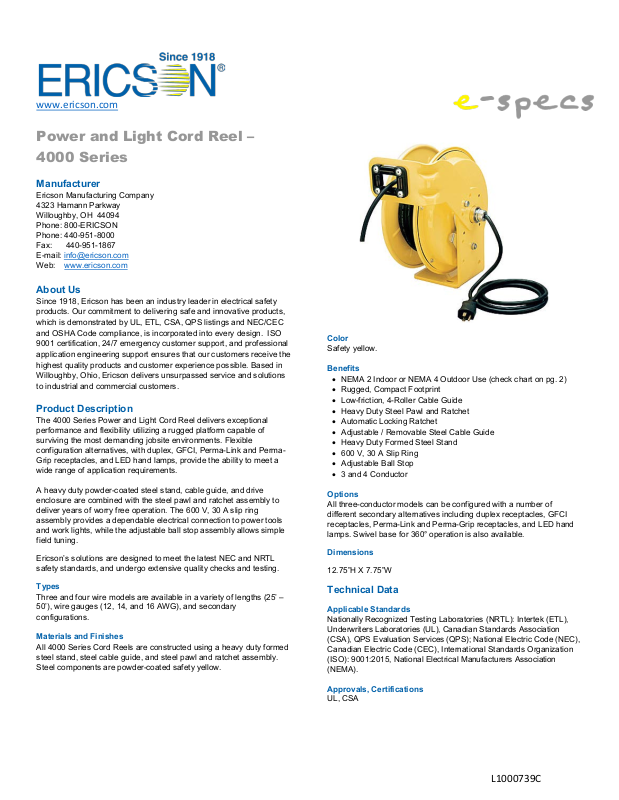

Ericson 4000 Series Data Sheet

www.ericson.com

Power and Light Cord Reel –

4000 Series

Manufacturer

Ericson Manufacturing Company
4323 Hamann Parkway
Willoughby, OH 44094
Phone: 800-ERICSON
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Web: www.ericson.com

About Us

Since 1918, Ericson has been an industry leader in electrical safety
products. Our commitment to delivering safe and innovative products,
which is demonstrated by UL, ETL, CSA, QPS listings and NEC/CEC
and OSHA Code compliance, is incorporated into every design. ISO
9001 certification, 24/7 emergency customer support, and professional
application engineering support ensures that our customers receive the
highest quality products and customer experience possible. Based in
Willoughby, Ohio, Ericson delivers unsurpassed service and solutions
to industrial and commercial customers.

Product Description

The 4000 Series Power and Light Cord Reel delivers exceptional
performance and flexibility utilizing a rugged platform capable of
surviving the most demanding jobsite environments. Flexible
configuration alternatives, with duplex, GFCI, Perma-Link and Perma­Grip receptacles, and LED hand lamps, provide the ability to meet a
wide range of application requirements.

A heavy duty powder-coated steel stand, cable guide, and drive
enclosure are combined with the steel pawl and ratchet assembly to
deliver years of worry free operation. The 600 V, 30 A slip ring
assembly provides a dependable electrical connection to power tools
and work lights, while the adjustable ball stop assembly allows simple
field tuning.

Ericson’s solutions are designed to meet the latest NEC and NRTL
safety standards, and undergo extensive quality checks and testing.

Types

Three and four wire models are available in a variety of lengths (25’ –
50’), wire gauges (12, 14, and 16 AWG), and secondary
configurations.

Materials and Finishes

All 4000 Series Cord Reels are constructed using a heavy duty formed
steel stand, steel cable guide, and steel pawl and ratchet assembly.
Steel components are powder-coated safety yellow.

Color

Safety yellow.

Benefits

• NEMA 2 Indoor or NEMA 4 Outdoor Use (check chart on pg. 2)

• Rugged, Compact Footprint

• Low-friction, 4-Roller Cable Guide

• Heavy Duty Steel Pawl and Ratchet

• Automatic Locking Ratchet

• Adjustable / Removable Steel Cable Guide

• Heavy Duty Formed Steel Stand

• 600 V, 30 A Slip Ring

• Adjustable Ball Stop

• 3 and 4 Conductor

Options

All three-conductor models can be configured with a number of
different secondary alternatives including duplex receptacles, GFCI
receptacles, Perma-Link and Perma-Grip receptacles, and LED hand
lamps. Swivel base for 360° operation is also available.

Dimensions

12.75”H X 7.75”W

Technical Data

Applicable Standards

Nationally Recognized Testing Laboratories (NRTL): Intertek (ETL),
Underwriters Laboratories (UL), Canadian Standards Association
(CSA), QPS Evaluation Services (QPS); National Electric Code (NEC),
Canadian Electric Code (CEC), International Standards Organization
(ISO): 9001:2015, National Electrical Manufacturers Association
(NEMA).

Approvals, Certifications

UL, CSA

L1000739C

Electrical

Rating

4163-25

25

16/3

SOOW

125V, 10A

Blunt

2

4163-35

35

16/3

SOOW

125V, 10A

Blunt

2

4163-50

50

16/3

SOOW

125V, 10A

Blunt

2

4143-30

30

14/3

SJEOW

125V, 15A

Blunt

2

4143-40

40

14/4

SJEOW

125V, 15A

Blunt

2

4143-50

50

14/5

SJEOW

125V, 15A

Blunt

2

4123-25

25

12/3

SJOOW

125V, 20A

Blunt

2

4123-50

50

12/3

SJOOW

125V, 20A

Blunt

2

4164-35

35

16/4

SJEOW

300V, 8A

Blunt

4

4164-50

50

16/4

SJEOW

300V, 8A

Blunt

4

4124-25

25

12/4

SJOOW/SJEOW

300V, 16A

Blunt

4

4124-35

35

12/4

SJOOW/SJEOW

300V, 16A

Blunt

4

4163-35SO

35

16/3

SOOW

600V, 10A

Blunt

4

4163-50SO

50

16/3

SOOW

600V, 10A

Blunt

4

4164-35SO

35

16/4

SOOW

600V, 8A

Blunt

4

4164-50SO

50

16/4

SOOW

600V, 8A

Blunt

4

4143-30SO

30

14/3

SOOW

600V, 15A

Blunt

4

4143-40SO

40

14/3

SOOW

600V, 15A

Blunt

4

4123-30SO

30

12/3

SOOW/SEOW

600V, 20A

Blunt

4

4124-25SO

25

12/4

SOOW/SEOW

600V, 16A

Blunt

4

4143-30-1610

30

14/3

SJEOW

125V, 15A

NEMA 5-15C Connector

2

4143-40-1610

40

14/3

SJEOW

125V, 15A

NEMA 5-15C Connector

2

4143-50-1610

50

14/3

SJEOW

125V, 15A

NEMA 5-15C Connector

2

4123-25-1610

25

12/3

SJOOW

125V, 15A

NEMA 5-15C Connector

2

4123-25-1612CG

25

12/3

SJOOW

125V, 20A

NEMA 5-20C Connector

2

4123-50-1612CG

50

12/3

SJOOW

125V, 20A

NEMA 5-20C Connector

2

4143-40-B

40

14/3

SJEOW

125V, 15A

(2) NEMA 5-15 Duplex

2

4143-50-B

50

14/3

SJEOW

125V, 15A

(2) NEMA 5-15 Duplex

2

4123-25-B

25

12/3

SJOOW

125V, 15A

(2) NEMA 5-15 Duplex

2

4123-50-B

50

12/3

SJOOW

125V, 15A

(2) NEMA 5-15 Duplex

2

4123-25-B20

25

12/3

SJOOW

125V, 20A

(2) NEMA 5-15 Duplex

2

4123-50-B20

50

12/3

SJOOW

125V, 20A

(2) NEMA 5-15 Duplex

2

(1) 5-15 Duplex + (1) 5-15

GFCI Duplex

(1) 5-15 Duplex + (1) 5-15

GFCI Duplex

(1) 5-15 Duplex + (1) 5-15

GFCI Duplex

(1) 5-20 Duplex + (1) 5-20

GFCI Duplex

(1) 5-20 Duplex + (1) 5-20

GFCI Duplex

4163-25-HS

25

16/3

SOOW

125V, 1A

744-RS Hand Lamp

2

4163-35-HS

35

16/3

SOOW

125V, 1A

744-RS Hand Lamp

2

4163-50-HS

50

16/3

SOOW

125V, 1A

744-RS Hand Lamp

2

4143-30-HS

30

14/3

SJEOW

125V, 1A

744-RS Hand Lamp

2

4143-40-HS

40

14/3

SJEOW

125V, 1A

744-RS Hand Lamp

2

4143-50-HS

50

14/3

SJEOW

125V, 1A

744-RS Hand Lamp

2

4123-25-HS

25

12/3

SJOOW

125V, 1A

744-RS Hand Lamp

2

4123-50-HS

50

12/3

SJOOW

125V, 1A

744-RS Hand Lamp

2

4143-30-HSS

30

14/3

SJEOW

125V, 12A

944-RS Hand Lamp

2

4143-40-HSS

40

14/3

SJEOW

125V, 12A

944-RS Hand Lamp

2

4143-50-HSS

50

14/3

SJEOW

125V, 12A

944-RS Hand Lamp

2

4123-25-HSS

25

12/3

SJOOW

125V, 12A

944-RS Hand Lamp

2

4123-50-HSS

50

12/3

SJOOW

125V, 12A

944-RS Hand Lamp

2

Technical Properties

Model Length Wire Gauge Cable Type

4144-35 35 14/4 SJEOW 300V, 12A

4163-25SO 25 16/3 SOOW 600V , 10A

4123-50-1610 50 12/3 SJ OOW 125V, 15A NEMA 5-15C Connector 2

4143-30-B 30 14/3 SJEOW 125V, 15A (2) NEMA 5-15 Duplex 2

Secondary NEMA

Blunt 4

Blunt 4

Installation

Methods

Use Ericson recommended secondary devices to ensure proper, safe
operation. All secondary devices and assembly should comply with
NEC Standards.

Precautions

The 4000 Series Cord Reel must be connected to the proper power
source, and wired according to local standards by a qualified
electrician.

A correct and matching plug must be used and connected by a
qualified electrician when applicable.

The safety earth ground must be connected and cannot be a
combination of neutral and ground wire.

Availability and Cost

The 4000 Series Cord Reel is available in the United States and
Canada through electrical distribution partners.

4143-30-BG 30 14/3 SJEOW 125V, 15A

4143-40-BG 40 14/3 SJEOW 125V, 15A

4143-50-BG 50 14/3 SJEOW 125V, 15A

4123-25-BG20 25 12/3 SJOOW 125V, 20A

4123-50-BG20 50 12/ 3 SJOOW 125V, 20A

2

2

2

2

2

Maintenance

No special maintenance is required.

Technical Services

Technical assistance, including detailed information, product literature,
assistance in configuring temporary power and lighting systems or
installation advice is available by contacting Ericson Manufacturing
Company.

Filing Systems: UL, CSA

L1000739C
