PICO
VC EG

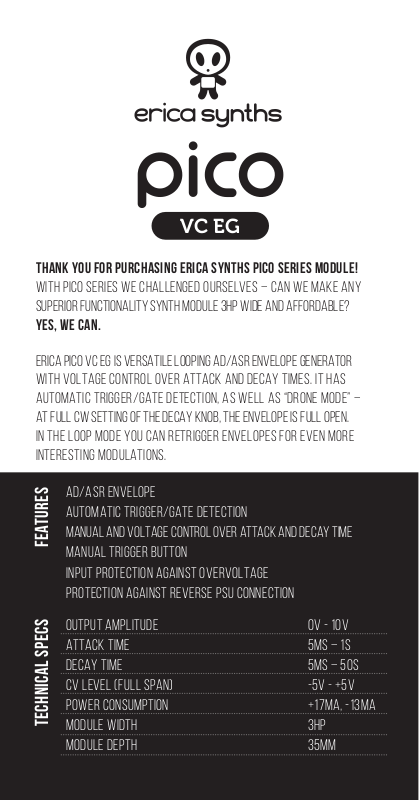

Thank you for purchasing Erica Synths Pico Series module!
With Pico Series we challenged ourselves – can we make ANY
superior functionality synth module 3HP wide and affordable?
Yes, we can.
Erica Pico VC EG is versatile looping AD/ASR envelope generator
with voltage control over attack and decay times. It has
automatic Trigger/Gate detection, as well as “drone mode” –
at full CW setting of the Decay knob, the envelope is full open.
In the LOOP mode you can retrigger envelopes for even more
interesting modulations.
AD/ASR envelope
Automatic Trigger/Gate detection
Manual and voltage control over Attack and Decay time
FEATURESTECHNICAL SPECS
Manual trigger button
Input protection against overvoltage
Protection against reverse PSU connection
Output amplitude 0V - 10V
Attack time 5ms – 1s
Decay time 5ms – 50s
CV level (full span) -5V - +5V
Power consumption +17mA, -13mA
Module width 3HP
Module depth 35mm
Page 2
PICO

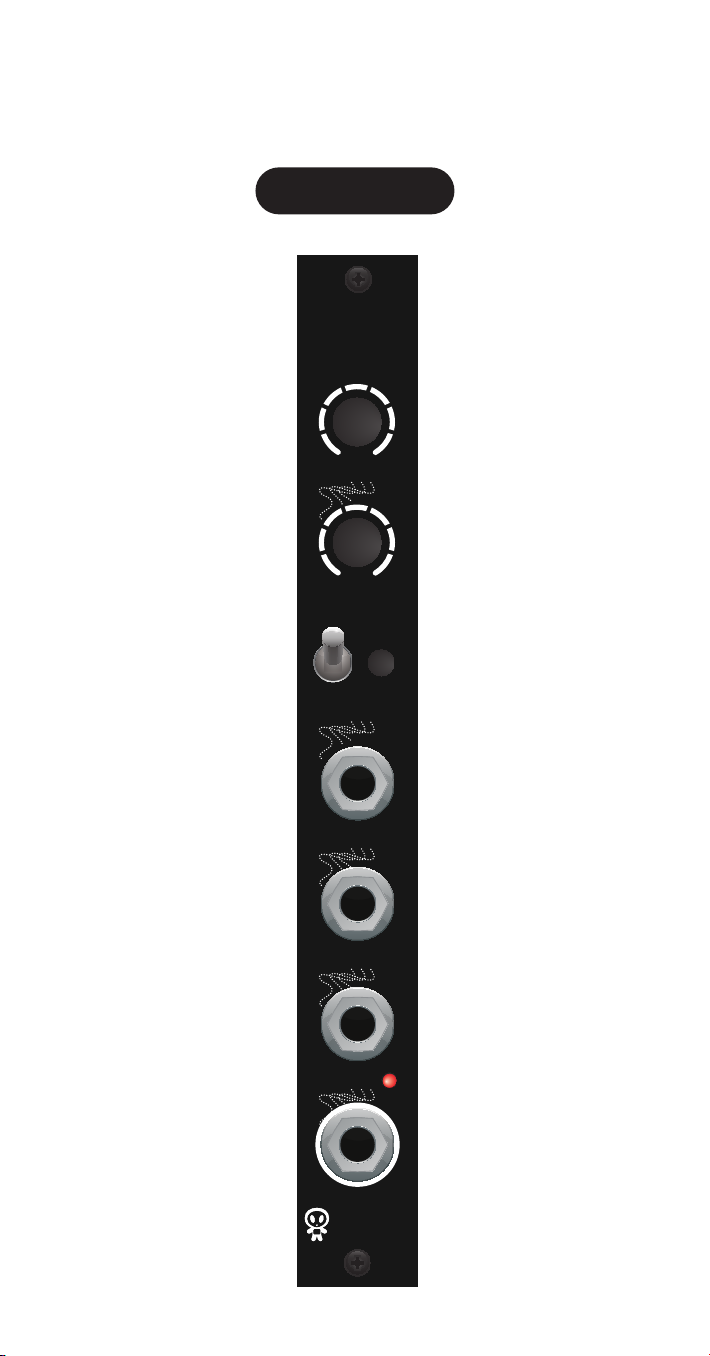

This knob sets Attack time.
The incoming CV is added to
the knob setting.
VC EG
VC EG
ATTACK
This knob sets Decay time.
The incoming CV is added to
the knob setting.
DECAY
Select between looping mode and
triggered mode! In looping mode, when
CV is applied to attack and/or decay
controls, the module can work as a
drone generator
This is the Attack CV input
This is the Trigger/Gate input. If
gate is applied, the module advances
to the ASR mode automatically
LOOP
FREE
A CV
D CV
TRG
OUT
PICO
PICO
M.TR
This is the manual trigger button
This is the Decay CV input
This is the output of the module.
The LED gives visual feedback on
the output voltage
