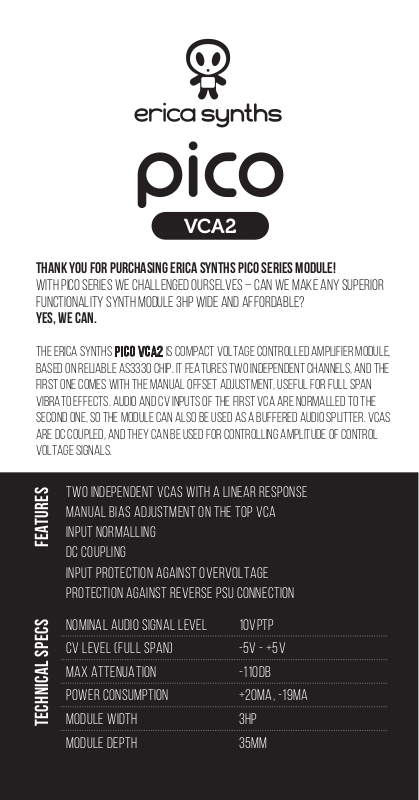

Page 1
PICO
VCA2
Thank you for purchasing Erica Synths Pico Series module!
With Pico Series we challenged ourselves – can we make ANY superior
functionality synth module 3HP wide and affordable?
Yes, we can.
The Erica Synths Pico VCA2 is compact voltage controlled amplifier module,
based on reliable AS3330 chip. It features two independent channels, and the
first one comes with the manual offset adjustment, useful for full span
vibrato effects. Audio and CV inputs of the first VCA are normalled to the
second one, so the module can also be used as a buffered audio splitter. VCAs
are DC coupled, and they can be used for controlling amplitude of control
voltage signals.
Two independent VCAs with a linear response
Manual bias adjustment on the top VCA
Input normalling
FEATURESTECHNICAL SPECS
DC coupling
Input protection against overvoltage
Protection against reverse PSU connection
Nominal audio signal level 10Vptp
CV level (full span) -5V - +5V
Max attenuation -110dB
Power consumption +20mA, -19mA
Module width 3HP
Module depth 35mm

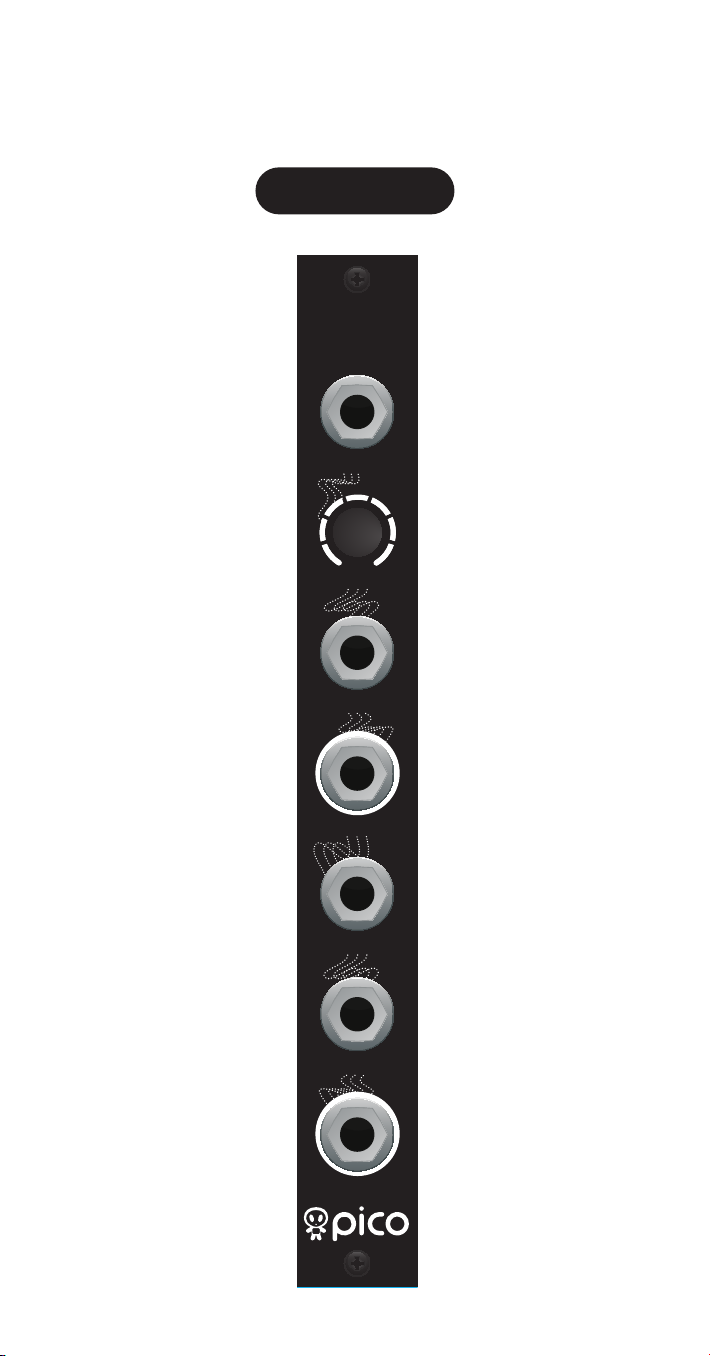

Page 2
PICO
This is the audio input of the first
VCA. It’s DC coupled, so, it also
will work for controlling an
amplitude of the control
voltages (LFOs, for example)
This is the CV input of the first
VCA, It has linear response
VCA2
VCA2
IN1
BIAS
CV1
Adjust the VCA bias manually, meaning –
you can offset the CV in order to have
desired amplitude modulation range on
the output. For example, for a tremolo
effect, you do not want the VCA close
completely at negative CVs from the LFO,
therefore using the BIAS control, you can
offset the CV1 so that it’s in 0-+10V range,
instead of -5V - +5V
This is the input of the second VCA.
It’s normalled to the input of the
first one, so, if nothing is patched
here, the signal from the first input
will be automatically applied to
this input, and the audio or CV gets
split into two channels
This is the output of the second VCA
This is the output of the first VCA
OUT1
IN2
This is the CV input of the second VCA.
It’s normalled to the CV1 input
CV2
OUT2
Page 3
Please follow the instructions for use of the Erica Synths module
below, ‘cause only this will guarantee proper operation of the module
and ensure warranty from Erica Synths.
Water is lethal for most of the electric devices, unless they are made
waterproof. This Erica Synths module is NOT intended for use in a humid or
wet environment. No liquids or other conducting substances must get
into the module. Should this happen, the module should be disconnected
from mains power immediately, dried, examined and cleaned by a qualified
technician.
Do not expose the module to temperatures above +50° C or below -20° C.
Safety Instructions
If you have transported module in extreme low temperatures, leave it in
room temperature for an hour before plugging it in.
Transport the instrument carefully, never let it drop or fall over.
Warranty does not apply to modules with visual damages.
The module has to be shipped in the original packaging only. Any module
shipped to us for return, exchange and/or warranty repair has to be in its
original packaging. All other deliveries will be rejected and returned to you.
Make sure you keep the original packaging and technical documentation.
This device complies to the EU guidelines and is manufactured RoHS conforming without use of led, mercury, cadmium and chrome. Nevertheless, this
device is special waste and disposal in household waste is not recommended.
You will find the Erica Synths terms of warranty at www.ericasynths.lv
Items for return, exchange and/or warranty repair should be sent us according
to the guidelines on SUPPORT section on www.ericasynths.lv
User manual by Girts Ozolins@Erica Synths
Design by Ineta Briede@BLACK8
Copying, distribution or any commercial use in any way is prohibited
nd needs the written permission by Erica Synths.
Specifications are subject to change without notice.In case of any questions,
feel free to contact us through www.ericasynths.lv.
You will find Erica Synths terms of warranty at
www.ericasynths.lv
Erica Synths
Andrejostas St. 43
Riga
Latvia
LV-1045
