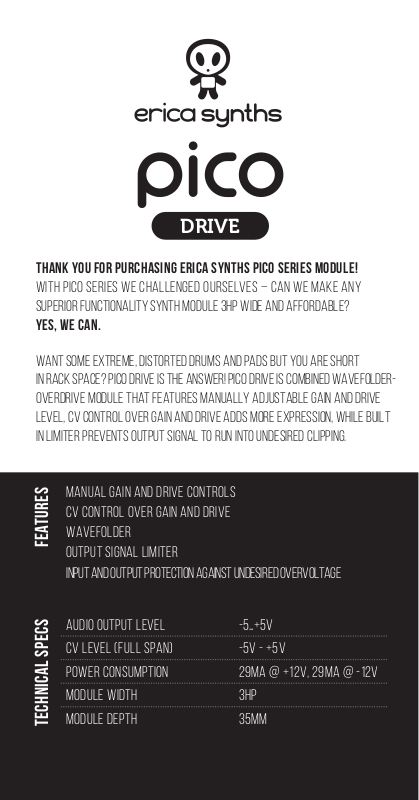

Erica Synths Pico Drive User guide

PICO

DRIVE

Thank you for purchasing Erica Synths Pico Series module!

With Pico Series we challenged ourselves – can we make ANY
superior functionality synth module 3HP wide and affordable?

Yes, we can.

Want some extreme, distorted drums and pads but you are short
in rack space? Pico Drive is the answer! Pico Drive is combined wavefolder­overdrive module that features manually adjustable Gain and Drive
level, CV control over Gain and Drive adds more expression, while built
in limiter prevents output signal to run into undesired clipping.

Manual Gain and Drive controls
CV control over Gain and Drive
Wavefolder

FEATURESTECHNICAL SPECS

Output signal limiter
Input and output protection against undesired overvoltage

Audio output level -5…+5V

CV level (full span) -5V - +5V

Power consumption 29mA @ +12V, 29mA @ -12V

Module width 3HP

Module depth 35mm

PICO

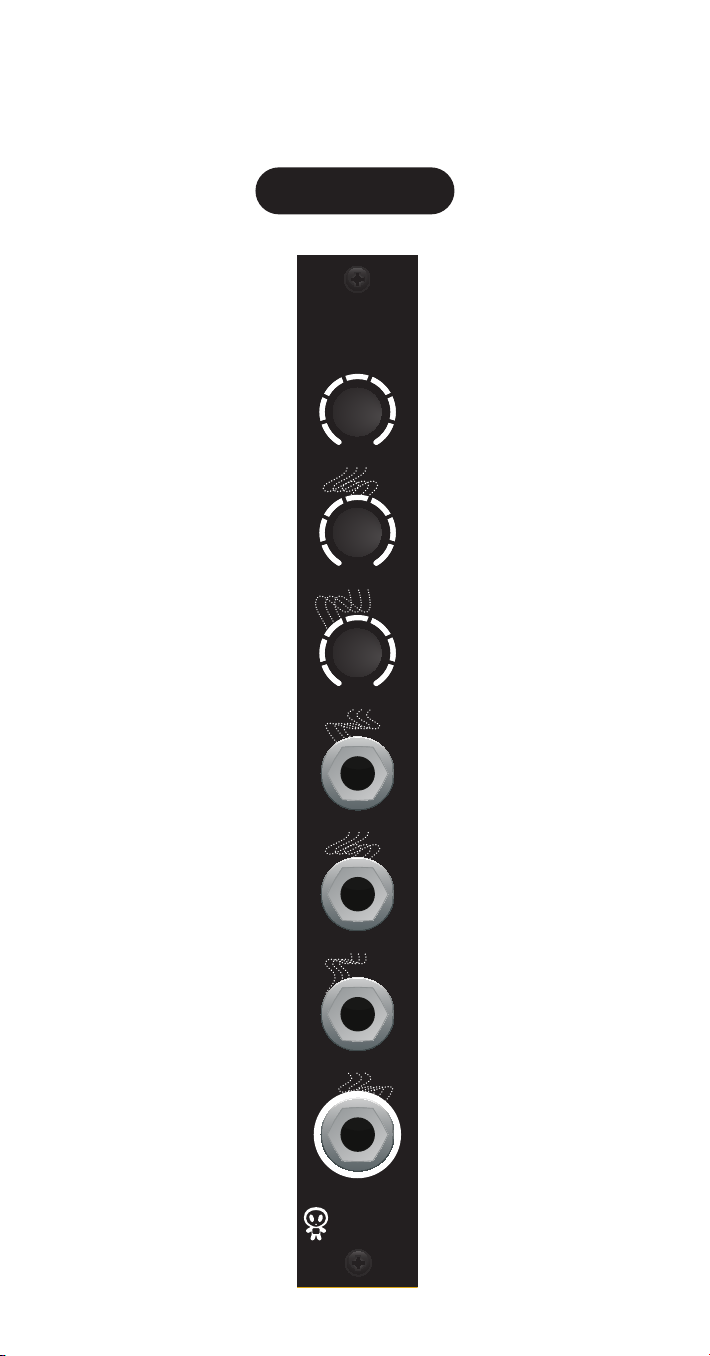

Adjust the Overdrive

level manually

This is the Gain CV

level attenuator

DRIVE

DRIVE

DRIVE

GAIN

GAIN CV

Adjust the Gain manually. At
settings above 9 ‘o'clock the
original waveform is folded and
overtones are added

Tis is the Gain CV

input

This is the audio

output

Tis is the Drive CV
input

DRIVE CV

GAIN CV

This is the audio
input

IN

OUT

PICO

Please follow the instructions for use of the Erica Synths module
below, ‘cause only this will guarantee proper operation of the module
and ensure warranty from Erica Synths.

Water is lethal for most of the electric devices, unless they are made
waterproof. This Erica Synths module is NOT intended for use in a humid or
wet environment. No liquids or other conducting substances must get
into the module. Should this happen, the module should be disconnected
from mains power immediately, dried, examined and cleaned by a qualified
technician.

Do not expose the module to temperatures above +50° C or below -20° C.

Safety Instructions

If you have transported module in extreme low temperatures, leave it in
room temperature for an hour before plugging it in.

Transport the instrument carefully, never let it drop or fall over.
Warranty does not apply to modules with visual damages.

The module has to be shipped in the original packaging only. Any module
shipped to us for return, exchange and/or warranty repair has to be in its
original packaging. All other deliveries will be rejected and returned to you.
Make sure you keep the original packaging and technical documentation.

This device complies to the EU guidelines and is manufactured RoHS
conforming without use of led, mercury, cadmium and chrome. Nevertheless,
this device is special waste and disposal in household waste is not
recommended.

You will find the Erica Synths terms of warranty at www.ericasynths.lv

Items for return, exchange and/or warranty repair should be sent us according

to the guidelines on SUPPORT section on www.ericasynths.lv

User manual by Girts Ozolins@Erica Synths

Design by Ineta Briede@BLACK8

Copying, distribution or any commercial use in any way is prohibited

nd needs the written permission by Erica Synths.

Specifications are subject to change without notice.In case of any questions,

feel free to contact us through www.ericasynths.lv.

You will find Erica Synths terms of warranty at
www.ericasynths.lv
