PICO
BBD

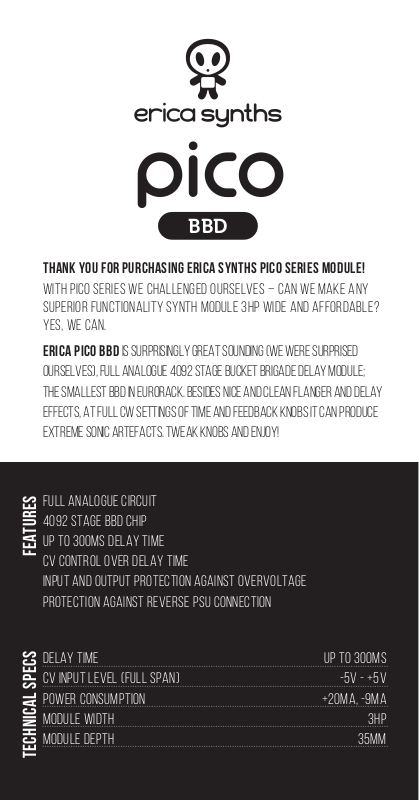

Thank you for purchasing Erica Synths Pico Series module!
With Pico Series we challenged ourselves – can we make ANY
superior functionality synth module 3HP wide and affordable?
Yes, we can.
Erica Pico BBD is surprisingly great sounding (we were surprised
ourselves), full analogue 4092 stage bucket brigade delay module;
the smallest BBD in eurorack. Besides nice and clean flanger and delay
effects, at full CW settings of TIME and feedback knobs it can produce
extreme sonic artefacts. Tweak knobs and enjoy!
Full analogue circuit
4092 stage BBD chip
Up to 300ms delay time
FEATURESTECHNICAL SPECS
CV control over delay time
Input and output protection against overvoltage
Protection against reverse PSU connection
Delay time up to 300ms
CV input level (full span) -5V - +5V
Power consumption +20mA, -9mA
Module width 3HP
Module depth 35mm
Page 2
PICO

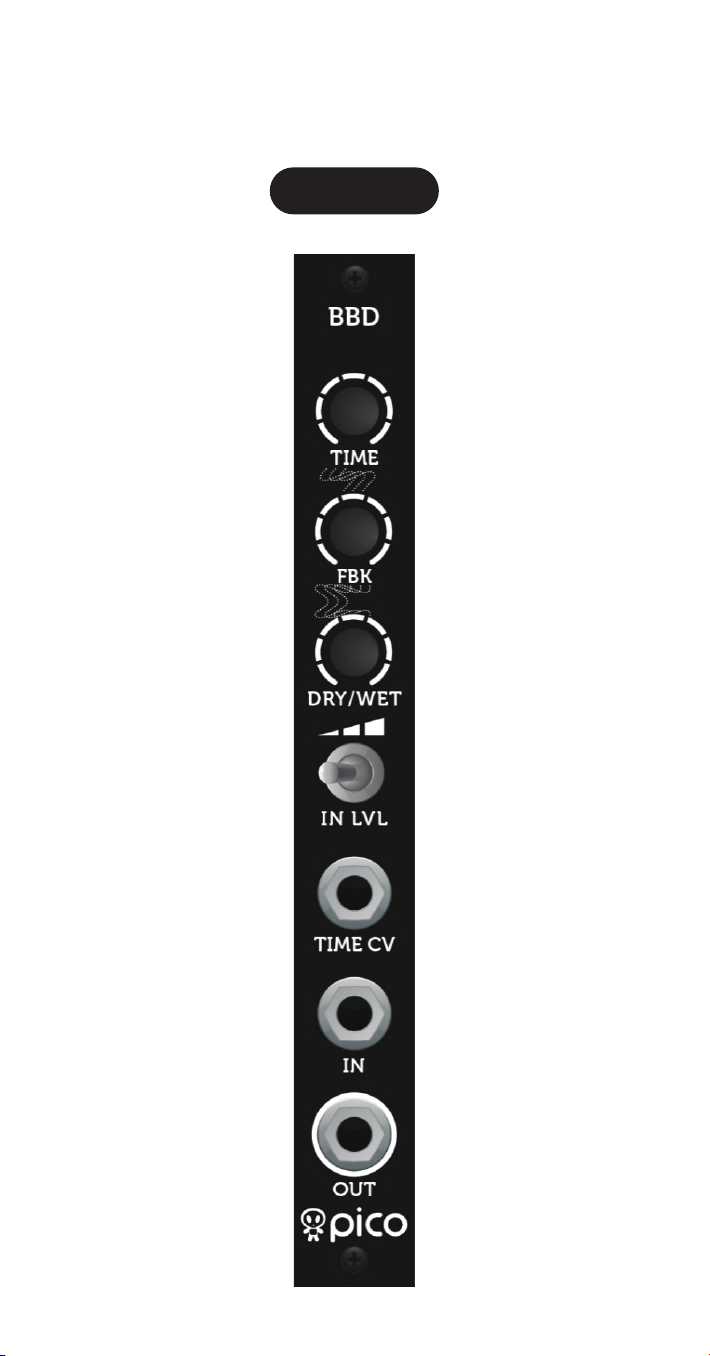

Adjust the Delay time from very
short, flanger-like effects CCW to
nice analogue delay effects and
extreme sonic artefacts CW. The Time
CV is added to the knob setting
This is the Dry/Wet crossfade control
BBD
Adjust feedback level! In full CW
setting the module will go to self
oscillation
This is time CV input
This is the output of the module
A switch discretely adjusts audio
signal level. Sometimes, at high
feedback settings, you may wish to
hear more of BBD sounds and less
audio input
Patch the audio signal here
Page 3
Please follow the instructions for use of the Erica Synths module
below, ‘cause only this will guarantee proper operation of the module
and ensure warranty from Erica Synths.
Water is lethal for most of the electric devices, unless they are made
waterproof. This Erica Synths module is NOT intended for use in a humid or
wet environment. No liquids or other conducting substances must get
into the module. Should this happen, the module should be disconnected
from mains power immediately, dried, examined and cleaned by
a qualified technician.
Do not expose the module to temperatures above +50° C or below -20° C. If
Safety Instructions
you have transported module in extreme low temperatures, leave it in
room temperature for an hour before plugging it in
Transport the instrument carefully, never let it drop or fall over.
Warranty does not apply to modules with visual damages.
The module has to be shipped in the original packaging only. Any module
shipped to us for return, exchange and/or warranty repair has to be in
its original packaging. All other deliveries will be rejected and
returned to you. Make sure you keep the original packaging and
technical documentation.
This device complies to the EU guidelines and is manufactured R
OHS
conforming without use of led, mercury, cadmium and chrome.
Nevertheless, this device is special waste and disposal in household
waste is not recommended.
You will find Erica Synths terms of warranty at www.ericasynths.lv.
Items for return, exchange and/or warranty repair have to be sent to:
Erica Synths
Andrejostas Str. 43
Riga
Latvia
LV-1045
User manual by Girts Ozolins@Erica Synths
