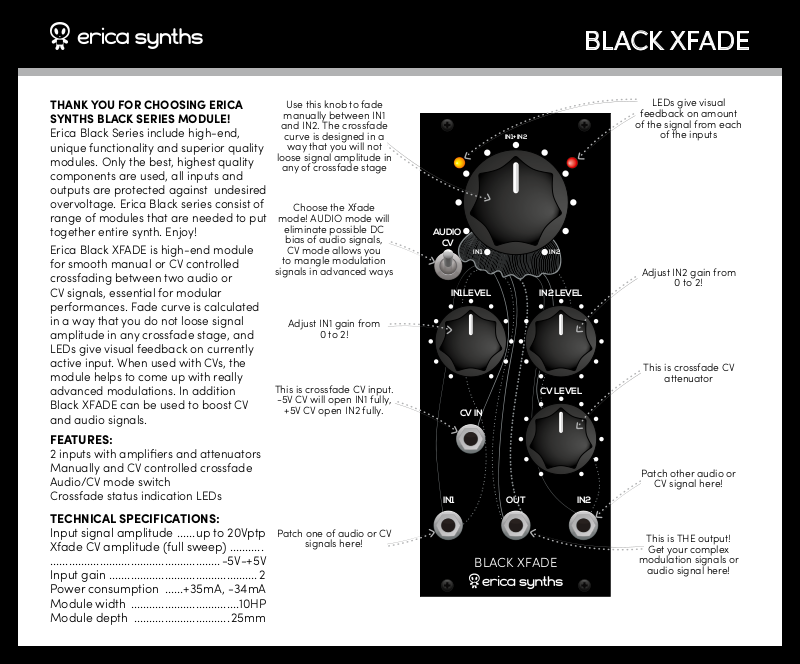

Page 1
BLACK XFADE
THANK YOU FOR CHOOSING ERICA
SYNTHS BLACK SERIES MODULE!
Erica Black Series include high-end,
unique functionality and superior quality
modules. Only the best, highest quality
components are used, all inputs and
outputs are protected against undesired
overvoltage. Erica Black series consist of
range of modules that are needed to put
together entire synth. Enjoy!
Erica Black XFADE is high-end module
for smooth manual or CV controlled
crossfading between two audio or
CV signals, essential for modular
performances. Fade curve is calculated
in a way that you do not loose signal
amplitude in any crossfade stage, and
LEDs give visual feedback on currently
active input. When used with CVs, the
module helps to come up with really
advanced modulations. In addition
Black XFADE can be used to boost CV
and audio signals.
FEATURES:
2 inputs with amplifiers and attenuators
Manually and CV controlled crossfade
Audio/CV mode switch
Crossfade status indication LEDs
TECHNICAL SPECIFICATIONS:
Input signal amplitude ......up to 20Vptp
Xfade CV amplitude (full sweep) ...........
.......................................................-5V-+5V
Input gain ................................................ 2
Power consumption ......+35mA, -34mA
Module width ...................................10HP
Module depth ...............................25mm

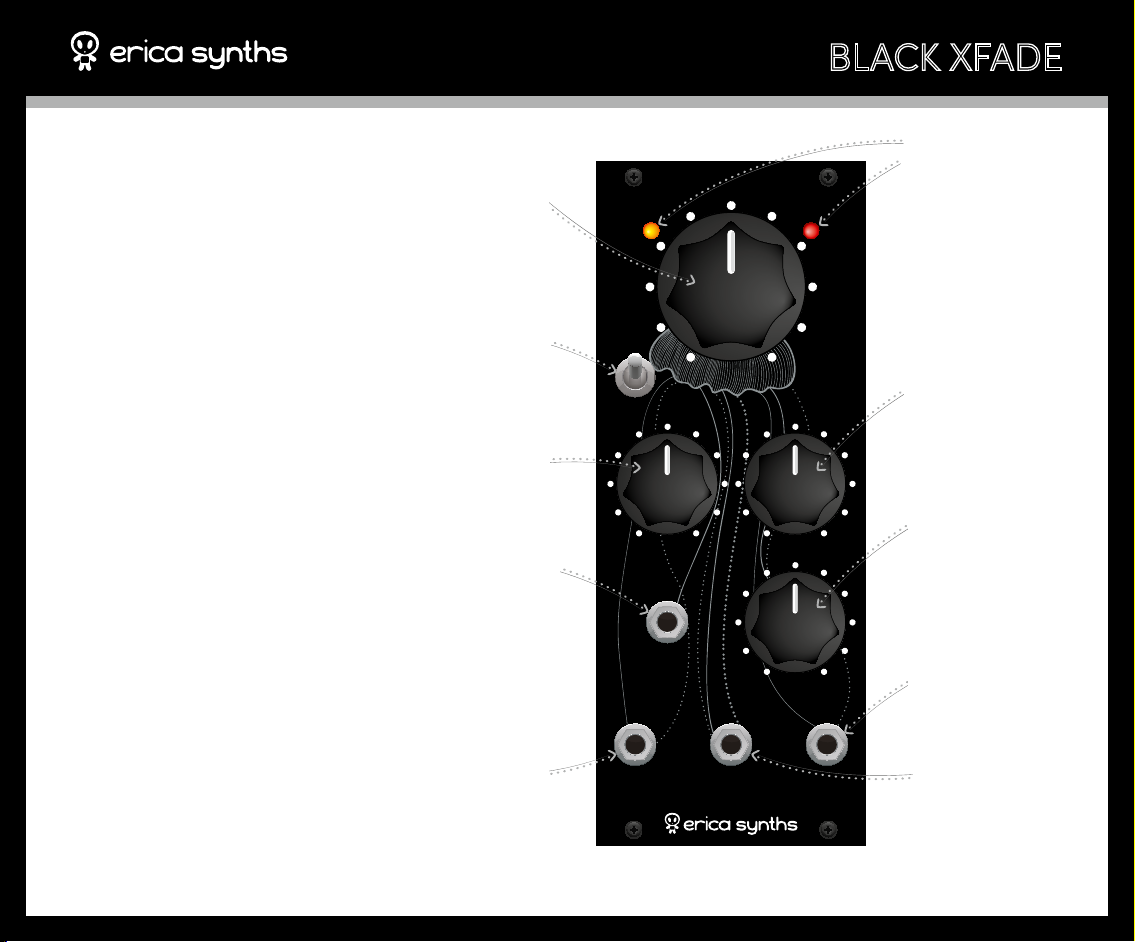

Use this knob to fade
manually between IN1
and IN2. The crossfade
curve is designed in a
way that you will not
loose signal amplitude in
any of crossfade stage
Choose the Xfade
mode! AUDIO mode will
eliminate possible DC
bias of audio signals,
CV mode allows you
to mangle modulation
signals in advanced ways
Adjust IN1 gain from
0 to 2!
This is crossfade CV input.
-5V CV will open IN1 fully,
+5V CV open IN2 fully.
Patch one of audio or CV
signals here!
IN1+IN2
AUDIO
CV
IN1 IN2
IN1 LEVEL IN2 LEVEL
CV LEVEL
CV IN
IN1 OUT IN2
BLACK XFADE
LEDs give visual
feedback on amount
of the signal from each
of the inputs
Adjust IN2 gain from
0 to 2!
This is crossfade CV
attenuator
Patch other audio or
CV signal here!
This is THE output!
Get your complex
modulation signals or
audio signal here!
Page 2
SAFETY INSTRUCTIONS
BLACK XFADE
Please follow the instructions for use of this
Erica Synths module below, ‘cause only this
will guarantee proper operation of the module
and ensure warranty from Erica Synths.
Water is lethal for most of the electric devices,
unless they are made waterproof. Erica
Synths module is NOT intended for use in
a humid or wet environment. No liquids or
other conducting substances must get into
the module. Should this happen, the module
should be disconnected from mains power
immediately, dried, examined and cleaned by
a qualified technician.
Do not expose the module to temperatures
above +50° C or below -20° C.
Transport the instrument with modules
installed carefully, never let it drop or fall over.
Warranty does not apply to modules with
visual damages.
The module has to be shipped in the original
packaging only. Any module shipped to us
for return, exchange and/or warranty repair
has to be in its original packaging. All other
deliveries will be rejected and returned to you.
Make sure you keep the original packaging
and technical documentation.
You will find Erica Synths terms of warranty at
http://ericasynths.lv/en/terms/
Items for return, exchange and/or warranty
repair have to be sent to: Erica Synths,
Andrejostas Str.12, Riga, Latvia, LV-1045
DISPOSAL
This device complies to the EU guidelines and is
manufactured RoHS conforming without use of
led, mercury, cadmium and chrome.
Nevertheless, this device is special waste and
disposal in household waste is not
recommended.
Designed and made in Latvia.
User manual by Girts Ozolins@Erica Synths.
Design by Baiba Stelle.
Copying, distribution or any commercial use in
any way is prohibited and needs the written
permission by Erica Synths.
Specifications are subject to change without
notice.
In case of any questions feel free to contact us
via e-mail [email protected]
Check out other Erica Synths modules & devices
at www.ericasynths.lv
