Page 1
BLACK

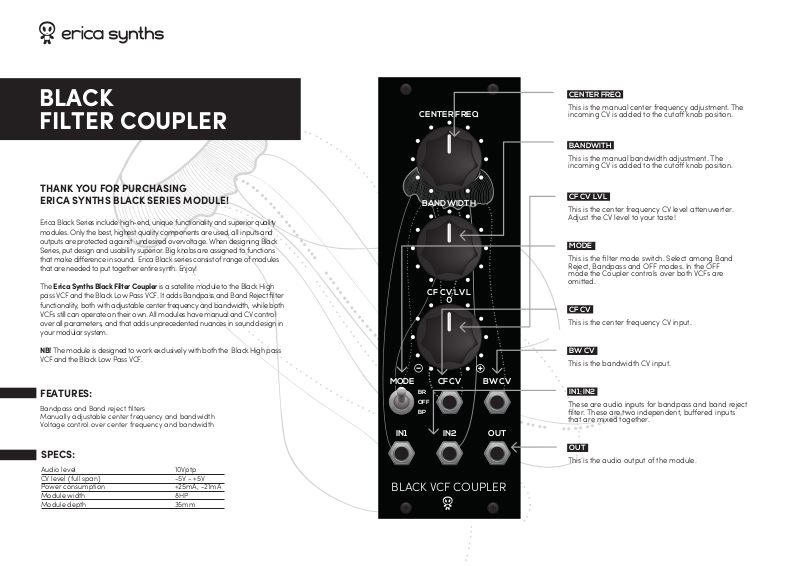

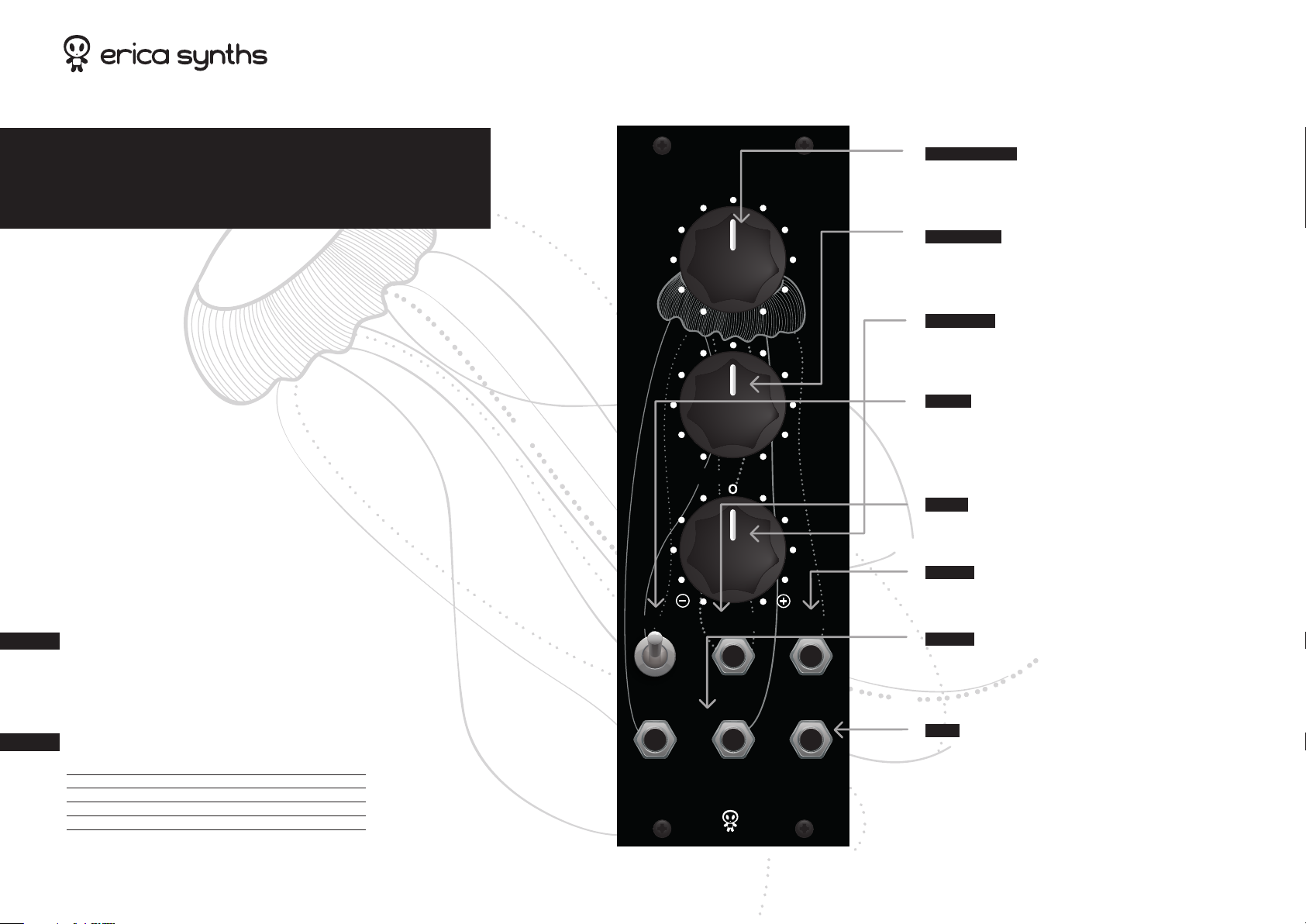

FILTER COUPLER
CENTER FREQ
CENTER FREQ
This is the manual center frequency adjustment. The
incoming CV is added to the cuto knob position.
BANDWITH
This is the manual bandwidth adjustment. The
incoming CV is added to the cuto knob position.
THANK YOU FOR PURCHASING
ERICA SYNTHS BLACK SERIES MODULE!
Erica Black Series include high-end, unique functionality and superior quality
modules. Only the best, highest quality components are used, all inputs and
outputs are protected against undesired overvoltage. When designing Black
Series, put design and usability superior. Big knobs are assigned to functions
that make dierence in sound. Erica Black series consist of range of modules
that are needed to put together entire synth. Enjoy!
The Erica Synths Black Filter Coupler is a satellite module to the Black High
pass VCF and the Black Low Pass VCF. It adds Bandpass and Band Reject filter
functionality, both with adjustable center frequency and bandwidth, while both
VCFs still can operate on their own. All modules have manual and CV control
over all parameters, and that adds unprecedented nuances in sound design in
your modular system.
NB! The module is designed to work exclusively with both the Black High pass
VCF and the Black Low Pass VCF.
FEATURES:
Bandpass and Band reject filters
Manually adjustable center frequency and bandwidth
Voltage control over center frequency and bandwidth
SPECS:
Audio level 10Vptp
CV level (full span) -5V - +5V
Power consumption +25mA, -21mA
Module width 8HP
Module depth 35mm
BANDWIDTH
CF CV LVL
MODE
BR
OFF
BP
BW CVCF CV
OUTIN2IN1
BLACK VCF COUPLER
CF CV LVL
This is the center frequency CV level attenuverter.
Adjust the CV level to your taste!
MODE
This is the filter mode switch. Select among Band
Reject, Bandpass and OFF modes. In the OFF
mode the Coupler controls over both VCFs are
omitted.
CF CV
This is the center frequency CV input.
BW CV
This is the bandwidth CV input.
IN1; IN2
These are audio inputs for bandpass and band reject
filter. These are two independent, buered inputs
that are mixed together.
OUT
This is the audio output of the module.
Page 2

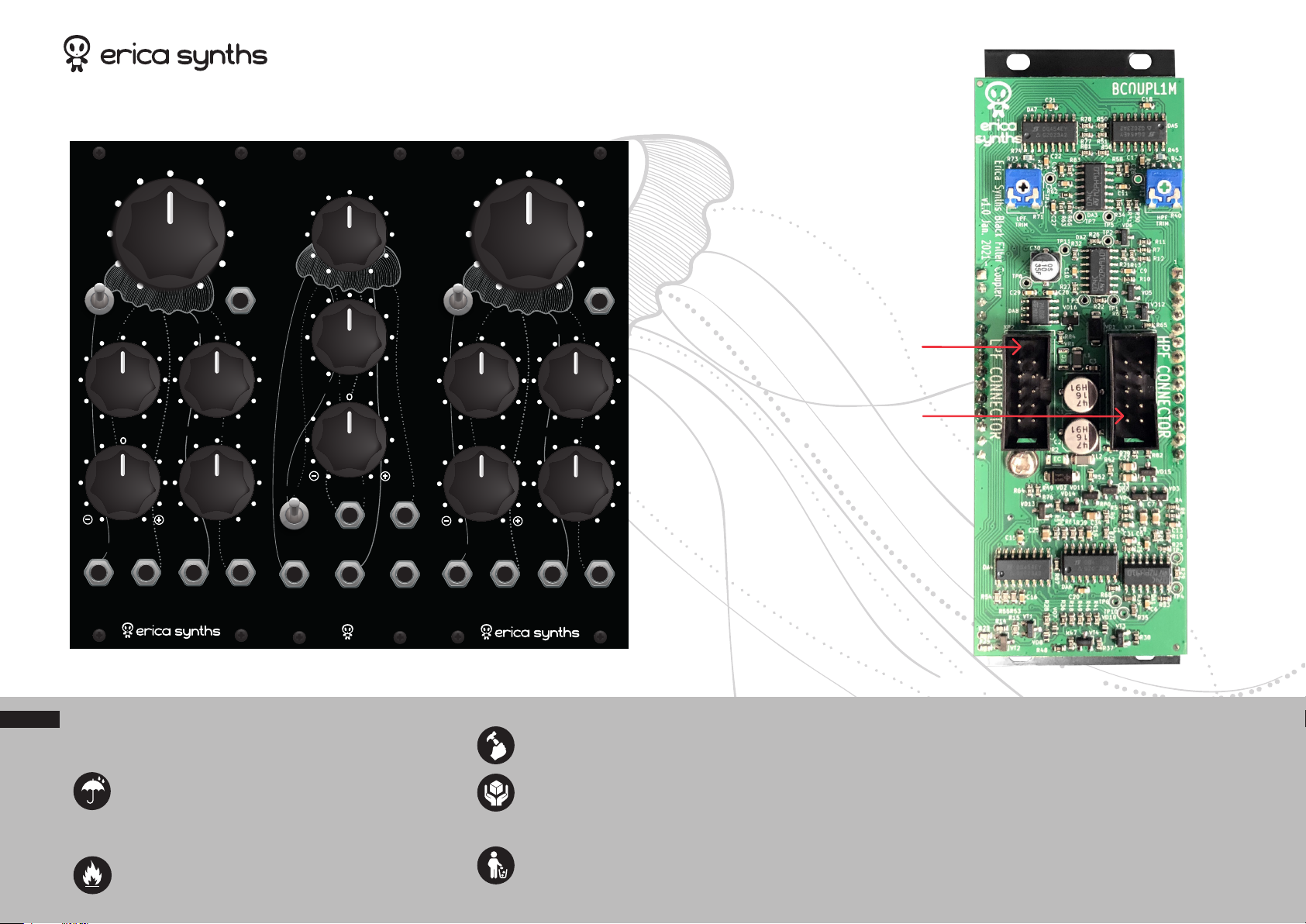

When used in combination with the Black High Pass VCF and the Black Low Pass VCF, you get a Holy
Trinity of VCFs for an ultimate analogue modular system.
CUTOFF
DRIVE
ON
OFF
IN LEVEL
CV1 LEVEL
INPUT CV1 CV2 OUT
RESO CV IN
RESONANCE
RESO CV LEVEL
MODE
CENTER FREQ
BANDWIDTH
CF CV LVL
BR
OFF
BP
CUTOFF
ON
OFF
IN LEVEL
RESO CV IN DRIVE
RESONANCE
Use the 2x5pin ribbon
cable to connect the
Erica Synths Black Low
Pass VCF here.
Use the 2x5pin ribbon
CV1 LEVEL
0
RESO CV LEVEL
cable to connect the
Erica Synths Black High
Pass VCF here.
BW CVCF CV
OUTIN2IN1
INPUT CV1 CV2 OUT
BLACK HIGH PASS VCF
BLACK VCF COUPLER
SAFETY INSTRUCTIONS
Please follow the instructions for use of the Erica Synths module below,
‘cause only this will guarantee proper operation of the module and
ensure warranty from Erica Synths.
Water is lethal for most of the electric devices, unless they are made
waterproof. This Erica Synths module is NOT intended for use in a
humid or wet environment. No liquids or other conducting
substances must get into the module. Should this happen, the
module should be disconnected from mains power immediately,
dried, examined and cleaned by a qualified technician.
Do not expose the module to temperatures above +50° C or below
-20° C. If you have transported module in extreme low temperatures,
leave it in room temperature for an hour before plugging it in.
BLACK LOW PASS VCF
Transport the instrument carefully, never let it drop or fall
over. Warranty does not apply to modules with visual
damages.
The module has to be shipped in the original packaging
only. Any module shipped to us for return, exchange and/or
warranty repair has to be in its original packaging. All other
deliveries will be rejected and returned to you. Make sure
you keep the original packaging and technical documentation.
This device complies to the EU guidelines and is manufactured RoHS conforming without use of lead, mercury,
cadmium and chrome. Nevertheless, this device is special
waste and disposal in household waste is not recommended.
User manual by Girts Ozolins@Erica Synths.
Design by Ineta Briede@Black8.
Copying, distribution or any commercial use in any way is
prohibited and needs the written permission by Erica Synths.
Specifications are subject to change without notice.In case of
any questions, feel free to contact us through www.ericasynths.lv.
You will find Erica Synths terms of warranty at
www.ericasynths.lv
Items for return, exchange and/or warranty repair have to
be registered at SUPPORT on www.ericasynths.lv and send
back to us according to instructions in the support page.
