Page 1
L
R
THANK YOU FOR PURCHASING
ERICA SYNTHS BLACK SERIES
MODULE!
These are high-end modules with
unique functionality. Only the highest
quality components are used and
all inputs and outputs are protected
against undesired overvoltage.
When designing the Black Series,
we did not economise on the
module width, we put design and
usability first. Big knobs are assigned
to functions that make dierence
in sound. The Erica Black series are
a range of modules that together
make an entire synthesizer.
Enjoy!

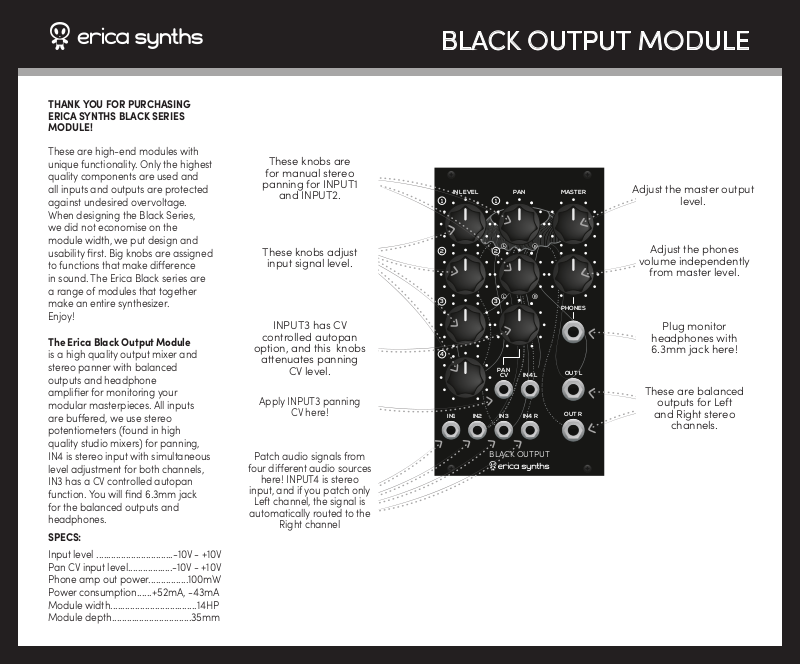

The Erica Black Output Module
is a high quality output mixer and
stereo panner with balanced
outputs and headphone
amplifier for monitoring your
modular masterpieces. All inputs
are buered, we use stereo
potentiometers (found in high
quality studio mixers) for panning,
IN4 is stereo input with simultaneous
level adjustment for both channels,
IN3 has a CV controlled autopan
function. You will find 6.3mm jack
for the balanced outputs and
headphones.
SPECS:
Input level ...............................-10V - +10V
Pan CV input level..................-10V - +10V
Phone amp out power................100mW
Power consumption......+52mA, -43mA
Module width...................................14HP
Module depth................................35mm

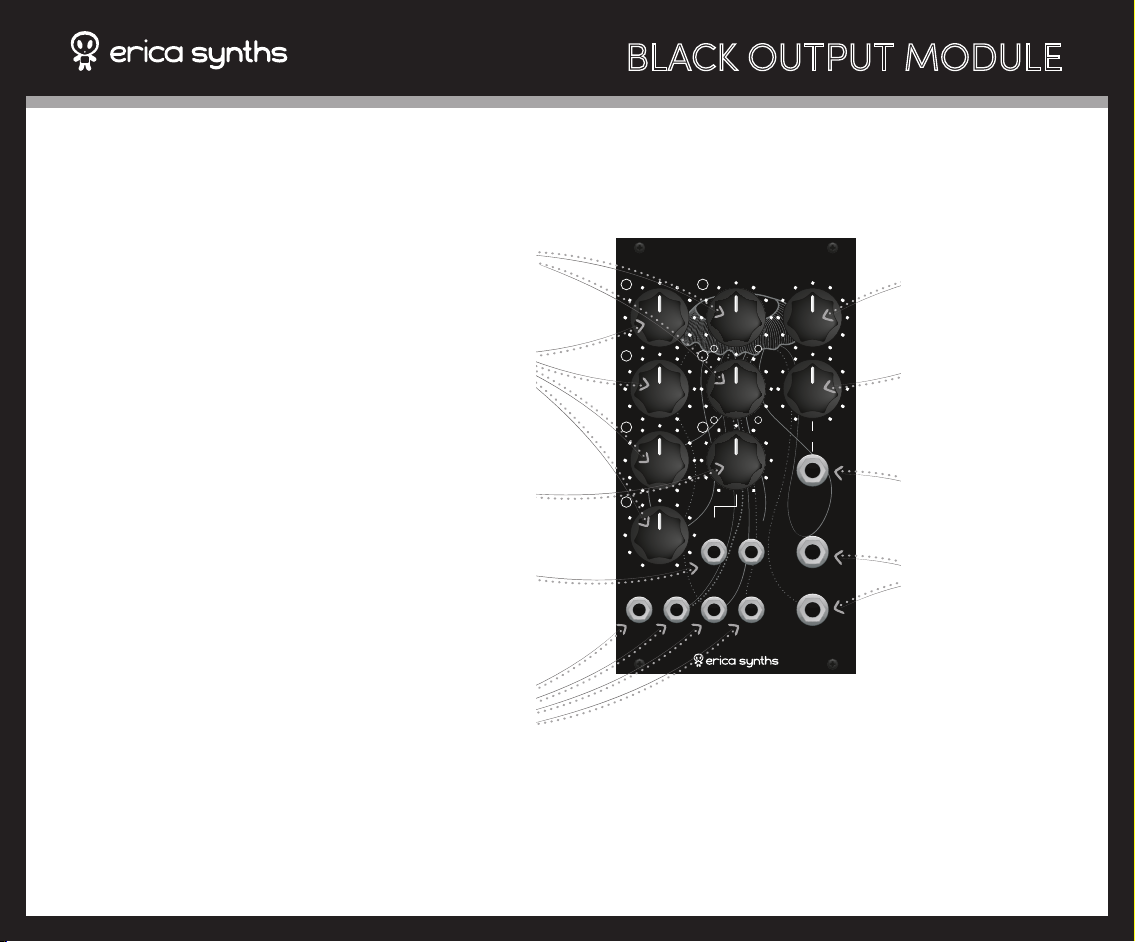

These knobs are
for manual stereo
panning for INPUT1
and INPUT2.
These knobs adjust
input signal level.
INPUT3 has CV
controlled autopan
option, and this knobs
attenuates panning
CV level.
Apply INPUT3 panning
CV here!
Patch audio signals from
four dierent audio sources
here! INPUT4 is stereo
input, and if you patch only
Left channel, the signal is
automatically routed to the
Right channel
BLACK OUTPUT MODULE
1
2
3
4
IN1 IN2 IN3 IN4 R
1
L
2
3
PAN
CV
BLACK OUTPUT
PAN MASTERIN LEVEL
R
PHONES
OUT L
IN4 L
OUT R
Adjust the master output
level.
Adjust the phones
volume independently
from master level.
Plug monitor
headphones with
6.3mm jack here!
These are balanced
outputs for Left
and Right stereo
channels.
Page 2
SAFETY INSTRUCTIONS
BLACK OUTPUT MODULE
Please follow the instructions for use of this
Erica Synths module below, ‘cause only this
will guarantee proper operation of the module
and ensure warranty from Erica Synths.
Water is lethal for most of the electric devices,
unless they are made waterproof. Erica
Synths module is NOT intended for use in
a humid or wet environment. No liquids or
other conducting substances must get into
the module. Should this happen, the module
should be disconnected from mains power
immediately, dried, examined and cleaned by
a qualified technician.
Do not expose the module to temperatures
above +50° C or below -20° C.
Transport the instrument with modules
installed carefully, never let it drop or fall over.
Warranty does not apply to modules with
visual damages.
The module has to be shipped in the original
packaging only. Any module shipped to us
for return, exchange and/or warranty repair
has to be in its original packaging. All other
deliveries will be rejected and returned to you.
Make sure you keep the original packaging
and technical documentation.
You will find Erica Synths terms of warranty at
http://ericasynths.lv/en/terms/
Items for return, exchange and/or warranty
repair have to be sent to: Erica Synths,
Andrejostas Str.12, Riga, Latvia, LV-1045
DISPOSAL
This device complies to the EU guidelines and is
manufactured RoHS conforming without use of
led, mercury, cadmium and chrome.
Nevertheless, this device is special waste and
disposal in household waste is not
recommended.
Designed and made in Latvia.
User manual by Girts Ozolins@Erica Synths.
Design by Baiba Stelle.
Copying, distribution or any commercial use in
any way is prohibited and needs the written
permission by Erica Synths.
Specifications are subject to change without
notice.
In case of any questions feel free to contact us
via e-mail [email protected]
Check out other Erica Synths modules & devices
at www.ericasynths.lv
