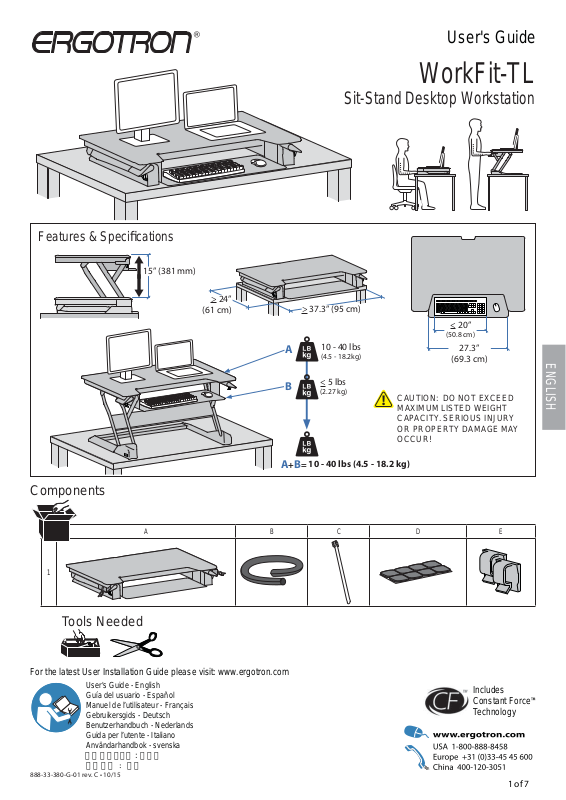

Ergotron WorkFit-TL User Manual
Features & Specifi cations
15” (381 mm)
> 24”
(61 cm)
> 37.3” (95 cm)
A
User's Guide
WorkFit-TL
Sit-Stand Desktop Workstation
< 20”
(50.8 cm)
10 - 40 lbs
(4.5 - 18.2kg)
27.3”
(69.3 cm)
ENGLISH
Components
1
Tools Needed
B
A+B=
ABCDE
< 5 lbs
(2.27 kg)
10 - 40 lbs (4.5 - 18.2 kg)
CAUTION: DO NOT EXCEED
MAXIMUM LISTED WEIGHT
CAPACITY. SERIOUS INJURY
OR PROPERTY DAMAGE MAY
OCCUR!
For the latest User Installation Guide please visit: www.ergotron.com
User's Guide - English
Guía del usuario - Español
Manuel de l’utilisateur - Français
Gebruikersgids - Deutsch
Benutzerhandbuch - Nederlands
Guida per l’utente - Italiano
Användarhandbok - svenska
ユーザーガイド:日本語
用户指南 : 汉语
888-33-380-G-01 rev. C • 10/15
Includes
Constant Force™
Technology
1 of 7
Safety
Warning: Because mounting surface materials can vary widely, it is imperative that you make sure mounting surface is strong
enough to handle mounted product and equipment.
WARNING
DO NOT place hands on or near support bars. Pinch points are
PINCH POINT
created during lifting and lowering the worksurface. Failure to
follow these instructions may result in serious personal injury.
ENGLISH
828-100

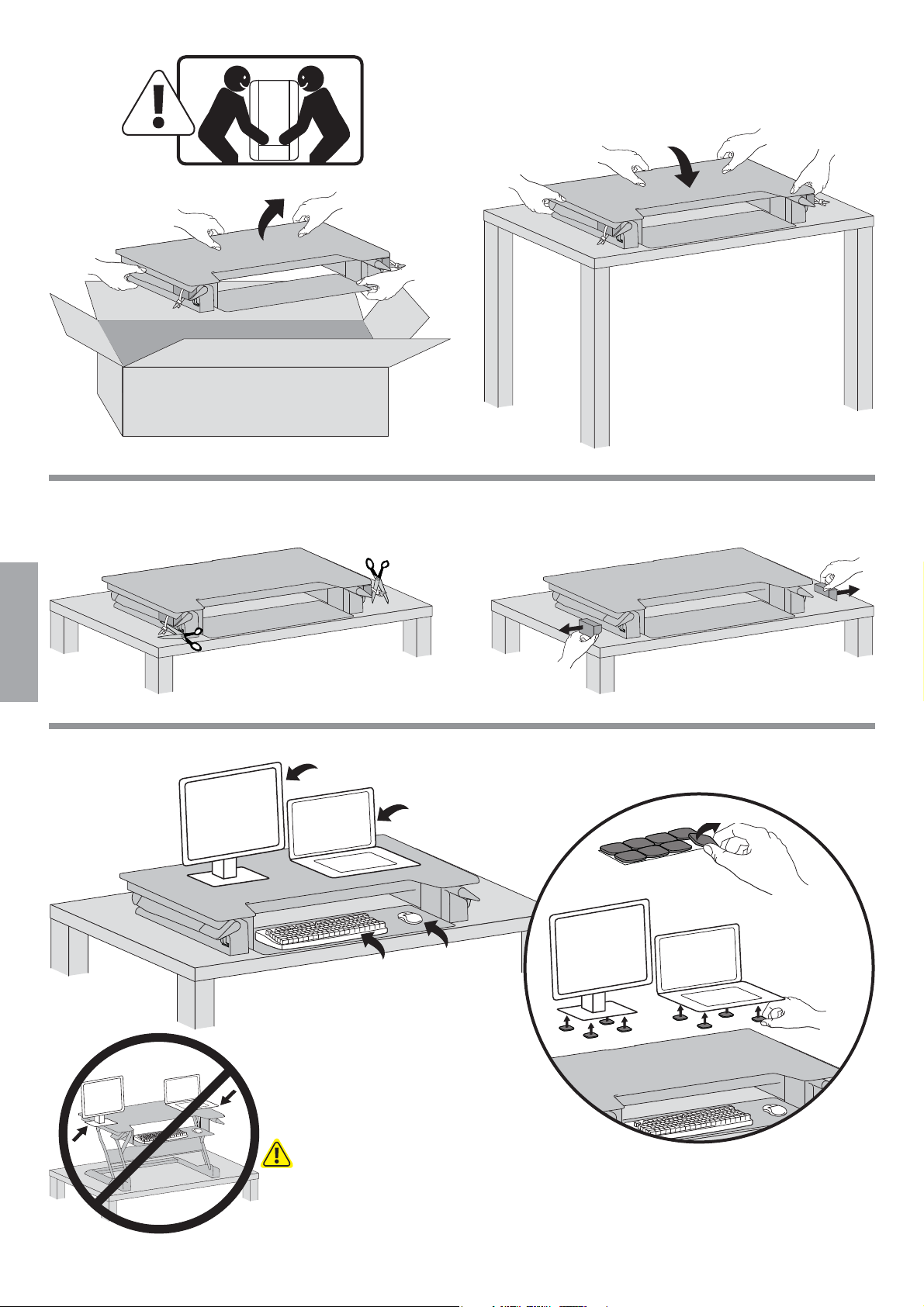

Warning: Impact Hazard! Moving Parts can Crush and Cut.
Raise this product to its full up position before lifting o the desk.
Two people are required to lift this product o the desk.
Do not tip this product on its side or upside down. This product must remain upright at all times.
Failure to heed this warning may cause unintended motion of the lift mechanism resulting in
possible serious personal injury and or property damage!
Warning: Impact Hazard! Worksurface under tension. Moving Parts can Crush and Cut.
Raise worksurface to top of vertical adjustment BEFORE removing equipment.
Failure to heed this warning may result in serious personal injury and or property damage!
2 of 7
888-33-380-G-01 rev. C • 10/15
Safety

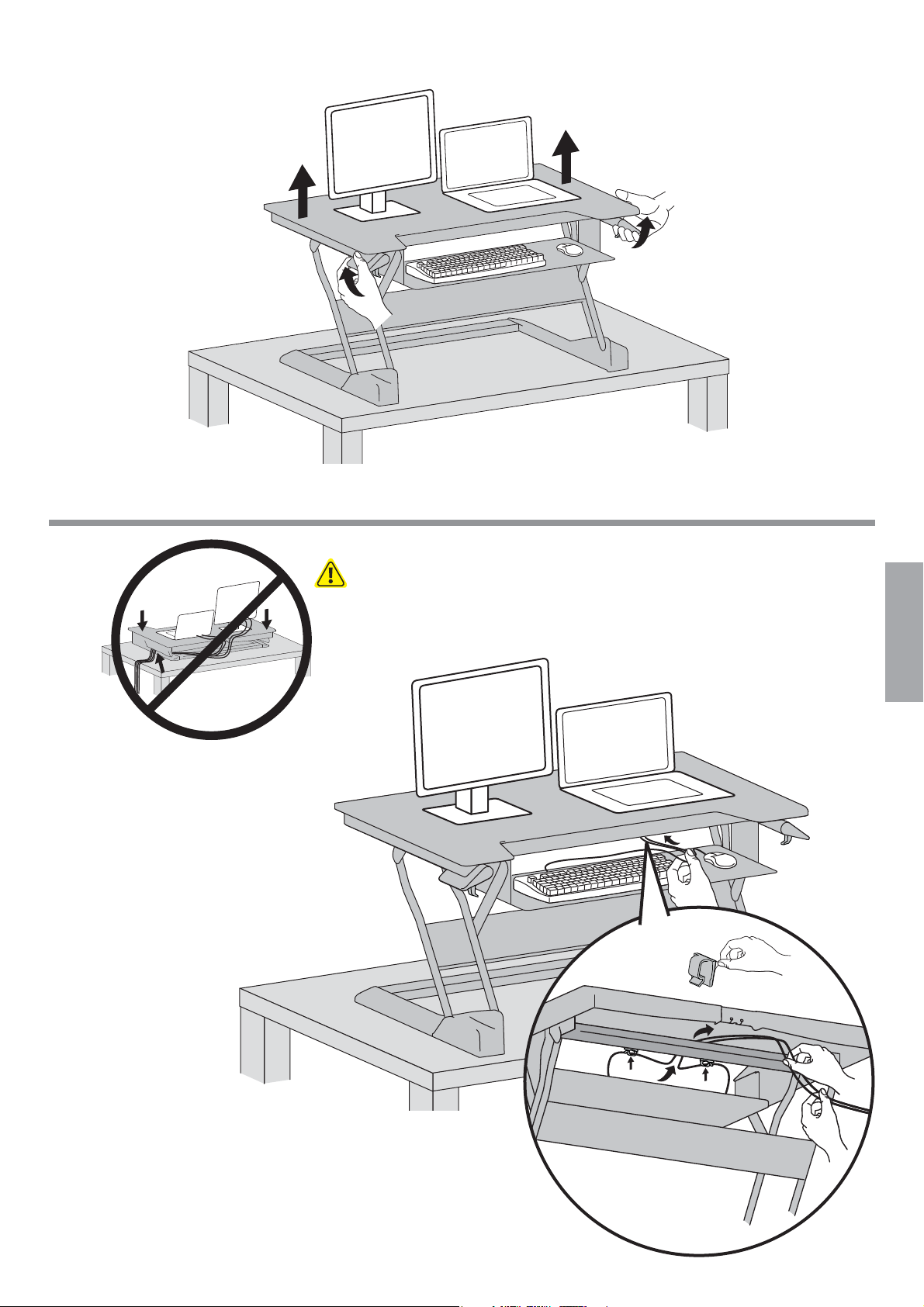

Caution:

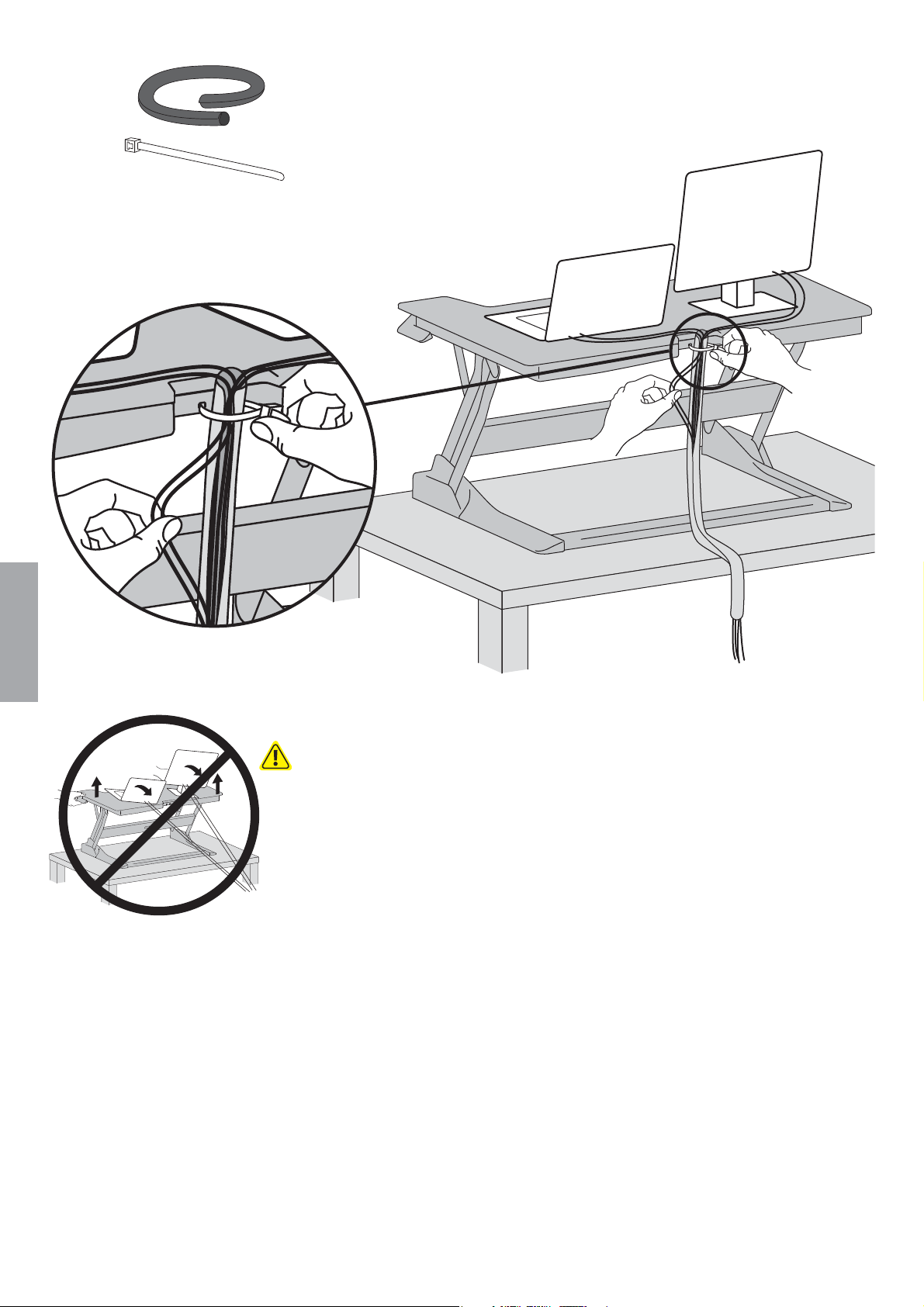

To avoid the potential to pinch cables it is important to follow the cable routing instructions
in this manual. Failure to follow these instructions may result in equipment damage or
personal injury.
Caution:
Leave enough slack in cable to allow for full range of vertical motion (15” / 38 cm). Failure to
heed this warning may result in property damage and or personal injury.
Caution:
Keep monitor and laptop base fully on the worksurface. Allowing any part of base or stand to
hang o the edge may result in property damage and or personal injury.
Caution:
Raise worksurface slowly. Raising worksurface too fast may create an unstable situation
resulting in property damage and or personal injury.
ENGLISH
888-33-380-G-01 rev. C • 10/15
3 of 7
