Page 1
S

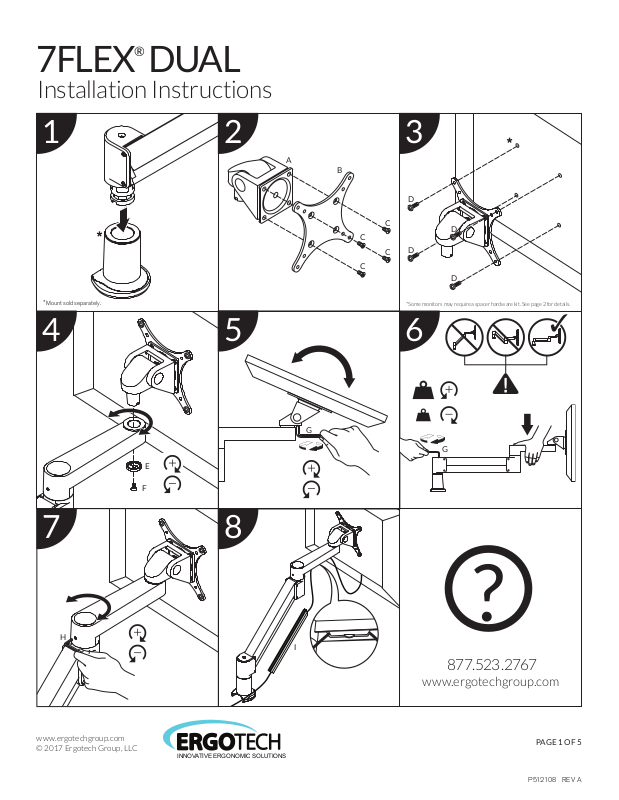

7FLEX® DUAL
Installation Instructions
1 2 3
A
B
D
* Mount sold separately.
4 5
E
F
C
C
D
C
C
* Some monitor s may require a spac er hardware kit . See page 2 for d etails.
D
D
6
G
G
7 8
H
www.ergotechgroup.com
© 2017 Ergotech Group, LLC
INNOVATIVE ERGONOMIC SOLUTION
?
I
87 7.523.2767
www.ergotechgroup.com
PAGE 1 OF 5
P51210 8 REV A
Page 2
S
7FLEX® DUAL
Installation Part List
ITEM DESCRIPTION / PART NO. QUANTITY ITEM DESCRIPTION / PART NO. QUANTITY
A Monitor Tilter 2
405397
B 75/100mm VESA® Adapter Plate 2
105587
C 10-32 x 3/8" Phillips Pan Head Screw 2
702281
D M4 x 12mm Phillips Pan Head Screw 2
702096
E Dog Washer 2
(4-pack)
(4-pack)
10 5189
F 10-32 x 3/8" FPhMS w/Lock Patch 2
70 5198
G 7/32" Allen Wrench 1
701127
H 3/32" Allen Wrench 1
70 014 6
I Cable Cap 2
1020 43 - 9.5
www.ergotechgroup.com
© 2017 Ergotech Group, LLC
PAGE 2 OF 5
INNOVATIVE ERGONOMIC SOLUTION
Page 3
S
7FLEX® DUAL

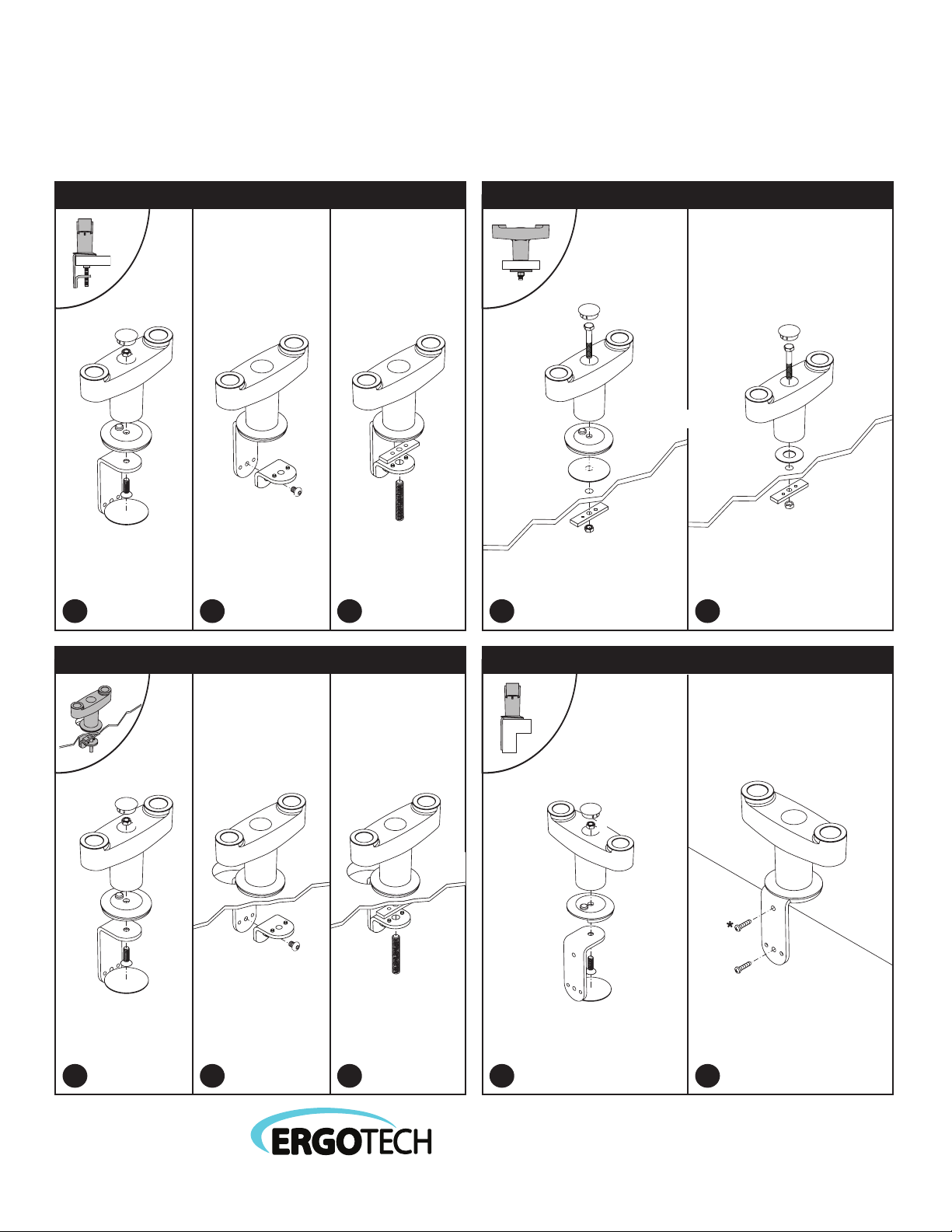

Mounting Instructions
Desk Edge
A
B
1
Thru-Desk
G
G
– or –
E
C
C
D
2 3
F
1
E
A
2
H
E
A
Grommet Hole Side Bolt
A
E
B
C
1
2
D
3
F
1
A
B
C
2
Hardware not in cluded.
*
www.ergotechgroup.com
© 2017 Ergotech Group, LLC
PAGE 3 OF 5
INNOVATIVE ERGONOMIC SOLUTION
Page 4
S
7FLEX® DUAL

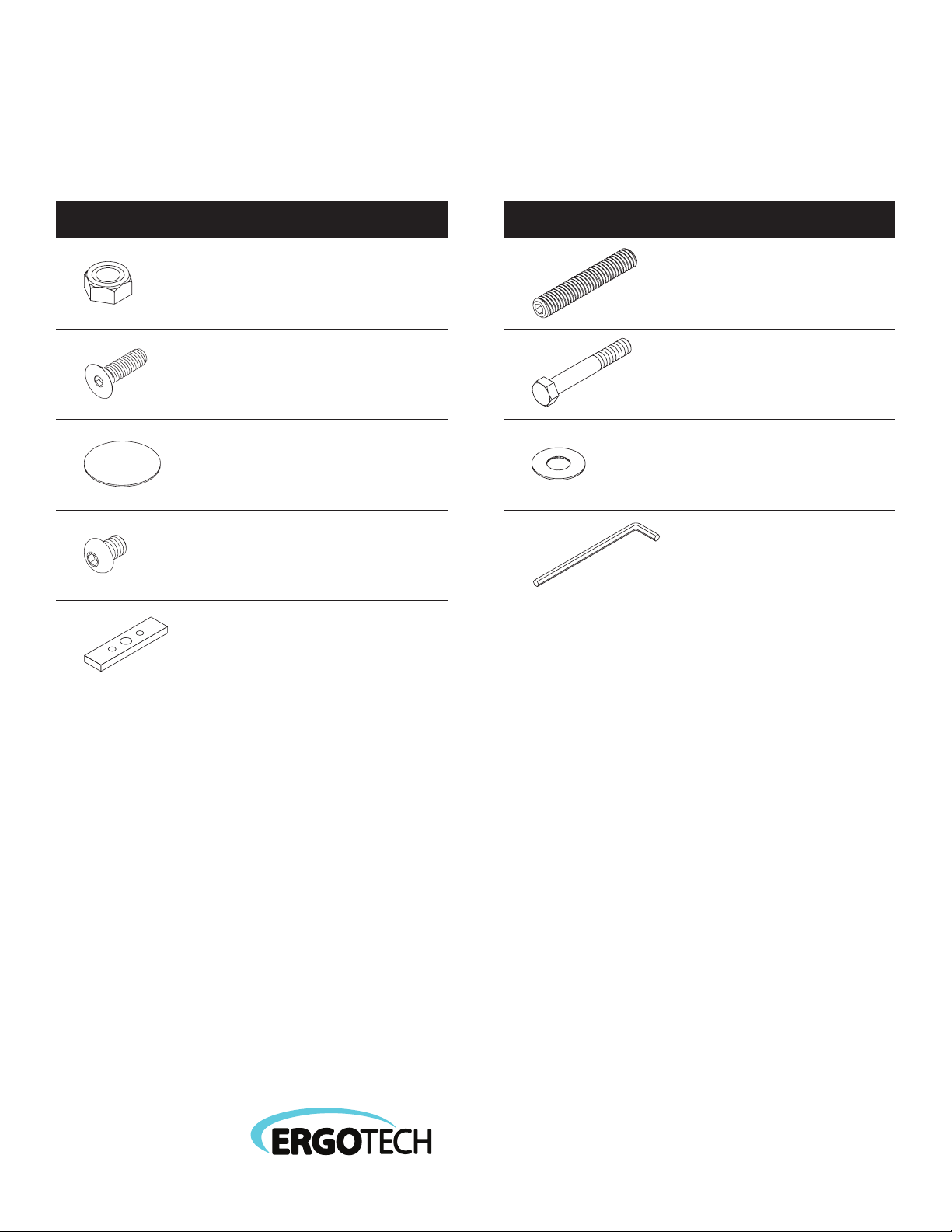

Mounting Part List
ITEM DESCRIPTION / PART NO. QUANTITY ITEM DESCRIPTION / PART NO. QUANTITY
A 3/8-16 Nylon Stop Nut 1
701418
B 3/8-16 x 1-1/4" Flat Socket C ap Screw 1
701855
C
701565
D 3/8-16 x 1/2" BHSCS 1
702898
E Rectangular Spacer 1
70154 4
Foam Pad
1
F 1/2-13 x 3" Socket Set Screw 1
701126
G 3/8-16 x 2-1/2" Hex Head Bolt 1
700268
H
701120
I 7/32" Allen Wrench 1
701127
Foam Pad
1
www.ergotechgroup.com
© 2017 Ergotech Group, LLC
PAGE 4 OF 5
INNOVATIVE ERGONOMIC SOLUTION
Page 5
S

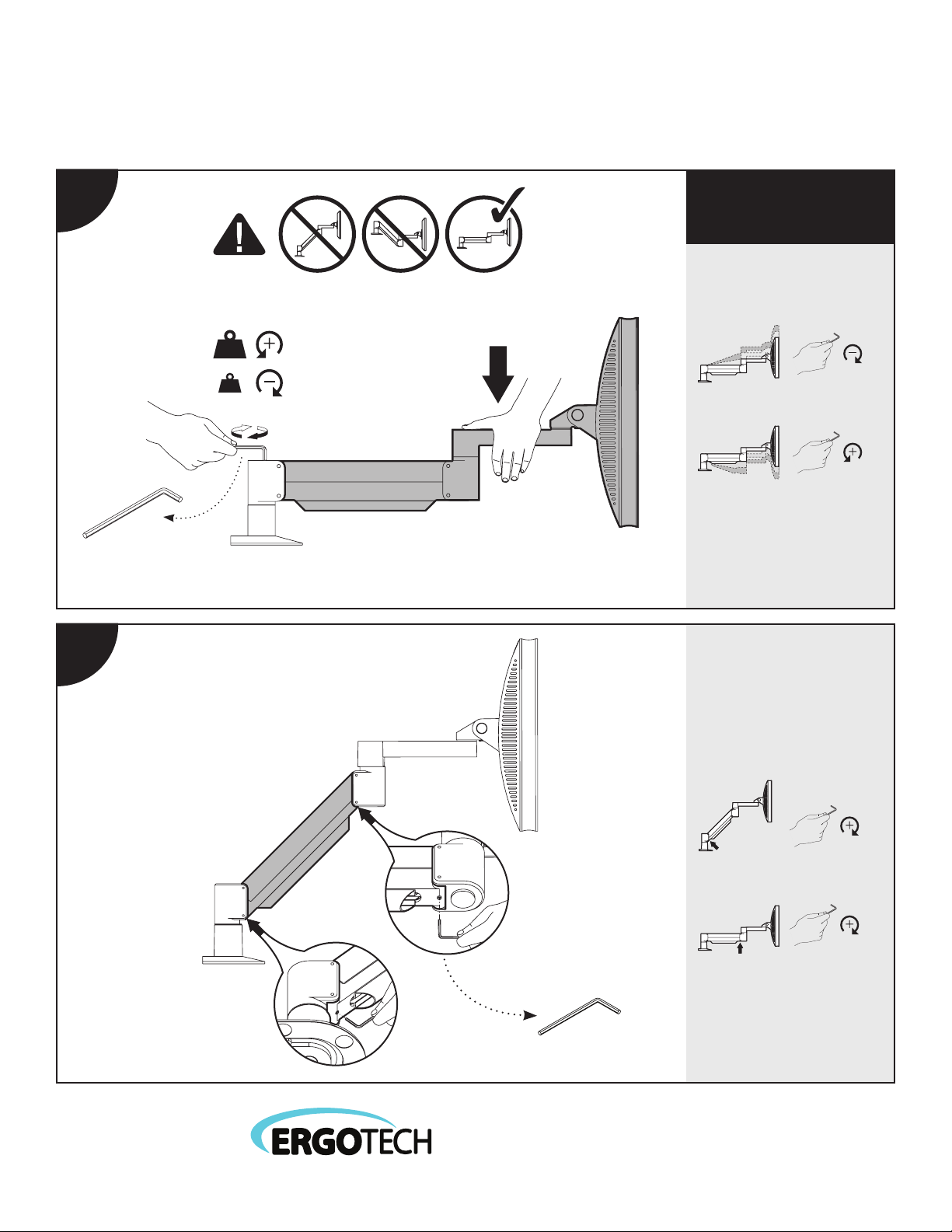

How do I counterbalance my arm?
IMPORTANT!
1
• Monitor must be on arm
• Arm must be in mount
Press the arm dow n to
approximately parallel with the
desk prior to turning the strength
adjustment screw.
If the arm drif ts upward,
turn the adjustment screw clockwise.
If the arm drifts downward ,
turn the adjustment screw counterclockwise.
7/32" Allen Wrench
2
Depending on the weight of your
monitor, you may have to make
15 -20 t urn s.
In some instances, further
counterbalance adjustments
are needed to allow the arm’s
instant height adjustment
function to work properly.
If your arm is not staying in
position after performing step 1,
follow these steps:
B
With arm in raised position,
tighten set screw (A).
A
With arm in horizontal position,
tighten set screw (B).
www.ergotechgroup.com
© 2017 Ergotech Group, LLC
Do not over tighten scre ws.
3/32" Allen Wrench
PAGE 5 OF 5
INNOVATIVE ERGONOMIC SOLUTION
