P R E S T I G E L i g h t v i s i o n S L P
O pe r at i ng i n st r uc t io n s
Page 2
Page 3
1020307-00 / en / 01.2019
Prestige Lightvision SLP
Operating instructions
Translation of the original operating instructions
Page 4
Legal notice
2/82
Legal notice
Manufacturer: JK-Products GmbH
Rottbitzer Straße 69
53604 Bad Honnef (Rottbitze)
GERMANY
Tel.: +49 (0) 22 24 / 818-140
Fax: +49 (0) 22 24 / 818-166
Customer service /
Technical service
(Spare part orders for
components):
JK-International GmbH,
Division JK-Global Service
Köhlershohner Straße 60
53578 Windhagen
GERMANY
Tel.: +49 (0) 22 24 / 818-861
Fax: +49 (0) 22 24 / 818-205
E-mail: [email protected]
Spare part orders for
consumables:
JK-International GmbH,
Division JK-Licht
Köhlershohner Straße 60
53578 Windhagen
GERMANY
Tel.: +49 (0) 22 24 / 818-600
Fax: +49 (0) 22 24 / 818-615
E-mail: [email protected]
DANGER!
Failure to observe these instructions:
• can result in serious injury and death,
• can result in damage to the device and the environment.
– Read these instructions carefully before putting this
Beauty Angel device into operation.
– Please observe the instructions and the code of con-
duct required to operate the device safely.
– Please make the instructions and additional information
from the manufacturer available to the personnel at
their workplace.
Copyright
The copyright remains with JK-Holding GmbH.
The contents may not be partially or completely duplicated, distributed or
utilized for competition purposes without authorisation or disclosed to other
parties.
The right to make technical changes in regard to the figures and information
contained in this instruction manual is reserved!
Page 5
Table of contents
01/2019 1020307-00 Operating instructions – 3/82
Table of contents
1 Safety instructions and warnings ................................................ 6
1.1 General ........................................................................................... 6
1.1.1 Definitions ....................................................................................... 6
1.1.2 Symbol explanation ......................................................................... 7
1.2 Intended use ................................................................................... 8
1.3 Foreseeable misuse ........................................................................ 8
1.4 Tanning safety information .............................................................. 9
1.4.1 Prohibited usage ............................................................................. 9
1.4.2 Important notes ............................................................................. 10
1.4.3 Skin type descriptions ................................................................... 11
1.4.4 Tanning times EN (UV type 2) ...................................................... 12
1.5 Safety instructions and warnings .................................................. 13
1.5.1 Operator's obligations ................................................................... 13
1.5.2 Personnel training ......................................................................... 13
1.5.3 Scope of delivery ........................................................................... 13
1.5.4 Transport, assembly and setup ..................................................... 13
1.5.5 Commissioning .............................................................................. 16
1.5.6 Operation and maintenance .......................................................... 16
1.5.7 Decommissioning .......................................................................... 17
1.5.8 Storage ......................................................................................... 17
1.5.9 Disposal ........................................................................................ 17
1.5.10 Directives ...................................................................................... 18
1.5.11
Export ............................................................................................ 18
1.5.12 Music ............................................................................................. 18
1.5.13 Technical modifications ................................................................. 19
1.6 Signs and stickers on the device ................................................... 20
1.7 Warranty ....................................................................................... 24
1.8 Warranty and liability exclusions ................................................... 24
2 Description .................................................................................. 25
2.1 Scope of delivery ........................................................................... 25
2.1.1 Optional ......................................................................................... 25
2.2 Equipment ..................................................................................... 25
2.3 Device description ......................................................................... 26
2.4 Accessories (optional) ................................................................... 27
2.5 Functional description ................................................................... 27
3 Operation ..................................................................................... 28
3.1 User safety information ................................................................. 28
3.2 Tanning - but correctly! ................................................................. 28

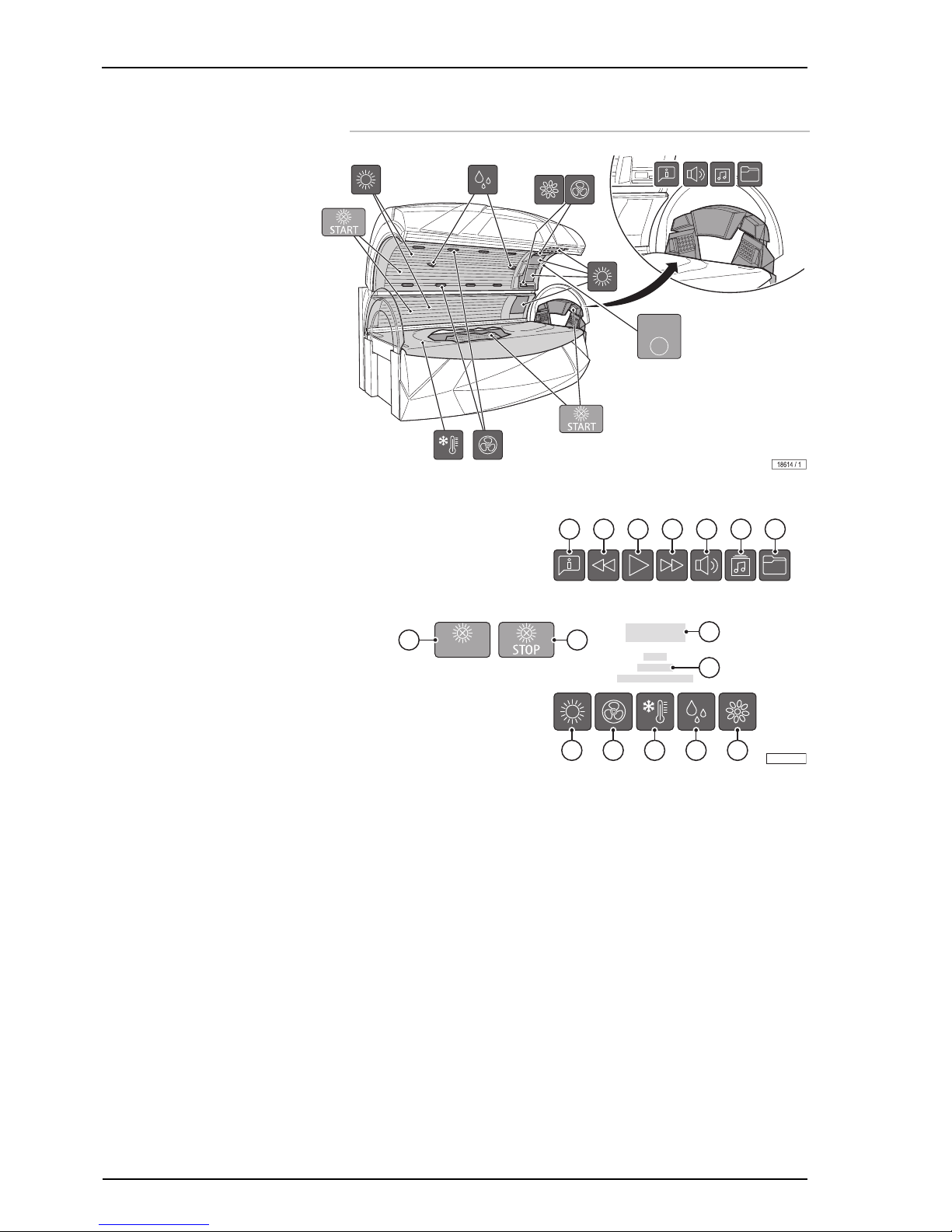

3.3 Operating overview ....................................................................... 30
3.3.1 PROFESSIONAL SETUP MANAGER PLUS ................................ 31
3.3.2 Navigation ..................................................................................... 31
Page 6
Table of contents
4/82
3.4 Functions ....................................................................................... 32
3.4.1 Navigation ..................................................................................... 35
3.5 Selection of the application type
(SELECTABLE TANNING PROGRAMS) ...................................... 36
3.6 Start ............................................................................................... 37
3.7 Coupling with Bluetooth® devices ................................................. 38
3.8 Listening to music .......................................................................... 40
4 Cleaning and maintenance ......................................................... 41
4.1 Safety instructions when undertaking cleaning or maintenance
work ............................................................................................... 41
4.2 Faults............................................................................................. 42
4.3 Cleaning ........................................................................................ 42
4.3.1 Cleaning the surfaces .................................................................... 43
4.3.2 Filter panels and lamps ................................................................. 43
4.4 Cleaning plan ................................................................................ 44
4.5 Maintenance .................................................................................. 45
4.5.1 Acrylic glass .................................................................................. 45
4.6 Maintenance plan .......................................................................... 46
4.7 Cleaning and maintenance work preparation ................................ 49
4.7.1 Service kit ...................................................................................... 49
4.7.2 Lift up the acrylic glass panel and remove the partition ................. 50
4.7.3 Remove the canopy panel ............................................................. 51
4.7.4 Remove the side section panel ..................................................... 52
4.7.5 Open the bed base ........................................................................ 53
4.8 Instructions for replacing the lamps ............................................... 54
4.8.1 NFC: Lamp replacement ............................................................... 54
4.8.2 Low pressure lamps ...................................................................... 55
4.8.3 Starter ............................................................................................ 56
4.8.4 High pressure lamps and filter panels ........................................... 57
4.9 Cleaning or replacing lamps in the base ....................................... 58
4.10 Cleaning or replacing the lamps in the side section ...................... 59
4.11 Cleaning or replacing lamps and filter panels in the canopy ......... 60
4.12 Cleaning or replacing the
low-pressure lamps in the shoulder tanner .................................... 61
4.13 Cleaning the filter in the base ........................................................ 63
4.14 Cleaning the canopy filter mats ..................................................... 64
4.15 Cleaning filter mats in the shoulder tanner .................................... 64

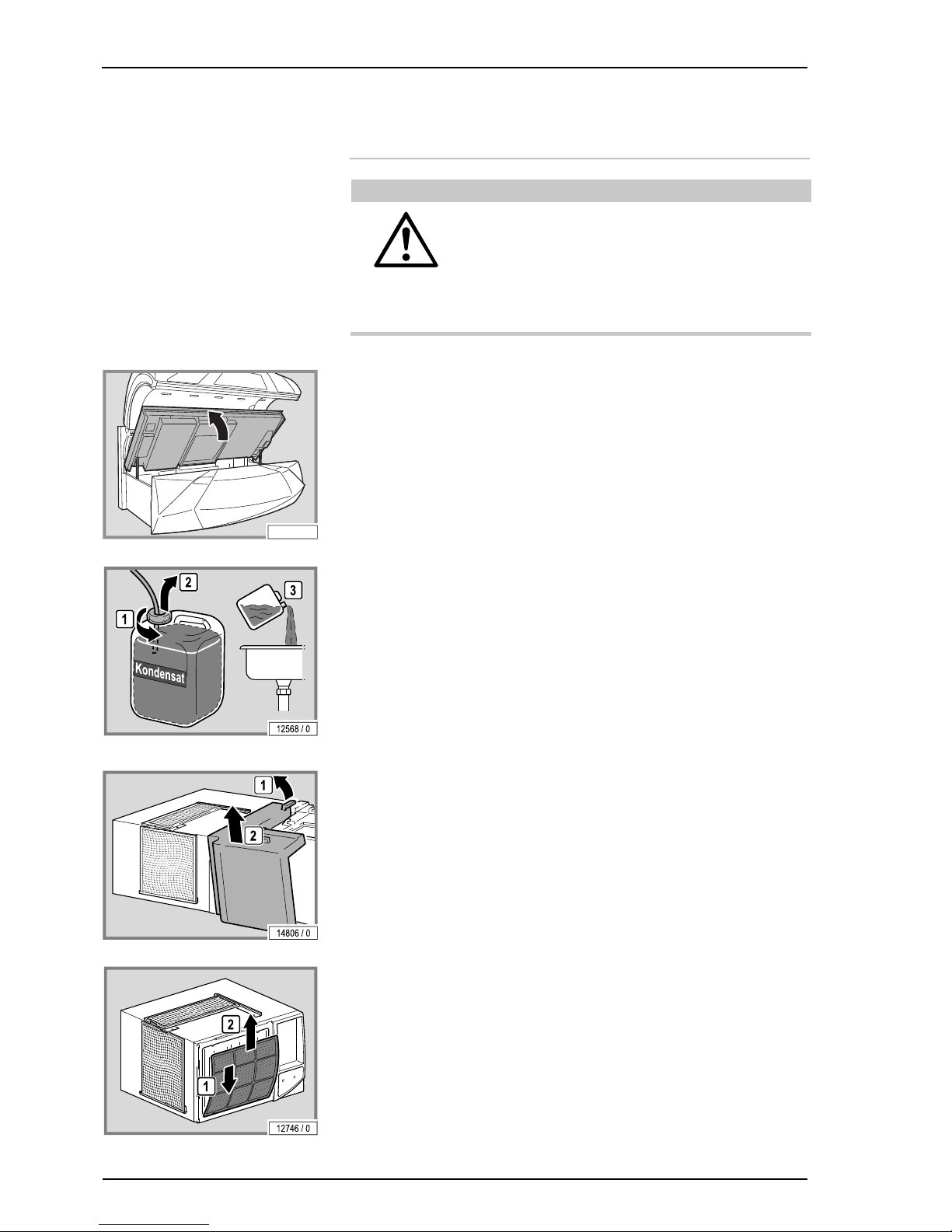

4.16 Air conditioning:
Empty the condensation tank and clean the filter .......................... 66

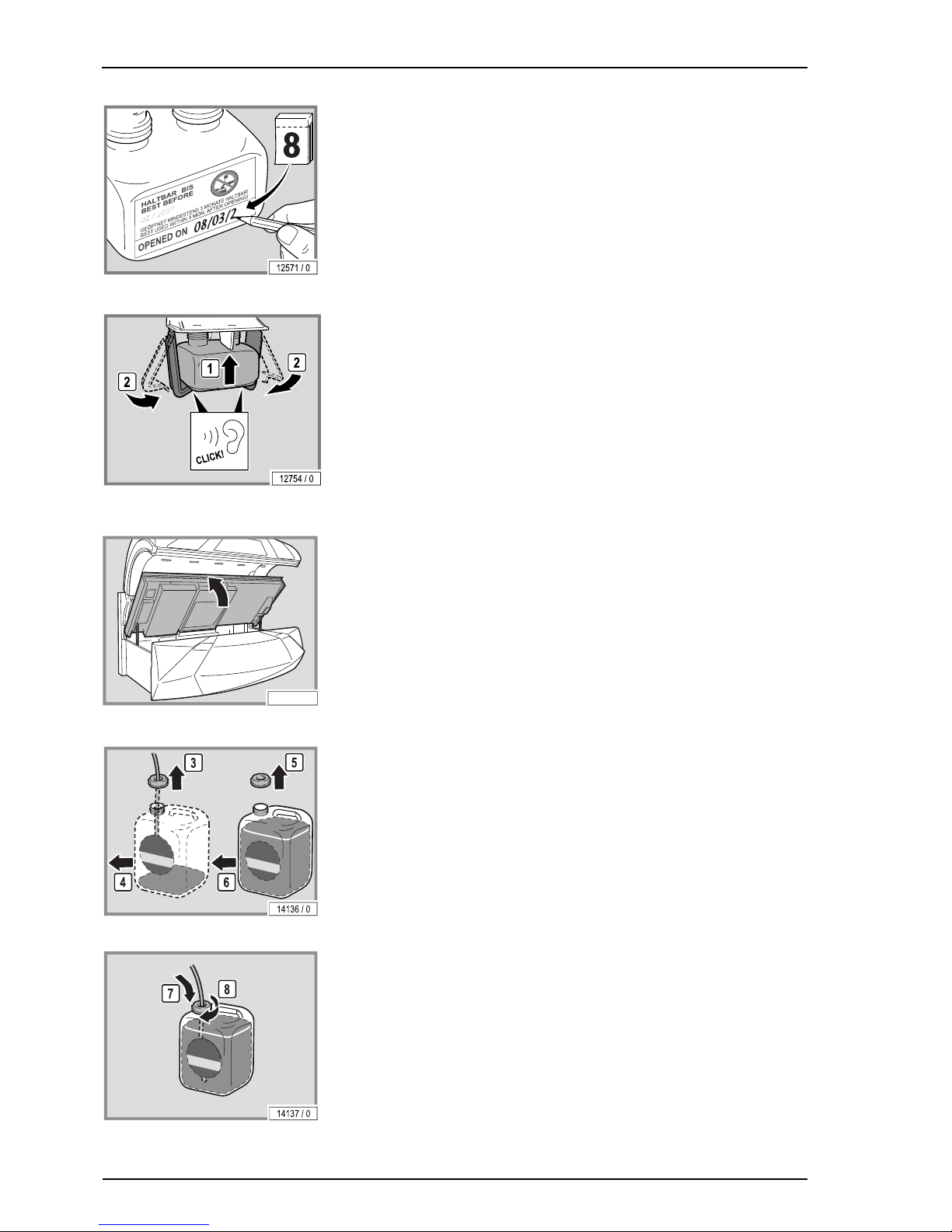

4.17 AQUA / AROMA system maintenance .......................................... 69
4.17.1 Changing the AROMA canister ..................................................... 69
4.17.2 Replacing the AQUA SYSTEM canister ........................................ 70
4.18 Cleaning the air intake opening ..................................................... 71
Page 7
Table of contents
01/2019 1020307-00 Operating instructions – 5/82
5 Technical data ............................................................................. 72
5.1 Power, connection rating and noise level ...................................... 72
5.2 Dimensions ................................................................................... 73

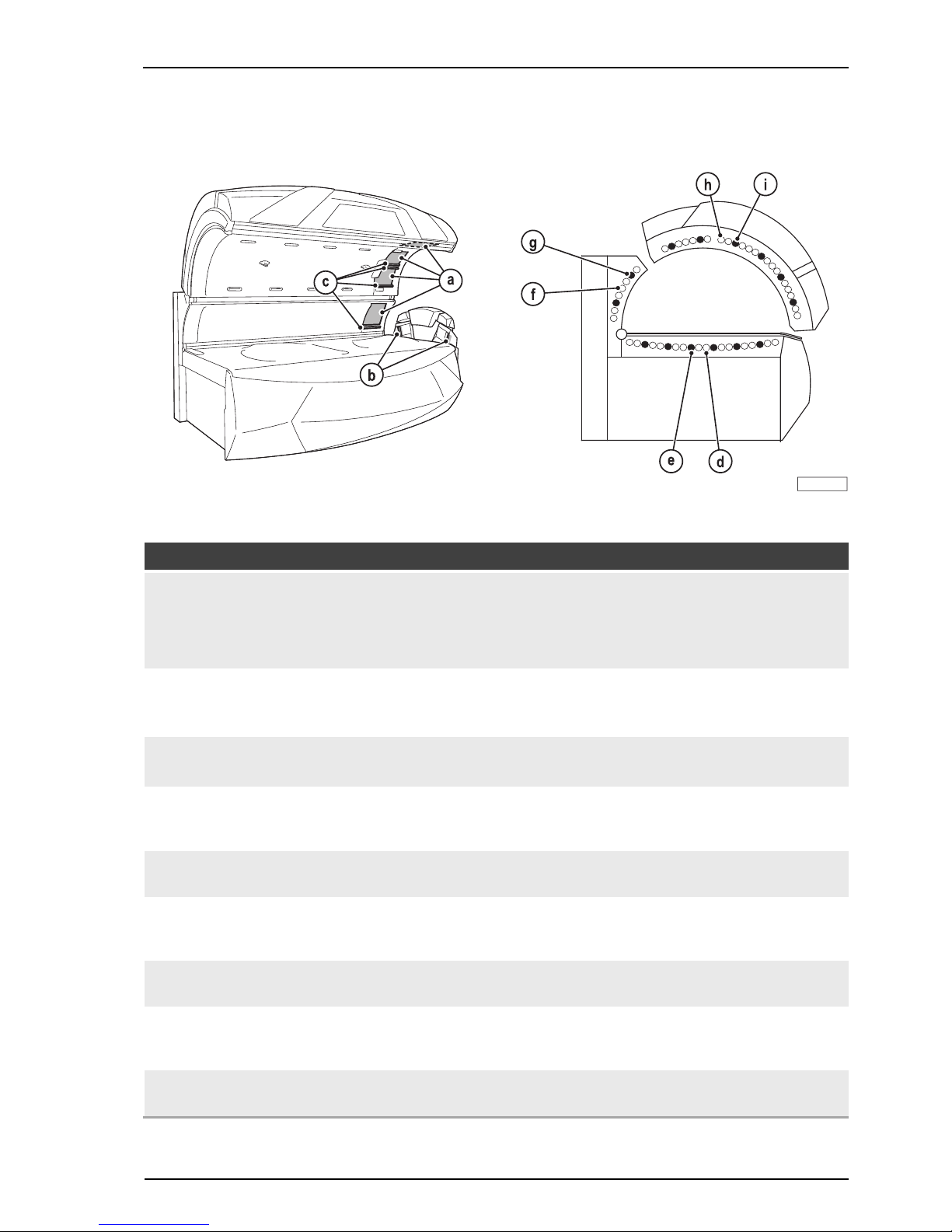

5.3 Lamp sets ..................................................................................... 74
5.3.1 Prestige Lightvision SLP ............................................................... 75
5.4 Spare parts and accessories ......................................................... 76
6 Appendix ...................................................................................... 77
6.1 JK timer controls ........................................................................... 77
6.2 Equivalence key range .................................................................. 77
6.2.1 Description of the equivalence keys for UV fluorescent lamps ..... 78
7 Index ............................................................................................. 79
Page 8
Safety instructions and warnings
6/82
1 Safety instructions and warnings
To ensure safe operation of the device, it is necessary to read the following
safety instructions and warnings carefully and comply with them.
The safety instructions summarized here are repeated in the corresponding
chapters, where necessary.
1.1 General
1.1.1 Definitions
Operator
Person who provides the devices described here to users on a commercial
basis. The operator is responsible for the correct operation of the device as
well as compliance with the maintenance intervals.
User
A person who uses the device at a commercial location.
Personnel
People who are responsible for the operation, cleaning and general maintenance work and who instruct the users in the operation of the devices.
Electrician
A person with suitable professional training, knowledge, experience and
knowledge of the applicable regulations which enable them to identify and
avoid the dangers which can arise from working with electricity.
Authorized, trained and qualified personnel
Qualified staff from an external company who have been trained and authorized by the manufacturer to undertake assembly and maintenance work on
specific equipment.
Page 9
Safety instructions and warnings
01/2019 1020307-00 Operating instructions – 7/82
1.1.2 Symbol explanation
The following types of safety notices are employed in these operating instructions:
DANGER!
Type and source of hazard
This safety notice indicates the existence of a direct danger
to body and life.
DANGER!
Type and source of hazard
This safety notice warns of dangers to body and life which
are caused by electricity.
WARNING!
Type and source of hazard
This safety notice warns of machine, material or environmental damage.
NOTE:
This symbol does not identify any safety notices, but provides additional information to better understand the processes.
Page 10
Safety instructions and warnings
8/82
1.2 Intended use
This device serves the purpose of cosmetic tanning for one adult person with
skin suitable for tanning. Additional information is available on pages 11
and 28.
This device is intended only for commercial use and not for private use.
Some people are not permitted to use the device, see page 9.
The device may not be used by people with reduced physical, sensory or
mental capabilities or who have insufficient experience and/or knowledge
without supervision. A person responsible for their safety must ensure, either
by supervision or instruction, that the device is used correctly and safely. If
there is any doubt, use of the device by such categories of persons is to be
forbidden!
The device may only be operated with the specified or equivalent lamps. The
tanning times given in this instruction manual are valid only for the specified
lamp set.
Any other use shall be considered improper. The manufacturer cannot be
held liable for damage or injuries resulting from this. The operator bears the
sole risk for this.
Proper use also includes compliance with the manufacturer’s instructions and
its operating and maintenance conditions. The device may only be operated,
maintained and repaired by trained professionals familiar with this device and
who have been informed of the dangers involved.
1.3 Foreseeable misuse
The following uses of the device are explicitly prohibited:
The device may not be used by several people at the same time. The
acrylic glass panel may otherwise break and cause injuries.
People with a body weight of more than 135 kg may not use the device.
The acrylic glass panel may otherwise break and cause injuries.
Exceeding the specified tanning times may result in burns and long-term
skin damage.
When the device is in use no other people may remain in the cabin, in
particular no children.
People under 18 years of age may not use the device.
Page 11
Safety instructions and warnings
01/2019 1020307-00 Operating instructions – 9/82
1.4 Tanning safety information
1.4.1 Prohibited usage
DANGER!
UV radiation
Danger of skin and eye injuries or skin diseases!
– Please observe the following instructions.
The following people may not use the device:
People under 18 years of age
People who cannot tan
People who cannot tan in the sun whithout risking a sunburn
People who easily sunburn when in the sun
People with acute sunburn
People who repeatedly suffered from serious sunburn during childhood
People with naturally red hair
People with atypically discoloured areas of skin
People who have or have had skin cancer
People who suffer from an increased risk of skin cancer (e.g. cases of
skin cancer in the family)
People among whose closest relatives a melanoma has occurred
People who are being medically treated for photosensitivity
People taking photosensitivity causing medicine
People with freckles and people who tend to develop freckles
People with more than 16 moles on their body (2 mm diameter or larger)
People with atypical moles (atypical moles are, for example, asymmet-
rical moles with a diameter greater than 5 mm, with varying pigmentation
and irregular edges)
– Seek medical advice without fail if in doubt!
Relative contraindications
The following people may only use the device after consultation with
their doctor:
People with chronic illnesses, in particular those related to the skin
People with illnesses of the immune system / auto-immune diseases
People with collagenosis (e. g. lupus erythematodes, scleroderma)
People suffering from rosacea (copper rose)
People with spider veins (e. g. couperose, Osler's disease, spider nevi)
People with low blood pressure, cardiovascular diseases
People suffering from venous diseases
People suffering from cancer
People with fresh wounds following an operation or surgery
People with tattoos or piercings which have not fully healed
Should there be any doubt with regard to compatibility, despite no known
medical side effects, a test application of a maximum of 5 minutes should be
initially carried out and the reactions observed. If no adverse reactions are
found after 48 hours, normal application may be begun.
Page 12
Safety instructions and warnings
10/82
1.4.2 Important notes
All other people must observe the following instructions:
Danger of skin and eye injuries or skin diseases!
The skin can become sunburnt when exposed to excessive radiation.
Excessive, frequently repeated UV radiation exposure from natural sunlight or UV devices can result in premature ageing of the skin and an increased risk of skin tumours.
Particular caution is advisable for individuals who are especially sensitive
to UV radiation, and when certain medicaments or cosmetics are used.
Seek medical advice without fail if in doubt!
UV devices should not be used without medical advice if unexpected
manifestations such as itching occur within 48 hours of first using the
sunbed.
Increasing tanning requires increased exposure time (= radiation time) or
after a certain degree of tanning has been achieved, increased tanning is
not possible. However, the radiation time may not be extended as desired
within the scope of the permissible radiation doses! Therefore, only a certain level of final tanning, which depends on the skin type, can be
achieved without endangering your health.
The tanning device may never be used when a filter panel is missing or
damaged, or the timer is defective!
Behaviour before, during and after a sunbath:
During the tanning session no other people may remain in the cabin, in
particular no children.
Remove all jewellery (including piercings) before the tanning session.
Remove cosmetics before tanning and do not use sun screen products.
Do not use any products intended to accelerate tanning.
UV light can cause irreversible skin or eye damage. The unprotected eye
can become inflamed on the surface, and in certain cases the retina can
be damaged by excessive radiation. Cataracts can form after numerous

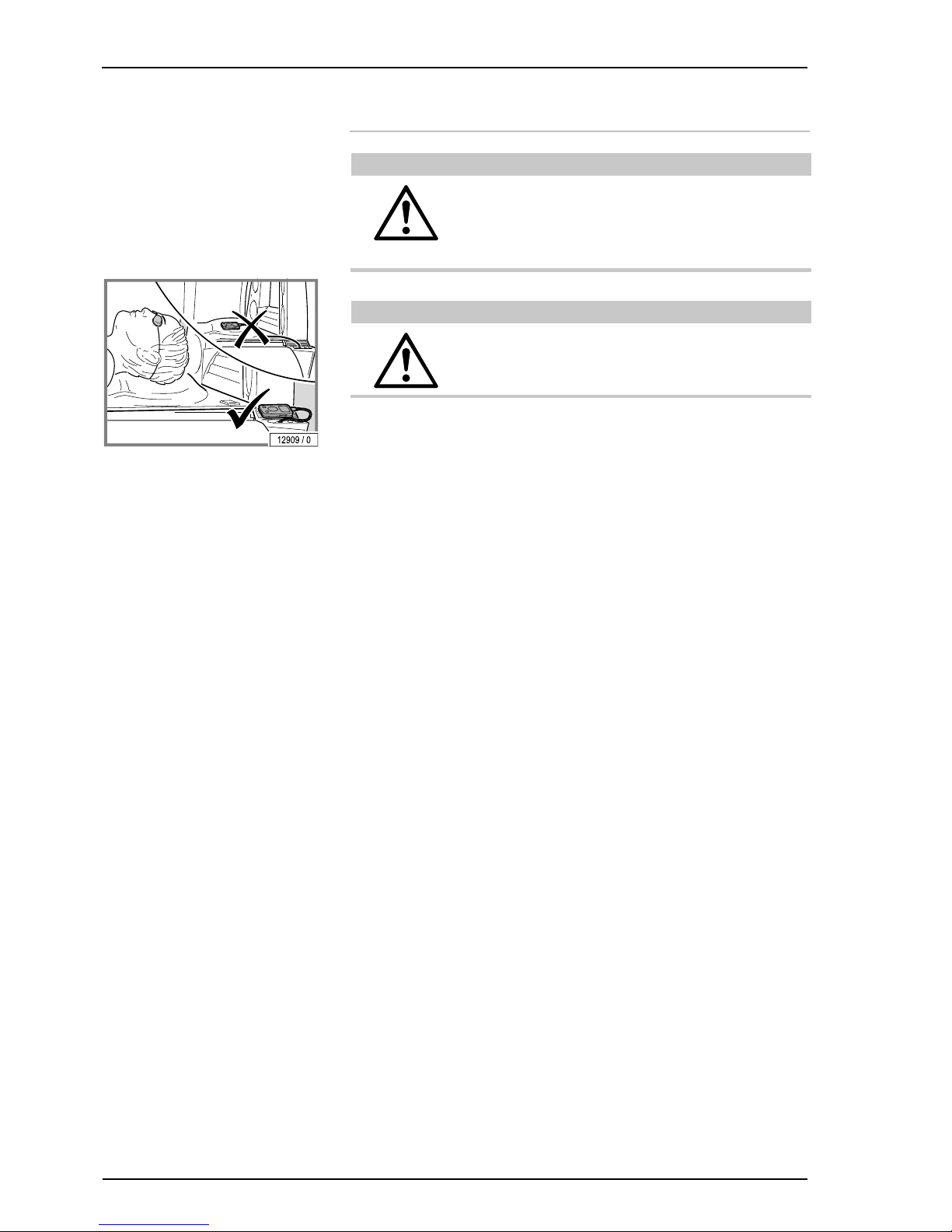

repeated tanning sessions. Use the UV-impermeable protective gog-
gles provided (order no. 84592-..). Contact lenses and sun glasses are
no substitutes for protective glasses.
Protect sensitive skin areas such as scars, tattoos and genitals before
tanning.
Observe the recommended tanning times.
During a tanning session the quantity of radiation which results in the skin
reddening (MED, minimum erythema dose) may not be exceeded. If reddened skin occurs around 16-24 hours after the tanning session you may
not use the tanning device again for one week. After one week you can
start again from the beginning with the first tanning session in accordance
with the tanning table.
The time between the first two sessions on the sunbed must be at least
48 hours! Do not take an additional sunbath on the same day.
See a doctor if stubborn swelling, sores or pigmented moles form on the
skin.
Page 13
Safety instructions and warnings
01/2019 1020307-00 Operating instructions – 11/82
1.4.3 Skin type descriptions
DANGER!
Burns and long-term damage!
People with skin type I may not use the tanning device.
The following applies to people with skin types II, III and IV:
– Observe the tanning times.
– Observe the safety instructions.
NOTICE:

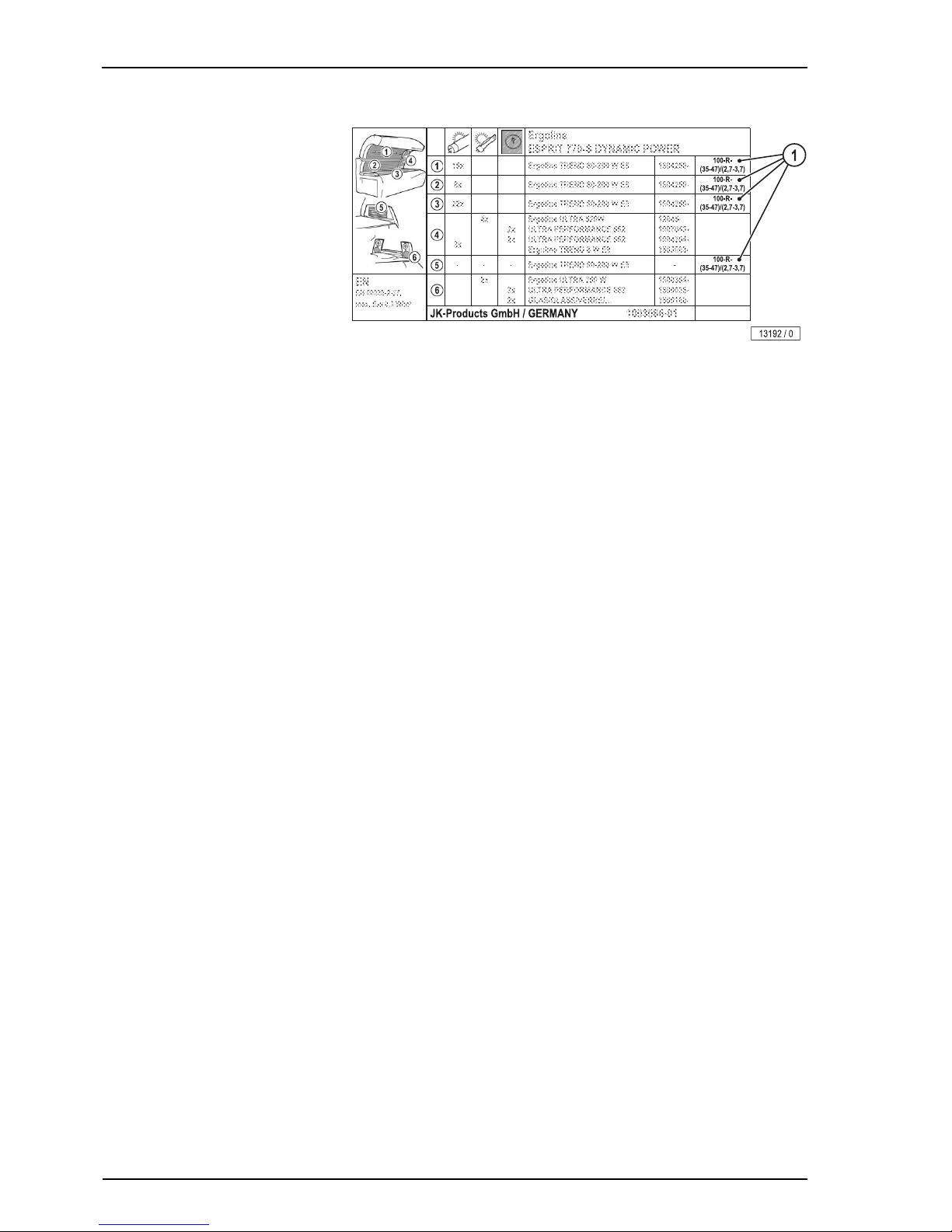

The tanning times are only valid for the lamp set and filter
panels specified on the sticker.
The tanning sessions should be at least 48 hours apart.
The maximum dosage of 25 kJ/m² per year should not be
exceeded.
The maximum dosage is weighted according to NMSC.
1
Skin type II Skin type II Skin type III Skin type IV
Sensitive skin Light skin Normal skin Dark skin
Always/frequently
burns
Usually burns Sometimes burns Rarely burns
Tolerates only a
small amount of
natural sun.
Tolerates approx.
10-20min. of
natural sun.
Tolerates approx.
20-30min. of
natural sun.
Tolerates approx.
40 min. of
natural sun.
1
NMSC: Non Melanoma Skin Cancer
Page 14
Safety instructions and warnings
12/82
1.4.4 Tanning times EN (UV type 2)
NOTICE:
Observe the tanning times.
Observe the national requirements!
The tanning dosage of 3 kJ/m² per tanning period should not be exceeded.
Prestige Lightvision SLP:
UV low pressure lamps
ERGOLINE TREND ADVANCED 80-200 EP104 160W R 1511231-..
Low pressure lamps SMART SUN+ R 27 160W 1511232-..
Low pressure lamps SMART SUN 71 8W 1509418-..
Number of tanning
sessions
Skin type I Skin type II Skin type III Skin type IV
[min] [min] [min] [min]
1 – 5 5 5
2 – 5 6 6
3 – 6 7 8
4 – 7 8 10
5 – 7 10 12
6 – 8 11 14
7 – 9 12 15
8 – 10 13 17
9 – 10 15 19
10 – 11 16 21
11 – 12 17 23
12 + – 13 19 25
Maximum number
of tanning sessions
per year (NMSC):
– 109 75 57
Page 15
Safety instructions and warnings
01/2019 1020307-00 Operating instructions – 13/82
1.5 Safety instructions and warnings
1.5.1 Operator's obligations
As the operator you are responsible for providing clear operating, cleaning
and maintenance instructions and ensuring the intended use and the proper
operation of the device by means of training and instruction for the personnel.
Your operating instructions must enable the safe use and safe operation of
the device and take into account the characteristics and expertise of your
company and also the national work safety and environmental protection
regulations (within the European Union, the EU directive 89/391/EEC).
1.5.2 Personnel training
As the operator you are obliged to train your personnel and instruct them in
the established legal and accident prevention regulations. Ensure that your
personnel have understood and observe these operating instructions. This
applies in particular to the
information in 'Intended use' and 'Foreseeable misuse'
safety instructions in the 'Operation' chapter
operating instructions
cleaning and maintenance instructions
– Please make the instructions and additional information from the manu-
facturer available to the personnel at their workplace.
– Regularly check your personnel's safety consciousness and awareness
of the risks, taking into account your operating instructions.
– Please ensure that the cleaning intervals are complied with, in particular
cleaning after every tanning session.
– Please ensure that your personnel provide your customers with appropri-
ate advice, in particular regarding tanning times, possible risks and the
operation of the device.
– People under 18 may not use the device. Please instruct your personnel
to check the customer's identification in the event of doubt.
1.5.3 Scope of delivery
Information regarding the scope of delivery is contained in the 'Description'
chapter on page 25.
1.5.4 Transport, assembly and setup
The device is delivered by a specialist company and assembled and set up by
the manufacturer's own service personnel or by an authorized service company.
As an operator you are responsible for complying with the on-site ventilation
and electrical requirements at the setup location, see page 14.
Page 16
Safety instructions and warnings
14/82
Assembly
DANGER!
Personal danger due to electric shock or burns!
– The assembly and electrical connection must comply
with the national regulations.
– The on-site electrical installation must be fitted with an
easily accessible all-pole isolating device (master
switch), complying with overvoltage category III. This
means that each pole must have a contact opening
width complying with the conditions of overvoltage category III for full isolation.
– If the connection is established via a plug-in connection
then the connection system according to EN 60309
must be utilized.
–
A
ssembly, installation, upgrading or repair of the device
may only be carried out by specially trained and authorized personnel.
Information regarding the disassembly and assembly of the device is available in the separate assembly instructions. These assembly instructions are
intended solely for use by the manufacturer's service personnel or by qualified
specialists authorized by the manufacturer.
Ventilation
WARNING!
Risk of overheating due to air flow problems!
Operating faults possible.
– Do not change, obstruct or block the air inflow and
outflow to the device or make any unauthorized changes to the device. The manufacturer shall bear no liabilit
y
for damage or injuries resulting from such actions.
– Observe the ventilation system data.
– Do not set up and operate the device on the transport
pallet!
Data regarding the air supply and ventilation planning is available in the planning manual (www.ergoline.de, available in English and German). You can
also obtain this data from your dealership or the customer service department
(see page 2).
Page 17
Safety instructions and warnings
01/2019 1020307-00 Operating instructions – 15/82
Setup location
WARNING!
Salty air! Contaminated air!
Device damage due to corrosion of the housing and electrical components.
– Do not install the device at swimming pools.
– Do not operate the device in locations with aggressive
environmental conditions (e.g. air containing chlorine).
Damage to device possible!
Where there are great differences in temperature between
the transport route and the installation site the device may
not be put into operation immediately after being set up.
– Wait at least 2 hours before connecting the device to
the power supply.
Risk of overheating due to air flow problems!
Operating faults possible.
– Do not change, obstruct or block the air inflow and
outflow to the device or make any unauthorized changes to the device. The manufacturer shall bear no liabilit
y
for damage or injuries resulting from such actions.
– Observe the ventilation system data.
– Do not set up and operate the device on the transport
pallet!
Environmental conditions
Optimum ambient temperature: Between +15 °C and +32 °C
Storage temperature: Between -15 °C and +60 °C
The device is not to be used outdoors.
Adaptation of the unit is required for operating altitudes greater than 2000 m
above sea level in order to guarantee trouble-free operation.
The device is not suitable for operation in mobile facilities (ships, buses,
trains). Adaptation of the unit is required in order to guarantee trouble-free
operation when used in mobile facilities.
Please contact the customer service department without fail before putting the
device into operation - see page 2.
Page 18
Safety instructions and warnings
16/82
1.5.5 Commissioning
DANGER!
Damaged mains power cable!
Danger to persons through electric shock or burns.
– Only the manufacturer or specialist companies are
permitted to replace the mains power cable.
Initial commissioning will be undertaken by the manufacturer's own service
personnel or by an authorized service company. The device will be handed
over ready for use.
If the device has not been used for a longer period of time, then it must first
be inspected by our customer service department or by another authorized
company before being put back into operation again.
The device is operated with an external time-control unit.
A time control unit must be attached so that the device automatically switches
off at the latest after <110 % of the selected running time even if the controller
fails. The device running time must be secured with a timer control that complies with the standard EN 60335-2-27).
Dependent on the local power supply company, the devices can transmit
interference to the power system of the building that impair the audiofrequency remote control system used by the power supply company. This
can, for example, interfere with the function of night-storage heaters.
If faults occur due to the operation of the devices, then the operator is responsible for the installation of an audio frequency blocking device in the
building electrical installation. Please contact your electrician. The electrician
is familiar with the technical connection conditions of your local utility company so that the audio-frequency blocking device can be matched to the power
system of your power supply company.
1.5.6 Operation and maintenance
Error-free operation, maintenance and service are required in order to ensure
that the health and safety of the users is not endangered during operation and
to ensure that the device is in a fault-free operating condition.
Please observe the information and recommendations provided in these operating instructions. Please ensure that the intervals for the inspection,
maintenance and service are complied with. Please ensure that the lamps are
replaced after the specified usage time.
Unauthorized modifications and changes to the device and its control unit are
prohibited. Failure to comply with this invalidates the operating licence!
To avoid hazards, the device must not be used if the mains power cable is
damaged. A damaged mains power cable must be replaced by the manufacturer or their customer services, or by trained and qualified specialist personnel.
Page 19
Safety instructions and warnings
01/2019 1020307-00 Operating instructions – 17/82
1.5.7 Decommissioning
The device must be disconnected from the power supply in order to temporarily or permanently decommission it.
You must abide by the legal disposal requirements when permanently decommissioning the device.
1.5.8 Storage
Store the devices in a dry location with a stable temperature. Once the device
has cooled off, pack it in plastic wrapping to protect it against scratches.
Storage temperature: Between -15 °C and +60 °C
1.5.9 Disposal
Environmental regulations –
disposal of lamps and batteries
Lamps contain fluorescent materials and other waste containing mercury.
Batteries contain heavy metal compounds.
Within the European Union the national implementation of the Waste Framework Directive 2008/98/EC applies. According to the national waste disposal
laws and in accordance with the municipal waste regulations, proof must be
provided of the proper disposal of lamps and batteries.
Your local sales agency will be happy to assist you with the disposal of lamps
and batteries:
– Inform your local agency of the number of lamps and batteries by tele-
phone or in writing.
The agency will then provide you with the name of a free delivery point for
your lamps or will take care, in conjunction with a disposal company, of the
collection and proper disposal of the lamps. This service is available for a fee.
Outside Germany, the respective national legislation applies. Please contact
your local sales agency.
Packaging
All packaging consists of 100 % recyclable materials. Packaging brought into
circulation by the JK Corporate Group that is no longer required can be returned to the JK Corporate Group. Your partner agency or dealer will be happy to advise.
Disposal of old devices
The device has been manufactured using recyclable materials. The JK Corporate Group will provide you with information on the content or potential hazards of the materials used.
The manufacturer is obliged to take back and dispose of certain electrical and
electronic components in accordance with the 2012/19/EC Directive.
Page 20
Safety instructions and warnings
18/82
The components and devices are labelled with the following symbol:
The device will, if requested, be properly disposed of by the JK Corporate
Group. This service is available free of charge. Your partner agency or dealer
will be happy to advise.
Registration numbers
Companies within the JK Corporate Group are registered as manufacturers in
Germany and accept all obligations in respect of the German Electrical and
Electronic Equipment Act.
Registry number JK-Licht GmbH (Lamps): WEEE-DE 61515020
Registry number JK-Products GmbH (Devices): WEEE-DE 62655951
1.5.10 Directives
See the included EC Declaration of Conformity.
1.5.11 Export
We emphasize that these devices are only intended for the European market
and must not be exported to or operated in other countries e.g. the USA or
Canada! The manufacturer does not accept any liability in the event of nonobservance! We explicitly emphasize that non-compliance may result in high
liability risks for the exporter and/or the operator.
1.5.12 Music
If an MP3 player or a smartphone is used privately during the application,
then this does not constitute a public performance in the sense of copyright
law, so that no reporting or fee obligation exists on the part of the studio operator towards the organisation responsible for issuing the commercial performance rights.
For the public use of MP3 music files, the same legislation applies as for all
other music sources: As a studio operator/studio owner, you may only play
original audio CDs, MCs, audio DVDs etc., on your premises and/or play
music via the 'MP3-music modules' which are provided in the devices from
JK-International GmbH if you have acquired the necessary stage rights. You
can acquire these from the organisation responsible for issuing commercial
performance rights in your country (in Germany: GEMA/GVL).
Copy-protected audio CDs, MCs, audio DVDs etc., as well as titles contained
on these media, may not be converted to MP3 format and/or saved on HDD,
audio CDs, MCs, audio DVDs etc., if software is used to do this, which disables or circumvents the copy-protection contained on the media.
You must be ready at any time to prove your granting of stage rights by
presentation of the appropriate stage rights certificate when requested by a
representative or another controlling body of the responsible organisation.
As long as you observe all the listed instructions and have acquired the necessary rights for use of the 'MP3-music module', you may convert your original audio CDs, MCs, audio DVDs etc. into the MP3 format required by the
player. Only one copy (duplicate or MP3 format conversion) of lawfully acquired audio CDs, MCs, audio DVDs etc. may be made. The source media
(original media) must be retained and may not be used simultaneously.
Page 21
Safety instructions and warnings
01/2019 1020307-00 Operating instructions – 19/82
Further details can be found in the information brochure 'Audio Guide' available on the Internet at http://www.jk-globalservice.de .
NOTE:
Pre-recorded SD cards which are delivered as accessories
for a JK audio system are also subject to payment obligation
for commercial usage.
1.5.13 Technical modifications
The device has been constructed in accordance with the current state of the
art and the applicable safety regulations. The illustrations and specifications in
these operation instructions are subject to technical modifications which are
required in order to improve the device.
Unauthorized modifications and changes to the device and its control unit are
prohibited. Failure to comply with this invalidates the EC conformity!
Please use only original spare parts. Failure to comply with this invalidates
the EC conformity!
Page 22
Safety instructions and warnings
20/82

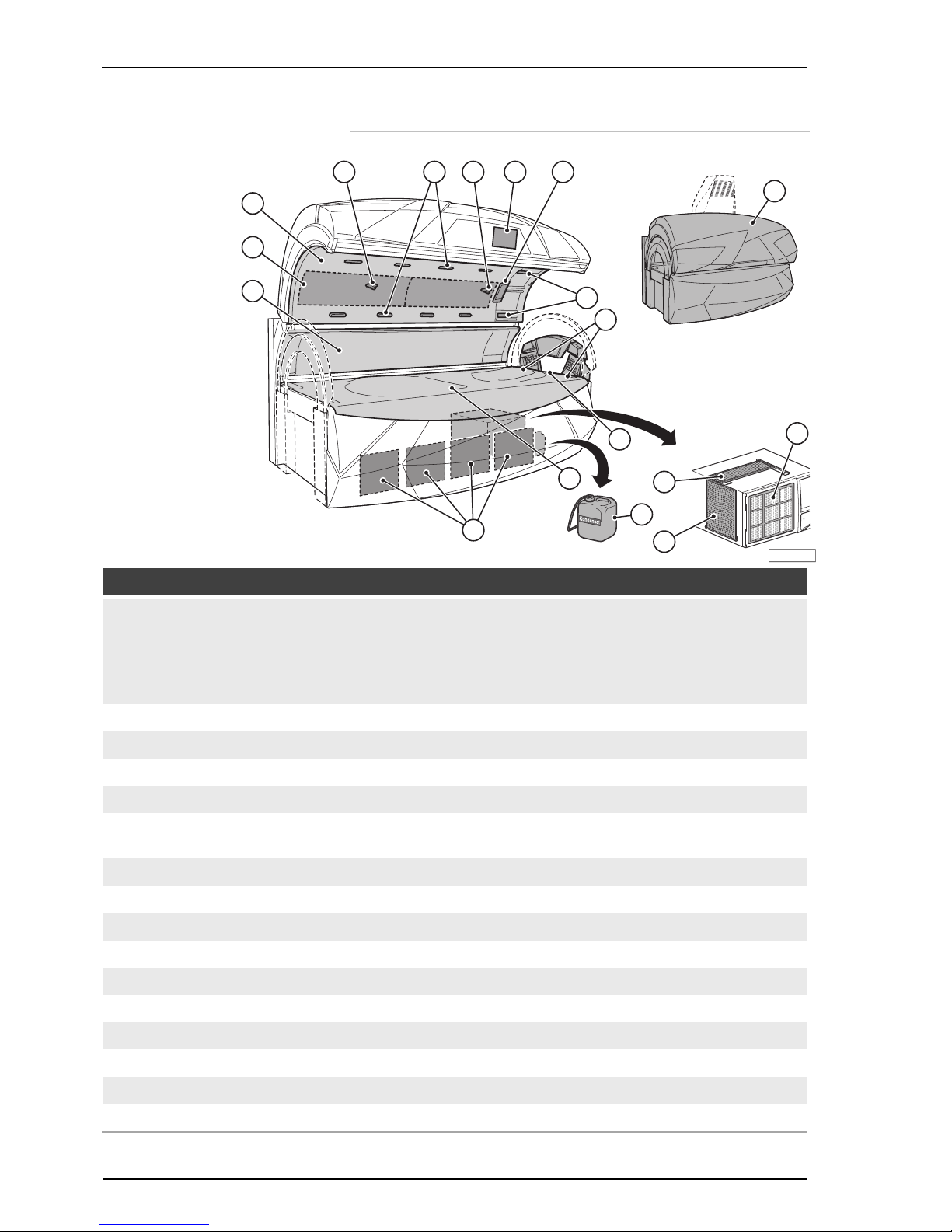

1.6 Signs and stickers on the device
Danger area warning signs and important information about components are
attached to the device. The signs shown below are examples. Ensure that the
warning signs are always clearly recognisable and legible. Any missing warning signs or stickers must be replaced.
8
6
7
4
1
3 2
5
18902 / 0
10
9
18903 / 0
Page 23
Safety instructions and warnings
01/2019 1020307-00 Operating instructions – 21/82
1: EU warning sticker (1012638-..)
This sticker also includes the language form 1504231-.. (see Technical Documentation folder).
2: 'No export USA/Canada' sticker (84829-..)
The sticker is mounted on the bottom edge at the front of the bed base.
3: 'Only use original spare parts' sticker (801026-..)
The sticker is mounted on the bottom edge at the front of the bed base.
4: Lamp set sticker
The precise details of the required lamps are available in the separate appendix.
Page 24
Safety instructions and warnings
22/82
5: AQUA FRESH sticker (800839-..)
The sticker is mounted on the bottom of the bed base.
6: Maintenance instruction sticker (800701-..)
7: Exhaust air warning sticker (843319-..)
The sticker is mounted in the centre of the rear panel.
8: Type plate
The name plate is attached to the interior side of the canopy. It contains
important information for identifying the device (e. g. the serial number =
Serial-No.).
Page 25
Safety instructions and warnings
01/2019 1020307-00 Operating instructions – 23/82
Stickers 9 and 10 are mounted beneath the bed base.
9: Air conditioning sticker (1002243-..)
13435 / 0
The sticker is mounted on the air conditioning.
10: Controller connections sticker (1013863-..)
The sticker is mounted on the controller support.
ESD (Electrostatic discharge) - sensitive components sticker (85662-..)
This sticker is mounted in several places in the device.
Page 26
Safety instructions and warnings
24/82
1.7 Warranty
On behalf of customers who have purchased a tanning device for private or
commercial utilisation from one of the JK-International GmbH sales partners,
JK-International GmbH accepts liability for any defects on the tanning device
that arise in accordance with the following regulations; wearing parts such as
high pressure lamps (bulbs), low pressure lamps (tubes) and starters and
consumables (e.g.: Aqua-System, Aroma-System) as well as the acrylic glass
panels are not covered by the warranty
Should the product contain faults, JK-International is entitled and obligated to
repair or replace the product at its own discretion. Where it is not possible to
repair or replace the product, the customer is able to withdraw from the purchase agreement or reduce the purchase price by a suitable amount. The
warranty period is one year from delivery or from acceptance, if an acceptance process is required.
This does not affect the rights of the customer under the existing warranty
with regard to any claims that the customer might have in accordance with the
contract of purchase.
1.8 Warranty and liability exclusions
Warranty and liability claims for personal injury and property damage are
excluded if they are the result of one or more of the following causes:
improper use of the device;
improper assembly, commissioning, operation and maintenance of the
device;
operating the device with faulty safety equipment or improperly attached
or non-functional safety and protective equipment including warning
signs;
not complying with the information in the operating instructions regarding
transport, storage, setup, commissioning, operation and maintenance;
the use of untrained personnel;
unauthorized changes to the device or the control unit;
inadequate monitoring of parts subject to wear;
repairs carried out improperly;
the use of non-original spare parts;
emergencies and disasters resulting from the influence of foreign materi-
als or force majeure.
Page 27
Description
01/2019 1020307-00 Operating instructions – 25/82
2 Description
2.1 Scope of delivery
Tanning device
LED SHOULDER TAN with sound system
Service kit including an Allen-key and suction cup for filter panels
Air conditioning system
Connecting lead
Protective goggles
Mastercard NFC (studio operator)
Technical documentation (folder with instructions, brochures for error
codes and default settings and additional documentation)
The low pressure UV lamps are delivered and packaged separately.
2.1.1 Optional
Central exhaust air socket
2.2 Equipment
Device equipment varies depending on the model.
In this description, all standard and optional components/functions are taken
into account which must be observed during operation and/or when performing maintenance.
The control panel also differs according to the varying equipment:
Only those buttons are illuminated from behind that can be operated, i.e. the
corresponding function must be included in the device's equipment.
Page 28
Description
26/82

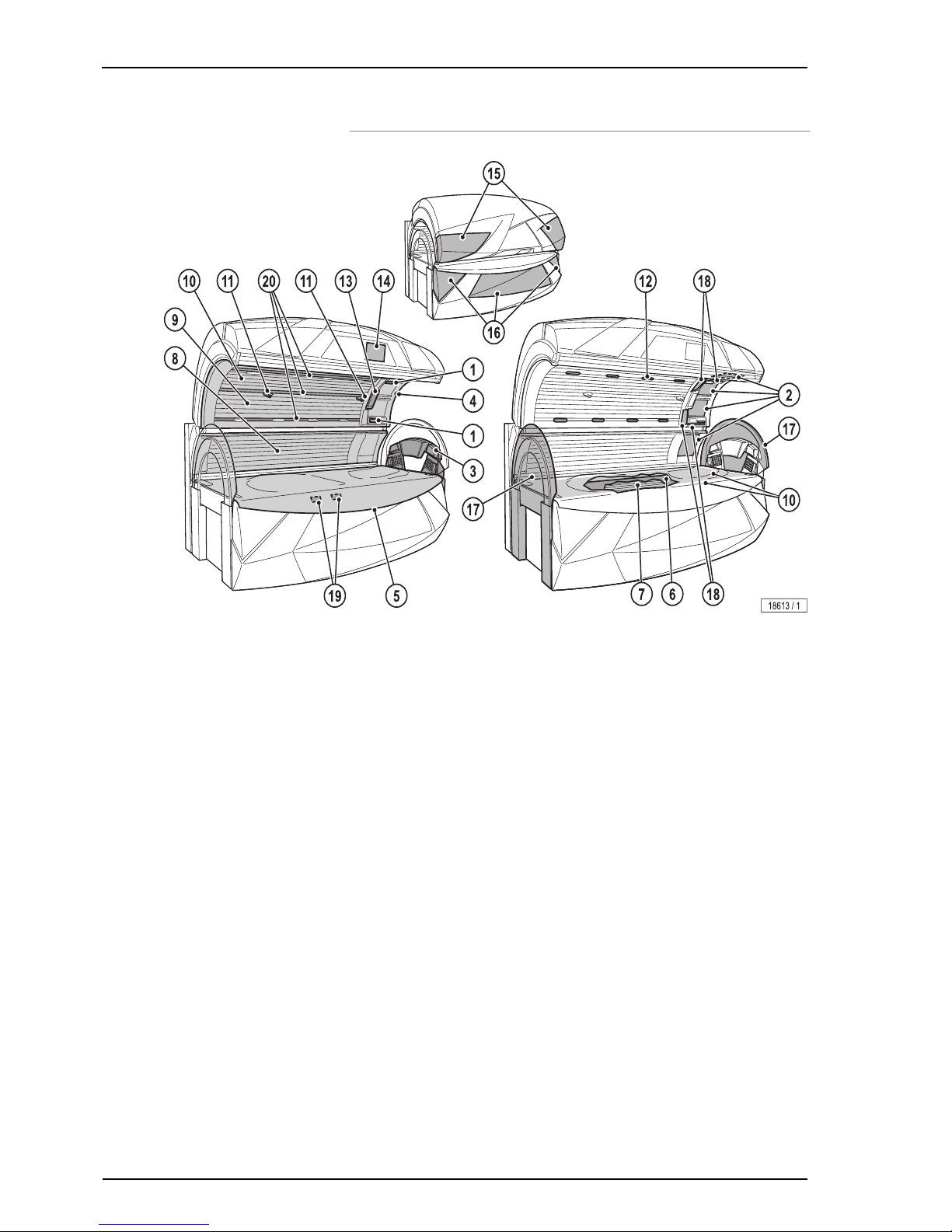

2.3 Device description
1. Adjustable air nozzles – Facial cooling
2. Facial tanner (UV high pressure lamps + UV low pressure lamps)
3. LED SHOULDER TAN with sound system
4. EMERGENCY OFF button
5. Acrylic glass panel base
6. Partition
7. Low pressure lamps, base
8. Low pressure lamps, side section
9. Low pressure lamps, canopy
10. Interior lighting (LEDs)
11. Nozzles AQUA / AROMA SYSTEM
12. Body cooling air nozzles
13. INTERIOR DISPLAY (TOUCH)
14. PROFESSIONAL SETUP MANAGER PLUS with SELECTABLE
TANNING PROGRAMS
15. Decorative lighting, canopy (LEDs)
16. Decorative lighting, front panel (LEDs)
17. Enclosed tanning tunnel
18. LED BEAUTY LIGHT FACIAL
19. Service Light (only with opened bed base)
20. LED BEAUTY LIGHT BODY
Page 29
Description
01/2019 1020307-00 Operating instructions – 27/82

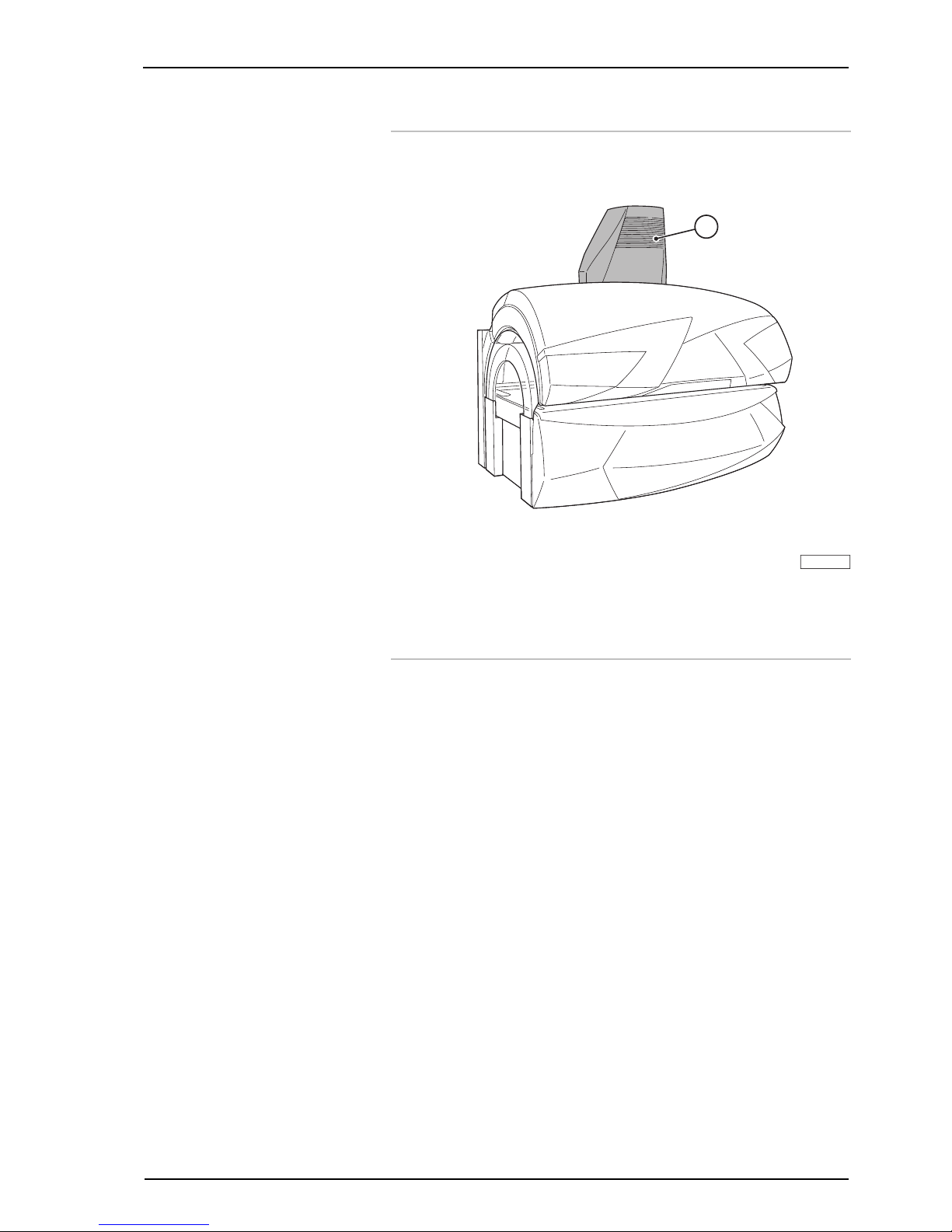

2.4 Accessories (optional)
1
18859 / 1
1. Central exhaust air socket (optional)
2.5 Functional description
The primary technical components of a solarium are an artificial source of UV
radiation and a mechanical structure with a defined active surface.
In the Prestige Lightvision SLP, the UV spectrum is enhanced by special red
light lamps.
The Hybrid Performance technology offers wonderful, natural tanning.
A total of 14 low-pressure lamps build up pigments and, in combination with
the 38 UV lamps, create an immediately visible and long-lasting tan on the
body. Dynamic, electronic ballasts permanently guarantee 100% performance.
Four facial tanners and the new spaghetti lamps enable an outstanding tanning performance in the facial area.
The red light spectrum, which has been developed together with light biologists, is precisely tailored to the skin's biological reaction spectra. The combination of UV and Beauty Light enables an especially beautiful tan, and also
protects the skin while tanning.
Page 30
Operation
28/82
3 Operation
3.1 User safety information
DANGER!
UV radiation
Danger of skin and eye injuries or skin diseases!
– Please observe the safety instructions and warnings in
chapter 1.
Danger of hearing damage!
Listening to music at a high volume can result in permanent
hearing damage.
– Do not set the volume too high.
3.2 Tanning - but correctly!
A few things need to be noted to in order to obtain maximum enjoyment from
a tanning device. Here are some answers to frequently asked questions.
Make-up in the tanning device?
Please do not wear make-up. Clean skin absorbs UV light better.
A wide variety of materials is found in cosmetics. Whether these are emulsifi-
ers, greases, or fragrances - in conjunction with UV radiation, these can
cause skin allergy reactions.
Accordingly, a must before using a tanning device is: Remove all make-up.
This is essential. Make-up clogs the pores in the face. The UV light from a
tanning device re-opens these clogged pores so that not only does the light
penetrate the skin, but also the allergenic components of the make-up.
A further negative consequence of make-up is that the appearance of the skin
deteriorates irreversibly over a period of time. However good a decent
makeup looks - in conjunction with UV light, it causes more harm than good.
Therefore: Remove all make-up before a session in your tanning device - it
will be much better applied afterwards.
Showering after leaving the tanning device?
The browning is in the skin, not on it. Therefore you cannot wash it off. Treat
your skin to a moisturizing cream after showering.
Are medications and the tanning device compatible?
It is known that some medicaments increase the skin’s sensitivity to UV light.
This probability is particularly high with antibiotics, sulphonamides, psychiatric
drugs, tranquillizers, anti-diabetes treatments and diuretics. Sun creams
which contain psoralen or kumarin also increase skin sensitivity. If you are in
any doubt, first ask your doctor - then you can enjoy the sun at no risk.
Page 31
Operation
01/2019 1020307-00 Operating instructions – 29/82
Contact lenses in the tanning device?
The answer is: Yes! Like any other tanning device user, contact lens wearers
should also wear special protective goggles which protect the eyes against
UV radiation. To guarantee better protection, wearers of spectacles and contact lenses can ask their optician for exchange contact lenses with UV protection. The UV-A and UV-B filters built into exchange contact lenses will protect
the cornea and the internal parts of the eye against almost 100 of the energy
in UV radiation.
This will benefit tanning device users not only in the open air, but on the tanning device itself. You can wear these contact lenses on the tanning device
without any restrictions. For more information, ask your optician or optometrist.
Page 32
Operation
30/82
3.3 Operating overview
EMERGENCY
OFF
INTERIOR DISPLAY
6 754321
12 13 14 15 16
9
10
11
8
START
18615 / 0
1. Voice Guide icon
2. Audio back icon
3. Audio pause/play icon
4. Audio next icon
5. Volume icon
6. Audio source icon
7. Music folder icon
8. START icon
9. STOP icon
10. Display - Tanning time
11. Display - Track title
12. Application type selection icon
13. Face/body fan icon
14. Climatronic pictogram
15. AQUA FRESH icon
16. AROMA SYSTEM icon
Page 33
Operation
01/2019 1020307-00 Operating instructions – 31/82

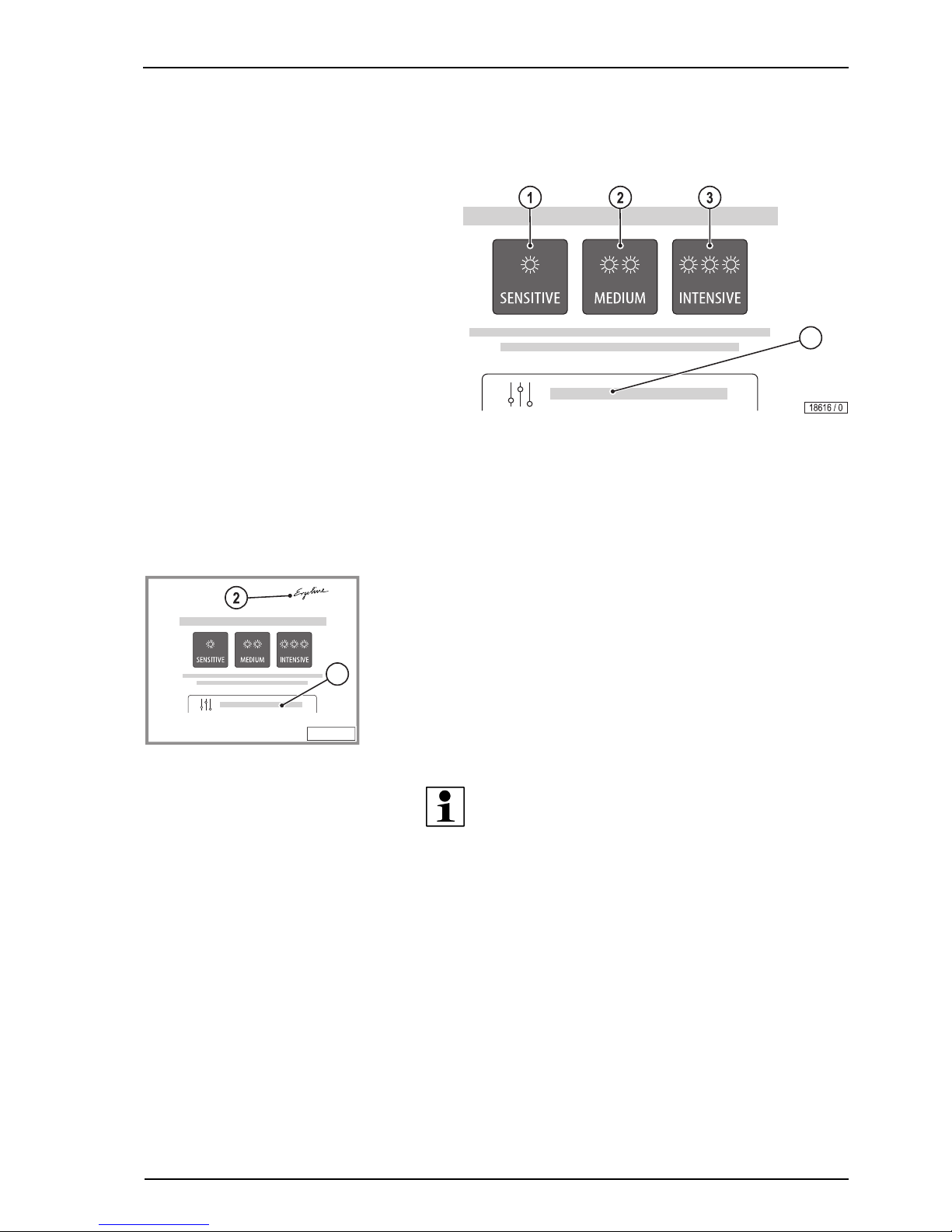

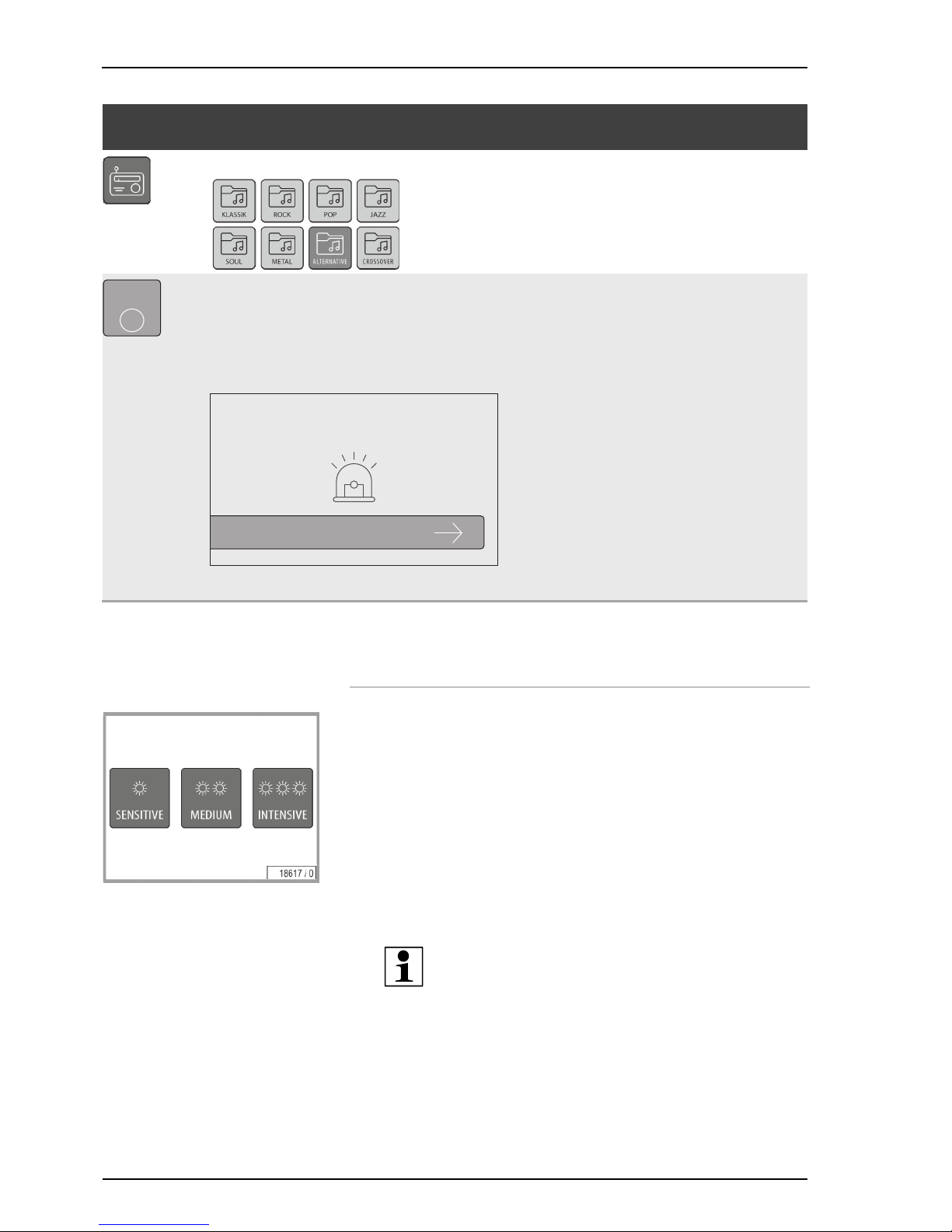

3.3.1 PROFESSIONAL SETUP MANAGER PLUS
4
1. Application type: SENSITIVE
2. Application type: MEDIUM
3. Application type: INTENSIVE
4. Setup (comfort settings)

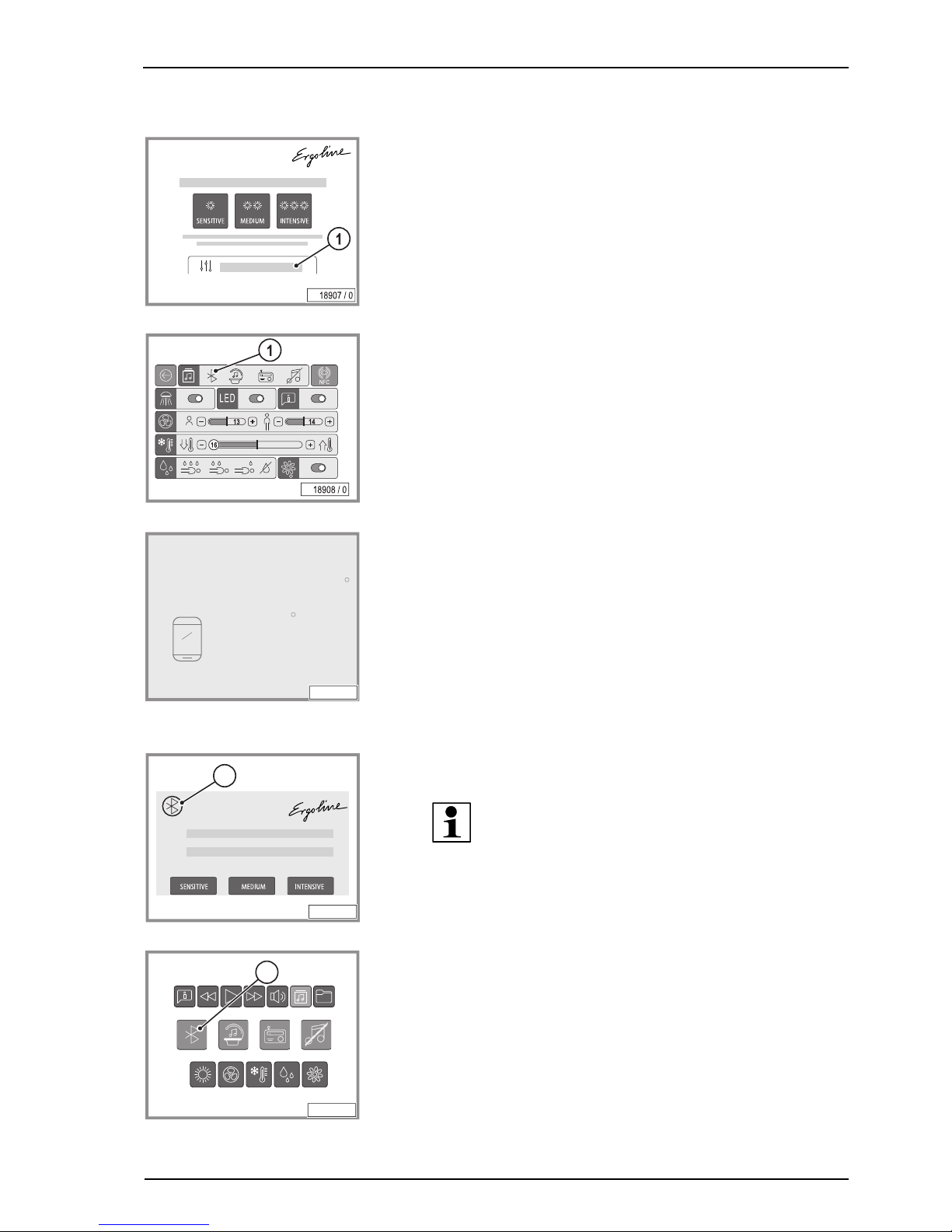

3.3.2 Navigation
Before starting the device, the most important settings can be selected
in advance in PROFESSIONAL SETUP MANAGER PLUS (order
no. 1020179-.. ).
The user can select the application type before tanning starts. Further
information on the application types:
see chapter 3.5 on page 36.
The user profile can be used to select and save a number of other individual
functions before the device is started.
All functions can be reached via the comfort settings (Item 1).
INFORMATION:
Press the ERGOLINE logo (Item 2) to open
‘PROFESSIONAL SETUP MANAGER PLUS’.
18623 / 0
COMFORT SETTINGS
1
Page 34
Operation
32/82

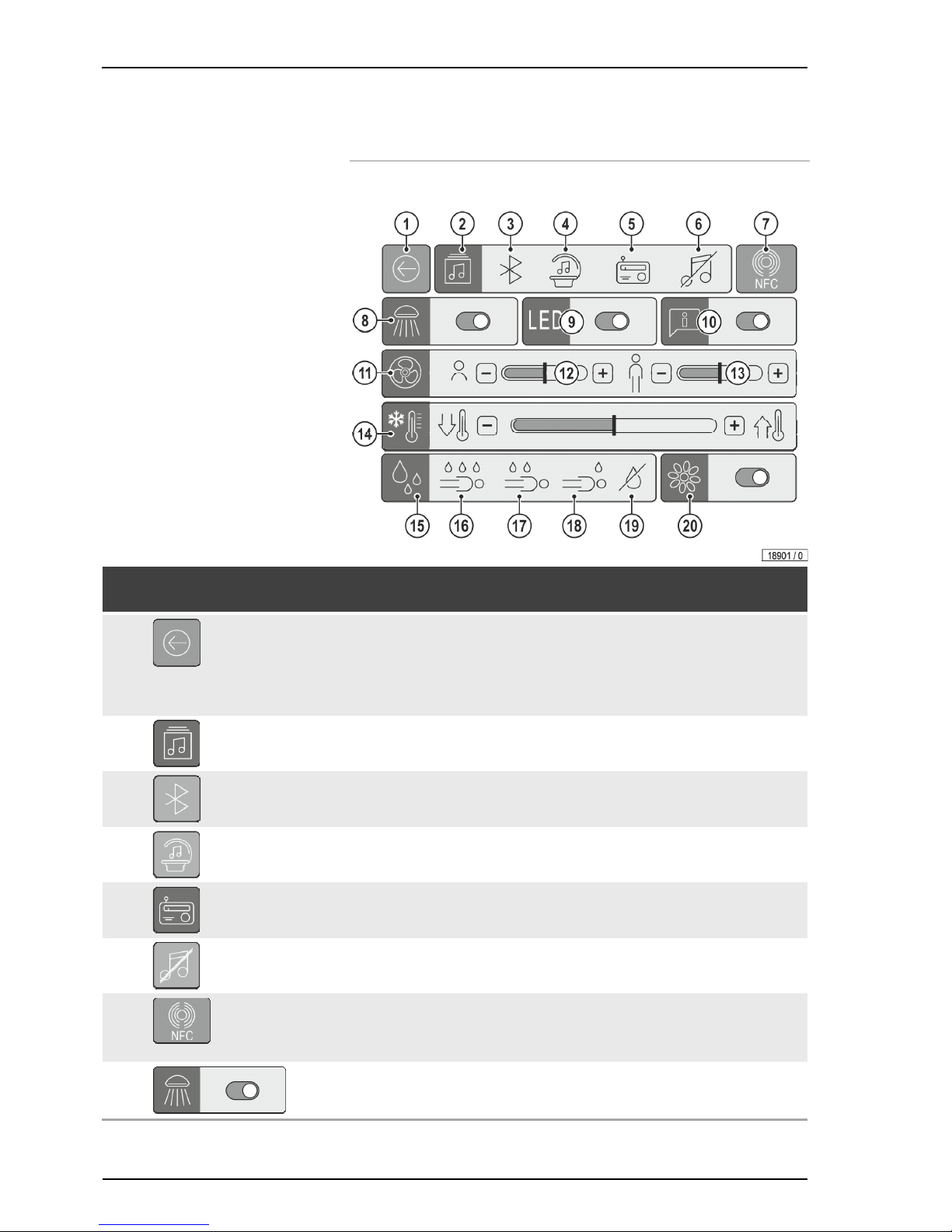

3.4 Functions
PROFESSIONAL SETUP MANAGER PLUS – User profile

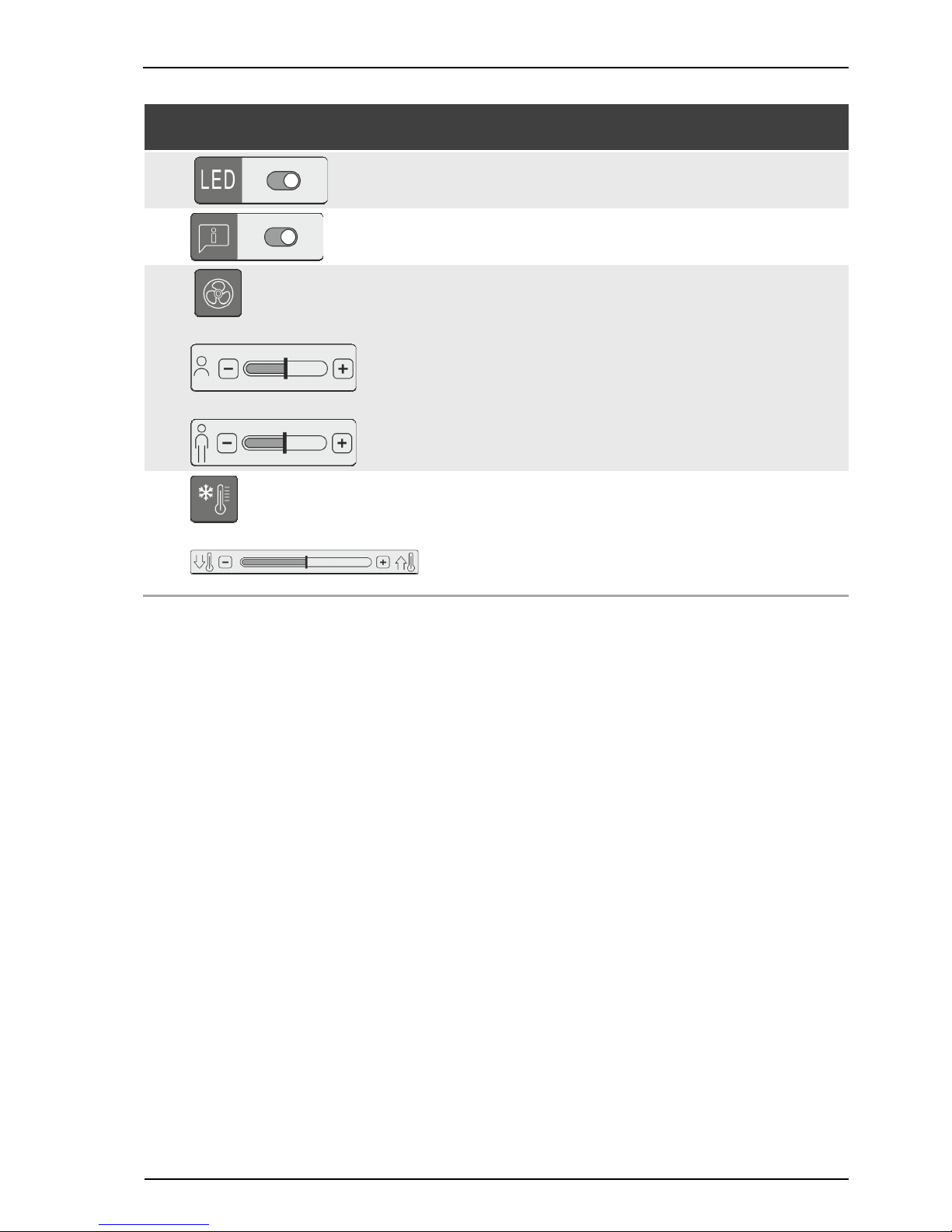

Icon selection /
Key sequence
Description / Display Information
1
Back arrow: touching the arrow
takes you back to the previous interface from any function; touching
the arrow several times takes you to
the standard display
Back to the standard display
2
Selection of the audio sources
3
Bluetooth® Connect Activate by touching.
4
Internal music selection Activate by touching.
5
Music folder Activate by touching.
6
Audio sources OFF Activate by touching.
7
NFC Activate by touching.
Saves the settings on the NFC
medium.
8
Facial tanner
(ON / OFF)
Moving the slider switches the
function on or off.
Page 35
Operation
01/2019 1020307-00 Operating instructions – 33/82
Icon selection /
Key sequence
Description / Display Information
9
LED (ON / OFF),
Beauty Light
Moving the slider switches the
function on or off.
10
VOICE GUIDE (ON / OFF) Moving the slider switches the
function on or off.
11
12
13
Fan (face/body fan)
Face fan
Body fan
The fans for the face and body
can be adjusted separately. If the
user does not change anything,
the fan is automatically adjusted to
the temperature.
14
Climatronic
Climatronic
The Climatronic function can be
used to increase or decrease the
fan temperatures separately.
Moving the slider enables the
Climatronic to be regulated in
three levels.
Page 36
Operation
34/82
Icon selection /
Key sequence
Description / Display Information

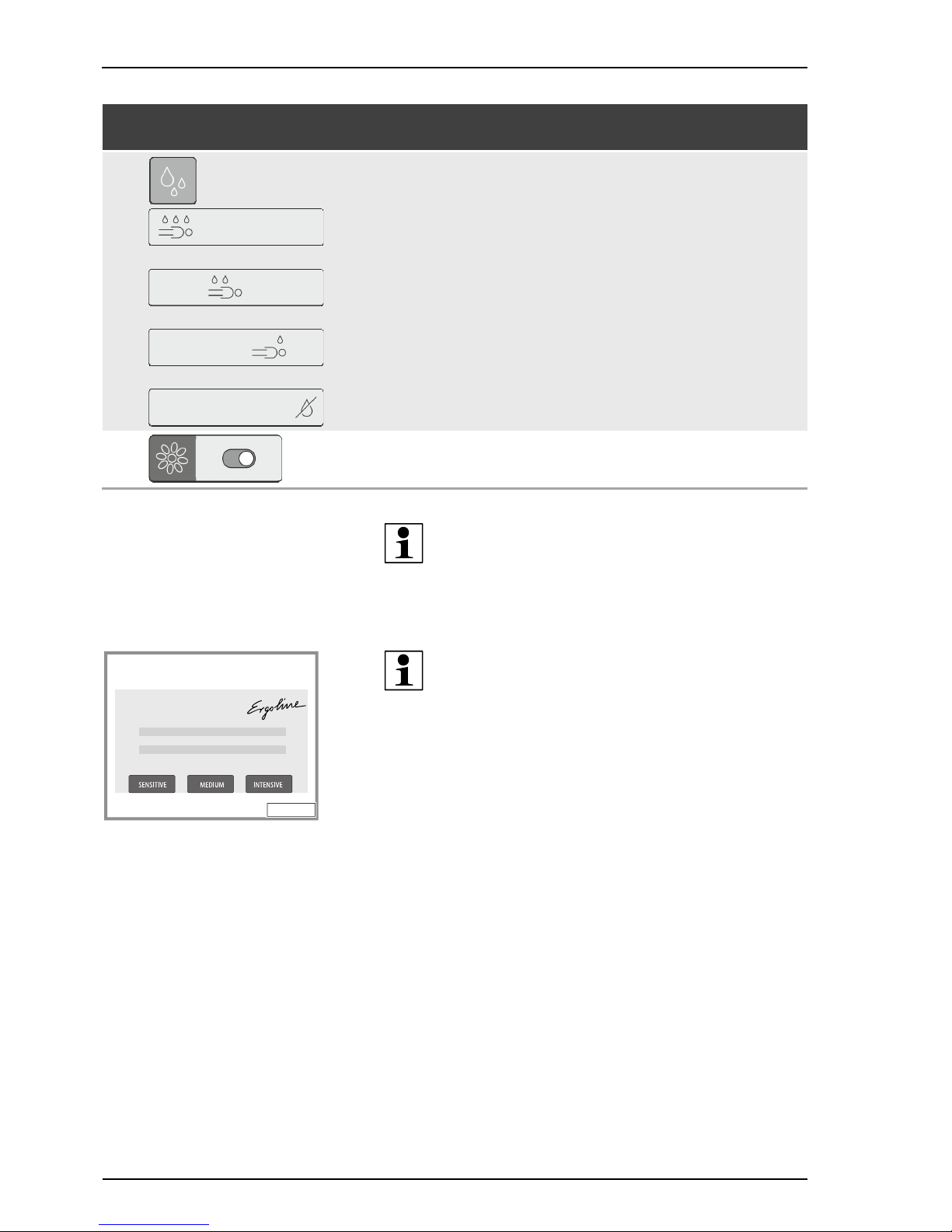

15
16
17
18
19
AQUA FRESH selection
AQUA FRESH
Head and body nozzles
AQUA FRESH
Body nozzles
AQUA FRESH
Head nozzles
AQUA FRESH: OFF
Can be adjusted separately for the
head and body area.
Activate by touching.
Activate by touching.
Activate by touching.
Activate by touching.
20
AROMA
Moving the slider switches the
function on or off.
NOTE:
All active functions are indicated by a magenta colour.
INTERIOR DISPLAY in standby
NOTE
If no application type was chosen before the start of tanning,
the user can choose the desired tanning programme in the
INTERIOR DISPLAY.
Further information on the application types:
see chapter 3.5 on page 36.
How would you like to tan today?
Welcome!
1895 / 07
Page 37
Operation
01/2019 1020307-00 Operating instructions – 35/82

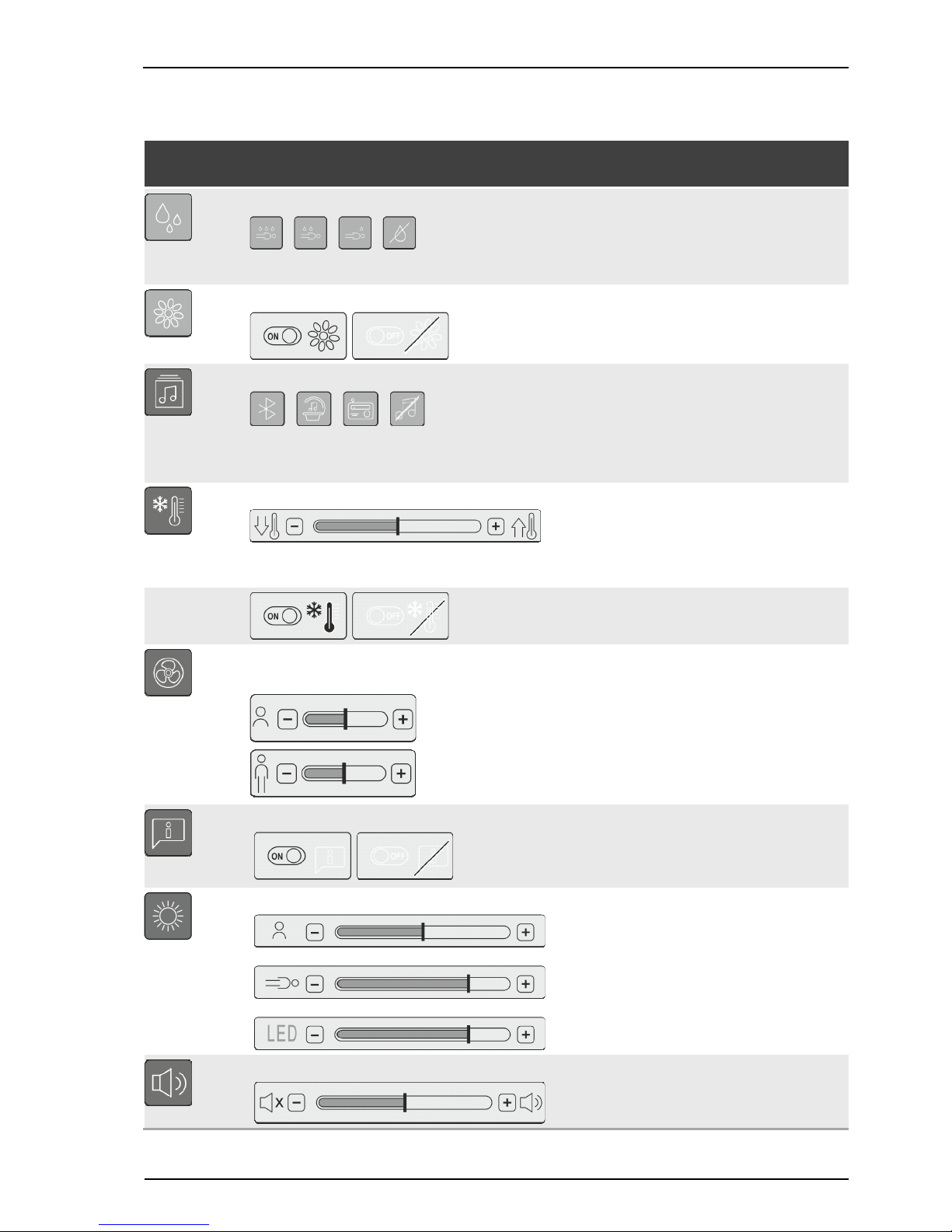

3.4.1 Navigation
Icon selection /
Key sequence
Description / Display Information
AQUA FRESH
AQUA FRESH for head and body
AQUA FRESH for body
AQUA FRESH for head
AQUA FRESH OFF
AROMA
AROMA ON / OFF
Audio sources selection
Bluetooth®
Internal music selection
Studio channel selection
Audio sources OFF
Climatronic
The Climatronic function can be used to
increase or decrease the fan temperatures separately.
Moving the slider enables the Climatronic
to be regulated in three levels.
Aircondition: Aircondition starts in the
event of a Climatronic malfunction.
Fan (face/body fan)
Levels 0–9
Levels 0–9
The fans for the face and body can be
adjusted separately. If the user does not
change anything, the fan is automatically
adjusted to the temperature.
VOICE GUIDE
The VOICE GUIDE takes the user
through the operation process. This function can be switched on and off at any
time.
Low-pressure lamps, Beauty Light LEDs and facial tanners
Switch off the facial tanner,
press the minus button for 3 seconds
adjust the facial tanner, levels 0–4
Adjust the low-pressure lamps,
levels 1–3
Adjust the Beauty Light LEDs, levels 0–3
Volume
Levels 0–14
Page 38
Operation
36/82
Icon selection /
Key sequence
Description / Display Information
Volume
A maximum of 9 folders can be created.
Folder names are limited to a maximum
of 12 characters.
EMERGENCY
OFF
EMERGENCY OFF
EMERGENCY OFF
Please press the button again
When the EMERGENCY OFF button is
pressed, the entire device apart from the
INTERIOR DISPLAY switches off. In this
status, the display shows that the
EMERGENCY OFF button has been
operated.
The edges of the EMERGENCY OFF
button also flash red at the same time.
The displays alternate with one another.
The tanning time will keep running.
The VOICE GUIDE indicates voice guid-
ance.
After being blocked for 2 seconds, the
EMERGENCY OFF can be reversed
again. The device restarts in tanning
mode.
3.5 Selection of the application type
(SELECTABLE TANNING PROGRAMS)
Before the session begins, the desired application type must be selected.
There are 3 possible selections:
INTENSIVE:
100% power of UV- and SMART SUN lamps and facial tanner
MEDIUM:
85% power of UV- and SMART SUN lamps, facial tanner level 2
SENSITIVE:
65% power of UV- and SMART SUN lamps, facial tanner level 2
– Press the button for the desired type of application.
NOTE:
In each program, the Beauty Light LEDs start with 100%
performance.
During the tanning session, the intensity of the facial tanner
and the Beauty Light LEDs can be changed at any time, or
switched off completely. If no selection of the application
type is carried out, the device starts up with the application
type „INTENSIVE“
Page 39
Operation
01/2019 1020307-00 Operating instructions – 37/82

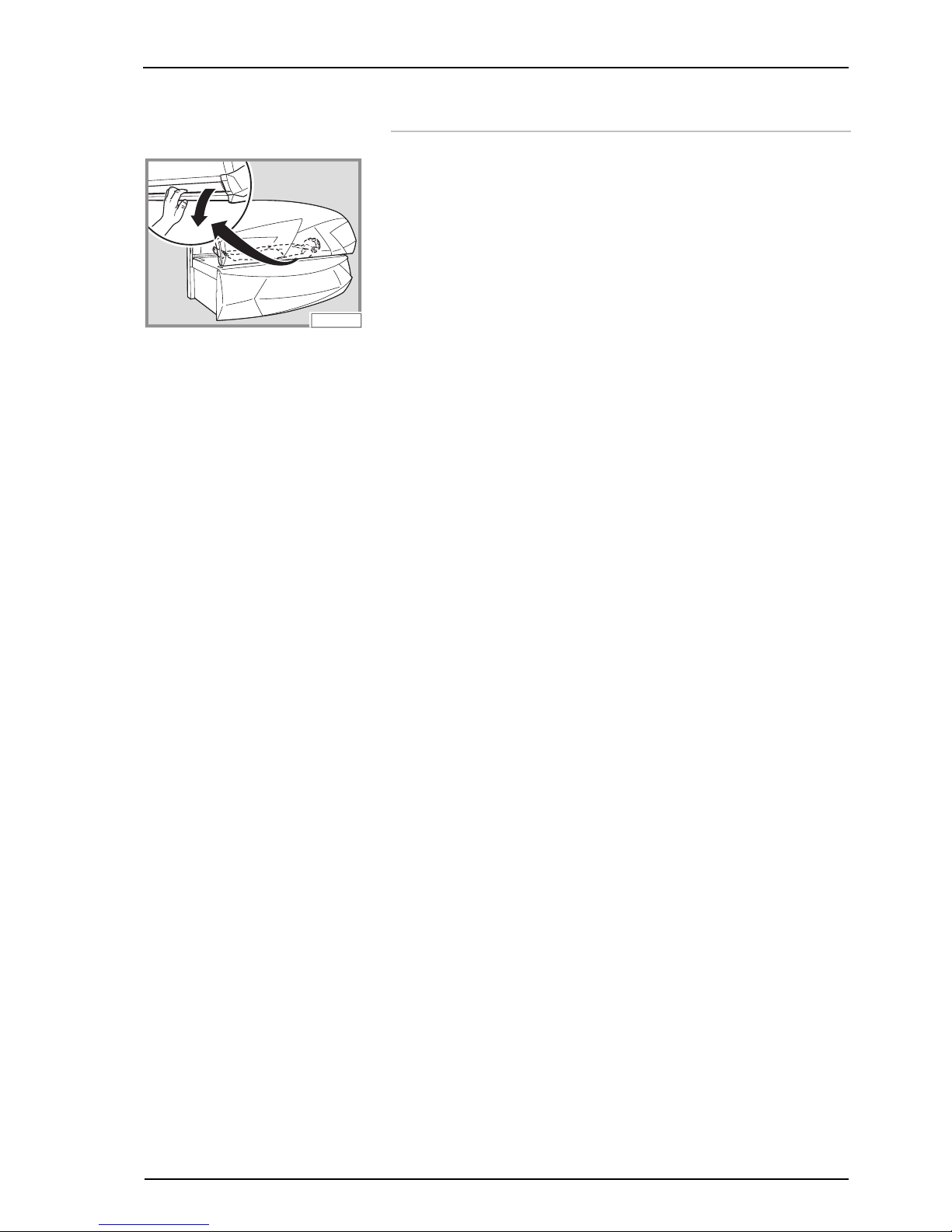

3.6 Start
– Closing the canopy.
– Press the START/STOP button.
Upon starting the following functions are switched on:
Lamps and LEDs
Air condition
Body cooling
Facial cooling
Audio system
VOICE GUIDE
18860 / 0
Page 40
Operation
38/82
3.7 Coupling with Bluetooth® devices
DANGER!
Danger of hearing damage!
Listening to music at a high volume can result in permanent
hearing damage.
– Do not set the volume too high.
Users can pair their own private MP3 player or smartphone with the audio
system. The device must be paired before the start of tanning.
Pairing between the solarium and the private smartphone or MP3 player of
the user is only possible via Bluetooth®
1
Connect. When using Bluetooth®
Connect, the user can transfer their favourite music into the solarium wirelessly (e.g.) from their smartphone. The INTERIOR DISPLAY is used to operate
the system during the tanning session.
NOTE:
Ergoline cannot guarantee full compatibility with all
Bluetooth® devices.
Before couplin
g
a device with this system, read the user
manual to find out more about the Bluetooth® compatibility.
Make sure that the Bluetooth® function is activated on
your device and that the device is visible for all other
Bluetooth® devices.
Connect to a Bluetooth® MP3 player
Activate the Bluetooth® function and search for Bluetooth® devices.
Activate the Bluetooth® function on the iPhone®:
iPhone®:
Settings
General Bluetooth® ON (device search is started.)
Activate the Bluetooth® function on the Android® smartphone:
Android® smartphone:
Press the Bluetooth® symbol
SCAN (device search is started.)
NOTE:
The tanning device can store a maximum of ten coupled
Bluetooth® devices. In the event of recoupling
the tanning device must first be deleted from the Bluetooth®
device. The activation process must then be repeated.
1
Communication system: Bluetooth® standard version 3.0, version 2.1 and EDR; max. operating range:
approx. 10 m; frequency range: 2,4 GHz range (2,4000 GHz – 2,4835 GHz); compatible Bluetooth profiles: A2DP, AVRCP; equipment supported at the same time (pairing): one device
Page 41
Operation
01/2019 1020307-00 Operating instructions – 39/82
Activate Bluetooth® Connect in PROFESSIONAL SETUP MANAGER PLUS
How would you like to tan today?
Comfort settings
– Press comfort settings (1) in PROFESSIONAL SETUP MANAGER PLUS.
Press the Bluetooth® icon (1) in the user profile.
While the devices are pairing, the Bluetooth® icon (1) lights up continuously in
magenta.
Please activate the Bluetooth
connection on your smartphone.
R
R
Setting > Bluetooth > Unit Select
18909 / 0
Display in the smartphone.
– Select the Bluetooth® Connect name of the tanning device, e.g. ERGO-
LINE 01.
Successful Bluetooth® connection in the INTERIOR DISPLAY
18952 / 0
1
How would you like to tan today?
Welcome!
– Status display (1) when the devices have been successfully paired.
INFORMATION:
When successfully paired, the Bluetooth® symbol (1) in the
INTERIOR DISPLAY lights up blue continuously.
1
18942 / 0
Audio sources: Bluetooth® (1) selection in the INTERIOR DISPLAY.
Page 42
Operation
40/82
3.8 Listening to music
DANGER!
Danger of hearing damage!
Listening to music at a high volume can result in permanent
hearing damage.
– Do not set the volume too high.
CAUTION!
The heat might damage your MP3 player or smartphone!
– Do not place the device directly in the radiation area.
Page 43
Cleaning and maintenance
01/2019 1020307-00 Operating instructions – 41/82
4 Cleaning and maintenance
4.1 Safety instructions when undertaking
cleaning or maintenance work
DANGER!
Electricity throughout entire device!
Personnel danger due to electric shock or electric burns.
– Before beginning work, disconnect all of the power
connections from mains voltage.
– Secure all of the disconnected connections against
accidental reactivation.
– Check that the device is disconnected from mains volt-
age.
– All of the work and electrical connections must comply
with the national regulations of the country in which the
device is being operated (e.g. the VDE regulations in
Germany) and must be undertaken by appropriately
trained specialists.

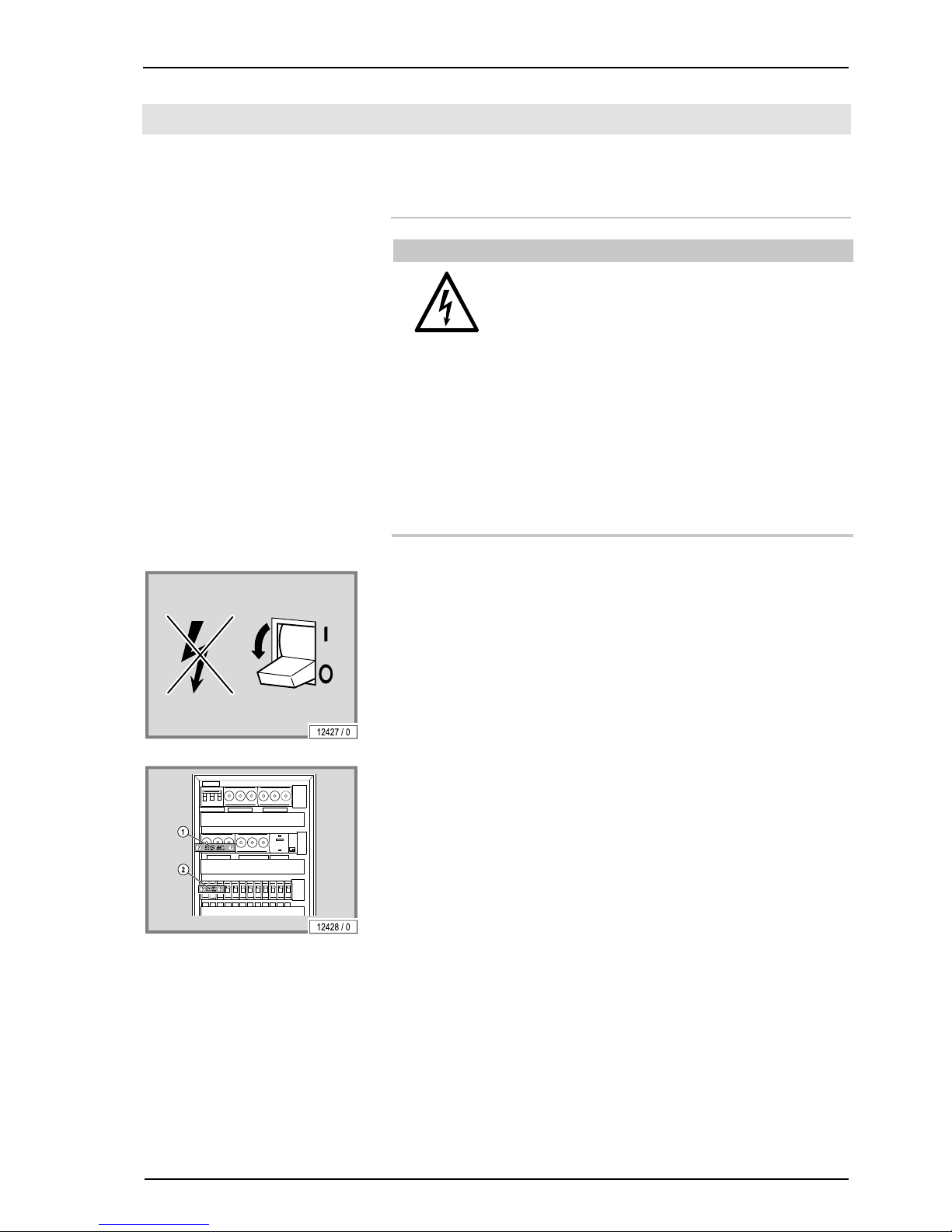

If work is to be performed on the devices, they must be deenergized. That
means that all live cables must be switched off.
Switching off the device alone is insufficient, as certain points may remain
energized. Therefore, switch off fuses before performing any work and – if
possible – remove them.
Accidental reactivation can result in serious accidents. Immediately after
deenergizing, secure all switches or fuses used for deenergizing against being switched on again.
– Lock the fuse box with a padlock.
In case of circuit breakers which cannot be unscrewed, a strip of adhesive
tape may be applied over the actuation lever with the wording 'Do not switch,
danger!' (1 + 2).
A prohibition sign with the text:
'Work in progress!'
'Place: ..............................'
'Sign may only be removed by: ............'
must always be securely mounted immediately.
Page 44
Cleaning and maintenance
42/82
4.2 Faults
Error codes are output to the display to simplify troubleshooting:
If a fault occurs, the error code appears in the display.
If several faults occur, the fault messages are displayed alternately.
The error is acknowledged by pressing the START/STOP-button.
If the error cannot be cleared, inform Customer Service - see page 2.
More detailed information regarding the error description and solutions can be
found in 'Error Codes', (Order No. 1019969-..).
4.3 Cleaning
DANGER!
Infections can be spread by skin contact!
A
ll objects/device parts that could come into contact with the
user during tanning must be disinfected after every tanning
session:
– Acrylic glass panel
– Handles and control panel
– Protective goggles
– Adjustable air nozzles
NOTE:
Adhere to the stipulated times to ensure thorough disinfection. Follow the manufacturer's instructions for use.
Page 45
Cleaning and maintenance
01/2019 1020307-00 Operating instructions – 43/82
4.3.1 Cleaning the surfaces
Acrylic glass surfaces
WARNING!
Do not rub with a dry cloth – danger of scratching!
Failure to comply invalidates any warranty claims.
– For the fast, hygienic and proper cleaning of acrylic
glass surfaces, use specially developed cleaning
agents.
– Concentrated disinfectants or solvents (e.g. Lysoform,
ethyl alcohol or other fluids containing alcohol) must
never be used for cleaning.
Acrylic glass panels unusable due to soiling!
Soiling on the panels is burned in by the hot lamps and
results in the long term in unserviceable panels.
– Remove fingerprints and other soiling carefully.
Plastic surfaces
For cleanin
g
the remaining painted and unpainted plastic surfaces, it is best to
simply use warm water and a leather cloth. Never use aggressive cleaning
a
g
ents containing alcohol or essential oils. These may lead, in the long run, to
damages not covered by the guarantee.
During cleaning a slight discolouration of the leather cloth by the rubber seals
must be expected for production-related reasons.

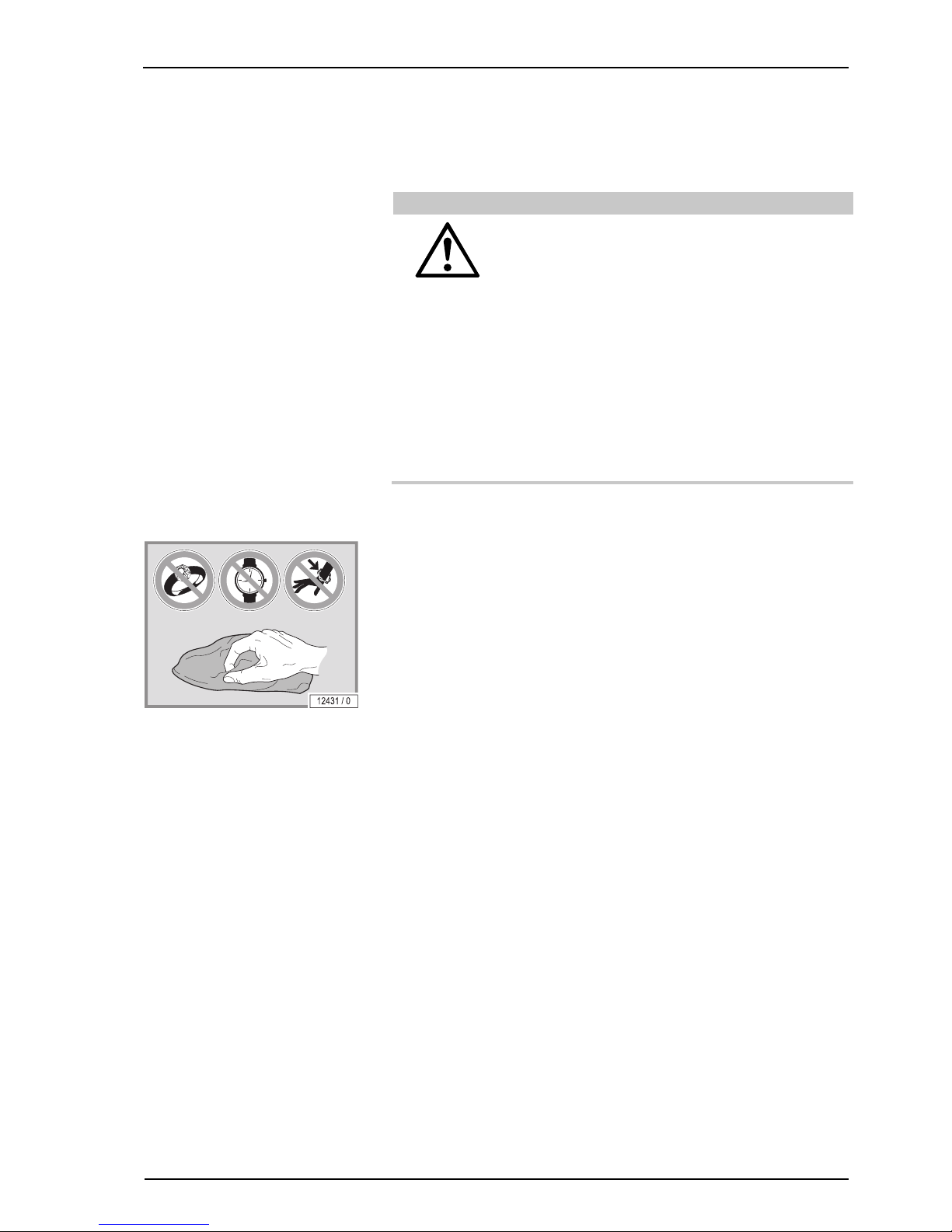

Prevent damage to the acrylic glass and plastic surfaces.
– Remove rings, watches, bracelets etc. before starting cleaning work.
4.3.2 Filter panels and lamps
Low pressure lamps and filter panels can be cleaned with a damp cloth
and without additional cleaning agents where necessary.
High pressure lamps can be cleaned with ethyl alcohol where necessary.
Page 46
Cleaning and maintenance
44/82

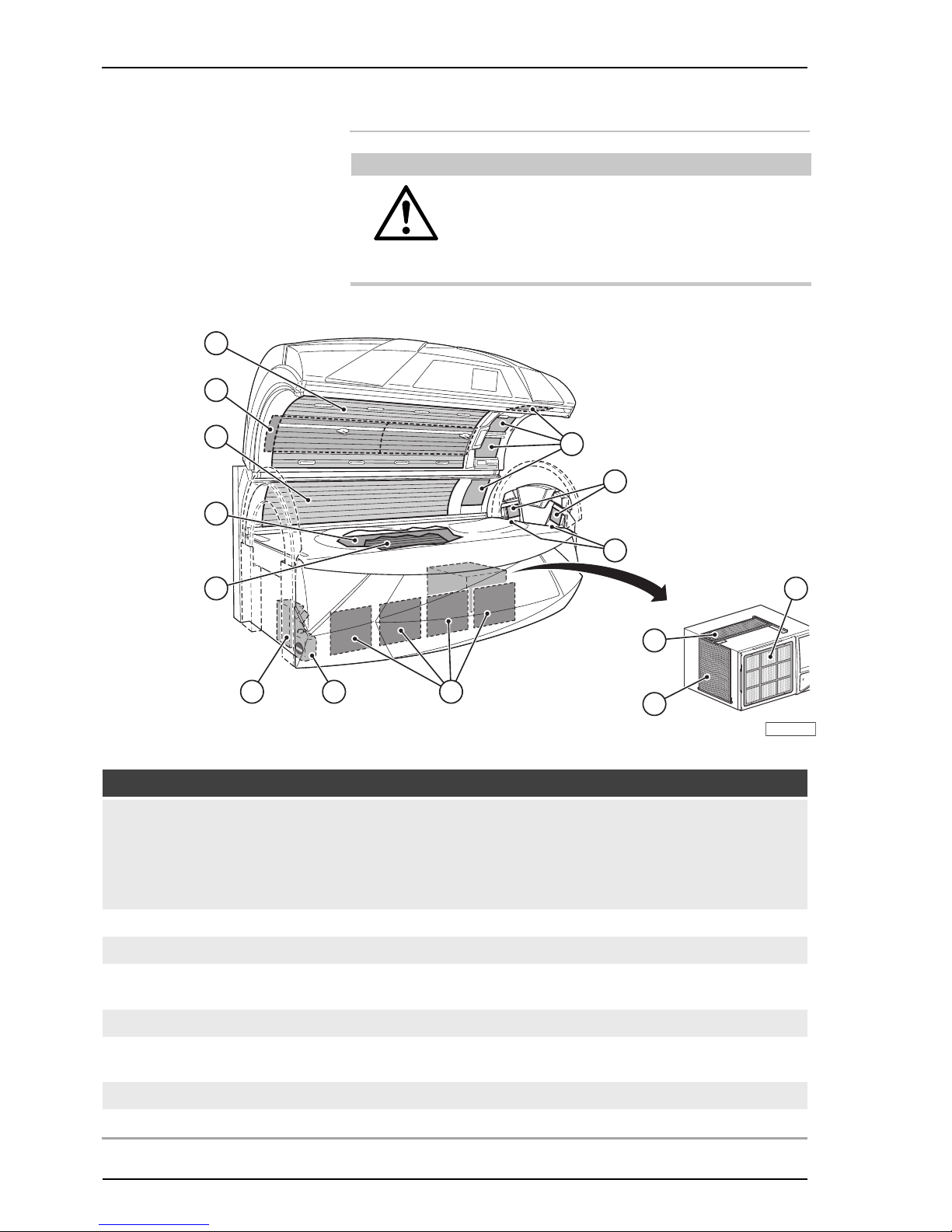

4.4 Cleaning plan
18
19
2
7
5
6
4
9
10
8
1
2x
17
3
11 14 151612
18837 / 1
Component Interval Activity See page
After each
tanning session
When necessary
50 h
1 Adjustable air nozzles / AROMA X Clean and disinfect 42
2 Acrylic glass panel X Clean and disinfect 43
3 Condensation tank X Empty 66
15 INTERIOR DISPLAY X Clean and disinfect 42
16 PROFESSIONAL SETUP
MANAGER PLUS
X Clean and disinfect 42
8, 9, 17 Surfaces X Clean 43
Protective goggles X Clean and disinfect 42
11, 14 Nozzles AQUA / AROMA SYSTEM X Clean 42
12 Body cooling air nozzles X Clean 42
5, 6 Filters X Remove and clean filters 66
4 Filter mat X Clean 66
7 Filters X Remove and clean filters 63
10 Filter mats X X Clean 64
18 Air intake opening X Clean 71
19 Filter mats X Remove and clean filters 64
Page 47
Cleaning and maintenance
01/2019 1020307-00 Operating instructions – 45/82
INFORMATION:
When the cleaning mode is activated in PROFESSIONAL
SETUP MANAGER PLUS and the run-on time of the device
fan has finished, cleaning must be confirmed after every
tanning session by pressing the START/STOP button.
4.5 Maintenance
Maintenance and care play a major role in deciding whether the device meets
the requirements placed on it in a satisfactory manner. Compliance with the
specified maintenance intervals and the careful conducting of the maintenance and care work are therefore absolutely necessary.
The current operating hours of maintenance parts can be called up in service
mode (see 'Professional Setup Manager PLUS'), order no. 1020179-..
We point out that the device must be subjected to regular inspections by our
customer service or an approved specialized company every 12 months (from
commissioning) to maintain its proper condition!
Inspections and maintenance work that has been carried out must be entered
in the equipment, operating and maintenance booklet (order no. 1019967-..).
4.5.1 Acrylic glass
WARNING!
Cosmetics may cause cracks to form on the surface!
Over the long-term cosmetics or sunscreens cause damage
(e.g. crack formation on the surface).
– Ensure that cosmetics and sunscreens are removed
before tanning.
The acrylic glass panels for the tanning devices are produced of acrylic glass
developed especially for this application. The acrylics used feature a particularly high UV permeability and resistance, as well as an easy-care, hygienic
surface that is gentle on the skin.
The acrylic glass panels are formed to device-specific shapes in a technically
complex production process. Despite state-of-the-art production know-how,
the presence of minor spots, air bubbles or streaks in the acrylic panels is
unavoidable. In addition, hairline cracks can occur on the acrylic glass panel
during operation.
These occurrences are material-related and are unavoidable in processing.
However, they have no significant effect on use and are therefore not accepted as defects.
Over the course of time the acrylic glass panels becomes more translucent as
a result of usage and must be replaced by customer-service personnel on a
regular basis.
Page 48
Cleaning and maintenance
46/82
4.6 Maintenance plan
WARNING!
Only use genuine spare parts of the same type! If other
parts are used then the device no longer complies with the
conformity declaration and may not be operated any longer!
Any liability for damage or injury proven to be the result of
the use of non-genuine spare parts is excluded.
2
14
3
4
1056
12
11
13
7
9
8
1
2 x
18834 / 1
Component Interval Activity See page
When necessary
300 operating
hours
500 operating
hours
800 operating
hours
1000 operating
hours
3000 operating
hours / 2 years
8000 operating
hours / 4 years
5 AQUA SYSTEM X Replace 69
6a-6b AROMA tank X Replace 69
2 UVB compact lamps, shoulder
tanner
X Replace 61
1 Low pressure lamp, facial tanner X Replace 60
1 UV high pressure lamps, facial
tanner
X Replace 59, 60
4 Low pressure lamps, base X Replace 58
7 Low pressure lamps, side section X Replace 59
Page 49
Cleaning and maintenance
01/2019 1020307-00 Operating instructions – 47/82
Component Interval Activity See page
When necessary
300 operating
hours
500 operating
hours
800 operating
hours
1000 operating
hours
3000 operating
hours / 2 years
8000 operating
hours / 4 years
8 Low pressure lamps, canopy X Replace 60
1 Starter, Low pressure lamps, facial
tanner
X Replace 60
1 Starter, UVB compact lamps,
shoulder tanner
X Replace 61
1 Filter panels, facial tanner X Visual in-
spection
59
1 Filter panels, facial tanner X Replace 59
2 Panels, shoulder tanner X Visual in-
spection
61
3 Partition X Replace 45
9 Filter mat X Replace 64
10 Filters X Replace 63
11 Filters X Replace 66
12 Filters X Replace 66
13 Filter mat X Replace 66
14 Filter mats X Replace 64
Page 50
Cleaning and maintenance
48/82
Maintenance performed by authorized, trained and qualified staff
WARNING!
Danger to persons from maintenance work that has not
been carried out!
If maintenance work is not carried out, it can lead to material
damage or personal injuries!
– Maintenance work ma
y
only be carried out by personnel
who have been authorized, trained and qualified by JK
Products & Services, Inc.!
– The studio operator is responsible for compliance with
the maintenance intervals!
The maintenance work must be carried out in accordance with checklist
1019858-.. by a JK Factory Certified Technician at the manufacturer or by
personnel who have been authorized, trained and qualified by the manufacturer.
The correctly carried out maintenance work must be entered and confirmed in
checklist 1019858-..
The maintenance work must be carried out at the following intervals:
Every 1500 hours
Annually or every 2000 hours, whichever is sooner.
Every 3000 hours
Every 5000 hours
After 10 years or 20,000 hours, whichever is sooner.
Once the age of the device reaches ten (10) years from the date of manufacture, its condition must be assessed by a JK-International GmbH, Division JKGlobal Service Certified Technician before use of the device can be continued.
Failure to have this device assessment performed may result in personal
injury or property damage.
Any liability is excluded if use of the device continues ten (10) years after the
date of manufacture, without the "condition assessment" having been performed.
Page 51
Cleaning and maintenance
01/2019 1020307-00 Operating instructions – 49/82
4.7 Cleaning and maintenance work
preparation

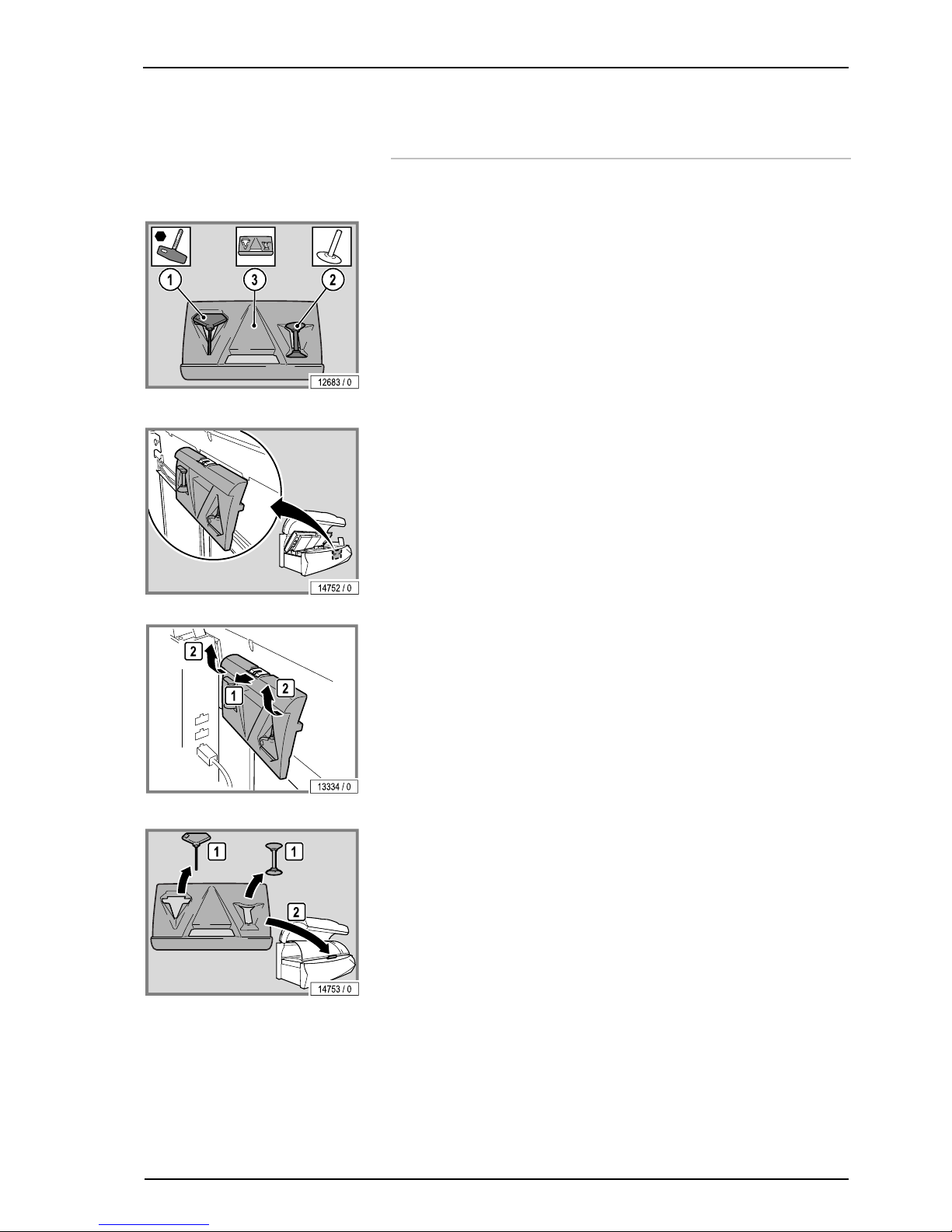

4.7.1 Service kit
1. Allen key
2. Suction cup for filter panels, acrylic glass panel and canopy panel
3. Scratch prevention for the entry area (support cushion for the canopy)
The service kit is fitted on the inside of the front panel.
– Opening the bed base: see page 53.
– Remove service kit from support.
– Remove the Allen-key and suction cup.
Page 52
Cleaning and maintenance
50/82

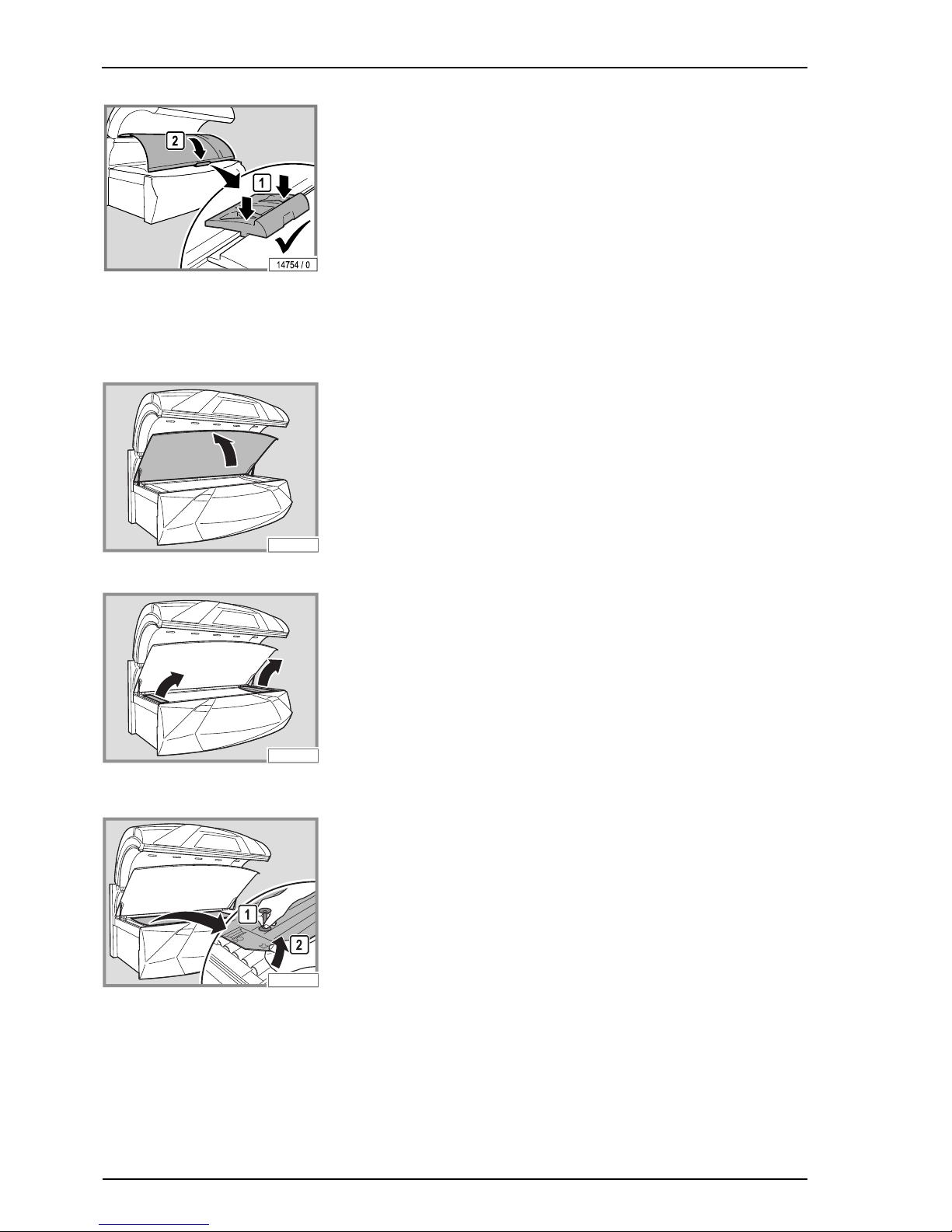

– Use the cushion as scratch prevention when opening the canopy panel.

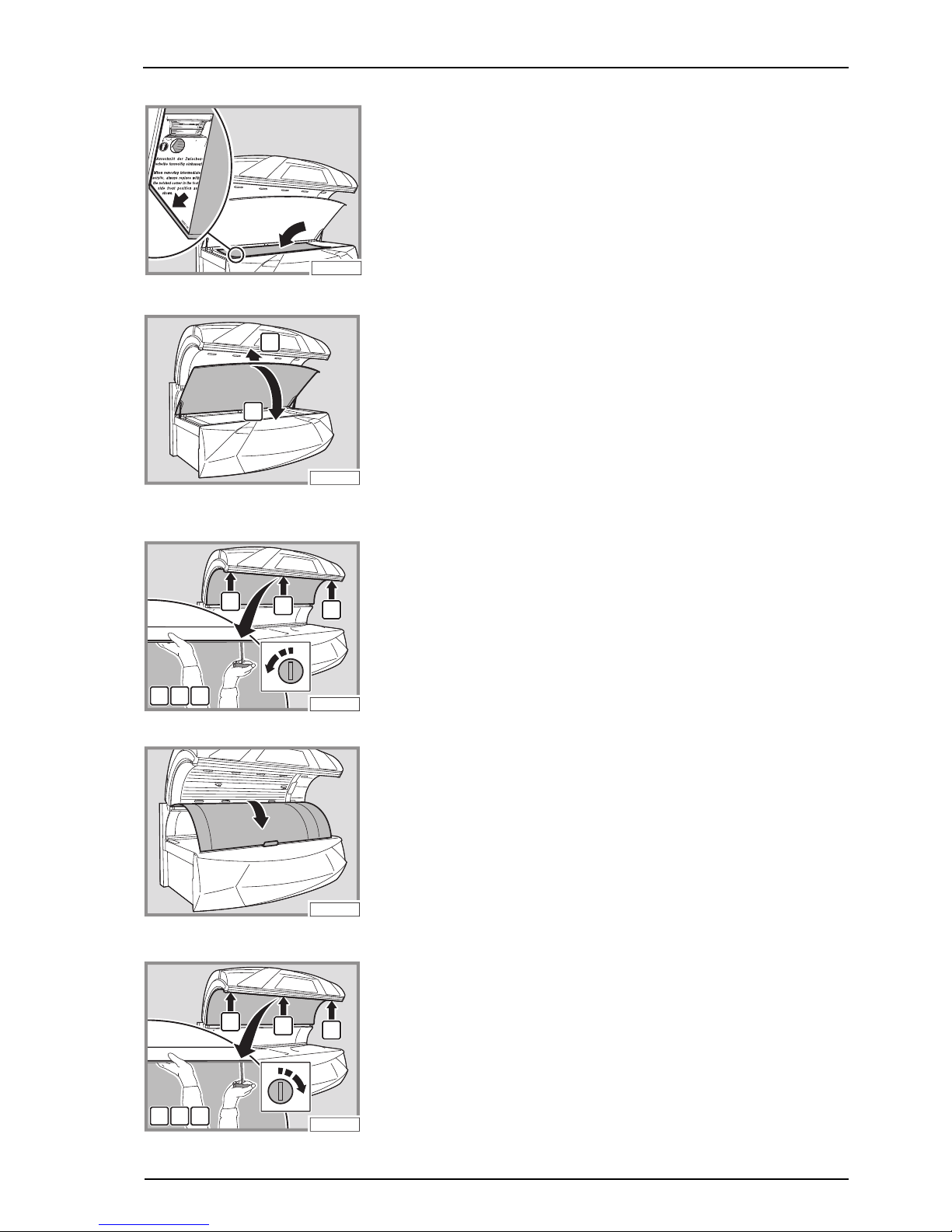

4.7.2 Lift up the acrylic glass panel and remove
the partition
– Lift the acrylic glass panel up to the stop.
The acrylic glass panel will automatically be held in place.
– Remove the lamp covers at the head and foot ends.
– Raise the partition with the suction cup.
– Remove the partition.
18861/ 0
18862 / 0
18863 / 0
Page 53
Cleaning and maintenance
01/2019 1020307-00 Operating instructions – 51/82
The assembly is the same process in reverse order.
When assembling the device please note:
– You must ensure that the recesses are at the foot end when you fit the
partition.
– Lift the partion up slightly and then close it.

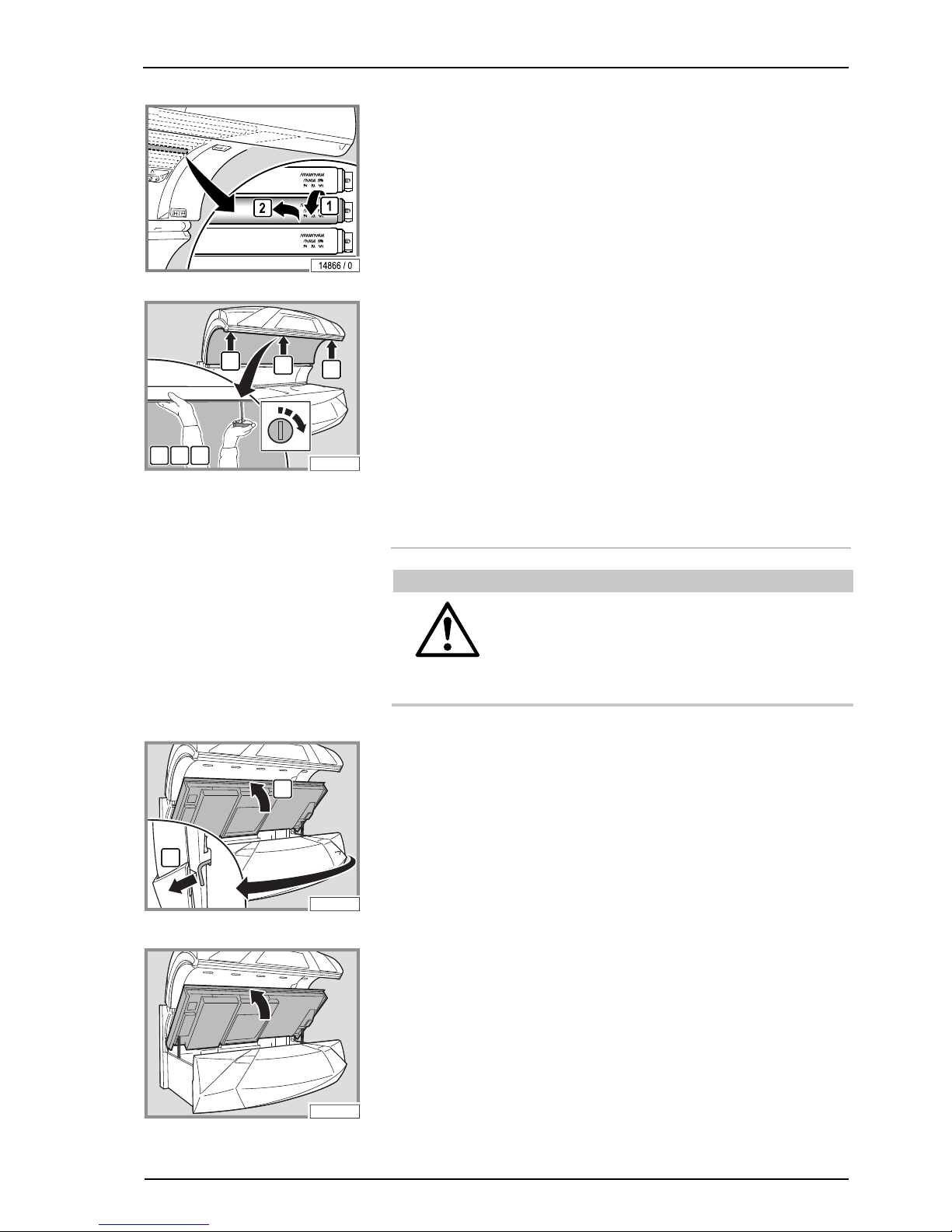

4.7.3 Remove the canopy panel
– Turn the locks through 90°:
first the outer locks, then the lock in the middle.
– Support the canopy panel with one hand so that it does not fall down.
– Carefully lay the panel aside on the scratch protection (service kit).
The assembly is the same process in reverse order.
When assembling the device please note:
– Support the canopy panel with one hand so that it does not fall down.
– Re-lock the locks: first the lock in the middle, then the outer locks.
18864 / 0
2
1
18865 / 0
1
2
1 2 3
3
18866 / 0
18866 / 0
2
3
1 2 3
1
18868 / 0
Page 54
Cleaning and maintenance
52/82

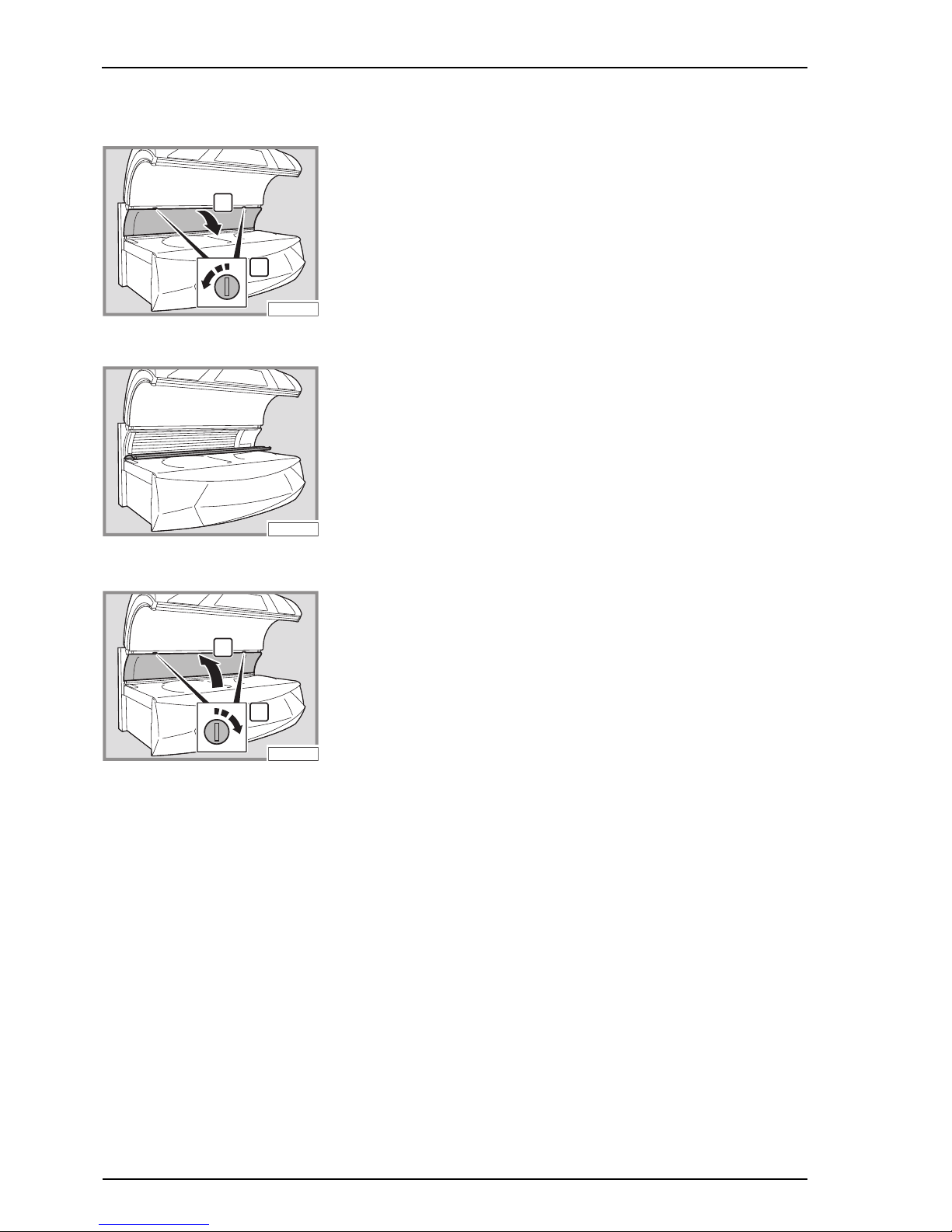

4.7.4 Remove the side section panel
– Turn the locks through 90°.
– Open the panel and lay it down carefully.
When assembling the device please note:
– Re-lock the locks.
1
2
18869 / 0
18870 / 0
2
1
18871 / 0
Page 55
Cleaning and maintenance
01/2019 1020307-00 Operating instructions – 53/82

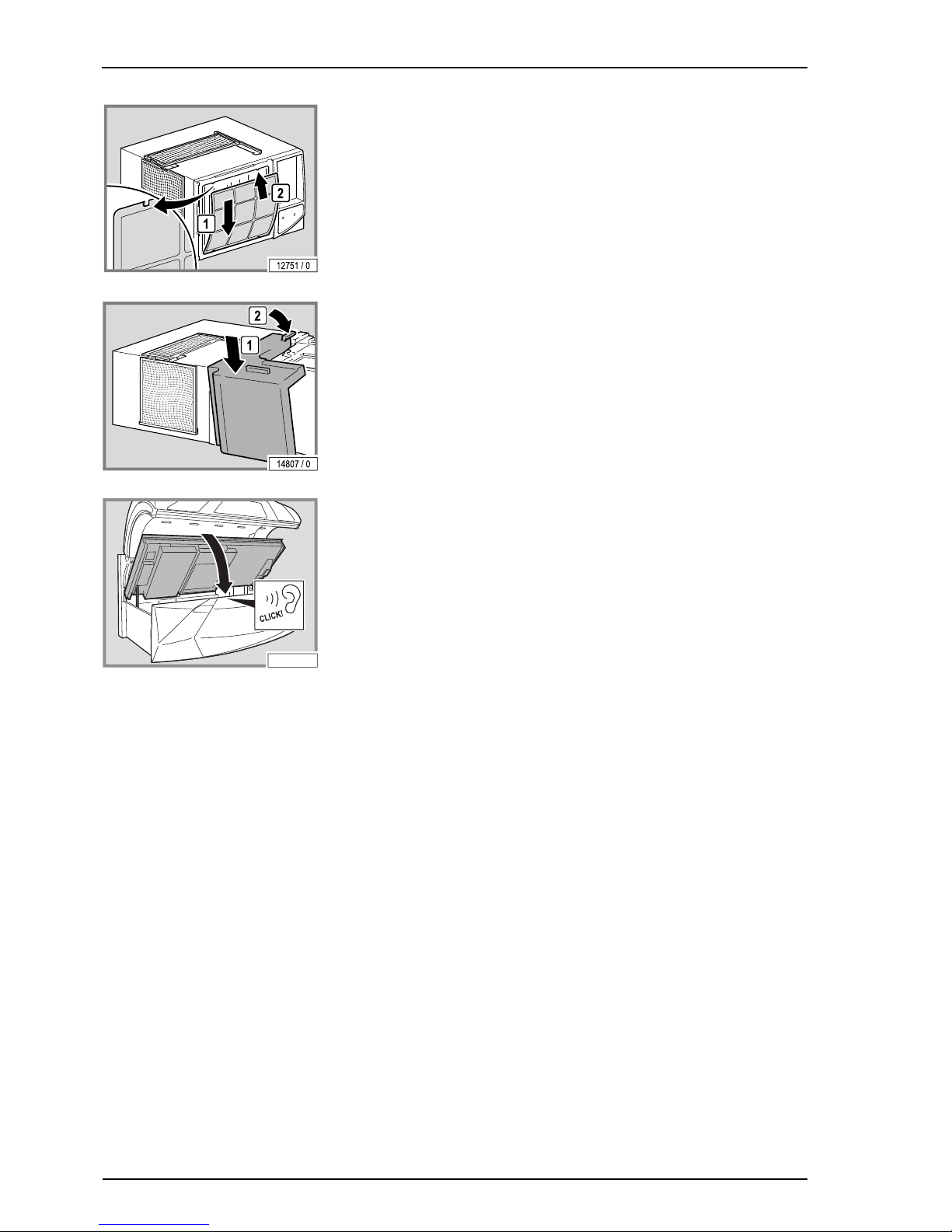

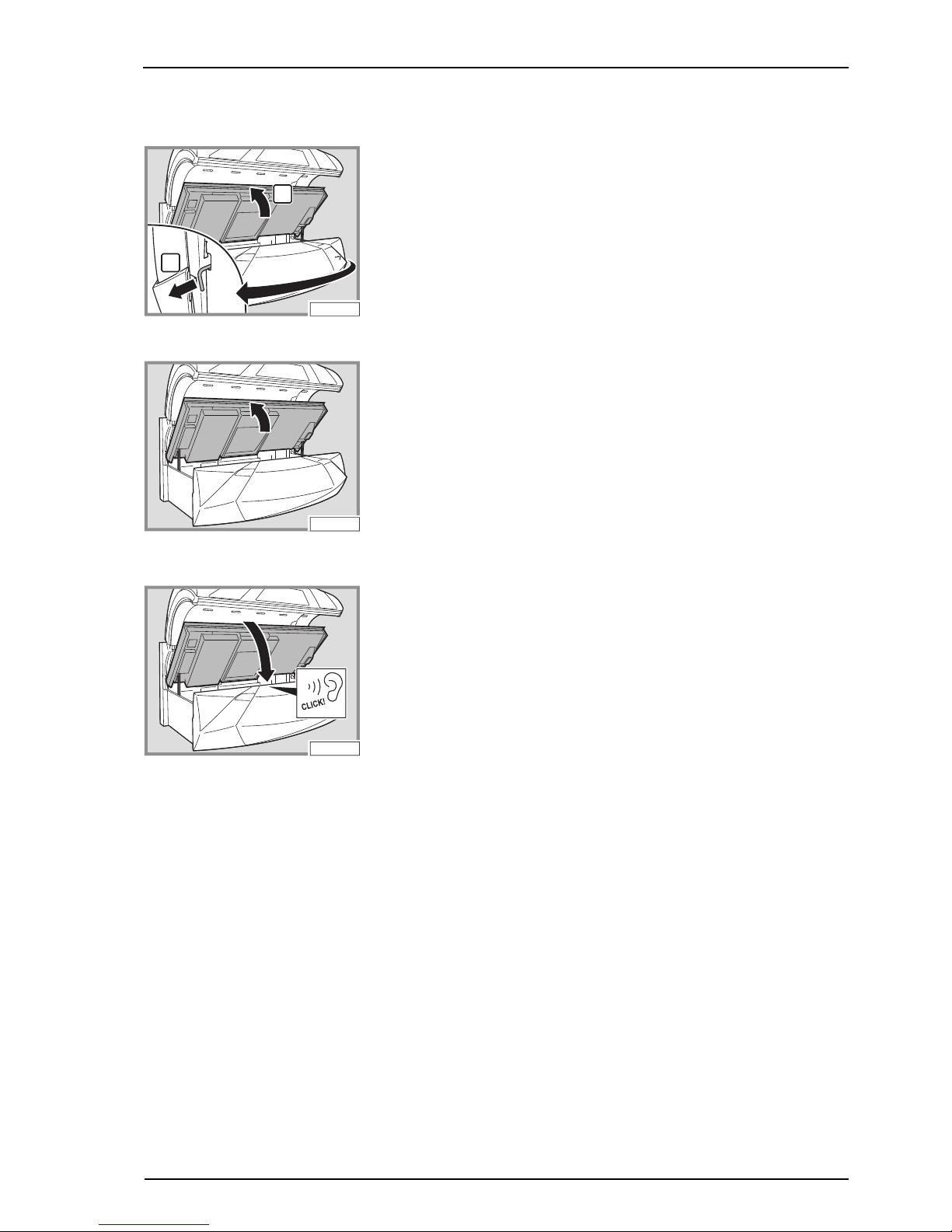

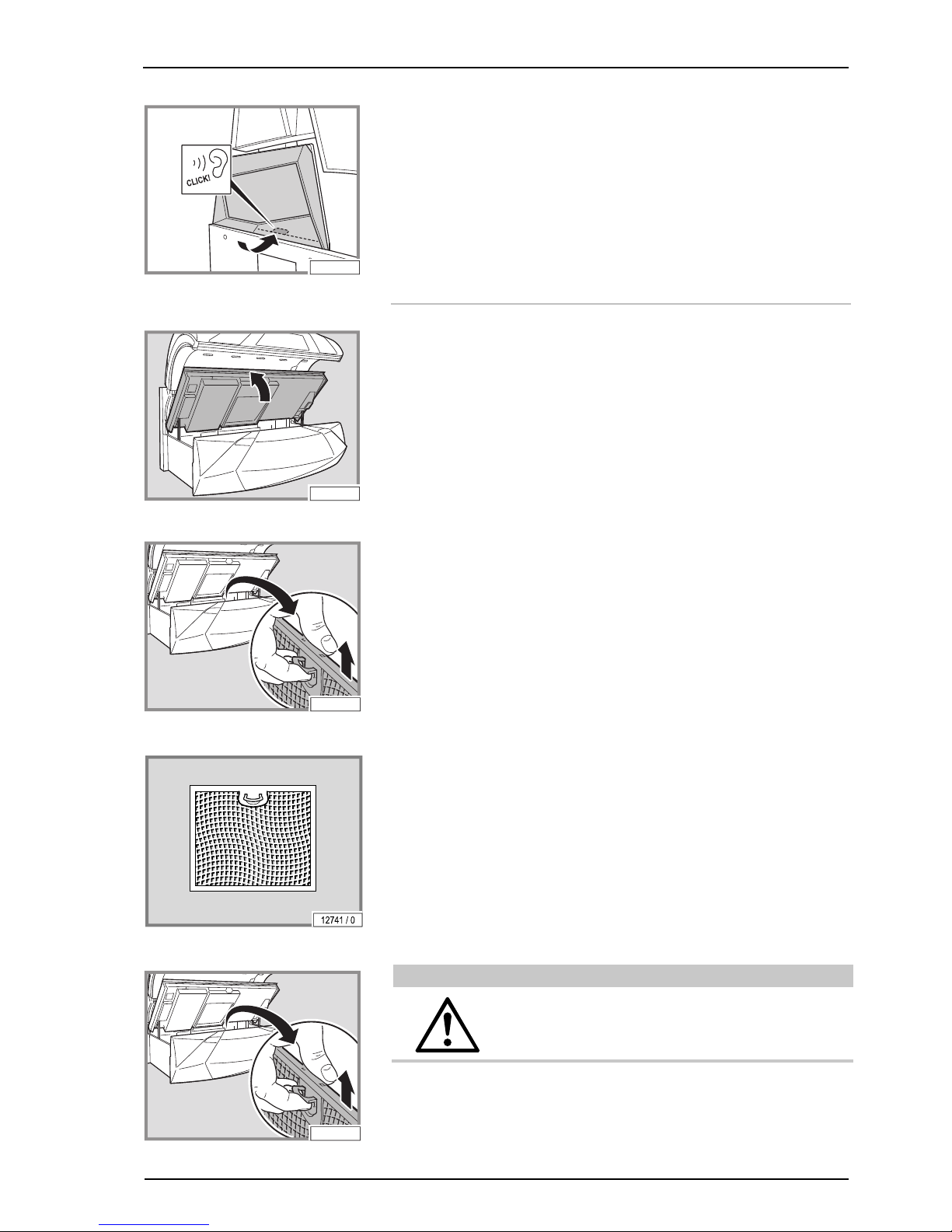

4.7.5 Open the bed base
– Press the bed base gently downwards.
– Release the lock at the head end.
– Lift up the bed base.
– Close the bed base. You should hear the bed base click into place.
1
2
18872 / 0
18873 / 0
18874 / 0
Page 56
Cleaning and maintenance
54/82
4.8 Instructions for replacing the lamps
DANGER!
Danger of burns from hot lamps and surfaces!
Finger and hands may get burned when replacing lamps.
– Before carrying out maintenance work, wait until the
device has cooled down sufficiently.
NOTICE:
Small quantities of mercury can escape if the bulb/lamp
glass breaks! Please comply with the following instructions:
Immediately disconnect the device from the mains pow-
er.
Children must leave the room immediately.
Ventilate the room for at least 15 minutes.
Put on disposable gloves.
With the window open: Collect the glass shards and
escaped mercury in a sealable container.
Bring the container to a collection site for waste lamps.
4.8.1 NFC: Lamp replacement
Each new set of lamps must be activated with the lamp card supplied. Each
lamp card can only be used once, it is then rendered invalid.
The lamp set has to be installed first, then the lamps must be activated with
the lamp card. To do this, the lamp card must be held onto the middle of the
NFC logo in PROFESSIONAL SETUP MANAGER PLUS.
Page 57
Cleaning and maintenance
01/2019 1020307-00 Operating instructions – 55/82

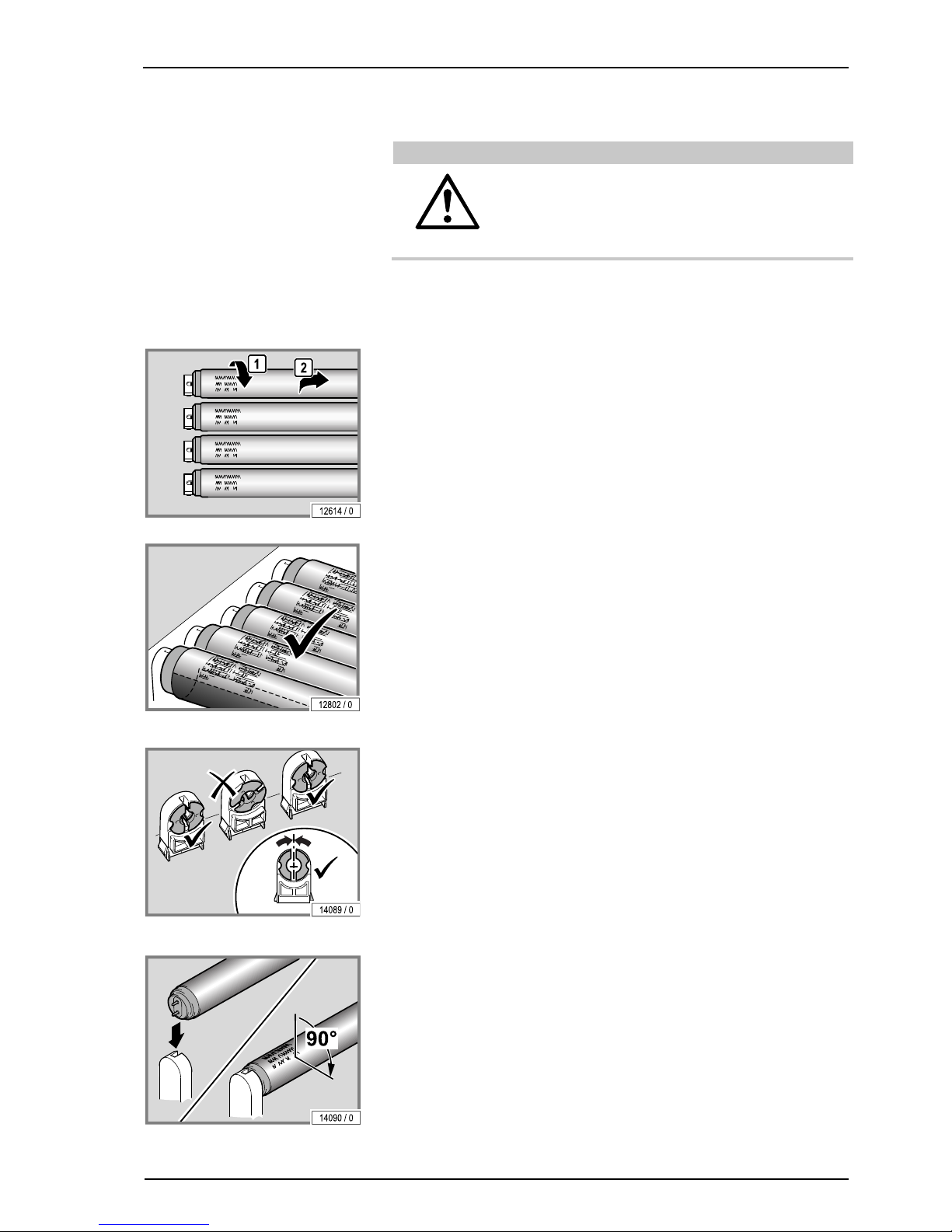

4.8.2 Low pressure lamps
DANGER!
Danger of burns from hot lamps and surfaces!
Finger and hands may get burned when replacing lamps.
– Before carrying out maintenance work, wait until the
device has cooled down sufficiently.
Replace faulty low-pressure lamps immediately.
Always replace the entire set of lamps after the specified operating time.
– Turn 90° and carefully remove from the socket.
– Low pressure lamps possess a reflector which directs the light outwards.
The lamps must be mounted in such a way that the rear side of the reflector is located on the device side.
– Push the pins vertically into the socket from above.
– Turn the lamp 90°.
The lettering must be oriented towards the outside (i.e. towards the tanning room or towards the user).
Page 58
Cleaning and maintenance
56/82

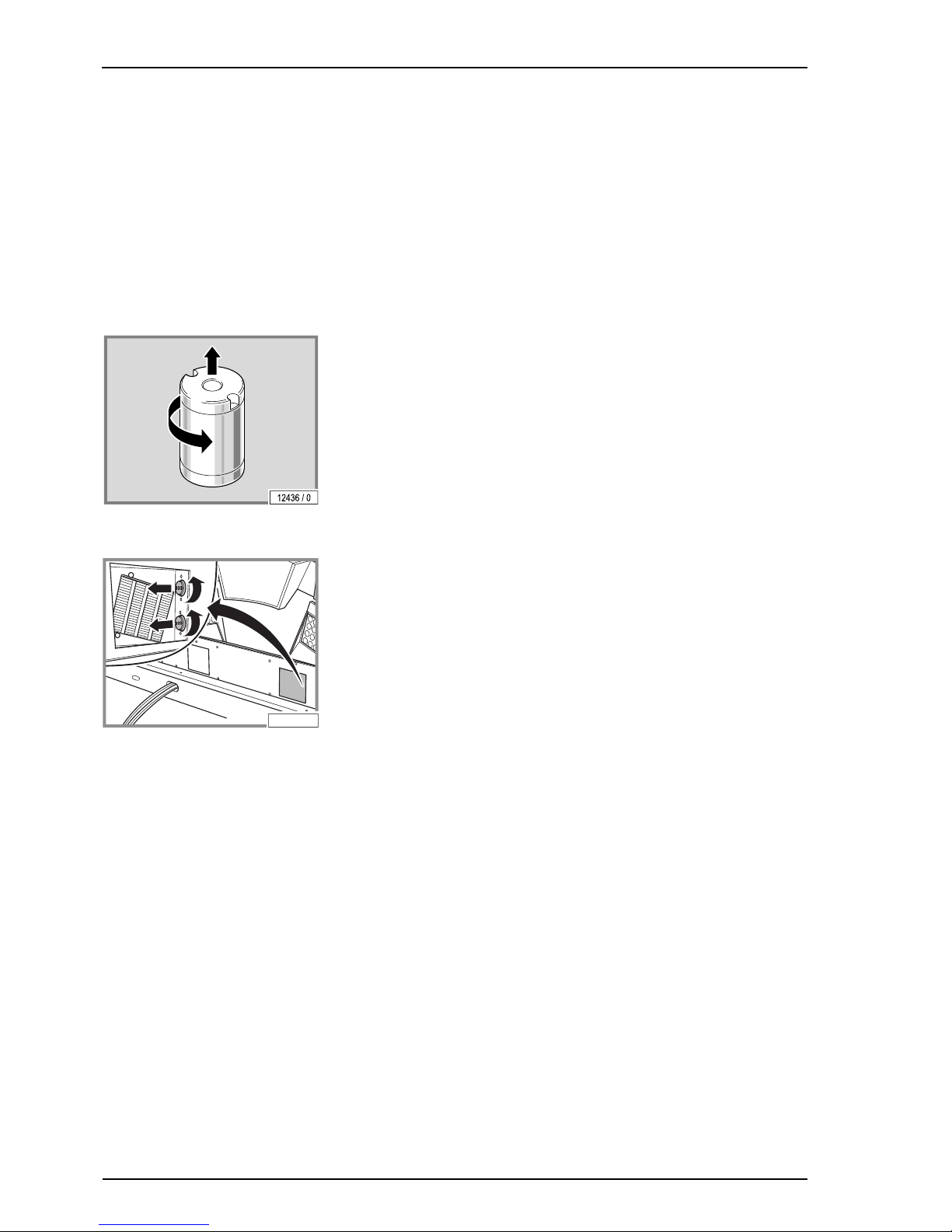

4.8.3 Starter
Replace faulty starters immediately.
You can recognize a faulty starter by the blackened ends of the (UV) low
pressure lamps or when the (UV) low pressure lamps can no longer be started.
Operating a (UV) low pressure lamp with a faulty starter significantly shortens
its service life. The (UV) low pressure lamp loses power and may begin to
flicker under certain circumstances.
The starters are located in either one of the two lamp sockets or become
visible when the (UV) low pressure lamps are removed.
– Turn 90° and carefully remove from the socket.
Changing the starter in the UVB compact lamps in the shoulder tanner
The starters are located under the right shoulder tanner.
– Turn 90° and carefully remove from the socket.
18955 / 0
Page 59
Cleaning and maintenance
01/2019 1020307-00 Operating instructions – 57/82

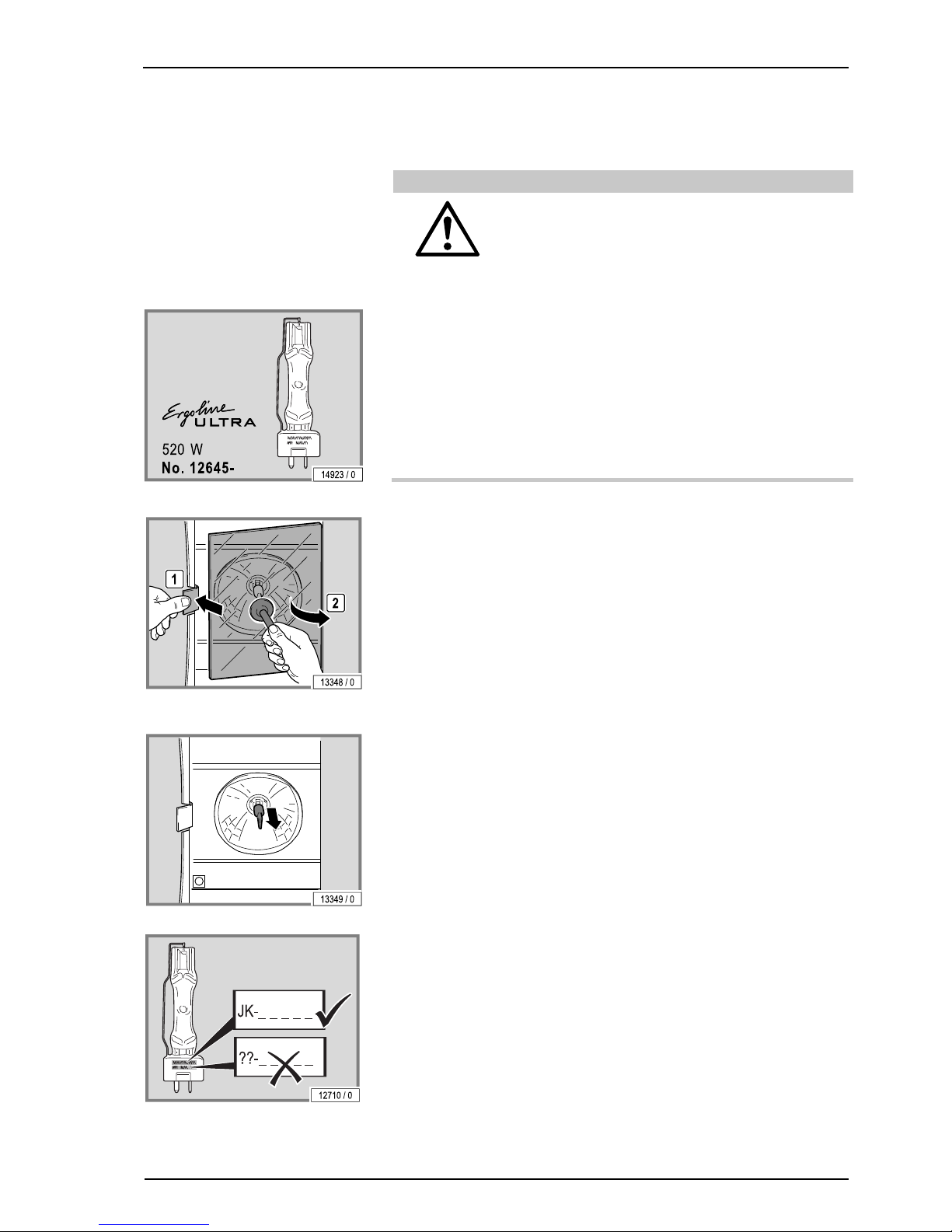

4.8.4 High pressure lamps and filter panels
UV high-pressure lamps are used in the facial tanners.
DANGER!
Danger of burns from hot lamps and surfaces!
Finger and hands may get burned when replacing lamps
and filter panels or cleaning reflectors.
– Before carrying out maintenance work, wait until the
device has cooled down sufficiently.
Fire hazard due to overheated lamps!
Non-approved high pressure lamps can explode. Hot lamp
components can set other parts on fire. People can be killed
or severely injured due to smoke inhalation and fire.
– Only fit the high pressure lamps specified by the manu-
facturer.
– Clean the inside of the device regularly. Dust particles
are flammable!
– Open the clamps.
– Lift the filter panel, pull it out of the guide and remove it.
– Unplug the UV lamps.
– Clean the reflector.
– Only utilize original UV lamps.
Page 60
Cleaning and maintenance
58/82
– Only touch new lamps in the handling zone.
– Test the function of the safety switch.
The safety switch ensures that the device switches off in the event of a
faulty filter panel.
– Press the switch.
If the switch springs back automatically then it is functional.
– Replace the filter panel.

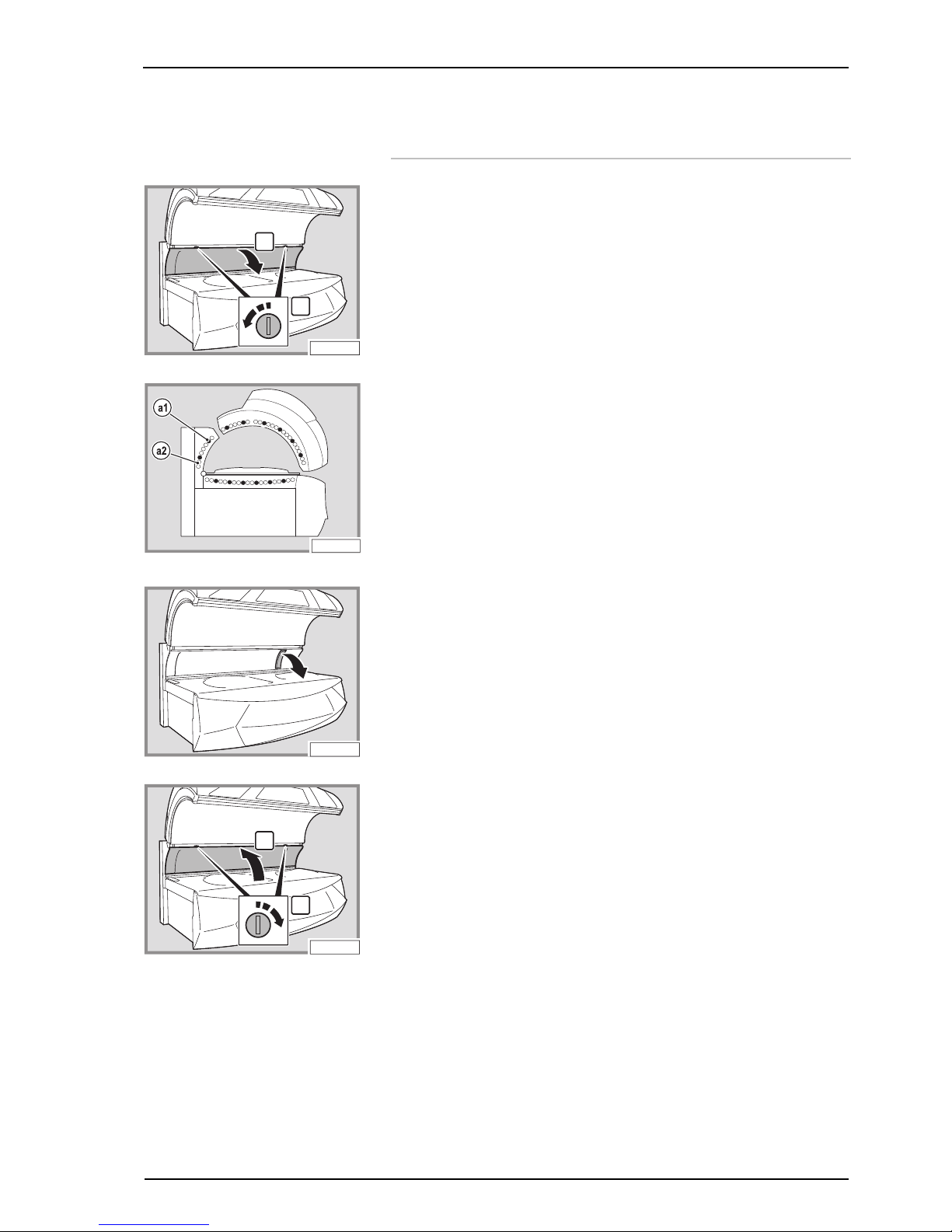

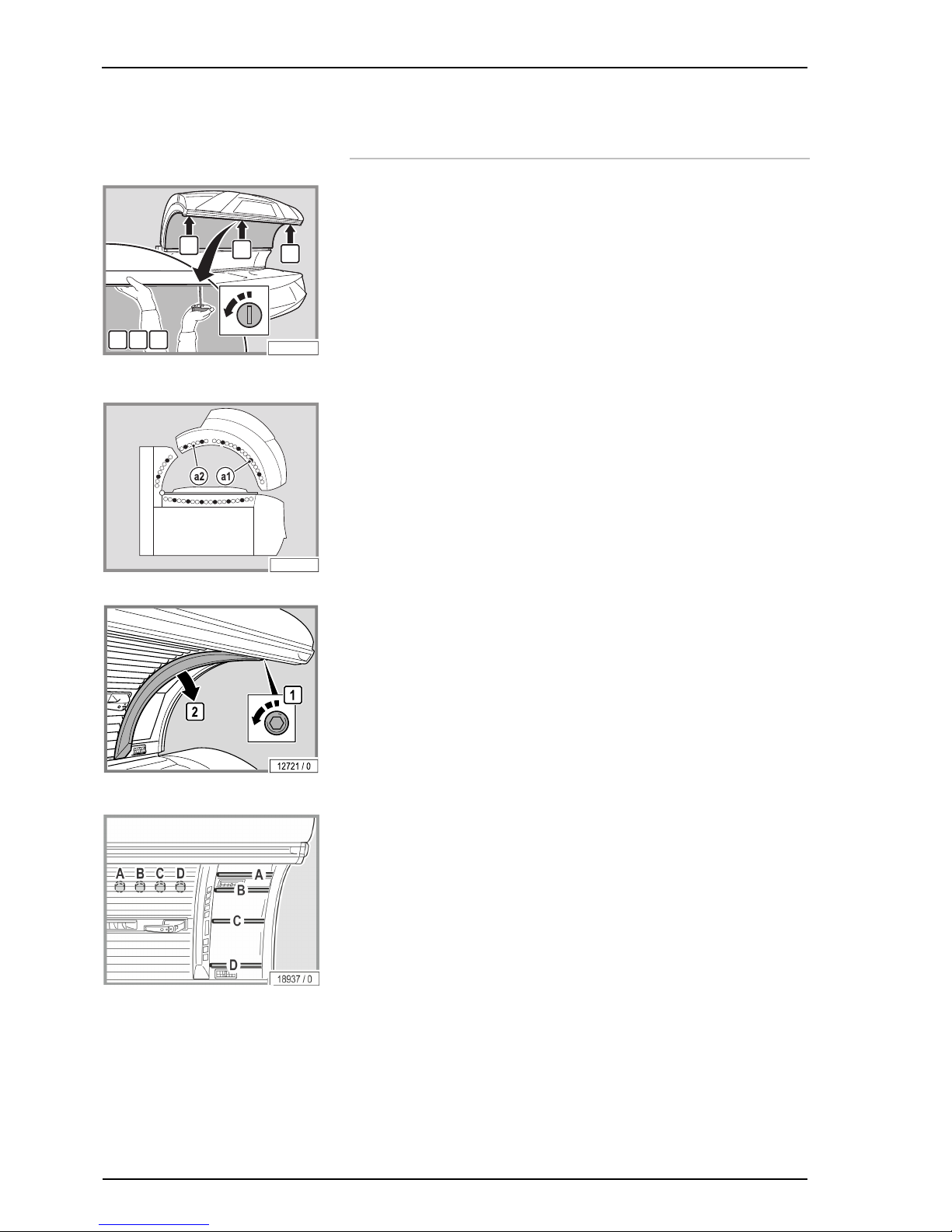

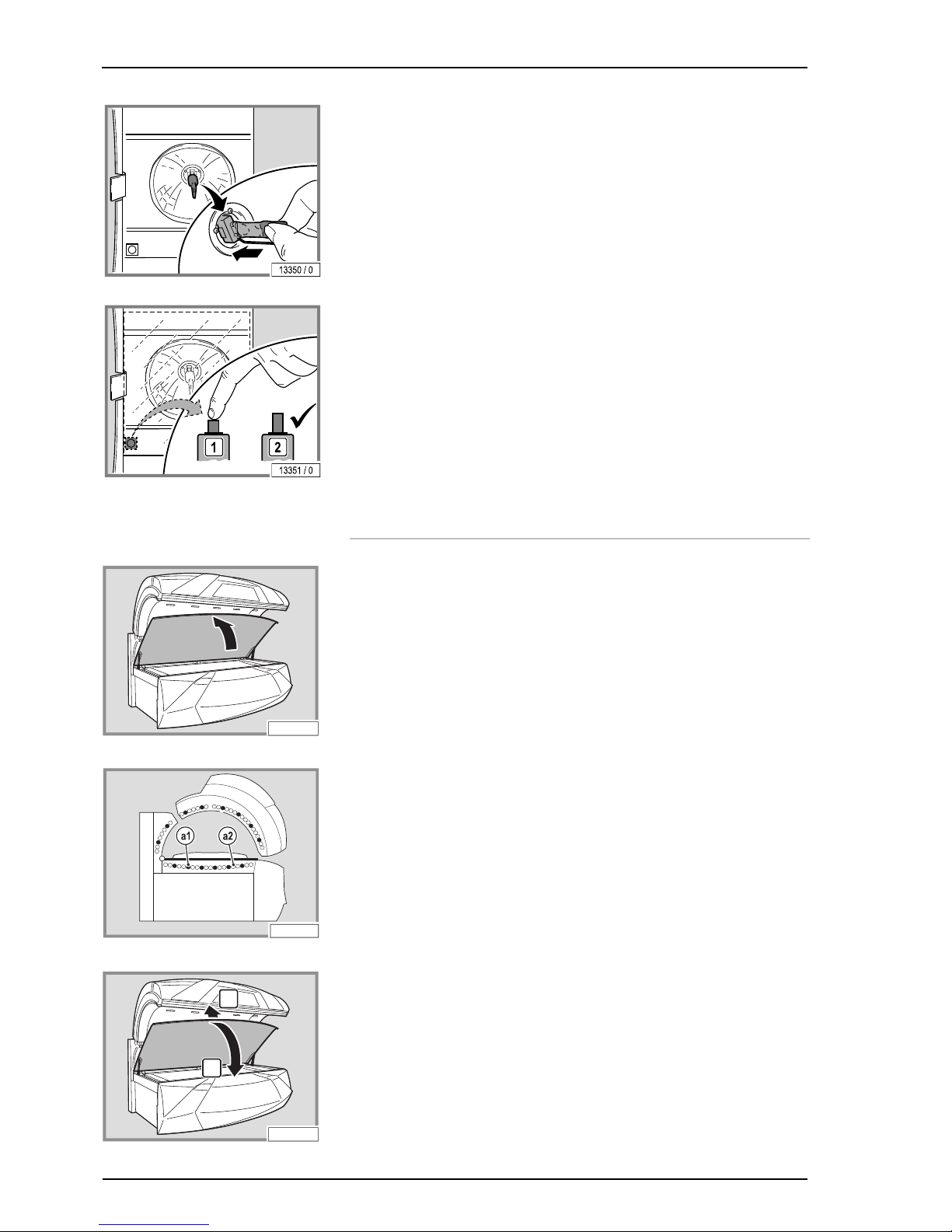

4.9 Cleaning or replacing lamps in the
base
– Lift up the acrylic glass panel and then remove the lamp covers and the
partition: see page 50.
Replacing lamps: see page 55.
– Please maintain the correct order of the SMART SUN low pressure lamps
and UV low pressure lamps.
a1: SMART SUN low pressure lamps
a2: UV low pressure lamps
The assembly is the same process in reverse order.
When assembling the device please note:
– You must ensure that the recesses are at the foot end when you fit the
partition.
– Lift the partion up slightly and then close it.
18861/ 0
18302 / 0
2
1
18865 / 0
Page 61
Cleaning and maintenance
01/2019 1020307-00 Operating instructions – 59/82
4.10 Cleaning or replacing the lamps in the
side section
– Removing the side section panel: see page 52.
– Please maintain the correct order of the SMART SUN low pressure lamps
and UV low pressure lamps.
a1: SMART SUN low pressure lamps
a2: UV low pressure lamps
– Remove the lamp cover.
Replacing lamps: see page 55.
When assembling the device please note:
– Re-lock the locks.
1
2
18869 / 0
18303 / 0
18939 / 0
2
1
18871 / 0
Page 62
Cleaning and maintenance
60/82
4.11 Cleaning or replacing lamps and filter
panels in the canopy
– Removing the canopy panel: see page 51.
The following components listed in the maintenance plan are fitted in the
canopy:
1.80 m UV low pressure lamps
1.80 m low pressure lamps
Facial tanner UV low pressure lamps and the associated starters
Facial tanner UV high pressure lamps
Facial tanner filter panels
– Please maintain the correct order of the SMART SUN low pressure lamps
and UV low pressure lamps.
a1: SMART SUN low pressure lamps
a2: UV low pressure lamps
– Remove the screws and then remove the lamp cover.
The facial tanner's UV low pressure lamps must be removed first so that the
UV high pressure lamps can be changed.
– Remove the lamps.
1
2
1 2 3
3
18866 / 0
18304 / 0
Page 63
Cleaning and maintenance
01/2019 1020307-00 Operating instructions – 61/82
– Remove the ninth low-pressure lamp in the canopy so that you can ac-
cess the facial tanner's low-pressure lamp starters.
Replacing the lamps:
Low-pressure lamps: see page 55.
UV high-pressure lamps and filter panels: see page 57.
Replacing starters: see page 56.
The assembly is the same process in reverse order.
When assembling the device please note:
– Support the canopy panel with one hand so that it does not fall down.
– Re-lock the locks: first the lock in the middle, then the outer locks.
4.12 Cleaning or replacing the lowpressure lamps in the shoulder tanner
DANGER!
Risk of burns from hot lamps and surfaces!
You may sustain burns to your fingers and hands when
replacing the lamps and panels.
– Leave the device to cool down before performing any
maintenance work.
– Press the bed base gently downwards.
– Release the lock at the head end.
– Lift up the bed base.
2
3
1 2 3
1
18868 / 0
1
2
18872 / 0
18873 / 0
Page 64
Cleaning and maintenance
62/82

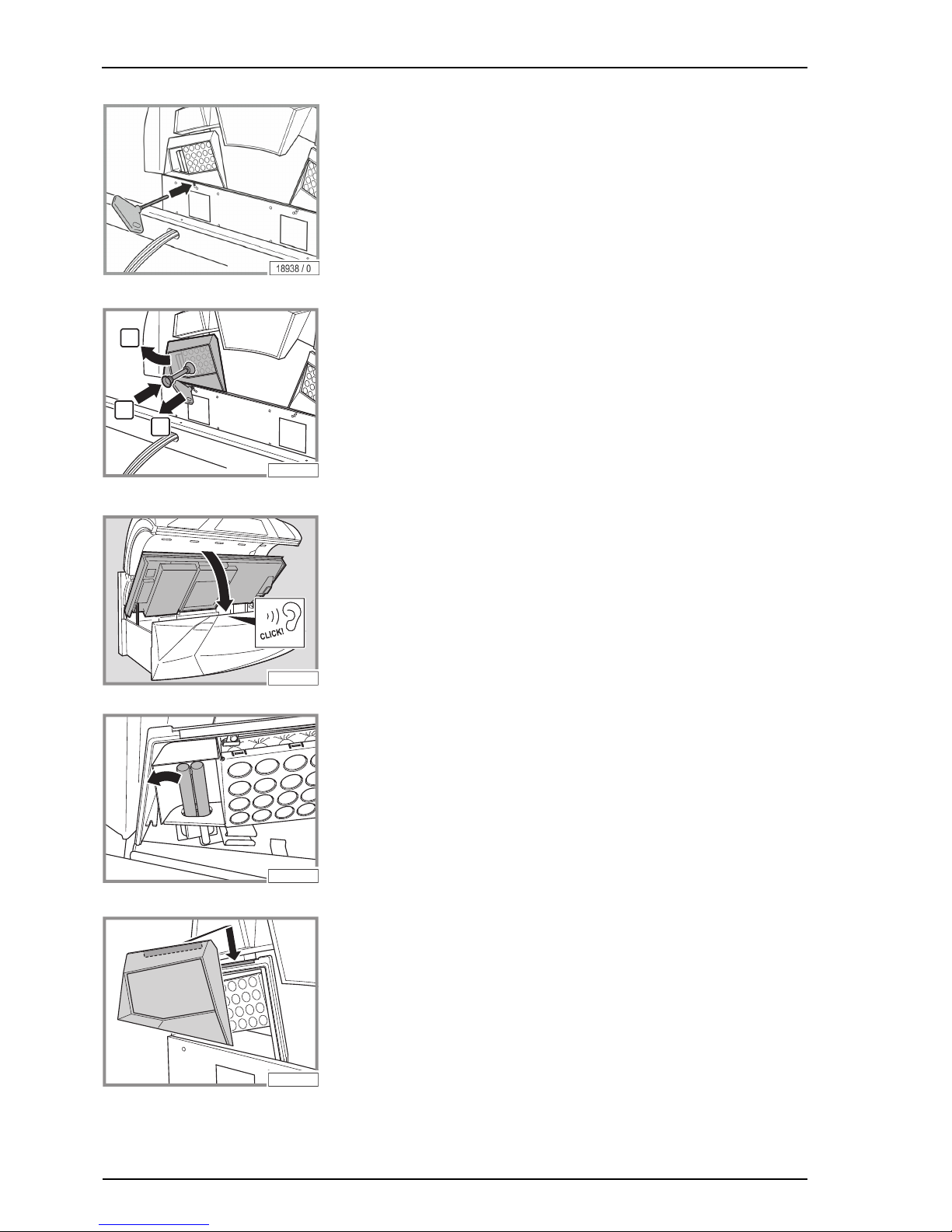

– Insert the Allen key (from the service kit) into the service opening.
– Use the suction cup to release the cover and remove it.
– Remove the Allen key from the service opening.
– Close the bed base. You should hear the bed base click into place.
– Clean or replace the low-pressure lamp.
– Replace the top part of the cover first and press it down slightly.
The edge of the panel must sit on the felt strip.
1
3
2
18940 / 0
18874 / 0
18941 / 0
18948 / 0
Page 65
Cleaning and maintenance
01/2019 1020307-00 Operating instructions – 63/82
– Insert the bottom part of the cover until you hear it click into place.
4.13 Cleaning the filters in the base
– Opening the bed base: see page 53.
– Remove the filters.
– Cleaning the filters when moist or dry.
Dry cleaning: Vacuum cleaner (depending on the degree of soiling)
Moist cleaning: Use water and detergent or put in a dish-washer
WARNING!
The device may be damaged by moisture!
The cleaned filters must be dry before they are replaced.
– Refit the cleaned and dried filters.
– Close the bed base. You should hear the bed base click into place.
18949 / 0
18873 / 0
18875 / 0
18878 / 0
Page 66
Cleaning and maintenance
64/82

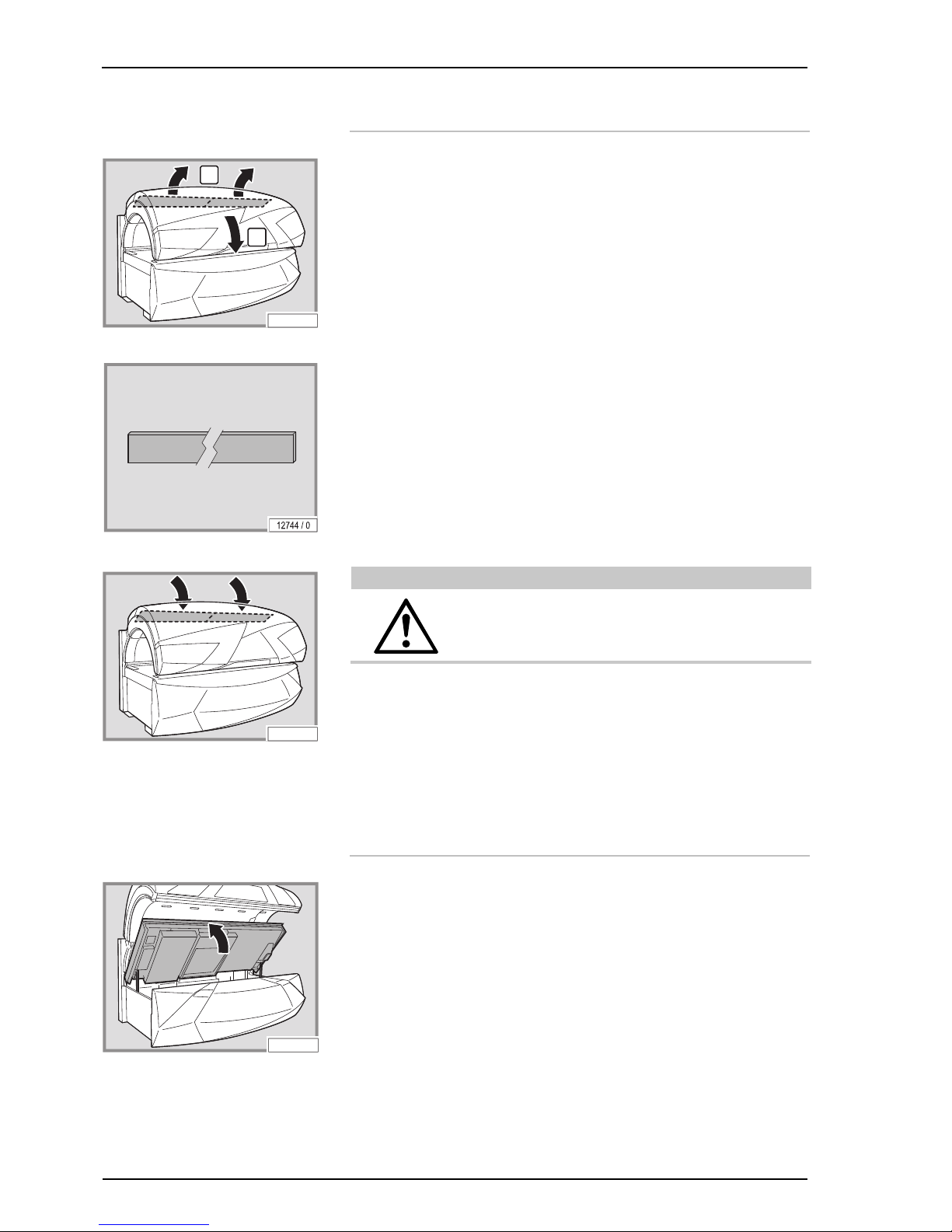

4.14 Cleaning the canopy filter mats
– If necessary, cover the canopy in order to prevent the paint from being
scratched.
– Remove the filter mats fitted at the back of the canopy.
– Dry or moist clean the filter mats or replace with new ones.
Dry cleaning: Vacuum cleaner (depending on the degree of soiling)
Moist cleaning: Water and detergent
– Do not clean in the dish-washer!
WARNING!
The device may be damaged by moisture!
The cleaned filters must be dry before they are replaced.
– Refit the cleaned and dried filter mats.
4.15 Cleaning filter mats in the shoulder
tanner
– Lift up the bed base.
1
2
18879 / 0
18880 / 0
18873 / 0
Page 67
Cleaning and maintenance
01/2019 1020307-00 Operating instructions – 65/82
– Remove the filter mats.
– Dry or moist clean the filter mats or replace with new ones.
Dry cleaning: Vacuum cleaner (depending on the degree of soiling)
Moist cleaning: Water and detergent
– Do not clean in the dish-washer!
– Replace the filter mats.
18950 / 0
18951 / 0
Page 68
Cleaning and maintenance
66/82
4.16 Air conditioning: Empty the
condensation tank and clean the filter
WARNING!
Damage to the device through soiled filters and cooling
fins!
Regularly check the filter grill and cooling fins on the air
conditioning system and clean if necessary.
We recommend using the specially manufactured fin comb,
art-no. 15720470, to clean the cooling fins.
– Opening the bed base: see page 53.
– Bring the condensation tank forwards.
– Disconnect the hose on the condensation tank.
– Empty the condensation tank.
– Remove the cover.
– Remove the filter from the holder.
18873 / 0
Page 69
Cleaning and maintenance
01/2019 1020307-00 Operating instructions – 67/82

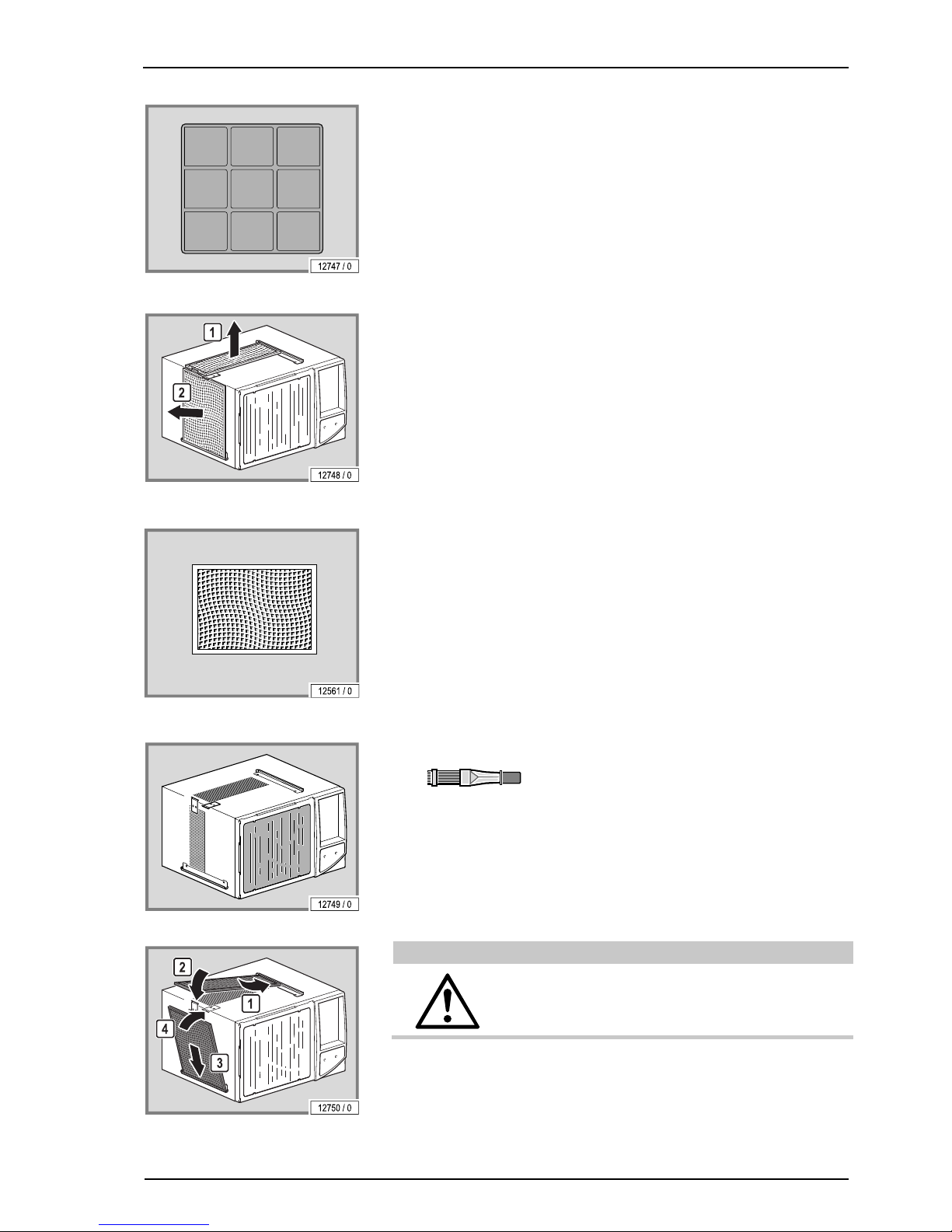

– Cleaning the filters when moist or dry.
Dry cleaning: Vacuum cleaner (depending on the degree of soiling)
Moist cleaning: Water and detergent
– Do not clean in the dish-washer!
– Remove the filter from the holder.
– Cleaning the filters when moist or dry.
Dry cleaning: Vacuum cleaner (depending on the degree of soiling)
Moist cleaning: Use water and detergent or put in a dish-washer
– Use a fin comb to clean the air conditioning's dirty cooling fins.
WARNING!
The device may be damaged by moisture!
The cleaned filters must be dry before they are replaced.
– Refit the cleaned and dried filters.
– Ensure that the filters are correctly positioned in the holder.
Page 70
Cleaning and maintenance
68/82
– Attach the cover.
– Connect the condensation tank to the hose.
– Refit the condensation tank.
– Close the bed base. You should hear the bed base click into place.
18874 / 0
Page 71
Cleaning and maintenance
01/2019 1020307-00 Operating instructions – 69/82

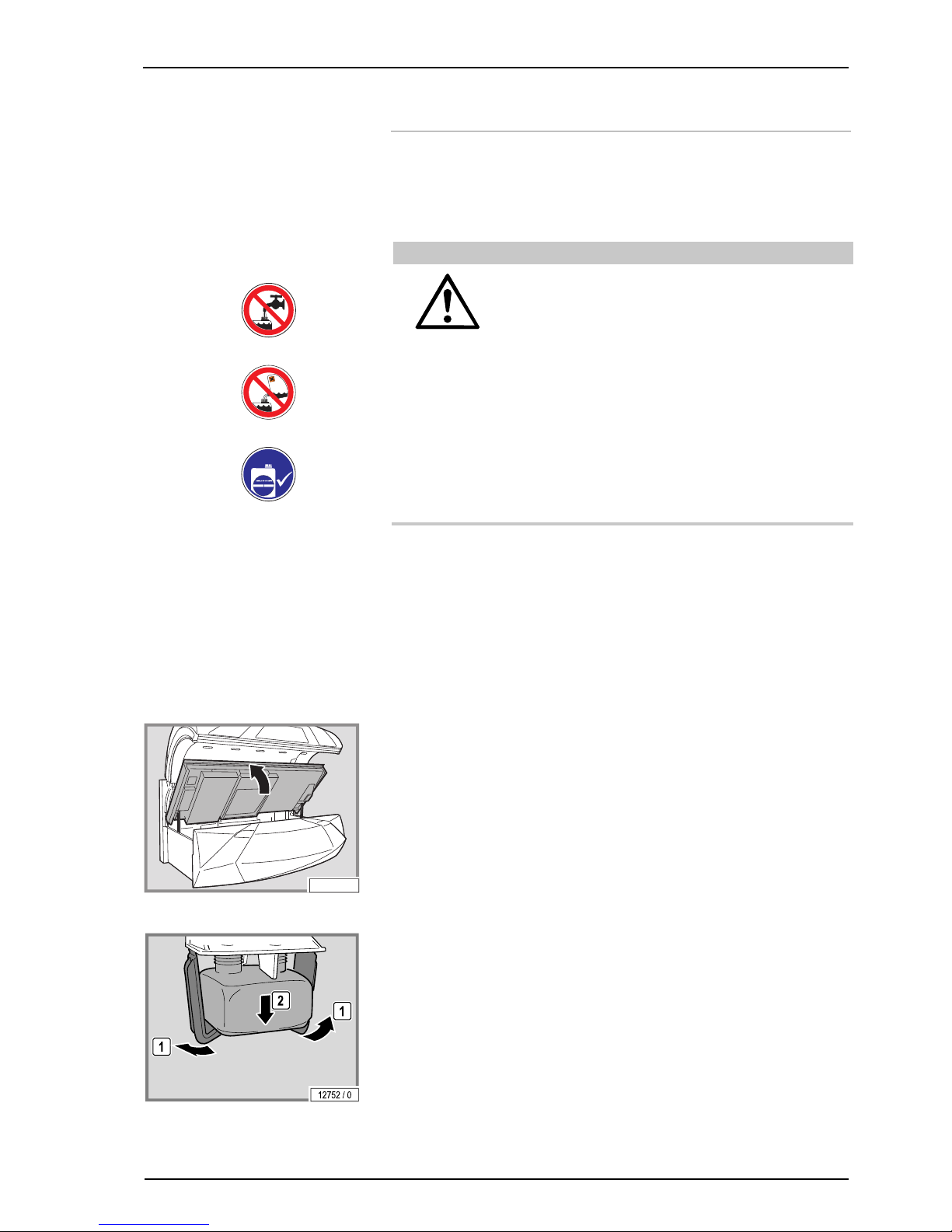

4.17 AQUA / AROMA system maintenance
The AQUA SYSTEM function sprays a fine mist of AQUA SOLAR WITH
SKIN+ ADDITIVE into the interior of the device for body cooling (see 'AQUA
SYSTEM PRODUCT INFORMATION', order no. 1011201-..).
DANGER!
Customer health hazard!
Water that has been contaminated with bacteria can cause
skin rashes and other allergic reactions in device users.
– Therefore you must never fill the AQUA SYSTEM canis-
ter with tap water or other liquids.
– Only replace the AQUA SYSTEM canister with a genu-
ine canister.
– Do not add any liquid that remains in the old canister to
the new canister!
– Ensure that the maximum temperature specified is not
exceeded during transport and storage.
– Note the expiry date on the canister.
This AQUA / AROMA SYSTEM also includes the 'RELAX' fragrance, which is
distributed through the head nozzles. Another fragrance called 'CABIN' is
distributed within the cubicle.
Other fragrances are also available. Contact JK-International GmbH, Division
JK-Licht for further details (see page 2).
4.17.1 Changing the AROMA canister
– Opening the bed base: see page 53.
– Remove the AROMA canister.
18873 / 0
Page 72
Cleaning and maintenance
70/82
– Unscrew the lid on the new canister.
– Write the date on the canister.
– Fit the canister in the holder.
– Close the bed base. You should hear the bed base click into place.
4.17.2 Replacing the AQUA SYSTEM canister
– Opening the bed base: see page 53.
– Remove the canister.
– Unscrew the lid on the new canister.
– Remove the lid with the hose from the old canister.
– Screw the lid with the hose onto the new canister.
– Push the hose well down so that it touches the bottom of the canister.
– Put the canister back in the device.
– Close the bed base. You should hear the bed base click into place.
18873 / 0
Page 73
Cleaning and maintenance
01/2019 1020307-00 Operating instructions – 71/82
Venting
INFORMATION:
To ventilate, access to PROFESSIONAL SETUP MANAGER
PLUS is required.
– Go to PROFESSIONAL SETUP MANAGER PLUS.
– Activate the fill mode in the AQUA FRESH & AROMA menu.
– Close the canopy.
The system will now be ventilated for 30 seconds. The AQUA SYSTEM liquid
will be released from the nozzles during this period.
– Then test the AQUA SYSTEM in test mode. In test mode, the nozzles
spray for 3 seconds. Repeat the ventilation process if it does not work.

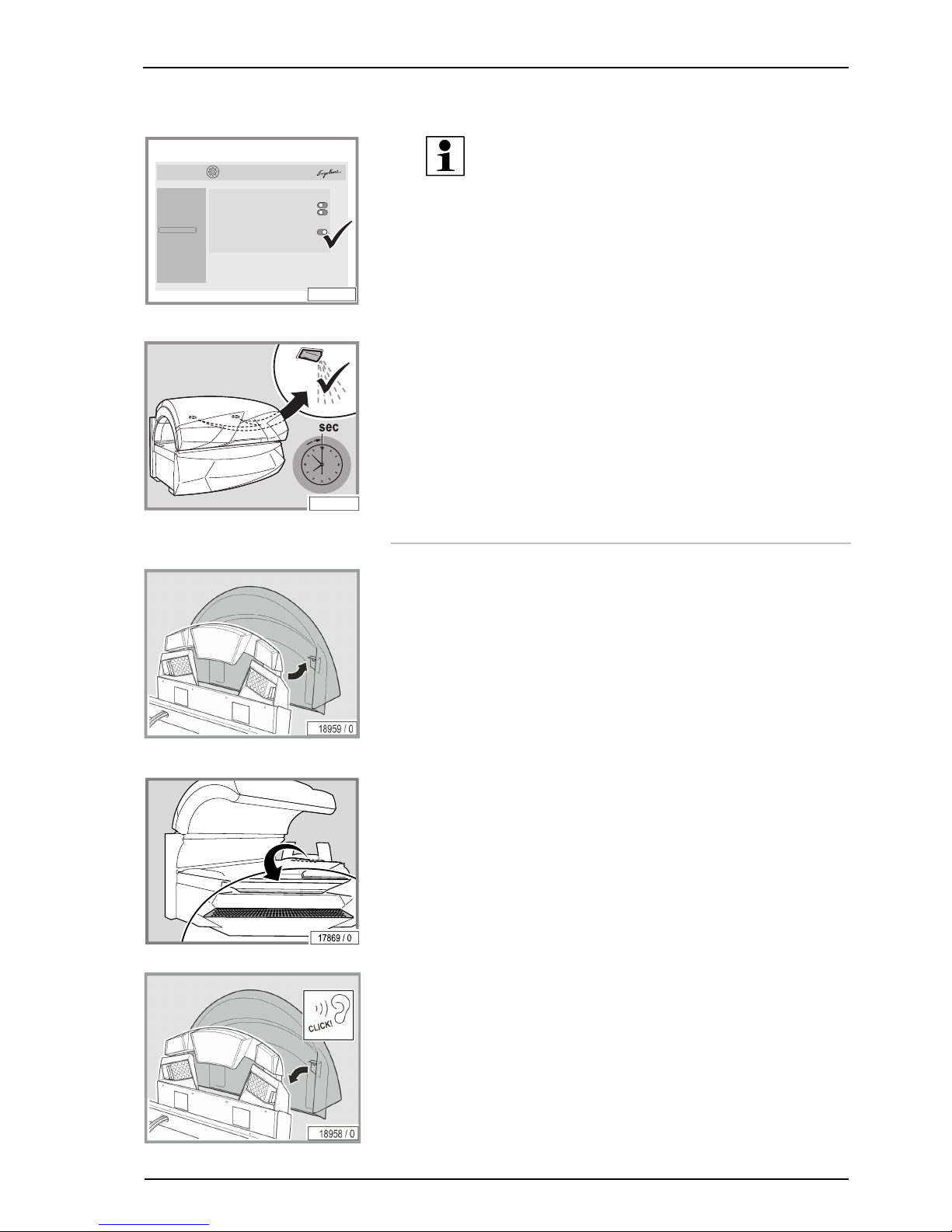

4.18 Cleaning the air intake opening
– Unhook the top part of the enclosed tanning tunnel.
Use a vacuum cleaner to prevent dust particles.
– Vacuum the opening.
– Hook in the top part of the enclosed tanning tunnel until you hear it click
into place.
18954 / 0
Profesional Set-up Manager
Home
>
Display service messages
AQUAFRESH test mode
AQUAFRESH ventilation mode
AQUAFRESH output amount
Aquafreshcycle
50 % >
>
90 seconds
NFC-AROMA/ AQUA FRESH read-in
Cabin fragrance
Videos & images
Air conditioning & ventilation
Aqua Fresh &Aroma
Lighting
Operating hours
Device information
Network settings
Sound
30
18881 / 0
Page 74
Technical data
72/82
5 Technical data
5.1 Power, connection rating and noise
level
Prestige Lightvision SLP
Power consumption rating with Climatronic: 16800 W
Rated frequency: 50 Hz
Rated voltage: 400–415 V 3N~
or
230–240 V ~3
Rated fuses: 3 x 35 A (inactive) 3 x 50 A (inactive)
Connecting line: H05VV-F 5G 4 mm²
(scope of delivery)
H05VV-F 4G 10 mm²
Noise level 1m away from device: 62.9 dB(A)
Noise level inside the device: <70 dB(A)
Load on the acrylic glass panel: max. 135 kg
Weight: 680 kg
Page 75
Technical data
01/2019 1020307-00 Operating instructions – 73/82

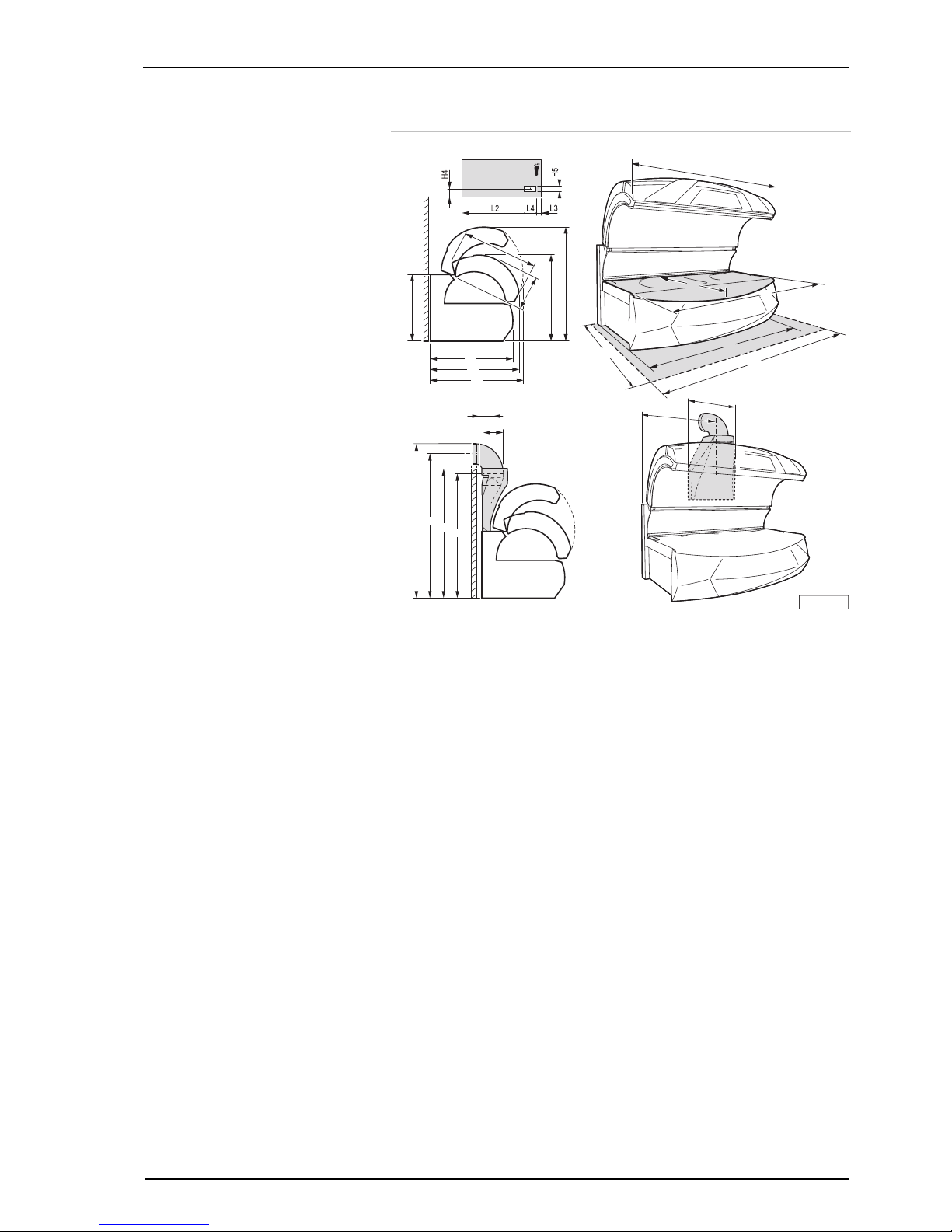

5.2 Dimensions
Z
B1
L1
L
BK
TK
L7
L5
Y
X
H
H2
B-
B
B+
H1
H6
H7
H8
H9
B2
Ø
18797 / 0
Prestige Lightvision SLP:
B+ = 1555 mm H = 1510 mm
B = 1550 mm H1 = 1980 mm
B- = 1500 mm H2 = 1106 mm
B1 = 1220 mm H4 = 450 mm
B2 = 205 mm H5 = 56 mm
L = 2415 mm H6 = 1879 mm
L1 = 2200 mm H7 = 2002 mm
L2 = 1756 mm H8 = 2215 mm
L3 = 235 mm H9 = 2360 mm
L4 = 243 mm Ø = 300 mm
L5 = 867 mm BK = 2500 mm
L7 = 1120 mm TK = 2300 mm
X = 1290 mm
Y = 670 mm
Z = 2240 mm
Page 76
Technical data
74/82
5.3 Lamp sets
WARNING!
The conformity declaration applies for the specified lamps
and filer panels. The use of other lamps and filter panels
voids the operating licence.
Moreover, the lamps must be marked with a matching
equivalence key, see attachment page 77.
The UV lamps used are broadband radiators that can be operated with different wattages (approx. 240-520 W).
Page 77
Technical data
01/2019 1020307-00 Operating instructions – 75/82
5.3.1 Prestige Lightvision SLP
18945 / 0
Lamp set (UV type 2)
Number Description Length Power Control Order-no.
a) 4
2
2
UV high pressure lamps Ergoline ultra
Filter panels SMART SUN 1042
Filter panels SMART SUN 1042
520 W 420 W / 360 W /
260 W / 0 W
12645-..
1510350-..
1511242-..
b) 2
2
UVB compact lamps
ERGOLINE TREND COMPACT 7W
ERGOLINE UV-LED Board
7 W 7 W 1511239-..
1510155-..
c) 4 4 Low pressure lamps SMART SUN 71 8W
Starter S10 (5-65 W)
0,31 m 8 W 8 W / 0 W 1509418-..
10047-..
d) 14 UV low pressure lamps
ERGOLINE TREND ADVANCED 80-200
EP104 160W R
1,80 m 160 W 80-200 W 1511231-..
e) 6 Low pressure lamps
SMART SUN+ R 27 160W
1,80 m 160 W 80-200 W 1511232-..
f) 6 UV low pressure lamps
ERGOLINE TREND ADVANCED 80-200
EP104 160W R
1,80 m 160 W 80-200 W 1511231-..
g) 2 Low pressure lamps
SMART SUN+ R 27 160W
1,80 m 160 W 80-200 W 1511232-..
h) 18 UV low pressure lamps
ERGOLINE TREND ADVANCED 80-200
EP104 160W R
1,80 m 160 W 80-200 W 1511231-..
i) 6 Low pressure lamps
SMART SUN+ R 27 160W
1,80 m 160 W 80-200 W 1511232-..
Page 78
Technical data
76/82

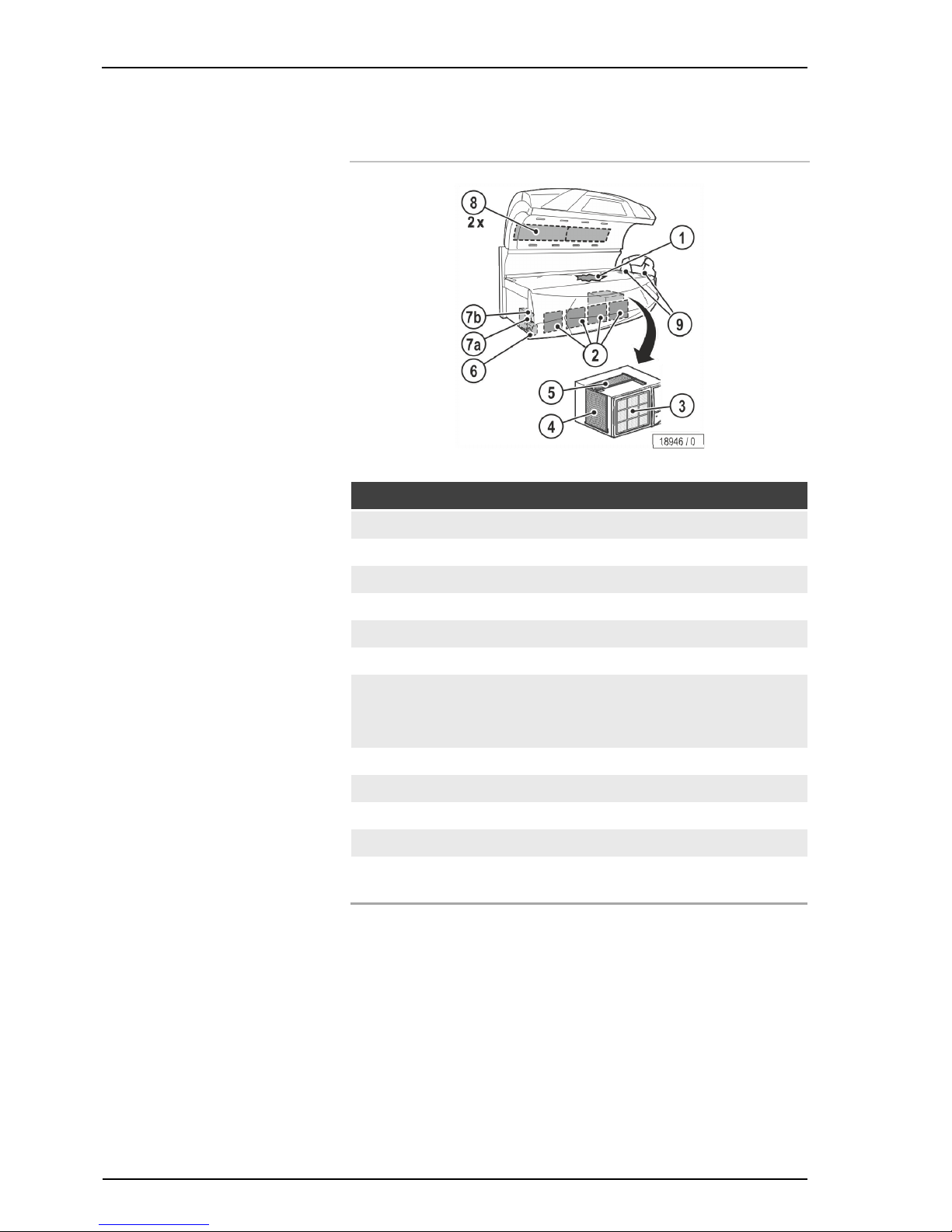

5.4 Spare parts and accessories
Number Description Order-no.
1 1 Partition 1500339-..
2 4 Filter 52104-..
3 1 Filter mat –
4 1 Filter 51937-..
5 1 Filter 55567-..
6 1 AQUA SYSTEM, 6000 ml 1020224-..
7
a)
b)
1 AROMA, 100 ml
CABIN
RELAX
701358-..
701357-..
8 2 Filter mats 843150-..
9 2 Filter mats 1511264-..
1 Protective goggles 84592-..
1 NFC lamps card for the UV lamp set 1511265-..
1 NFC lamps card for the lamp set
SMART SUN
1511266-..
Page 79
A
ppendi
x
01/2019 1020307-00 Operating instructions – 77/82
6 Appendix

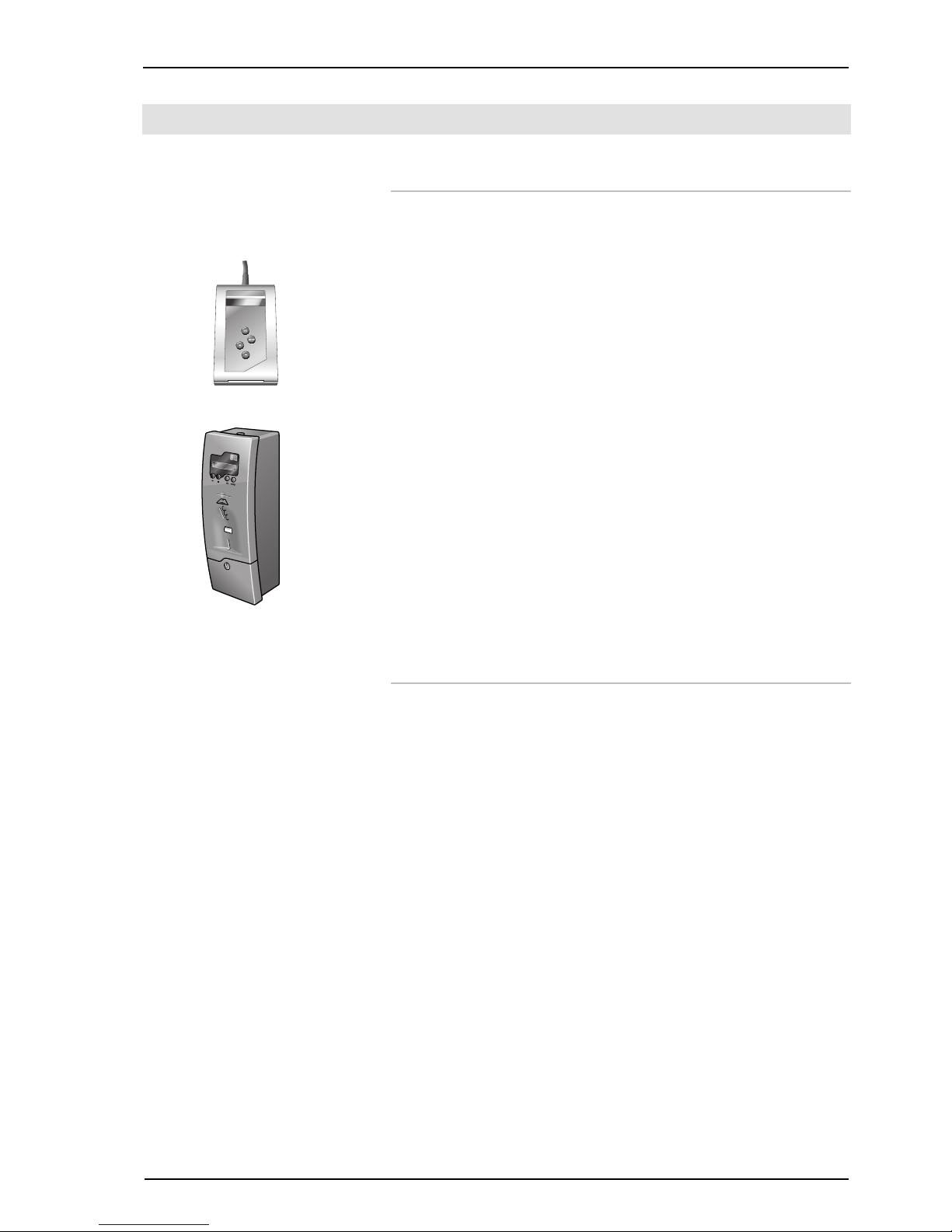

6.1 JK timer controls
The following coin modules/time control systems can be utilized with the
PRESTIGE series devices.
04144 / 0
MCS III plus
Order no.: 500000456
02508 / 1
Studiopilot
Order no.: 34009900
6.2 Equivalence key range
Example for calculating the equivalence key range (1), see the lamp
configuration sticker:
If the equivalence key of the lamp with which the device has been equipped
during the type approval is
100–R–47/3.2,
the equivalence key range with which the device should be marked is calculated as follows:
Bottom value of the X section: 0.75 x 47 = 35.25
Bottom value of the Y section: 0.85 x 3.2 = 2.72
Top value of the Y section: 1.15 x 3.2 = 3.68
X is rounded up to the next whole value, Y will be rounded to the first decimal
place after the point. The equivalence key range for fluorescent lamps is then:
Page 80
A
ppendix
78/82
100–R–(35-47)/(2.7-3.7)
6.2.1 Description of the equivalence keys for UV
fluorescent lamps
The equivalence key for UV fluorescent lamps for tanning that is represented
in detail in the IEC 61228 and that is marked on the lamp in a readable and
permanent manner, is described in the following.
The equivalence key has the following structure:
Wattage – Reflector type key – UV key.
The following reflector type key should be used for the equivalence key:
O with lamps without reflector;
B with lamps that have a wide reflecting angle > 230°;
N with lamps that have a narrow reflecting angle < 200°;
R with lamps that have the usual reflecting angle 200° 230°.
The following UV key should be used for the equivalence key:
UV key = X/Y;
X = the entire effective erythematic UV radiation strength across the range
250 nm to 400 nm;
Y = the relationship of the non-melanoma skin cancer effective UV radiation
strength 320 nm and > 320 nm.
X is specified in mW/m² and rounded up to the next whole value, Y will be
rounded to the first decimal place after the point. The effective values apply
for a distance of 25 cm and under the conditions of an optimum UV radiation
strength.
Note
One example for an equivalence key is specified below:
100 W reflector lamp with a reflector angle of 220°
erythematic UV radiation strength
(250 nm to 400 nm) = 47 mW/m²
short wave NMSC effective UV radiation strength
( 320 nm) = 61 mW/m²
long wave NMSC effective UV radiation strength
(> 320 nm) = 19 mW/m²
lamp equivalence key: 100–R–47/3.2
Page 81
Inde
x
01/2019 1020307-00 Operating instructions – 79/82
7 Index
A
Accessories ........................ 26, 75
Acrylic glass (care) ................... 42
Acrylic glass panel -
sunbed ..................................... 44
Acrylic glass panel,
permitted load .......................... 71
Acrylic glass panels
(product information) ................ 44
Adolescents ......................... 7, 27
Air intake opening .................... 70
Allergies ................................... 27
AQUA / AROMA system
maintenance ............................ 68
Assembly ................................. 12
B
Bluetooth® ............................... 37
C
Care ......................................... 41
Changing the
AROMA canister ...................... 68
Children ...................................... 9
Cleaning ............................. 40, 41
Air conditioning ................... 65
Air conditioning filter ........... 65
Filter mats ........................... 63
Lamps, filter panels ............ 42
Cleaning intervals .................... 43
Cleaning or replacing
Side section ........................ 58
Cleaning or replacing lamps
Base ................................... 57
Cleaning overview .................... 43
Cleaning the filter ............... 62, 63
Cleaning, filter .......................... 62
Cleaning/replacing the lowpressure lamps
Shoulder tanner .................. 60
Commissioning ........................ 15
Contact lenses ......................... 27
Copy protection ........................ 17
Cosmetics .................................. 9
Customer service ....................... 2
D
Decommissioning ..................... 16
Definitions .................................. 5
Description ............................... 25
Device description .................... 25
Device operating time .............. 15
Dimensions .............................. 72
Directives ................................. 17
Disposal ................................... 16
Page 82
Inde
x
80/82
E
Electrical installation ................. 13
Electrical specifications ............ 71
Empty the condensation tank ... 65
Equipment ................................ 24
Equivalence key range ............. 76
Error codes ............................... 41
Exhaust air ventilation .............. 13
Export ....................................... 17
Eye damage ............................. 27
F
Facial tanner
Cleaning/replacing .............. 59
Maintenance intervals ......... 45
Faults ....................................... 41
Filter
Cleaning intervals ............... 43
Filter panels .............................. 56
Cleaning/replacing .............. 59
Maintenance intervals ......... 45
Filters
Clean .................................. 63
Foreseeable misuse ................... 7
Functions .................................. 31
H
High pressure lamps,
danger of fire! ........................... 56
I
Illnesses ................................... 27
Intended use .............................. 7
Itching ....................................... 27
L
Lamp sets ................................. 73
Lamps ........................................ 7
Lamps cleaning/replacing
Facial tanner ....................... 59
Lift up the acrylic glass panel ... 49
Light sensitivity ......................... 27
Low-pressure lamps
Cleaning/replacing .............. 60
M
Maintenance ....................... 40, 44
Maintenance overview ............. 45
Make-up ................................... 27
Medicaments ............................ 27
Music .................................. 17, 39
N
NFC .......................................... 53
Noise level ................................ 71
O
Open the bed base ................... 52
Operating altitude ..................... 14
Operating overview .................. 29
Operator's obligations .............. 12
Order numbers ................... 73, 75
P
Packaging ................................ 16
Personnel training .................... 12
Plastic surfaces (care) .............. 42
Play rights ................................ 17
Plug-in connector ..................... 13
Power ....................................... 71
PROFESSIONAL
SETUP MANAGER PLUS ........ 30
Prohibited usage ........................ 8
Protective glasses ...................... 9
Protective measures
when performing
maintenance work .................... 40
R
Radiation area .......................... 39
Recycling .................................. 16
Remove the canopy panel ........ 50
Remove the
side section panel .................... 51
Replace the
low pressure lamps .................. 54
Replacing the
AQUA SYSTEM canister .......... 69
Replacing the lamps ................. 53
Restrictions ................................ 9
Risk of injury ............................. 27
