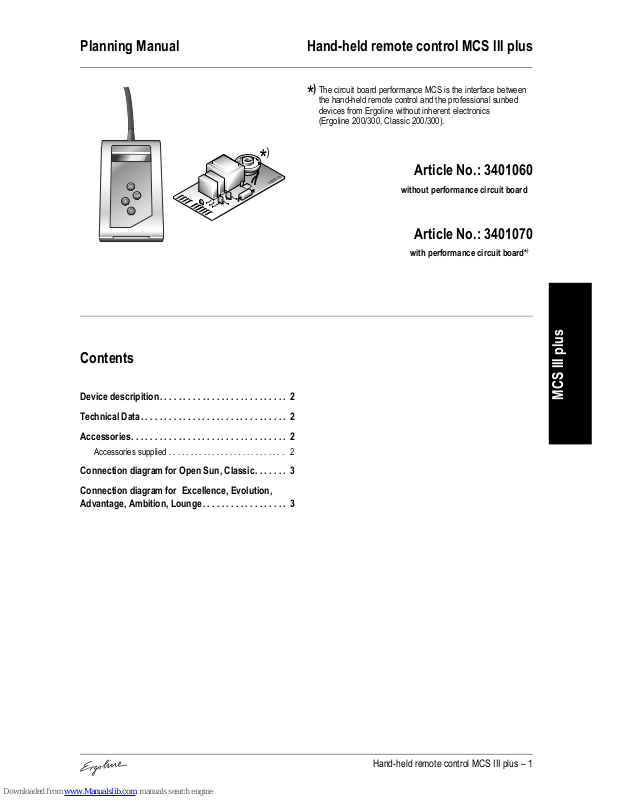

Planning Manual Hand-held remote control MCS III plus
Hand-held remote control MCS III plus – 1
MCS III plus

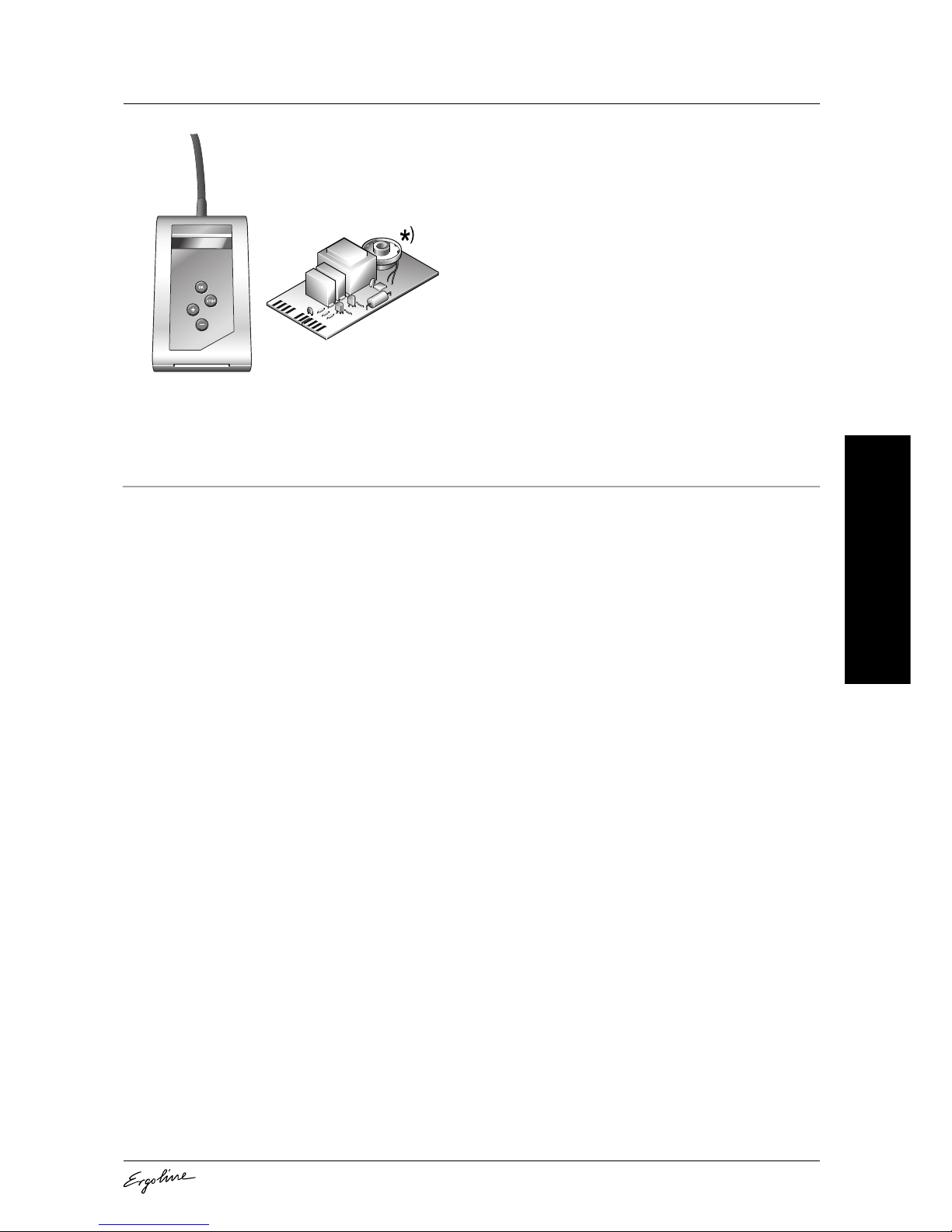

The circuit board performance MCS is the interface between
the hand-held remote control and the professional sunbed
devices from Ergoline without inherent electronics
(Ergoline 200/300, Classic 200/300).
Article No.: 3401060
without performance circuit board
Article No.: 3401070
with performance circuit board*
Contents
Device descripition. . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Technical Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Accessories supplied . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Connection diagram for Open Sun, Classic. . . . . . . 3
Connection diagram for Excellence, Evolution,
Advantage, Ambition, Lounge. . . . . . . . . . . . . . . . . . 3
03597 / 0
)
*
)
Page 2
Hand-held remote control MCS III plus Planning Manual
2 – Hand-held remote control MCS III plus

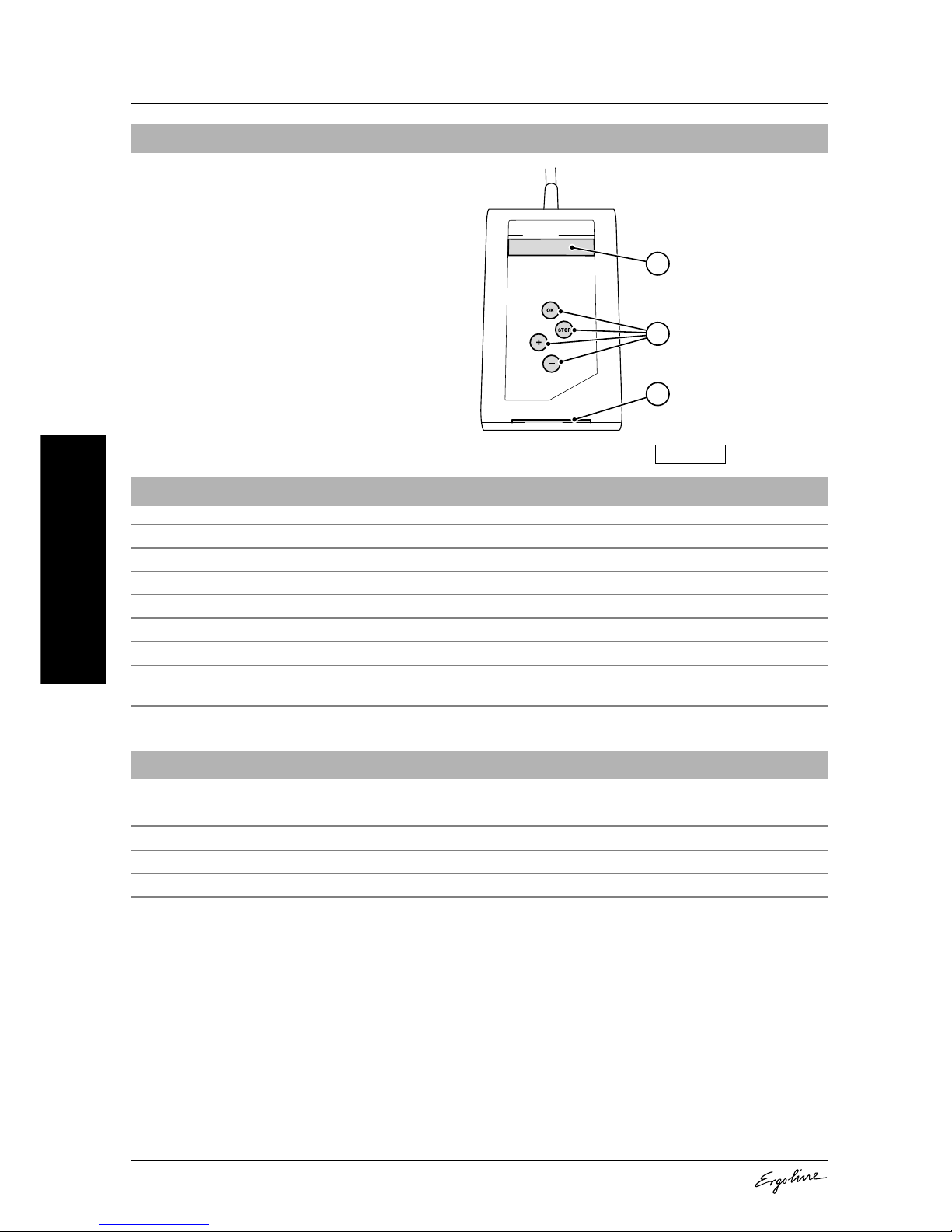

MCS III plus
1. Display
2. Operating keys
3. Chip card slot
Dual safety cutout switch to standards
EN 60335-2-27 and A1 2000 sections
22.108 and 22.109
Accessories supplied
Device descripition
Technical Data
Equipment: Relay control for connection to a sunbed, with chip card reader
Operating voltage: Supply from the respective sunbed with a 7-pole plug / direct connection
Colour: Techno Grey
Max. ambient temperature: 0 to 40 °C
Max. relative air moisture content: 70 %
Max. storage temperature: 0 to 50 °C
Dimensions [mm]:
width x height x depth
100 x 180 x 36
Accessories
Accessories Article / Part No. Notes
Master Card (1 piece) –
Control line (5 m) Connector plug (extra-low voltage)
2
3
1
04178 / 0
Page 3
Planning Manual Hand-held remote control MCS III plus
Hand-held remote control MCS III plus – 3
MCS III plus

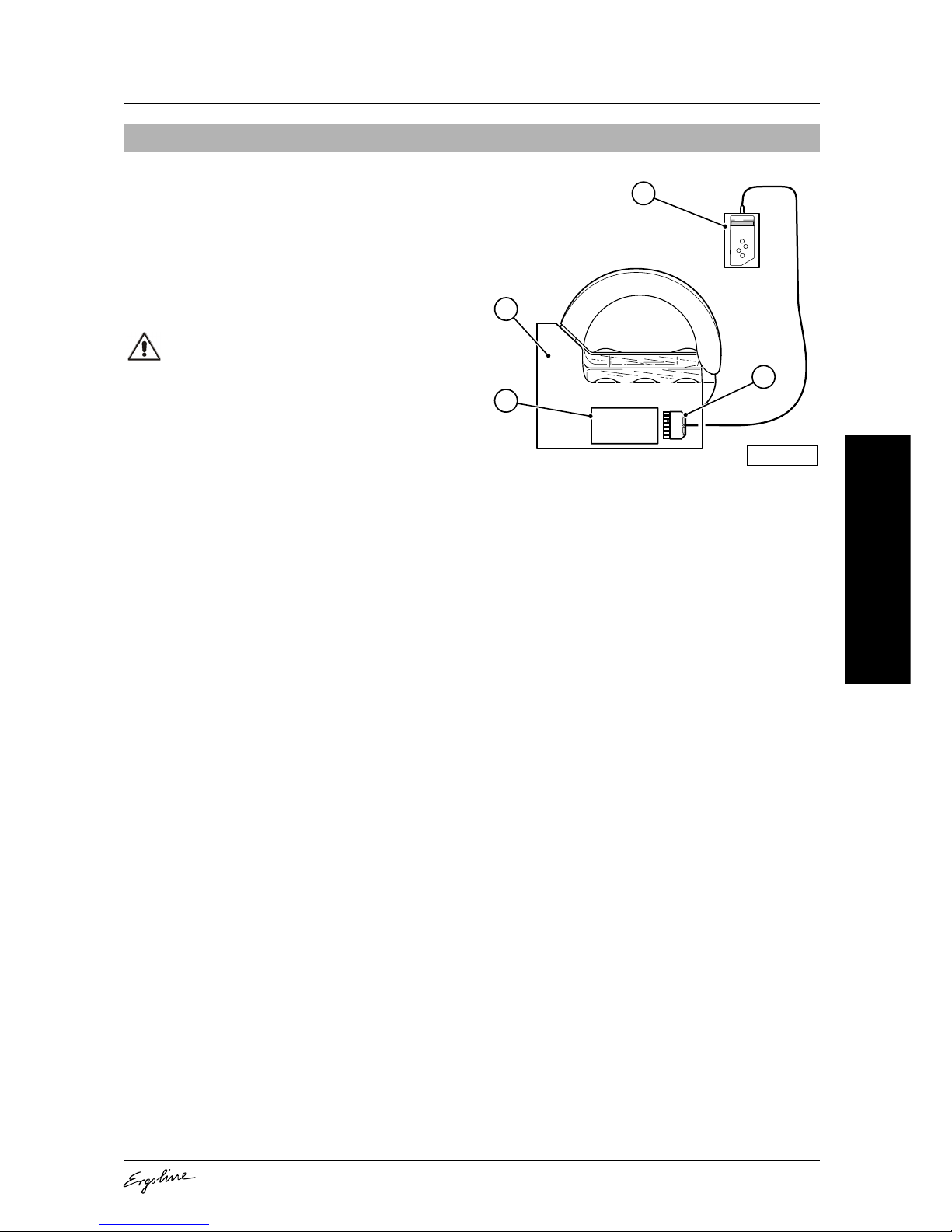

Legend:
1. Remote control with microprocessor
2. Plug
3. Sunbed
4. Parts support (controller)
Connection diagram for Open Sun, Classic
Caution!
The green/black plug may only be used on the Ergoline hand-held remote control.
2
4
3
1
04162 / 0
Page 4
Hand-held remote control MCS III plus Planning Manual
4 – Hand-held remote control MCS III plus
MCS III plus

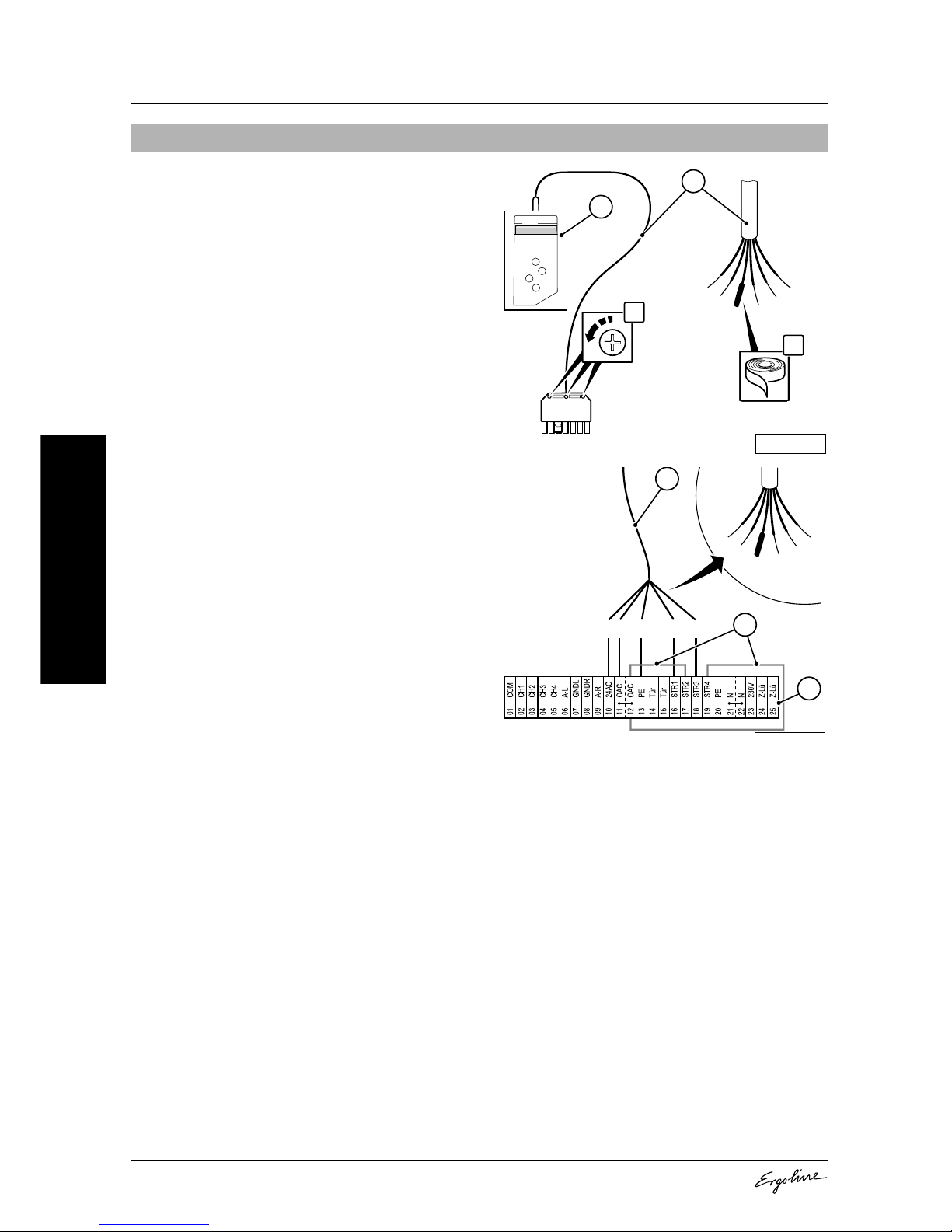

The plug on the hand-held remote con-trol (1) must be removed. The control cable (2) is connected directly to the connection strip (3) of the sunbed. The white wire is to be insulated.
Legend:
1. Hand-held remote control with micro-processor
2. Connection cable (control line)
3. Bridge
4. Connection strip in sunbed
Wires:
Connection diagram for Excellence, Evolution, Advantage, Ambition, Lounge
1 – pink
2 – yellow
3 – white
4 – brown
5 – green
6 – green-yellow
1
1
2
3
4
5
6
1
2
2
04161 / 0
12 6 5 4
1
2
3
4
5
6
2
3
4
04160 / 0
