Ergoline Excellence
800881 / Index „c“ / us / 06.2004
Operating Instructions
04542 / 0
Excellence 850 Ultra Power Temptronic
II
Identify your tanning device
For contact with customer service, please write down the device number of your tanning device.
Global Service Division
#1 Walter Kratz Drive
Jonesboro, Arkansas 72401
(800) 445 0624
04014 / 0
III
III
“This product is in conformity with performance standards for sunlamp products under CFR21 Part 1040.”
04874 / 0
Note:
Description of
skin types see
Page 17.
4
Foreword
Foreword
Dear Customer,
The Ergoline device you have purchased is a technically advanced and
powerful microcomputer control system. Your device was manufactured
with the greatest care and precision. It went through numerous quality
and safety checks in order to guarantee trouble-free, safe operation. But
you too may make a significant contribution to your long-term satisfaction
with your device. Following the tips and instructions in the instruction
manual will ensure you enjoyment and pleasure with your device.
In case of any questions, we are always at your disposition
1)
.
Your sincerely
Sun Ergoline
• Read and observe the information in this instruction manual. This will
enable you to prevent accidents and provide you with a reliable
device ready for use.
• Always observe the local and federal regulations and legal
requirements as well as the valid environmental protection
regulations.
1) (800) 643 0086
5
Table Of Contents
Table Of Contents
Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Danger of damage to persons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Meaning of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Export . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Product information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Maintenance and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Environmental protection information . . . . . . . . . . . . . . . . . . . . . . . . 16
General tanning instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Skin types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Operating table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Fold-out page 19
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Settings during start-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Terminate tanning session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Running time of accent lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
IR function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Regulating face tanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Regulating body tanner. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Switching shoulder tanner off and on . . . . . . . . . . . . . . . . . . . . . . . . . 27
Regulating Temptronic
1)
(air condition). . . . . . . . . . . . . . . . . . . . . . . . 28
Regulating body cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Regulating facial cooling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Voice Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Listening to INFO texts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Selecting music channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Adjusting volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Maintenance
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fold-out page 37
Maintenance, overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Maintenance intervals, installed lamps and order numbers . . . . . . . . 38
Cleaning/replacing UV low-pressure lamps in sunbed base . . . . . . . 44
Cleaning/replacing UV low-pressure lamps in neck tanner . . . . . . . . 46
Cleaning/replacing UV low-pressure lamps in
shoulder tanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Cleaning/replacing interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
1) optional
6
Table Of Contents
Table Of Contents
Cleaning/replacing UV high-pressure lamps/filter
panels in side section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Cleaning/replacing UV high-pressure lamps/filter
panels in canopy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Cleaning/replacing accent lights in canopy . . . . . . . . . . . . . . . . . . . . . 58
Cleaning/replacing accent lights in frontpanel . . . . . . . . . . . . . . . . . . 61
Cleaning filters in sunbed base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Cleaning/replacing filter mats in canopy . . . . . . . . . . . . . . . . . . . . . . . 65
Cleaning/replacing filter mats in shoulder tanner . . . . . . . . . . . . . . . . 66
Air Condition: cleaning/replacing filter mat,
emptying condensate container . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Presettings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Changing presettings with the control panel . . . . . . . . . . . . . . . . . . . 70
Changing presettings with a hand-held unit . . . . . . . . . . . . . . . . . . . 72
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

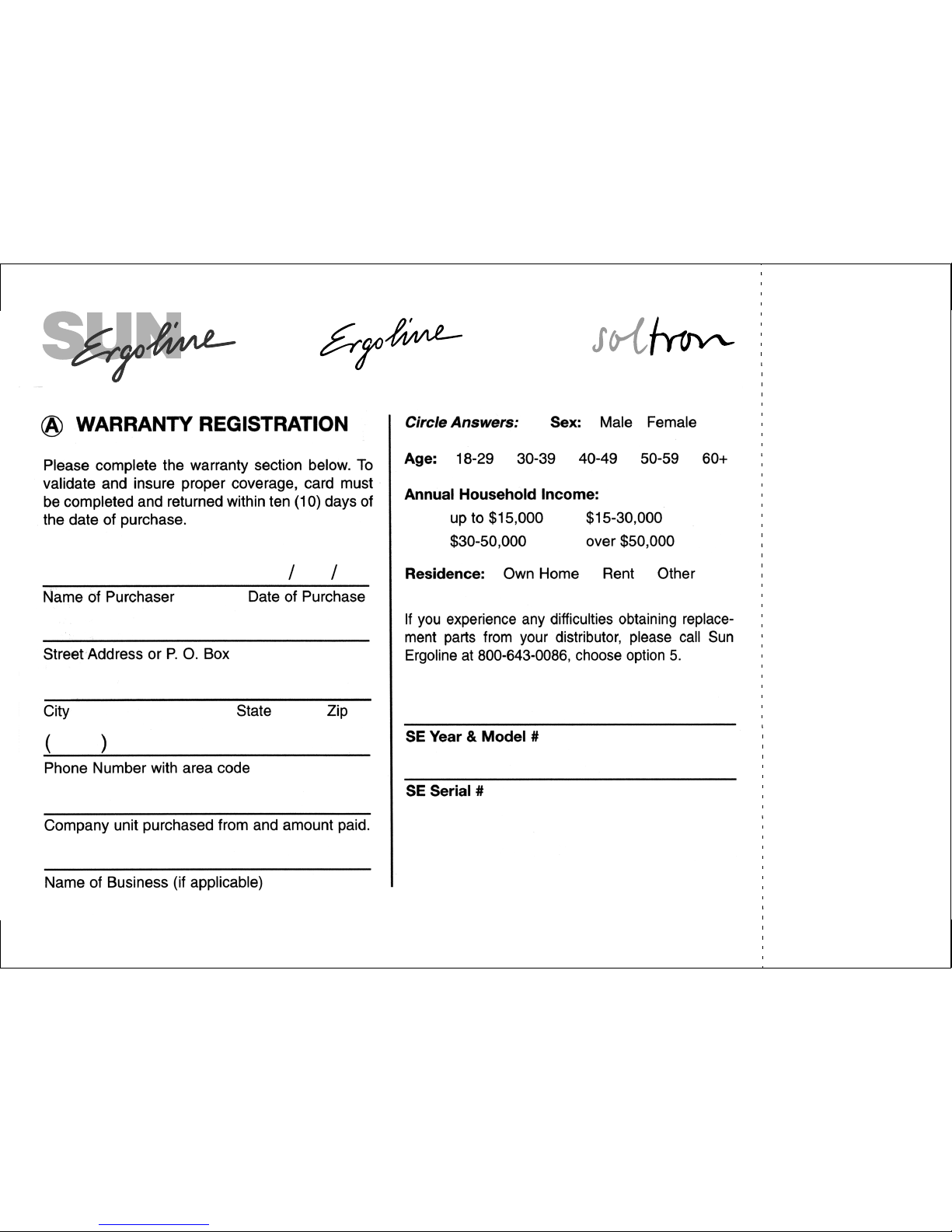

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Timer operation. . . . . . . . . . . . . . . . . . . . see separate manual
Note:
Technical changes are reserved with respect to the illustrations and specifications in this instruction manual.
Reprinting and reproduction, in whole or in part, of this manual is only permitted with our previous written approval and
with specification of the source.
7
Table Of Contents
Table Of Contents
Safety notes
Description of warning signs
Danger notes, damage to persons:
Warning notes, damage to persons:
Caution notes, property damage:
CAUTION!
The word “CAUTION” with this label points out that danger for
devices, materials and the environment can be expected
here.
Important information:
Note:
This symbol does not identify safety notes, but states information for a better understanding of the processes.
Type and source of danger, e.g. “DANGER – High
voltage!”
DANGER!
Description of the consequences, e.g. “You can be
killed or injured by an electric shock!”
Countermeasures:
– Disconnect device from power supply before open-
ing.
– Do not reach into the inside or change lamps with the
device switched on.
Type and source of danger, e.g. “Warning – hot
surface!”
WARNING!
Description of the consequences, e.g. “You can burn
your hand (skin, face)!”
Countermeasures:
– Do not touch the lamps and nearby surfaces.
– Wait until lamps and surfaces have cooled down.
8
Intended use
Intended use
Intended use
The tanning device is intended exclusively for cosmetic tanning of the human skin:
• This device is used for tanning one adult person at a time.
• The user wears suitable eye protection that blocks UV radiation
during tanning.
Any other use shall be considered improper. The manufacturer cannot be
held liable for damage or injuries resulting from improper use. The
operator bears the sole risk for this.
The proper use also includes compliance with the manufacturer’s instructions, operating, maintenance and regulation conditions. The device may
only be operated, maintained and repaired by persons familiar with these
tasks and that have been informed of the dangers involved.
Important notes for the studio operator
• As the operator you are responsible for informing users on possible
risks during tanning.
• All danger and safety labels attached to the device must be observed!
Do not remove them!
• No safety equipment (e.g. panel switch) may be removed or deactivated which can impair the safe operation of the device!
• The device may only be operated in proper condition!
Danger of damage to persons
DANGER – High voltage!
DANGER!
You can be killed or injured by an electric shock!
Assembly and electrical connection must comply with
the national and local regulations.
– Assembly, installation, upgrading or repair of the de-
vice may only be carried out by specially trained and
instructed personnel.
Warning – ultraviolet radiation!”
WARNING!
Unprotected tanning may result in eye injuries and eye
diseases.
The unprotected eye can become inflamed on the surface, and in certain cases the retina can be damaged
by excessive radiation. Cataracts can form after frequently repeated exposure to radiation.
– Inform users to close their eyes during tanning and
use the included protective goggles that block UV
(Order No. 84592
1)
).
1) Global Service Division – see page II.
9
Danger of damage to
persons
Danger of damage to persons
Occasionally, persons using the tanning device will experience a slight
reddening of the skin – usually in small patches – after the second or third
session. This redness is often accompanied by an itching sensation. This
may be nothing more than a heat “rash” caused by heat from the lamps
within the device. It is generally very limited and caused by constant contact of the skin with the acrylic surface. It should go away within approximately 24 hours and should not reappear. This rashing can be lessened
or prevented by applying moisturizer lotion to the affected area after the
tanning session is completed.
– Follow instructions.
– The time between two tanning sessions must be at least 24 hours!
– Increasing tanning also requires an extension of the exposure time
(= radiation time) or after a certain degree of tanning has been
achieved, a further intensification is not possible. However, the radiation time may not be extended as desired within the scope of the permissible radiation doses! Therefore, only a certain degree of final
tanning dependent on the skin type can be achieved without endangering your health.
– Inform users about proper tanning – see page 16.
Warning – ultraviolet radiation!
WARNING!
As with natural sunlight, overexposure can cause eye
and skin injury and allergic reactions. Repeated exposure may cause premature aging of the skin and skin
cancer. Wear protective eye wear; failure to may result
in severe burns or long-term injury to eyes.
Warning – ultraviolet radiation!
WARNING!
Danger of long-term consequences.
– Nursing infants and small children through age
7 years may not use this device.
– The following applies to minors under the age of
18 years: Only use tanning devices in agreement with
a parent or guardian, or after consulting a physician.
– While there is no immediate clinical evidence of UVA
exposure and its effects upon expectant mothers, it is
strongly advised that expectant mothers be discouraged from using the tanning unit.
10
Meaning of symbols
Please read and observe ...
Meaning of symbols
Symbols for Description, Operation and Maintenance
General Symbols
Inform Customer Service
Ergoline key
Phillips screwdriver
Do not touch, hot surface!
Low-pressure lamp(s)
UV low-pressure lamp(s)
Starter for low-pressure lamp(s)
General Symbols
UV high-pressure lamp(s)
Accent lamp
Filter panels
Cleaning and disinfectant agents
Part/article number (for orders)
Operation
Display of tanning time
11
Meaning of symbols
Please read and observe ...
Display of run-on time (fan run-on)
Fault display (example),
see Page 75
Display of Info Track 1 (from 1-17)
Display of Music Channel 1 (Channel 1)
Factory setting: 1 channel
Customer service can set up to 7 channels
Display when adjusting volume
Description
Accent lighting
Press button
Press button for 2 seconds
2s
e.g.
Duration: 3 minutes
Loudspeaker
Headphone connection
Technical data
Maintenance
Caution, safety switch!
Unscrew/release screw
Tighten/lock screw
Unscrew/release screw with a screwdriver
0-3 min
12
Meaning of symbols
Please read and observe ...
Tighten/lock screw with a screwdriver
Suction cup
Cleaning
Replacing
Clean or replace depending on soiling
Draining
Visual inspection
Air Condition
Filter/filter mat
Continuation of work steps
on next page
End of work step
Presettings
Troubleshooting
...
13
Guidelines
Please read and observe ...
Guidelines
This device was built according to UL STD 482, certified to CAN/CSA
STD C22.2 2 No. 224.
CAUTION – Air inflow and outflow
Do not change, obstruct or block the air inflow and outflow
area to the device or make any unauthorized changes to the
device. The manufacturer shall bear no liability for damage or
injuries resulting from such actions.
Export
We would like to point out that the devices are exclusively intended for
use in the US and Canada, and may not be exported to other countries
and operated there! The manufacturer shall assume no liability whatsoever in case of non-observance! We explicitly emphasize that high liability risks may occur for the exporter an/or the operator in case of nonobservance.
Equipment
The equipment of the devices differs depending on the model.
In this instruction manual all standard and optional components/functions
are taken into account which must be observed during operation and/or
when performing maintenance.
The control panel is also affected by the differing equipment: Only those
buttons are visible that can be operated, i.e. the corresponding function
must be part of the equipment of the device.
Accessories
Some accessory parts are taken into account in the maintenance
schedule beginning on Page 39, however this does not automatically
mean that your device is provided with this equipment (e.g. Temptronic).
An overview of the possible accessories is provided in the sales documentation.
14
Product information
Please read and observe ...
Product information
Acrylic glass panels
The acrylic glass panels for the tanning devices are produced of acrylic
glass developed especially for this application. The acrylics used are characterized by a particularly high UV permeability and resistance, as well as
an easy-care, hygienic surface that is gentle to the skin.
The acrylic glass panels are formed to their shapes for the specific devices in a technically complex production process. Despite state-of-the-art
production know-how, the presence of minor spots, air bubbles or
streaks in the acrylic panels is unavoidable. In addition, hairline cracks
can occur on the bed surface during operation.
These occurrences are material-dependent and are unavoidable in processing, however have no significant effect on the utility value and can
therefore not be recognized as defects.
CAUTION!
Cosmetics or sun screen products must be removed prior to
tanning as they can cause damage (e.g. cracks on the surface) when used continuously.
Maintenance and care
Maintenance and care play a major role in deciding whether the device
meets the requirements placed on it in a satisfactory manner. The compliance with the specified maintenance intervals and the careful conducting of the maintenance and care work are therefore absolutely necessary
– see Page 39 ff.
The current operating hours of the parts requiring maintenance can be
displayed in the Presetting mode – see Page 70 ff.
Remount any protective devices (e.g. filter panels) after completing work.
CAUTION!
Only use original spare parts of the same type or compatible
parts! The use of other parts voids the conformity! Any liability
is excluded in case of damage or injury proven to be the result of the use of non-original spare parts.
Extreme danger! High voltage!
DANGER!
During maintenance work there is a danger of touching
live parts and receiving a fatal electrical shock.
• Disconnect device from power supply before
opening – also see Page 37.
• Do not reach behind covers, do not open the device
and do not replace lamps with the device switched
on.
15
Cleaning
Please read and observe ...
Cleaning
Acrylic glass surfaces
CAUTION!
Do not rub with a dry cloth – danger of scratching!
For fast, hygienic proper cleaning of acrylic glass surfaces,
use the specially developed fast disinfectant cleaner Antifect
®
.
Concentrated disinfectants or solvents (e.g. Lysoform, ethyl
alcohol or other liquids containing alcohol) may never be
used for cleaning. Other unsuitable cleaning agents that
cause damage due to chemical reactions may also not
be used!
Plastic surfaces
For cleaning the other plastic surfaces, it is best to use warm water and
a leather cloth. Never use aggressive cleaning agents containing alcohol,
e.g. the commercially available Sagrotan, or essential oils. These may
lead, in the long run, to damages not covered by the warranty.
During cleaning a slight discoloration of the leather cloth by the rubber
seals must be expected for production-related reasons.
Note:
Prevent damage to the acrylic glass and plastic surfaces. Remove rings, watches, bracelets etc. before the start of cleaning work.
02756 / 0
16
Environmental protection
information
Please read and observe ...
Environmental protection information
Environmental Declaration – The JK Corporate Group
The JK corporate group is subject to the strict regulations of EC Directive
761/2001 and the standard DIN ISO 14001, and undergoes regular internal and external environment audits performed by trained auditors.
Environmental regulations – disposal of lamps
UV low-pressure lamps and UV high-pressure lamps contain fluorescent
materials and other waste containing mercury.
According to the national waste disposal laws and in accordance with the
municipal waste regulations, proof must be provided of the proper disposal of UV lamps.
Your local environmental agency will be happy to assist you with the disposal of UV lamps.
General tanning instructions
Who can get a tan?
Anyone who also gets a tan in natural sunlight. Persons with sensitive
skin even tan more pleasantly and with fewer worries, as the radiation
dosage can be exactly defined with sunbeds.
Certain drugs – particularly those that produce photosensitivity – may
cause individuals under the influence of this type drug to experience adverse effects and those people should avoid exposure to UV sources of
all kinds. Doctors will advice people taking these drugs to possible adverse effects.
The speed and intensity with which someone tans are dependent on the
skin type and the individual melanin quantity in the skin. No two individual
skin tones are the same. A tan to one person may be different to another
and treatment length may vary.
What is Melanin?
The brownish pigment produced by special cells in the base layer of your
skin determines the individual's tan. As the skin is exposed to the ultraviolet light, the melanin is activated and combines with protein cells that
rise to the skin's surface, thus producing a tan. The amount of melanin in
your body determines how quickly and dark you tan. The more melanin
produced and exposure time an individual has, the faster and deeper the
individual will tan.
17
General tanning
instructions
Please read and observe ...
Note:
The tan produced by the tanning unit is a deep, rich
“Cosmetic” tan. However, regardless of how dark an individual may tan on his system, it will not provide adequate protection against overexposure to natural sunlight or UVB tanning
systems.
Which tanning times are recommended?
Although there is virtually no reason to worry about sunburn with the UV
tanning method, some consideration should initially be given to individual
skin sensitivity.
Once you have a tan, 1 to 2 tanning sessions per week are usually sufficient to maintain it.
Should you use sun screen?
No! It is recommended to not use sun screens, oils or lotions intended for
outdoor use. Cosmetic sun screens with a sun protection factor (SPF)
are intended to filter out the sun's aggressive rays. However, the light of
our sunbeds only contains extremely small quantities of comparable
rays, making this kind of protection unnecessary. On the contrary, the
skin should be thoroughly cleaned and dried before each sunbath. Many
facial makeups have oil bases and should be removed prior to a session.
Adequate ventilation of the room or booth housing the tanning device is
required for proper and comfortable operation. Your tanning device will
perform best at the ambient temperature of 75 °F to 90 °F.
It is recommended that, following a tanning session, a skin moisturizer be
applied. This promotes a smoother, more even looking tan.
Skin types
For the recommended exposure schedule (see page III):
Skin type II:
This is the individual that usually burns easily and severely, tans minimally or lightly and peels.
Skin type III:
Often referred to as “Average” complexion, burns moderately and tans
about average.
Skin type IV:
This individual burns minimally, tans easily and above average with each
exposure.
Skin type V:
This individual’s system rarely burns, tans easily and substantially.
Danger of skin injuries and skin diseases!
DANGER!
Although UVA radiation is relatively harmless compared
to natural sunlight, excessive tanning times can lead to
the skin becoming red and to burns.
– Comply with the recommended tanning times,
see Page III.
18
General tanning
instructions
Please read and observe ...
19
Operation
Operation
Please open this fold-out page.
Operation
Mandatory reading
Always read and follow all instructions for proper usage prior to using any
tanning device. The operating instructions included with this device must
always be followed to prevent possible injuries or to reduce them to a minimum.
Inform users
• to use provided UV-blocking protective eyewear whenever the equipment is energized.
• to follow the exposure schedule in accordance with their skin type.
Failure to do so may result in overexposure.
A tanning system is not a toy. You cannot vary the strength of the lamps
in your unit.
Should you have any questions regarding the proper use of your tanning
system, contact Sun Ergoline at:
1-800-643-0086
8:00 a.m. to 5:00 p.m. (CST)
Note:
When describing the operation, the tanning device is often
shown with the canopy open. During tanning the canopy
must always be closed.
No proper operation is possible with the canopy open.
WARNING – ultraviolet radiation!
WARNI NG!
Danger of skin injuries and skin diseases!
– The sunbed may never be used when a filter panel is
missing or damaged, or the timer is defective!
20
04544 / 2
04876 / 1
70
70
72
21
Operation
04543 / 0
Accessories
22
Operation
Tanning
Start and end of tanning
The device is started automatically with an internal or external timer and
automatically stopped after the preselected time. The fan continues to
run for approx. 3 minutes (fan delay) to sufficiently cool the device.
Note:
Timer instructions: see separate manual.
Preparation time
Before the UV lamps automatically go on, you have a few minutes to prepare yourself. During the preparation time you can switch on the UV
lamps at any time by pressing the START/STOP button.
– Remove your clothes and all jewelry.
– Remove make-up and other cosmetics.
– Remove glasses. Contact lenses can be worn under the protective
goggles.
– Put on the protective goggles.
– Lie down on the bed surface.
– Close the canopy.
Depending on the controller, the tanning device starts up after a short
time automatically. The tanning device is operating when the UV lamps
are on and the fans are running.
If the device fails to start up when you have closed the canopy:
– Press START/STOP to start tanning.
04547 / 0
23
Operation
The tanning time can be interrupted during tanning by switching off the
UV lamps:
– Press START/STOP for three (3) seconds to pause or stop tanning.
– Press START/STOP again for three (3) seconds to restart the lamps.
Settings during start-up
04546 / 1
To interrupt tanning session
04547 / 0
24
Operation
The accent lights are running during and after
the tanning session and are automatically
switched off at the end of the predefined time.
The running time of the accent lights in the
Standby mode can be changed with the presettings – see from Page 70 on.
Running time of accent lights
04569 / 0
70
04570 / 0
72
IR function
IR Function
04027 / 0
25
Operation
Face tanner
03501 / 0
Switching the face tanner OFF:
– Press button for two (2) seconds.
Switching on face tanner again:
– Press button again. It takes approx. one (1)
minute until the face tanners reach their full
output.
12
03395 / 0
1
21
03501 / 0
2
Press for two (2) seconds.
03396 / 0
3
One (1) minute delay.
03501 / 0
4
+ 1 min
26
Operation
Body tanner
03501 / 0
– Press button .
– While the button flashes, press the plus or
minus button to change the intensity of the
body tanner.
12
04880 / 0
1
21
04881 / 0
2
27
Operation
Shoulder tanner
03397 / 0
S
witching the shoulder tanner OFF:
–
Press button .
–
While the button flashes, press the minus
button for two (2) seconds to switch the
shoulder tanner off.
S
witching the shoulder tanner on again:
–
Press button .
–
While the button flashes, press the plus
button to switch the shoulder tanner on.
Press for two (2) seconds.
03398 / 0
1
03397 / 0
2
28
Operation
Temptronic – Adjust coolness
03399 / 2
During start-up the second of 8 levels is active
– Press button (Temptronic).
– While the button flashes, press the plus or
minus button to change the cooling intensity.
2
1
04031 / 2
1
21
04032 / 2
2
Press for two (2) seconds.
03545 / 2
3
29
Operation
Surround cooling body nozzles –
Adjust speed
03401 / 1
– Press button .
– While the button flashes, press the plus or
minus button to change the intensity of the air
stream.
12
03401 / 1
1
12
03502 / 1
2
30
Operation
Surround cooling head nozzles –
Adjust speed
03400 / 1
– Press button .
– While the button flashes, press the plus or
minus button to change the intensity of the air
stream.
12
03400 / 1
1
21
03503 / 1
2
31
Operation
…
…
…
…
…
…
…
…
…
…
Voice Guide
03467 / 0
When Voice Guide is switched on, you hear an
explanation of the button function each time a
button is pressed.
03467 / 0
1
03467 / 0
2
32
Operation
INFO
03467 / 0
When you press the button, general texts
on tanning are played.
Press to activate.
03467 / 0
1
12
03467 / 0
2
12
03467 / 0
3
Press for two (2) seconds.
03467 / 0
4
33
Operation
Channel
03467 / 0
– Press button .
– While the button flashes, press the plus or
minus button to select a channel.
means: no Channel selected, there is
no sound, music is “OFF”.
Press to activate.
03467 / 0
1
21
03467 / 0
2
12
03467 / 0
3
12
03467 / 0
4
34
Operation
Vol ume
03467 / 0
– Press button .
– While the button flashes, press the plus or
minus button to change the volume.
Press to activate.
03467 / 0
1
70
12
03467 / 0
2
21
03467 / 0
3
35
Technical data
Model:
Ergoline Excellence 850
Turbo Power
Rated power consumption:
21,000 W
Rated voltage: 230 V
Rated frequency: 60 Hz
Rated fusing: 90 amp 3-pole
Conformity mark:
Powerinput 3-pole
(max. 90 amp)
230V AC 60 Hz
HAZARDOUS VOLTAGE.
Contact will cause
electric shock!
Disconnect and lock out
power before servicing.
DANGER
F
DANGER
USA
L1 L1
L2L2
L3 L3
PE PE
PE
PE
04605 / 1
Technical data
36
Technical data
Bed tolerance in room
A
B
C
03411 / 1
E
F
D
03412 / 0
A = 1830 mm A = 72 1/16 in
B = 1373 mm B = 54 1/16 in
C = 1565 mm C = 61 5/8 in
D =2110 mm D =83 1/16 in
E = 2323 mm E = 91 7/16 in
F = 850 mm F = 33 7/16 in
Maximum room temperature / Humidity
03173 / 1
Warning – possible
breakage of the acrylic
panel!
WARNING!
Severe cuts from glass and
burns from hot lamps may
result.
– Only one adult person is
allowed at the same time.
– People that weigh more
than 300 lbs must not use
the device at all.
Maximum permissible load
300
lb
04035 / 0
37
Maintenance
Maintenance
Please open this fold-out page.
Maintenance
De-energize device and secure against being switched on again
Extreme danger!
If work is to be performed on the
devices, they must be de-energized.
That means that all live lines must be
switched off.
Switching off the device alone is
insufficient, as certain points may
remain energized. Therefore, switch
off fuses before performing any work
and – if possible – remove them.
Extreme danger!
Severe accidents can occur if the device is mistakenly
switched on again.
Immediately after de-energizing, secure all switches or
fuses used for de-energizing against being switched on
again.
• In case of circuit breakers which cannot be
screwed out, a strip of adhesive tape may be
applied over the actuation lever with the wording
“Do not switch, danger!”.
A prohibition sign with the text:
• “Work in progress!”
• “Place: ..............................”
• “Sign may only be removed by: ............”
must always be securely mounted immediately.
Extreme danger!
Prohibition signs must not be hung on or touch live parts.
DANGER!
04049 / 0
DANGER!
01510 / 1
01511 / 1
DANGER!
38
Note:
Clean after every use.
Clean if
necessary!
–
9
1
8
2x
9
7
6
2
11
12
4
3
5
14
13
10
04545 / 2
Scheduled cleaning
72
39
Maintenance
/50 h
4 x
51 937 63
2 x
800 601 65
1 x
51 975 68
2 x
800 278 66
Scheduled maintenance – filters
40
Maintenance
Excellence 850
Ultra Power Temptronic
a) 1 x white 8 W
11 83 9
58
b) 1 x blue 9 W
12262
61
c) 1 x blue 30 W
12377
61
d) 2 x blue 9 W
12262
50
e) 2 x white
Aquastar F 36/174
36 W
12158
58
f) 1 x white
Aquastar F 18/174
18 W
12156
58
a) c)
e) f)
5 x S10 10047
e
a
b
c
d
f
04549 / 0
Scheduled maintenance – accent lights
41
Maintenance
The UV high-pressure lamps used, Ergoline Ultra 12645 (face
tanner), are broadband radiators that can be operated with
different wattages (approx. 240-520 W).
UV low-pressure lamps: Clean with plain water (damp cloth).
Excellence 850
Ultra Power Temptronic
500 h
a) - e) 40
i) 5 x Ergoline Ultra 520 W 12645 52
k) 15 x Ergoline Ultra 520 W 12645 55
h) 19 x Ergoline VHP 12 PREMIUM 160 W
Turbo Power
C-12788 44
g) 6 x Ergoline VHP 25 W Power 12562 46
f) 7 x Ergoline VHP 25 W Power 12562 48
1,000 h
h) 19 x S12 10012
f) g) 13 x S10 10047
i
k
g
f
h
04548 / 1
Scheduled maintenance – UV lamps, starters
42
Maintenance
Filter panels: Clean with plain water (damp cloth).
1,500 h
700624 44
800 399 44
800 389 46
3,000 h
(ViT)
702 605 52, 55
43
Maintenance
Relamping / maintencance instructions
It is imperative that you, the owner and/or operator, check all components for any signs of wear which may occur through normal use.
– Observe the cleaning and maintenance schedule specified in the main-
tenance table on Page 38 to 42.
– Only replace UV low-pressure lamps with the original lamp type or with
compatible lamps.
– Only replace UV high-pressure lamps with the original lamp type or with
compatible lamps.
Should you require any assistance or need additional information, please
call Global Service Division at 1-800-445-0624, Monday through Friday
8:00 a.m. - 19:00 p.m. CST
CAUTION – Damage due to improper maintenance!
Improper maintenance can cause the device to be damaged
or to become unusable.
– Always comply with the specified maintenance intervals.
– Follow the cleaning instructions.
– If the maintenance intervals for the UV lamps are exceeded or incom-
patible UV lamps are installed, the share of harmful UVB radiation may
increase. Sunburn and other skin damage may result.
Danger of burns from hot lamps and device parts
WARNING!
If the tanning device was operated before being
switched off and opened, lamps and housing parts may
be hot.
– Before replacing lamps or other spare parts, wait until
lamps and metal parts of the device have cooled
down sufficiently.
Danger of pinching!
When opening and closing the tray, panels and covers,
you can pinch your fingers.
– Avoid hinges.
44
Maintenance
03417 / 0
De-energize device!
03514 / 0
1
2
1
2
03515 / 0
2
03516 / 0
3
03517 / 0
4
3
2
1
03098 / 0
5
UV low-pressure lamps, lower section
...
45
Maintenance
03099 / 0
6
Close:
2
1
3
03518 / 0
7
46
Maintenance
03418 / 0
De-energize device!
03514 / 0
1
2
1
2
03515 / 0
2
03519 / 0
3
03520 / 0
4
03430 / 0
5
...
UV low-pressure lamps, neck tanner
47
Maintenance
2
1
03108 / 0
6
03099 / 0
7
Close:
2
1
3
03518 / 0
8
48
Maintenance
03416 / 0
De-energize device!
03514 / 0
1
2
1
2
03515 / 0
2
03519 / 0
3
03520 / 0
4
2
1
03302 / 0
5
...
UV low-pressure lamps, shoulder tanner
49
Maintenance
03490 / 0
6
2
1
03108 / 0
7
03099 / 0
8
Close:
2
1
3
03518 / 0
9
50
Maintenance
04552 / 0
Danger of injury from the
canopy panel!
WARNING! The canopy panel is heavy and
falls down by itself after unscrewing the 3 screws.
– Support canopy panel.
– Loosen screws in the specified
order.
De-energize device!
1
3
2
1 2 3
03524 / 0
1
04578 / 0
2
04571 / 0
3
04572 / 0
4
Interior lighting, canopy
...
51
Maintenance
04573 / 0
5
04574 / 0
6
04575 / 0
7
Close:
2
1
3
1 2 3
03526 / 0
8
52
Maintenance
04550 / 0
De-energize device!
2
1
03522 / 0
1
04579 / 0
2
04886 / 0
3
1
2
3
04887 / 0
4
04888 / 0
5
UV high-pressure lamps, side section
...
53
Maintenance
04889 / 0
6
04044 / 1
7
CAUTION!
Do not touch the glass bulbs of the
UV high-pressure lamps with your
bare fingers! Remove soiling thoroughly.
–
Only touch new UV high-pressure lamp on
the gripping surface – see Figures 7 and 8.
04890 / 0
8
– Check safety switch:
2
1
04891 / 0
9
03699 / 0
10
...
54
Maintenance
1
3
2
04892 / 0
11
04893 / 0
12
Close:
1
2
03528 / 0
13
55
Maintenance
04551 / 1
Danger of injury from the
canopy panel!
WARNING! The canopy panel is heavy and
falls down by itself after unscrewing the 3 screws.
– Support canopy panel.
– Loosen screws in the specified
order.
De-energize device!
1
3
2
1 2 3
03524 / 0
1
04578 / 0
2
04886 / 0
3
1
2
3
04887 / 0
4
UV high-pressure lamps, canopy
...
56
Maintenance
04888 / 0
5
04889 / 0
6
04044 / 1
7
CAUTION!
Do not touch the glass bulbs of the
UV high-pressure lamps with your
bare fingers! Remove soiling thoroughly.
–
Only touch new UV high-pressure lamp on
the gripping surface – see Figures 7 and 8.
04890 / 0
8
– Check safety switch:
2
1
04891 / 0
9
...
57
Maintenance
03699 / 0
10
1
3
2
04892 / 0
11
04893 / 0
12
Close:
2
1
3
1 2 3
03526 / 0
13
58
Maintenance
04585 / 0
De-energize device!
04565 / 0
1
03529 / 1
2
1
2
03032 / 0
3
04586 / 0
4
04587 / 0
5
Accent lights, canopy
...
59
Maintenance
04590 / 0
6
2
1
03350 / 0
7
03099 / 0
8
04588 / 0
9
Close:
03539 / 2
10
...
60
Maintenance
04567 / 0
11
1
2
03536 / 1
12
61
Maintenance
03455 / 0
De-energize device!
1
1
2
03456 / 0
1
04580 / 0
2
03099 / 0
3
03514 / 0
4
2
1
03509 / 1
5
...
Accent lights, front panel
62
Maintenance
1
2
04189 / 0
6
03532 / 1
7
03533 / 1
8
1
2
04190 / 0
9
03513 / 0
10
Close:
2
1
3
03518 / 0
11
63
Maintenance
03458 / 0
De-energize device!
03514 / 0
1
2
1
03509 / 1
2
1
2
2
03534 / 1
3
Hand-wipe lightly, dry or with water,
or use a vacuum cleaner.
03319 / 0
4
1
2
2
03535 / 1
5
Lower section, filter
...
64
Maintenance
03513 / 0
6
Close:
2
1
3
03518 / 0
7
65
Maintenance
03459 / 0
1
2
03460 / 1
1
Rinse with water or
replace.
04047 / 0
2
04046 / 0
3
Canopy, filter mats
66
Maintenance
03416 / 0
De-energize device!
03514 / 0
1
2
1
2
03515 / 0
2
03520 / 0
3
2
1
03302 / 0
4
03303 / 0
5
Shoulder tanner, filter mats
...
67
Maintenance
Rinse with water or
replace.
04047 / 0
6
04048 / 0
7
Close:
2
1
3
03518 / 0
8
68
Maintenance
03461 / 0
De-energize device!
03514 / 0
1
2
1
03509 / 1
2
1
2
3
04043 / 0
3
2
1
03244 / 2
4
Clean carefully (vacuum
or wash) or replace.
3
04834 / 0
5
Air Condition, condensate and filter mats
...
69
Maintenance
1
2
3
2x
04841 / 0
6
03513 / 0
7
Close:
2
1
3
03518 / 0
8
70
Presettings
Changing presettings with the control panel
The setting mode enables you to call up operating states and make alterations to current settings. If VoiceGuide is included with the device, you
can also listen to the explanations on the preadjustments.
Changing to Presetting mode
• Press the buttons - and + simultaneously for at least five seconds out-
side a tanning process.
• appears in the display.
• Enter the code (see Page 71).
• Press the START/STOP button four times when you run the Preset-
ting mode for the first time.
• briefly appears in the display, then (Function 1)
and the presetting value are displayed alternately (see column “On
delivery”).
• By pressing the + button you scroll up to the next function (from -01-
to -19-).
• By pressing the – button you scroll down to the next function (from
-19- to -01-).
Changing presettings
Increase the preset value:
• Press and hold the START/STOP button while simultaneously pressing the + button.
Decrease the preset value:
• Press and hold the START/STOP button while simultaneously pressing the – button.
Reset to the last value set:
• Press the START/STOP button.
Reset to the delivered state:
• See function .
Note:
The sunbed will automatically return to 'idle' mode 30 seconds after the last button was pressed.
The presettings are listed beginning on Page 73.
71
Presettings
Defining a code
• Select Function .
• Press the START/STOP button for 3 seconds until appears.
• Press the desired buttons consecutively:
• Press the buttons in the same sequence when appears
again.
• appears in the display. The set code has been saved.
• Please note the code for Customer Service.
If you know the old code, you can define a new code at any time.
72
Presettings
Changing presettings with a hand-held unit
Some data can also be displayed and changed with a commercially
available hand-held unit (e.g. from Palm). For this purpose you require
special software (available in German and English), which you can download at www.sunergoline.com. The operating manual for this software is
also available at the same website.
Caution!
The code for access via the infrared interface is preset in
the software of the hand-held unit, and can therefore be
used with any unit. Anyone, who downloads the software
from the Internet can access the unit date with a hand-held
unit. Please note that Customer Service changes the preset
access code during initial start-up – see software operating
manual. Please note the new code for future use!
This code is independent of the access code for the presettings via the control panel.
Note:
Please read the operating manual for the software for instructions on how to display or change data with a handheld unit.
Information on operating the hand-held unit is contained in the manufacturer's documentation.
04002 / 0
IR Function
73
Presettings
No. Description on delivery Values from-to
Total number of operating hours 0 → 9999
Remaining operating time of UV low-pressure lamps (hours) 500 → 0000
Remaining operating time of UV high-pressure lamps (hours) 500 → 0
Remaining operating time of shoulder tanner (hours) 500 → 0
Remaining operating time of filter mats (hours) 50 → 0
Air conditioning operating hours 0 → 9999
Decorative lighting operating hours (minutes)
When the maximum value is exceeded:
Display = continuous operation
1 → 1440
Fan run-on time (minutes) 3 → 10
To set the time
1 → 23
01 → 59
74
Presettings
To reset the device to ex-works setting (all functions)
To set the access authorisation code to enter setting mode (see Page 71)
Adjust volume for voice output (VoiceGuide) 7 → 63
Adjust volume for music output (Sound System) 7 → 63
Ambient temperature setpoint value (°C) 15 → 30
Recycle air during fan run-on time (+ = on / – = OFF)
Lower temperature limit of air conditioner 15°C → 25°C
No. Description on delivery Values from-to
75
Trouble-
shooting
Troubleshooting
In the case of a fault, fault codes appear on the display to simplify
localizing of the fault cause:
• If a fault occurs, the fault code flashes in the display.
• If several faults occur, the fault messages are displayed alternately.
• On devices with : The text messages on the current fault
messages of the device can be displayed in the fault mode by
pressing the button.
• The fault remedy is acknowledged by pressing the button.
If the fault cannot be eliminated, inform Customer Service:
Global Service Division
#1 Walter Kratz Drive
Jonesboro, Arkansas 72401
(800) 445 0624
76
Trouble-
shooting
Error Meaning Correction
Full condensation tank (only when using an original condensate
container)
Empty condensation container.
Fault in condensation pump
Temperature sensor for heating (air conditioner)
Temperature sensor for cooling (air conditioner)
Fault in temperature sensor for UV low-pressure lamps
Temperature sensor for room
Panel switch for shoulder tanner
Air-vane switch does not switch on with fan running
Air-vane switch does not switch off 1 minute after fan switches off
Fault in front face tanner
77
Trouble-
shooting
Fault in centre face tanner
Fault in face tanner rear
Fault in face tanner side section
Panel switch on decorative panel on canopy
Panel switch of acrylic glass panel on sunbed base/side section
Emergency switch-off time exceeded
I²C bus fault
Switching error in series circuit of safety switch
Auxiliary controller
Heating controller
Error Meaning Correction
78
Trouble-
shooting
Face tanner controller
Speed control 1
Speed control 2
Audio amplifier
Channel selection
Real-time clock
Parameter memory
Incorrect equipment of controller
Error Meaning Correction
Index
79
Index
Index
A
Accent lights
Operation ........................................... 24
Replacing ............................... 58, 61, 62
Acrylic glass panels .................................... 14
Air condition
Condensate, filter mat ........................ 68
Operation ........................................... 28
B
Bed tolerance in room................................. 36
Body tanner, operation ............................... 26
C
Channel, operation ..................................... 33
Children ........................................................ 9
Circuit breakers........................................... 37
Cleaning schedules .................................... 38
Code
Defining a code with hand-held unit ... 72
Defining a code with operating panel . 71
Condensate, air condition ........................... 68
Contact ....................................................... 19
D
Deenergizing device.................................... 37
Disposal of lamps........................................ 16
E
Equipment................................................... 13
Error codes.................................................. 75
Export.......................................................... 13
Exposure schedule....................................... III
Eye injuries.................................................... 8
F
Face tanner, operation ................................ 25
Fan delay .................................................... 22
Fault codes.................................................. 75
Filter mats
Air condition, cleaning/replacing......... 68
Canopy, cleaning/replacing ................ 65
Shoulder tanner, cleaning/replacing... 66
Filter panels, cleaning ........................... 54, 57
Filter, lower section, cleaning...................... 63
Frequency ................................................... 35
Fusing ......................................................... 35
G
Global Service Division ................................. II
H
Hand-held unit, changing presettings .......... 72
I
INFO, operation........................................... 32
Intended use..................................................8
Interior lighting............................................. 50
L
Label..............................................................II
Load, maximum........................................... 36
Long-term consequences.............................. 9
M
Maintenance schedules...............................39
Minors............................................................9
N
Neck tanner, lamps ..................................... 46
O
Operator, important information .................... 8
Order numbers ................................39, 40, 41
Overview
Maintenance .......................................38
Operation............................................ 20
Index
80
Index
P
Palm, changing presettings ........................ 72
Plastic ......................................................... 15
Power consumption .................................... 35
Powerinput.................................................. 35
Preparation time ......................................... 22
Presettings.................................................. 70
Table .................................................. 73
R
Relamping instructions, general ................. 43
Room temperature, maximum .................... 36
S
Safety information.................................... III, 8
Settings at start........................................... 23
Shoulder tanner
Filter mats .......................................... 66
Lamps ................................................ 48
Operation ........................................... 27
Skin types ................................................... 17
Spare parts ................................................. 14
Start of tanning session .............................. 22
Sun screen.................................................. 17
Surround cooling, operation.................. 28, 29
Symbols ...................................................... 10
Cleaning ............................................. 12
Draining.............................................. 12
Ergoline key........................................ 10
Filter panel.......................................... 10
Filter/filter mat..................................... 12
High-pressure lamp ............................ 10
Hot surface ......................................... 10
Low-pressure lamp............................. 10
Press button ....................................... 11
Replacing ........................................... 12
Safety switch ...................................... 11
Starter................................................. 10
Visual inspection ................................ 12
T
Tanning instructions .................................... 16
Tanning times............................................... III
Technical data............................................. 35
Temptronic
Condensate, filter mat ........................ 68
Operation............................................ 28
Termination of tanning ................................ 23
Troubleshooting .......................................... 75
Type label...................................................... II
U
UL Standard ................................................13
UV high-pressure lamps
Canopy ...............................................55
Side section ........................................52
UV lamps, maintenance schedule ............... 41
UV low-pressure lamps
lower section.......................................44
Neck tanner ........................................46
Shoulder tanner ..................................48
V
Ventilation....................................................17
Voice Guide, operation................................ 31
Voltage ........................................................35
Volume, operation .......................................34
81
Limited Warranty
Warranty
SUN Ergoline – Limited Warranty
SUN Ergoline warrants its products to be free from defects in materials
and workmanship under intended normal use as described in the unit's
Operation and Instruction Manual, for a period of three (3) years from
date of sale.
This Limited Warranty applies only to the original purchaser of the equipment through SUN Ergoline or its authorized dealer or distributor, and is
not transferable.
SUN Ergoline obligations under this warranty are limited to repair or replacement of any defective part without charge for that part to the original
purchaser, with the following exceptions:
A. Fluorescent lamps are warranted against defects for a period of thirty
(30) days from date of sale.
B. Only parts obtained through SUN Ergoline, its authorized dealers or
distributors may be used. Transportation costs for parts shipped to the
consumer and the return of defective parts to SUN Ergoline are not included.
C. Labor will be furnished without charge for ninety (90) days from date
of purchase only. All labor and related charges must be authorized by
SUN Ergoline prior to start of repairs, and must coincide with SUN
Ergoline established rates and time allotment policy.
D. Acrylic: Refer to Manufacturer's Acrylic Warranty Policy.
It is imperative that the original customer completes and returns the enclosed warranty card within 10 days after purchase to insure valid registration and coverage for potential claims.
If the warranty card is not registered, proof of purchase from SUN
Ergoline or its authorized dealer or distributor will be required prior to any
consideration on warranty claims. This could result in service delays.
This warranty is extended to the individual or legal entity, whose name
appears on the warranty registration card filed with SUN Ergoline, or
whose name appears on the original sale document and may not be
transferred to any other individual or legal entity.
This warranty does not apply to any failure of the product, or any parts of
the product due to alterations, modifications, misuse, abuse, accident,
improper maintenance, improper installation, acts of God or if the serial
number on the product has been removed, altered or defaced. Adequate
packaging must be used for returned goods to prevent freight damage.
There are no warranties which extend beyond the description on
the face hereof. There is no express or implied warranty of fitness
of merchantability.
The remedies provided in this limited warranty are the exclusive remedies provided to the purchaser by SUN Ergoline and are provided in substitution of all other remedies. Consequential and
incidental damages are excluded.
No person, firm or corporation is authorized to obligate SUN Ergoline for
any liability in connection with the sale or use of these goods.
82
Acrylic Warranty
Warranty
Limited Acrylic Warranty
SUN Ergoline warrants its acrylic sheets to be free from defects in material and workmanship, under intended normal use, for a period of one (1)
year from date of sale of the tanning bed. Due to the tanning lotions, cosmetics, disinfectant and improper cleaners used on tanning surfaces that
cannot be controlled by SUN Ergoline, after the first thirty (30) days of
warranty period. Acrylic will be subject to a prorated cost to the consumer
on breakage.
SUN Ergoline obligations do not include transportation charges on replacement acrylic.
SUN Ergoline assumes no liability for the cost of removing defective
sheets or installing replacement sheets, nor for damage to persons or
property.
To make a claim, contact an authorized dealer or distributor of SUN
Ergoline or Global Service Division with the model number, the serial
number, and the date of purchase of the bed in which the acrylic will be
used.
There are no warranties which extend beyond the description on
the face hereof. There is no express or implied warranty of fitness
or merchantability.
The remedies provided in this limited warranty are the exclusive remedies provided to the purchaser by SUN Ergoline and are provided in substitution of all other remedies. Consequential and
incidental damages are excluded.
Global Service Division
#1 Walter Kratz Drive
Jonesboro, Arkansas 72401
(800) 445 0624
83
Warranty Claims
Warranty
Warranty Claims
Policy & Procedures
1. When to file a Warranty Claim:
In the event that your tanning system is not functioning properly under intended normal use as described in the unit's Operation an Instruction
Manual, you may then have established cause to file a Warranty Claim.
NOTE: Both the tanning system and legal registered owner
must meet the criteria established under SUN Ergoline Limited Warranty as described in this manual before any Warranty
Claim will be considered.
2. Where to call to place a Warranty Claim:
SUN Ergoline is supported nationwide by an extensive dealer/distributor
network through whom the majority of our units are sold. These dealers/
distributors are required by contract to stock sufficient parts to meet the
various warranty and nonwarranty needs of their customers.
Therefore, in order for you to properly file a Warranty Claim, you must locate the name and phone number of the dealer/distributor through whom
you purchased your unit. Normally this information can be easily located
either on your paid invoice or other proof of purchase documentation that
you received when taking delivery of the unit.
Next, notify the dealer/distributor of the serial number, model number and
date unit was purchased. This will initiate the Warranty Claim process.
Upon determination of the problem, your dealer/distributor can then supply you with the part(s) and proper instructions to return your unit to work-
ing order.
Each dealer/distributor has their own internal procedure for handling
Warranty Claims and credits.
NOTE: SUN Ergoline, the manufacturer, does not involve itself in the direct handling of a Warranty Claim except where mitigating circumstances
apply and where required by law.
Parts Warranty Claim/Credit Review
1. Customer calls SUN Ergoline and notifies the Service Department of
problem
2. SUN Ergoline Service Department determines course of action.
3. SUN Ergoline ships part and R.A.I. to customer freight collect and bills
customer on net30 basis for part only.
4. Customer, within 15 days of receiving new part, returns defective part
to SUN Ergoline along with R.A.I.
5. Upon receipt of defective part and R.A.I., SUN Ergoline issues customer a credit invoice which offsets original bill. Customer's account is
returned to zero balance concerning this claim.
NOTE: If part returned to SUN Ergoline proves to be operational and not defective, or if product code numbers on part
do not correspond with individual unit date on file with SUN
Ergoline, then a 30% restocking fee will be charged in addition to the retail purchase price of part.
84
Lifetime Warranty
Warranty
Acknowledgment of the Agreement is not required for acceptance of the
foregoing stipulations.
Labor Warranty Claim/Credit Procedures
SUN Ergoline furnishes labor without charge for a period of 90 days from
date of purchase. All labor and related charges must be authorized by
SUN Ergoline prior to start or repairs, and must coincide with SUN
Ergoline established rates and time allotment policy.
Please contact our Service Department for authorization and billing procedures.
Limited Lifetime Warranty
SUN Ergoline warrants specific individual components of the Competition Tanning Systems against defects in materials and workmanship for
the life of the product. Coverage is limited to units purchased after November 1, 1994.
This warranty is restricted by the following components only:
• Steel Back Panels
• Structural Steel Frame Components
• Exterior Steel Body
NOTE: Components are warranted on an individual basis
and not as they may effect the complete product.
Warranty coverage does not include cosmetic abnormalities such as
scratches, nicks, dents, oxidation of paint or other cosmetic changes that
do not interfere with the designed function of the unit.
This warranty does not include failure of the product due to alteration,
modifications, misuse, abuse, improper maintenance, improper installation or repair.
This warranty is not transferable and is only applicable to the original purchaser named on a completed and registered warranty record at SUN
Ergoline headquarters.
SUN Ergoline obligations do not include transportation charged on the
shipping of new components to the customer or on the return of defective
components of the manufacturer. All freight charges must be paid by the
customer.
There are no warranties which extend beyond the description on the face
hereof. There is no express or implied warranty of fitness or merchantability.
The remedies provided in this limited warranty are the exclusive remedies provided to the purchaser by SUN Ergoline and are provided in substitution of all other remedies. Consequential and incidental damages are
excluded.
Notice: Any misuse, abuse, modification, alteration, improper maintenance, improper installation, etc. of this product or
its intended use will subject said party to direct responsibility
and liabilities for any and all consequences resulting from
such action. Furthermore, such actions will void all warranties
and may relieve SUN Ergoline of any liabilities relating to said
product.
Separate here
Separate here
Loading...
