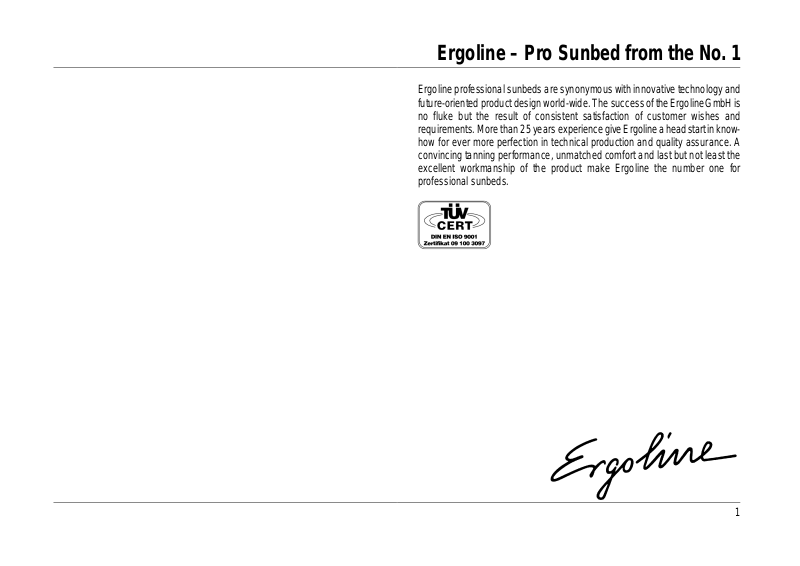

Ergoline – Pro Sunbed from the No. 1
r
Ergoline professional sunbeds are syn onymous with innovative tec hnology and
future-oriented product desi gn world-wide. The success of the Ergol ine G mbH i s
no fluke but the result of consistent satisfaction of customer wishes and
requirements. More than 25 years experienc e give Ergoli ne a he ad star t in kn owhow for ever more perfection in technical production and quality assurance. A
convincing tanning performance, unmatched comfort and last but not least the
excellent workmanship of the product make Ergoline the number one fo
professional sunbeds.
1
Ergoline – Pro Sunbed from the No. 1
2
Instructions for Use
Ergoline Classic 475
Order No.: 86938 / Index ”_” / en / Edition 03.2001
Equipment number
Please enter the equipment number here. This makes handling easier for after-sales service,
repairs and spare parts inquiries (refer to section 2.1).
The information in this manual is subject to technical modification !
Reprinting or duplication - in whole or in part - is not permitted without prior approval and
reference to the source.
3
Foreword
Dear Customer,
In selecting an Ergoline professional sunbed you have acquired a high-performance technical
appliance featuring advanced technology. We have manufactured your pr ofess ional sunbed with
the utmost care and precision and it has been subjected to numerous quality and safety
inspections to guarantee trouble-free and safe and reliable operation. However, you also can do
a lot to ensure prolonged satisfaction with your professional sunbed. Please read all the
information carefully. If you follow the tips and information provided in the instructions for use,
your professional sunbed will give you much joy and pleasure.
We will be glad to answer any questions you may have.
Your
Ergoline GmbH
4
•= Please read and observe the information in these instructions for use. You will avoid
r
accidents, retain the manufacturer guarantee and acquire a fully functional and ready to
use professional sunbed.
•= This sunbed is designed and built exclusively for the intended purpose. Any use above
and beyond this will be construed as improper use. The manufacturer will not be liable
for any damages incurred as a result. The owner bears the sole risk for this.
•= The use for the intended purpose also includes the instructions, operating, maintenance
and safety conditions prescribed by the manufacturer. The professional sunbed may
only be operated, maintained and repaired by persons familiar with these instructions
and aware of the risks involved.
•= Please also observe the generally valid legal and other provisions and regulations –
including those of the country in which the sunbed is operated – as well as the pertinent
laws on environmental protection.
•= Attention must always be paid to the local provisions issued by the employers’ liability
insurance association or other supervisory authorities.
•= Unauthorized modifications to the professional sunbed exclude liability of the
manufacturer for any damages incurred as a result.
•= Do not modify, convert or obstruct the air inlets and outlets to and from the sunbed.
Liability of the manufacturer for any resultant damage is excluded.
Introduction
Meaning of the symbols
Hazard warnings:
Danger!
This safety sign – warning triangle with the heading ”Danger” –tells you that there is a
hazard for persons (danger to life, risk of injury).
e.g.:
Important information:
Warning!
Danger of electric shock!
Caution!
This safety sign – warning triangle with the heading ”Attention” –tells you that there is a
hazard for equipment, material and the environment.
Note!
This symbol does not warn of hazards but merely points out information for bette
understanding of the processes.
5
Contents
1 General
1.1 Directives
1.2 Intended Use
1.3 Export
1.4 Safety
1.5 Care and Maintenance
1.6 General tanning instructions
1.6.1 General information
1.6.2 General safety instructions
1.7 Recommended tanning times
2 Description
2.1 Equipment type
2.1.1 Name plate
2.1.2 Number plate
2.1.3 The position of the name plate / number plate
2.2 Description of the sunbed
2.3 The phases of the tanning programme
2.4 Settings
2.5 Display
2.6 Decorative lighting
2.7 Sound system
3 Operation
3.1 Starting the tanning programme
3.1.1 Switching on UV Lamps
3.1.2 Switching off the UV lamps before ending the programme
3.1.3 Surround Cooling
3.1.4 Air conditioning
3.1.5 Power switching
3.1.6 Sound System
4 Maintenance
4.1 Maintenance intervals
4.2 Care and maintenance tasks, Cleaning
4.3 Disconnecting the sunbed from the mains/preventing from switching on
4.3.1 Disconnecting from mains
4.3.2 Preventing from switching on again
4.4 Replacing and cleaning lamps
4.4.1 Cleaning/replacing UV low pressure lamps in the lower section
4.4.2 Cleaning/replacing the UV low pressure lamps in the side
section
4.4.3 Cleaning/replacing the UV low pressure lamps in the canopy
4.4.4 Switching decorative lighting on/off changing/cl eanin g
4.5 Changing filter mats
4.5.1 Changing filter mats in the lower section
4.5.2 Changing the filter mat in the canopy
4.6 Maintenance of the air conditioning unit
4.6.1 Emptying the overflow tank
4.6.2 Cleaning the sieve cylinder and lamellas
4.7 Settings
4.7.1 Setting mode
5 Fault, cause and remedy
5.1 Fault table
5.2 Fault indications in the display
6 Technical data
6.1 Output
6.2 Dimensions
6.3 Lamps fitted
6
7 After-sales service
8 Appendix
8.1 Environmental declaration
8.1.1 The JK Corporate Group
8.2 Environmental regulations
8.2.1 Disposing of UV low pressure lampsand batteries
8.3 Ergoline Sound System
8.3.1 Important information on use (GEMA)
9 Warranty
10 EU Conformity
11 Index of keywords
Contents
7
8
General
1 General
1.1 Directives
1.2 Intended Use
1
This professional sunbed has been manufactured in conformity with the following
directives:
•= EC Directive ”Electromagnetic compatibility”” 89/336/EWG
(in conformity with the last amended version)
•= Low-Voltage Directive 72/23/EWG
(in conformity with the last amended version)
Note!
•= In some cases, depending upon the local supply company, the professional
sunbeds may transfer interferences into the supply network in the building which
affect the circular control system (TRA). This may cause malfunctions in such
things as night storage radiators.
•= If the professional sunbeds cause this type of interference, the sunbed operator
is responsible for installing an audio frequency blocking filter in the building
wiring system. Please consult your electrical company. They will be familiar with
the technical conditions for connecting as they are applied by your local power
supply company. They will be able to match the audio frequency to the main
supply of your power supply company.
•= This professional sunbed is for tanning one adult at a time.
•= The sunbed base is designed for a maximum weight of 135 kg.
135
Kg
2
3
4
5
6
7
8
9
04000 / 0
10
11
9
1
A
2
3
4
5
6
7
General
1.3 Export
We must point out that these sunbeds are intended for the European market only and
may not be exported to the USA or Canada and operated there. No l iability will be
accepted if this warning is ignored. We expressly point out that any violation of this may
subject the exporter and/or operator to a high risk of liability.
1.4 Safety
•= This sunbed may only be assembled and erected by properly instructed/trained
technical personnel.
•= All hazard and safety warnings affixed to the sunbed must be observed.
•= None of the safety devices or safety warnings possibly affecting the safe
operation of the professional sunbed may be removed or taken out of operation.
•= The professional sunbed must only be operated if it is in perfect working order.
•= The professional sunbed has to be controlled by the Ergoline MCS-VI coin
device or a compatible timer (in conformity with the standard EN 60335-2-27).
This timer has to be constructed in such a fashion that the professional sunbed
is automatically shut off no later than <110% of the tanning time selected even if
the control mechanism fails.
1.5 Care and Maintenance
Danger!
When doing maintenance work that requires opening up the professional sunbed, it has
to be disconnected from the main power supply. Refer to Section 4.3.1.
Care and maintenance play a major part in ensuring that the professional sunbed
satisfactorily meets the requirements made of it. It is therefore essentia l tha t you obser ve
the prescribed maintenance intervals and that all maintenance work and cleaning be
done carefully (refer to section 4.2).
replaced after the work has been done.
Please note that the professional sunbed must be inspected by our after-sales
department or a licensed technical company every 12 months (sta rting f rom p uttin g it into
service) in order to keep it in proper operating condition.
Caution!
•= Only genuine Ergoline parts of the same type should be used. The use of other
parts will invalidate CE Conformity!
•= In the event of damage or injury demonstrably resulting from the use of non-
genuine Ergoline spare parts, the manufacturer shall be excluded from all
liability.
ny protective devices/safeguards have to be
8
9
10
Caution!
The safety, reliability and performance of the professional sunbed will only be
guaranteed if:
•= It has been assembled and electrically connected in conformity with the German
VDE regulations and it is upgraded or repaired by technical personnel
•= and the professional sunbed is used in accordance with these operating
instructions.
•=
11
10
General
A
1.6 General tanning instruction s
1.6.1 General information
Who can get a tan?
Anyone who can get a tan in natural sunshine. People with sensitive skin will tan more
easily and without risk of burning because the amount of radiation can be accurately
measured on Ergoline sunbeds.
What are the recommended tanning times ?
lthough there is virtually no risk of burning using UV method of tanning, you should
initially pay attention to the sensitivity of individual skin types.
Risk of skin injuries and skin diseases!
Keep to the recommended tanning times. Refer to section 1.7.
How many tanning sessions are necessary?
Here too, it depends upon the tanning ability of the skin type – just as with natural
sunlight under a clear sky. As a general rule, skin that tans normally will have a beautiful
even tan after 3 to 5 sessions of between 4 to 10 minutes. You should tan every second
day. To retain your tan once it has been achieved, between 1 and 2 sessions per week
will be sufficient.
Should I use a suntan cream?
No! Cosmetic suntan creams with a sun protection factor are intended to filter out the
aggressive rays of the sun. Rays of this type are present in Ergoline sunbeds in
extremely small quantities so that this type of protection is quite unnecessary. Instead,
the skin should be thoroughly cleaned and dried before each tanning session.
We particularly recommend treating the skin with the range of special skin-care products
from Ergoline. Before tanning (pre sun) and after tanning (après sun). This product range
contains a special combination of selected active ingredients: aloe vera extract, jojoba
oil, D-panthenol and elastin. It cleans the skin, helps to slow down the aging p roces s and
adds moisture. This will leave the skin soft, smooth and supple. Th ese lotions can be
pleasantly and easily massaged, penetrating deeply without leaving any residue.
Ask your Ergoline agency about the Ergoline range of products.
Heat erythema
In certain cases, heat erythemas may occur with people with sensitive skin, i. e. the skin
becomes red as a result of the residual infrared radiation (heat radiation). This reddening
is not sunburn and will not impair your health. You should reduce tanning times to enable
the skin to become more gradually accustomed to the tanning process.
1
2
3
4
5
6
7
8
9
10
11
11
General
1
2
3
4
5
6
7
8
9
1.6.2 General safety instructions
Carefully read Ergoline’s tips for proper tanning.
•= Do not use the professional sunbed if the timer is faulty or the filter panels are
broken.
•= Particular care must be taken by individuals who are especially sensitive to UV
radiation and also with persons taking certain medicines or using certain
cosmetics.
•= Remove cosmetics in plenty of time before tanning and do not use any sun
screening agents.
•= Do not use the sunbed if you are taking medicines that make the skin more
sensitive to UV rays; if in doubt, consult your physician.
•= Consult your doctor if persistent swellings, sores or pigmented moles appear on
the skin.
•= Always use the protective UV goggles provided. Persons who have undergone
eye lens surgery must always wear UV barrier goggles to avoid any risk to the
eyes.
•= Do not tan any part of the body more than once in 48 hours. Do not additionally
sunbathe in the natural sun on the same day.
•= Observe the recommendations given with reference to exposure times and
exposure intervals (refer to section 1.7).
•= UV radiation from the sun or UV devices may damage the skin or eyes. These
biological effects will depend upon the sensitivity of the individual’s skin.
•= Sunburn may occur after excessive exposure. Excessive and frequently
repeated exposure to ultraviolet light from the sun or UV devices may result in
premature skin aging and also produce the risk of skin tumors.
•= If unprotected, the surface of the eye may be subject to inflammation and in
some cases excessive exposure may damage the retina. This may result in
cataracts forming after many repeated exposures.
•= The maximum permissible number of exposures per year is 60, 43 or 33 (refer to
section 1.7).
1.7 Recommended tanning times
Risk of injury to skin and eyes
•= Some medicines for internal and external application are capable of significantly
increasing the skin’s sensitivity to UV rays. Examples include: antibiotics,
sulphonamides, psoralen (such as melanin, vitamin-A acid and derivatives).
During and after the application of such similar preparations, we recommend that
you avoid tanning – in natural sun, too. In cases of doubt, consult your doctor.
•= Close your eyes while tanning and use the protective UV barrier goggles
provided (Ergoline product specification no: 84592)!
•= Never use the professional sunbed if a filter panel is missing or damaged.
Risk of skin damage and skin disease
•= The interval between two tanning sessions must be at least 48 hours.
•= A deepening tan will require longer exposure times (= tanning duration) and
once a certain depth of tan is reached you will find that no further progress will
be achieved. However, exposure time must never be extended at random within
the permissible exposure durations (refer to the table). Without damaging health,
this means that the final depth of tan will be determined by skin type.
10
11
12
General
Skin types fair (II) normal (III) dark (IV)
Tanning effect normal fast fast
Sunburn (sensitivity to the sun) usually rarely rarely
Maximum period of exposure to natural sunlight (without sunscreening agents)
until sunburn in minutes
Maximum number of tanning sessions per year
approx. 10 - 20 approx. 20 -30 approx. 40
60
(=15 kJ/m
2
)
43
(=15 kJ/m2)
33
(=15 kJ/m2)
1
2
3
Model Equipment type Ergoline CLASSIC 475 turbo power
1. session 4 8 4
2. session 4 9 4
3. session 5 10 5
4. session 5 11 6
5. session 6 12 7
Recommended tanning time1) in minutes,
time between tanning sessions
at least 48 hours
The specified tanning times refer to the lamps fitted as described (refer to section 6.3).
1)
6. session 6 13 8
7. session 7 15 9
8. session 7 16 10
9. session 8 17 11
10. session 8 18 12
11. session 9 19 13
12. session 10 21 14
Ergoline SR turbo power
Ergoline SD power 25
UV type 4 UV type 3 UV type 4 UV type 3 UV type 4 UV type 3
Ergoline R plus turbo power
Ergoline SD power 25
Ergoline SR turbo power
Ergoline SD power 25
Ergoline R plus turbo power
Ergoline SD power 25
8
10
12
14
16
18
20
22
24
26
28
30
Ergoline SR turbo power
Ergoline SD power 25
4 8
4 10
5 13
6 16
7 18
8 21
9 24
10 27
11 29
12 32
13 35
14 38
Ergoline R plus turbo power
Ergoline SD power 25
4
5
6
7
8
9
10
11
13
1
2
3
4
5
6
General
7
8
9
10
11
14
Description
2 Description
2.1 Equipment type
1
2.1.1 Name plate
5
1
The factory number (1), the equipment number (2), the output
data (3) and the UV type (4) are given on the name plate.
In the event of faults or should you have any questions on spare
parts, always state the equipment number (2).
2
3 4
00219 / 1
2.1.2 Number plate
The equipment number (2) is also given separately on a second
plate (6).
2.1.3 The position of the name plate / number
plate
6
Typ Fabr. Nummer I Type Serial-Number//Spannung Voltage/ Lstg Input/ UV-Typ
The name plate (5) and the number plate (6) are stuck into the
canopy handle.
400-415V 3N~ 50Hz511 35 100 546573 13500 W
5
4
04010 / 0
2
3
4
5
6
7
8
9
10
11
15
1
Description
2.2 Description of the sunbed
2
3
4
5
6
7
8
9
1011 6
4
3
1
21312
14
15
5
1. Air inlet canopy
2. Operating elements
3. Decorative canopy
4. Central air outlet vent
5. Sunbed lower section (component board, fan, etc.)
6. Decorative canopy lighting
7. Intermediate panel
8. Acrylic glass panel
9. Front panel with air inlet
10. Lower section, UV low-pressure lamps (17 pieces)
11. Air nozzle (surround cooling, foot end)
12. Shoulder tanner with UV low pressure lamps (4) and
spaghetti lamps (9)
13. Canopy with UV low pressure lamps (13) and
spaghetti lamps (35)
14. Surround cooler for the head
15. Control elements of the sound system
1)
10
11
16
7
8
9
04001 / 0
1)
optional
Description
A
2.3 The phases of the tanning
programme
The tanning programme of the equipment includes
•= tanning time
•= cooling time
Tanning time
After the warm-up phase is over, all of the equipment
components are ready for operation and the selected
tanning time begins.
Cooling time
t the end of the tanning time, some equipment
components continue to run such as the fan in order to
cool off the sunbed.
2.4 Settings
The settings can be changed with the buttons on the
control panel (1) as described in section 4.7.1.
1
04002 / 0
2.5 Display
1
Depending upon the sunbed mode, the following will
appear in the display (1):
•= The 7-segment display flashes in the display
when the the sunbed is in standby mode.
•= During the tanning process the tanning time or
the cooling time is displayed in minutes. The
counting method of the times displayed depends
upon the control device fitted.
•= Coin device: time display counting upwards
04003 / 0
1
2
3
4
5
6
7
8
9
10
11
17
Loading...
