Equip 650407 User Manual

13"-55" Articulating TV Wall Mount Bracket

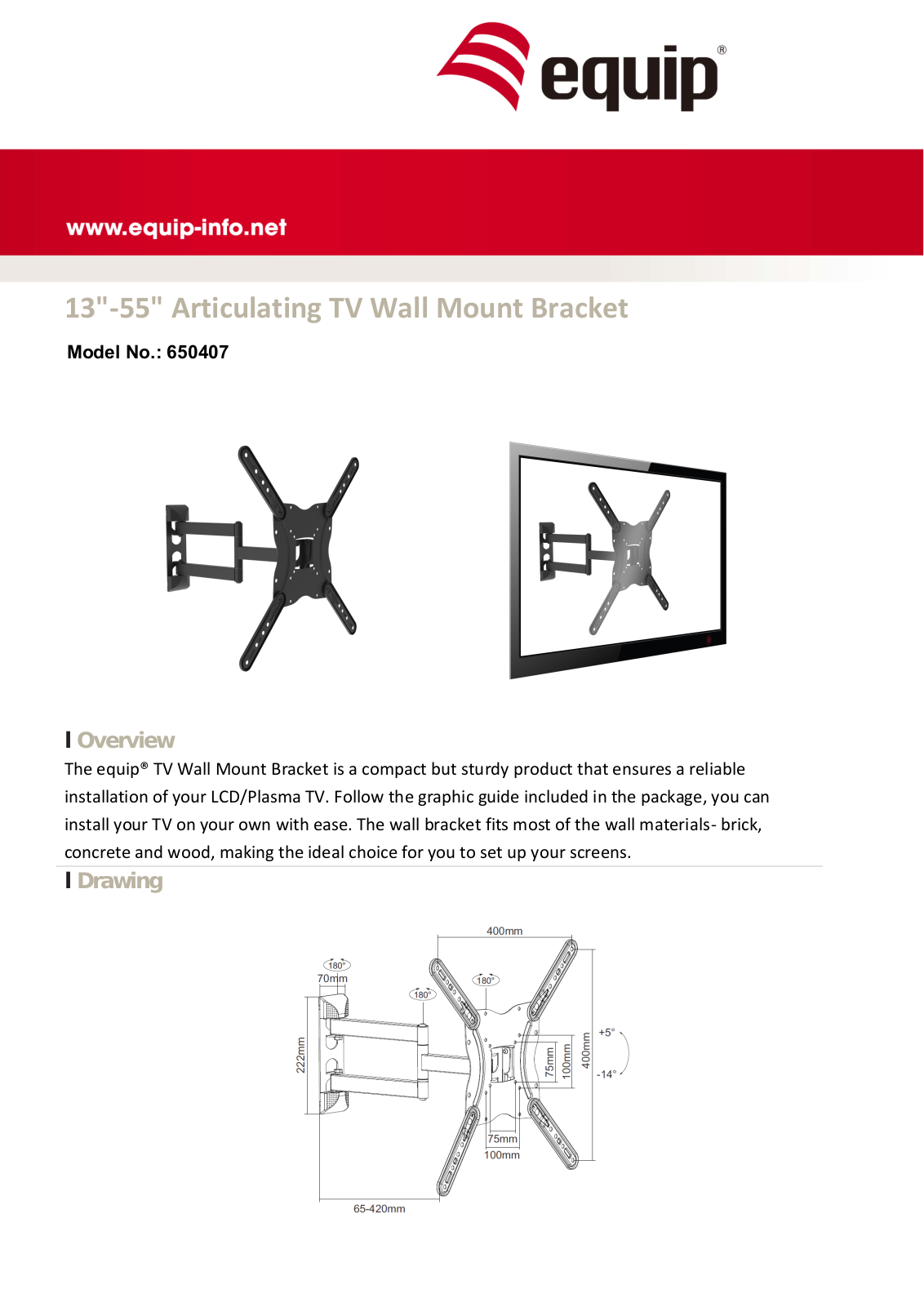

l Overview

The equip® TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable
installation of your LCD/Plasma TV. Follow the graphic guide included in the package, you can
install your TV on your own with ease. The wall bracket fits most of the wall materials- brick,
concrete and wood, making the ideal choice for you to set up your screens.

l Drawing

Model No.: 650407

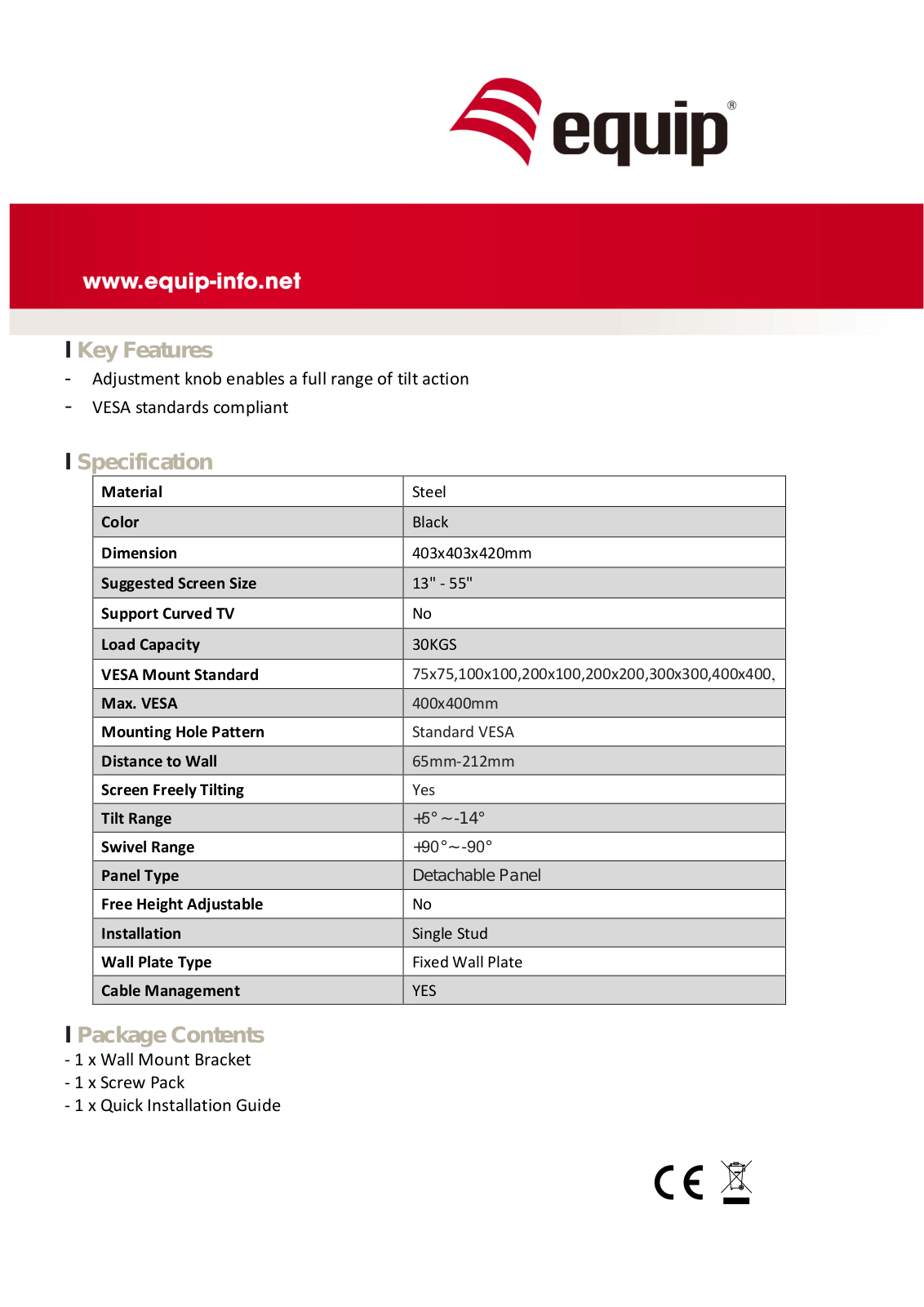

l Key Features

- Adjustment knob enables a full range of tilt action

- VESA standards compliant

l Specification

Material

Steel

Color

Black

Dimension

Suggested Screen Size

13" - 55"

Support Curved TV

No

Load Capacity

30KGS

VESA Mount Standard

75x75,100x100,200x100,200x200,300x300,400x400,

Max. VESA

400x400mm

Mounting Hole Pattern

Standard VESA

Distance to Wall

Screen Freely Tilting

Yes

Tilt Range

Swivel Range

Panel Type

Detachable Panel

Free Height Adjustable

No

Installation

Single Stud

Wall Plate Type

Fixed Wall Plate

Cable Management

l Package Contents

- 1 x Wall Mount Bracket

- 1 x Screw Pack

- 1 x Quick Installation Guide

403x403x420mm

65mm-212mm

+5° ~ -14°
+90° ~ -90°

YES
