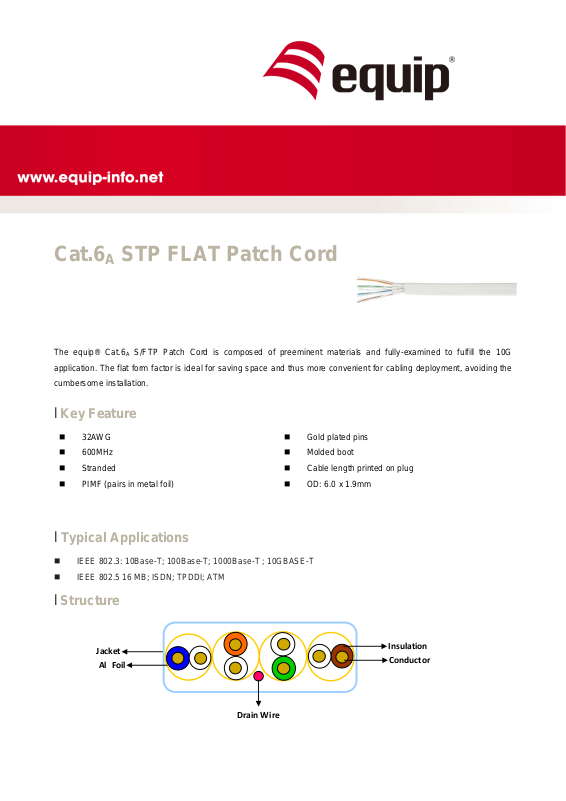

Cat.6A STP FLAT Patch Cord
The equip® Cat.6A S/FTP Patch Cord is composed of preeminent materials and fully-examined to fulfill the 10G
application. The flat form factor is ideal for saving space and thus more convenient for cabling deployment, avoiding the
cumbersome installation.
l Key Feature
32AWG
600MHz
Stranded
PIMF (pairs in metal foil)
Gold plated pins
Molded boot
Cable length printed on plug
OD: 6.0 x 1.9mm
l Typical Applications
IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T ; 10GBASE-T
IEEE 802.5 16 MB; ISDN; TPDDI; ATM
l Structure
Insulation
Conductor
Jacket
Al Foil
Drain Wire
Page 2
l Specification
Conductor
AMG
32AWG
Material
BC
Size
7/0.08 ± 0.008 mm
Insulation
Thickness
0.18 mm
Material
FM-PE+SKIN
OD
0.60 ± 0.05mm
Face Inside
AL/Mylar
Coverage
100%
Overlap
25% MIN
Drain
Material
TC
Size
7/0.08 ± 0.008 mm
No
4P: 1.Orange* White
2. Green*White
3. Blue*White
4. Brown*White
Jacket
Thickness
0.51mm
Material
Half Matte PVC Low Toxic
Colour
Gray (PT427C)
OD
(1.90 ± 0.15) * (6.0 ± 0.20) mm
Page 3
l Ordering Information
white
red
green
yellow
0.5m
607817
607827
607847
607867
1m
607810
607820
607840
607860
2m
607811
607821
607841
607861
3m
607812
607822
607842
607862
5m
607814
607824
607844
607864
10m
607816
607826
607846
607866
Packing: equip zip bag
