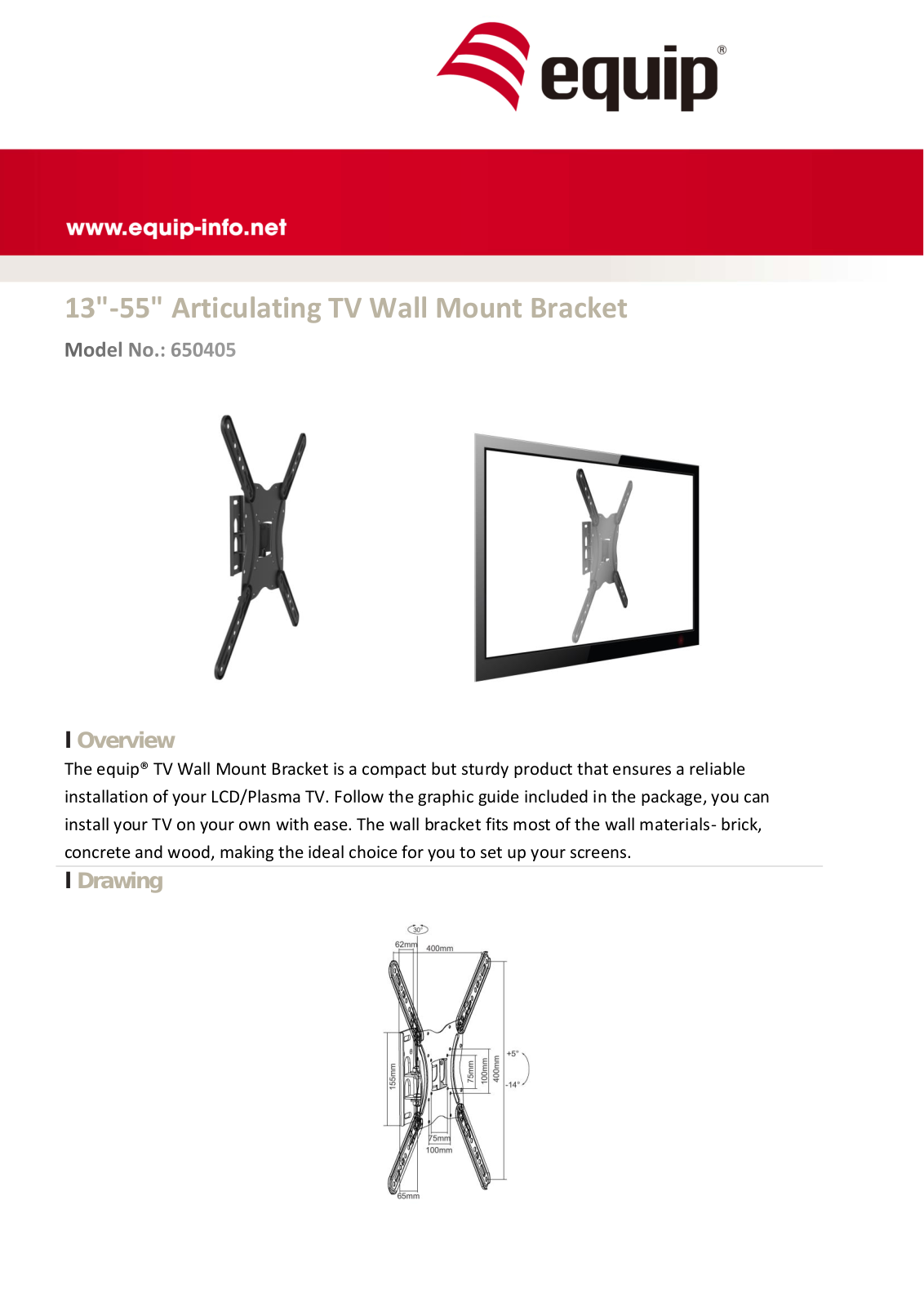

Equip 650405 User Manual

13"-55" Articulating TV Wall Mount Bracket
l Overview
The equip® TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable installation of your LCD/Plasma TV. Follow the graphic guide included in the package, you can install your TV on your own with ease. The wall bracket fits most of the wall materials- brick, concrete and wood, making the ideal choice for you to set up your screens.
l Drawing

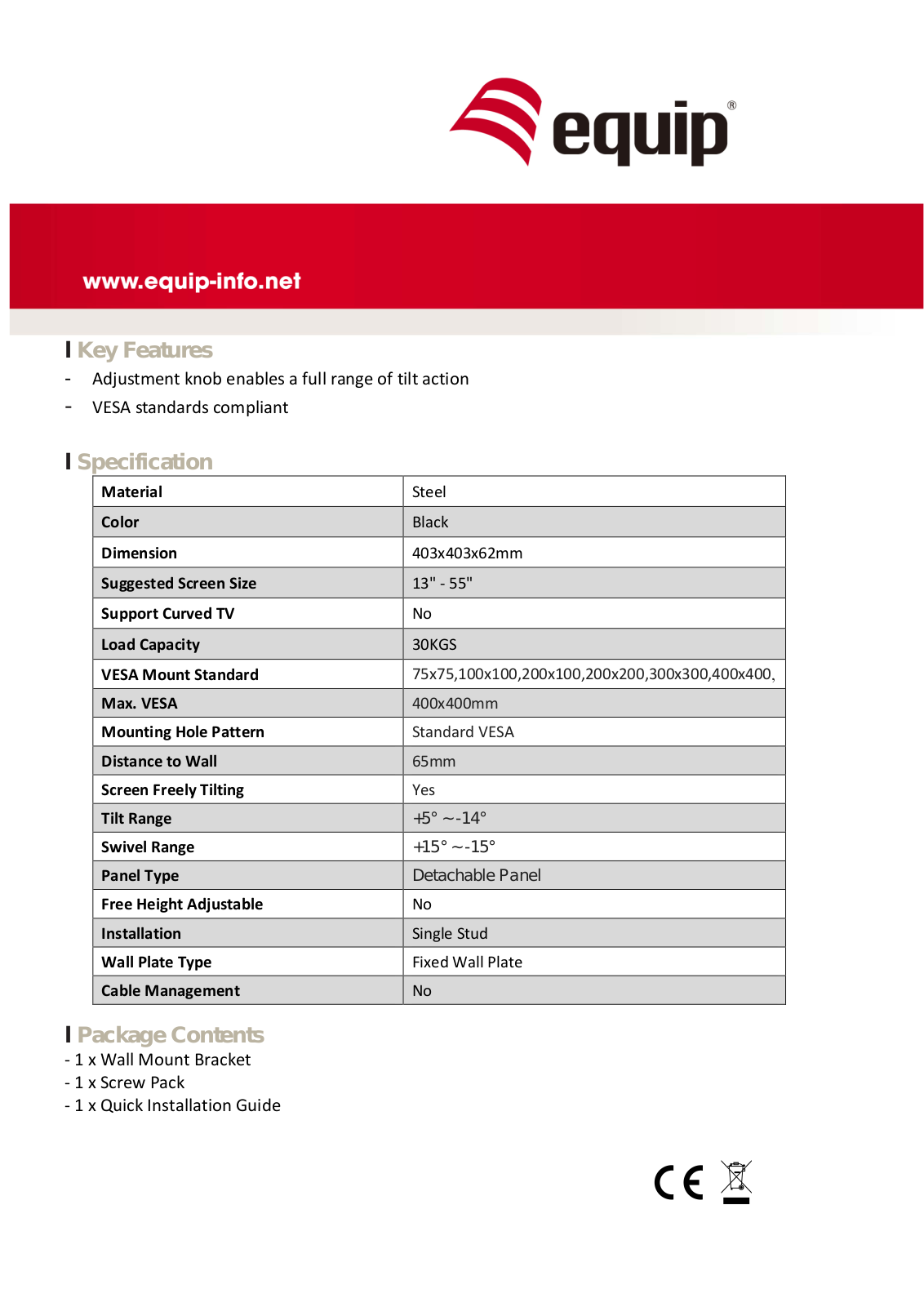

l Key Features
- Adjustment knob enables a full range of tilt action
- VESA standards compliant
l Specification
Material
Steel
Color
Black
Dimension
403x403x62mm
Suggested Screen Size
13" - 55"
Support Curved TV
No
Load Capacity
30KGS
VESA Mount Standard
75x75,100x100,200x100,200x200,300x300,400x400,
Max. VESA
400x400mm
Mounting Hole Pattern
Standard VESA
Distance to Wall
65mm
Screen Freely Tilting
Yes
Tilt Range
+5° ~ -14°
Swivel Range
+15° ~ -15°
Panel Type
Detachable Panel
Free Height Adjustable
No
Installation
Single Stud
Wall Plate Type
Fixed Wall Plate
Cable Management
No
l Package Contents
- 1 x Wall Mount Bracket
- 1 x Screw Pack
- 1 x Quick Installation Guide
