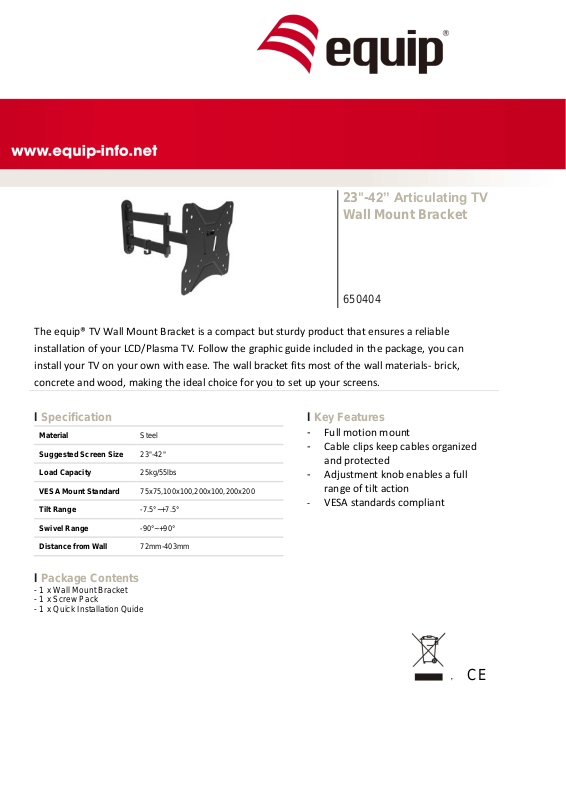

Equip 650404 User Manual

23"-42” Articulating TV
Wall Mount Bracket

650404

The equip® TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable

installation of your LCD/Plasma TV. Follow the graphic guide included in the package, you can

install your TV on your own with ease. The wall bracket fits most of the wall materials- brick,

concrete and wood, making the ideal choice for you to set up your screens.

l Specification

Material

Steel

Suggested Screen Size

23"-42"

Load Capacity

25kg/55lbs

VESA Mount Standard

75x75,100x100,200x100,200x200

Tilt Range

-7.5°~+7.5°

Swivel Range

-90°~+90°

Distance from Wall

72mm-403mm

l Key Features

- Full motion mount

- Cable clips keep cables organized

and protected

- Adjustment knob enables a full

range of tilt action

- VESA standards compliant

l Package Contents

- 1 x Wall Mount Bracket

- 1 x Screw Pack

- 1 x Quick Installation Quide

， CE
