Equip 650370 User Manual

32"-65" Ceiling Mount Dual Screen TV Bracket

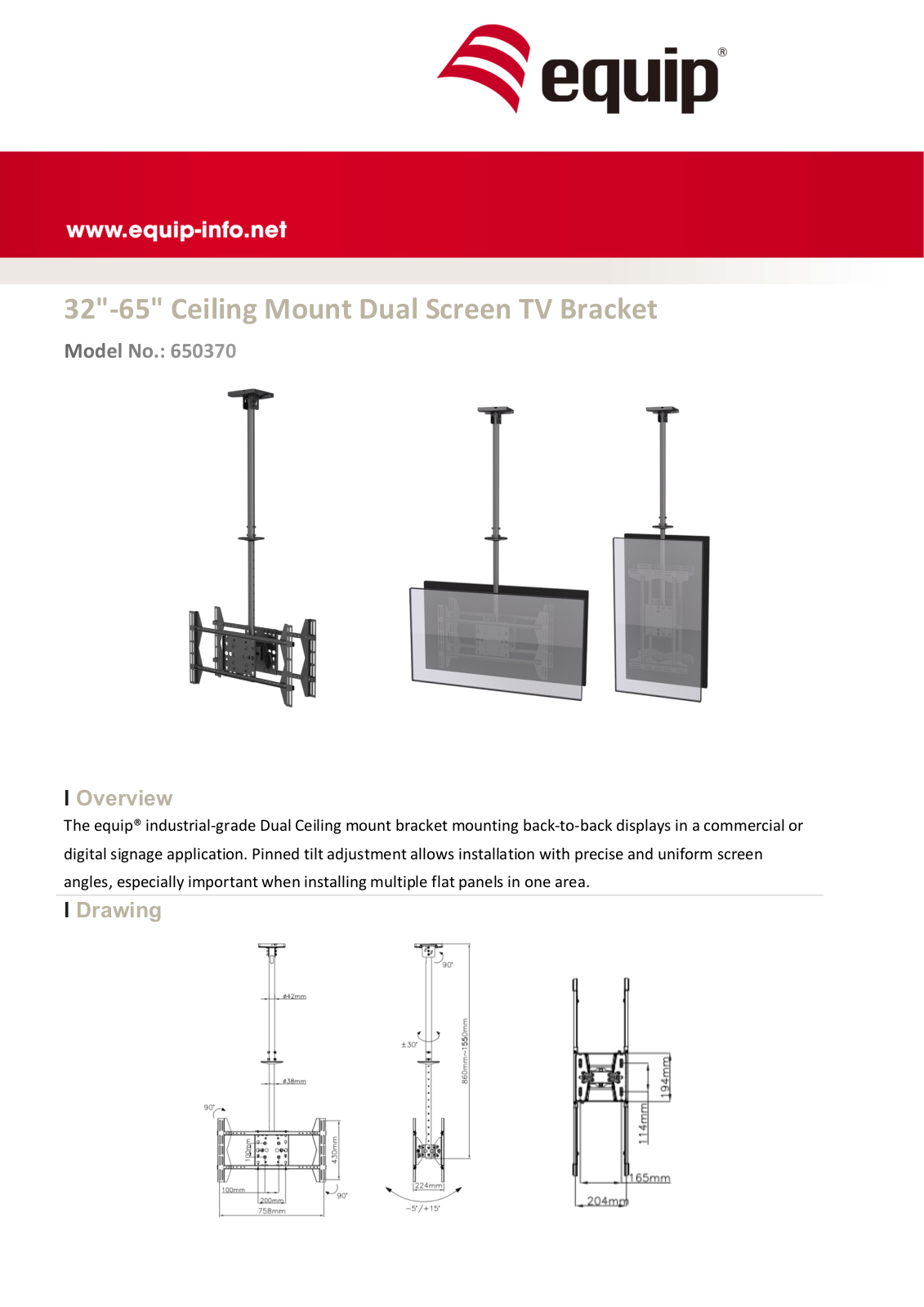

l Overview

The equip® industrial-grade Dual Ceiling mount bracket mounting back-to-back displays in a commercial or

digital signage application. Pinned tilt adjustment allows installation with precise and uniform screen

angles, especially important when installing multiple flat panels in one area.

l Drawing

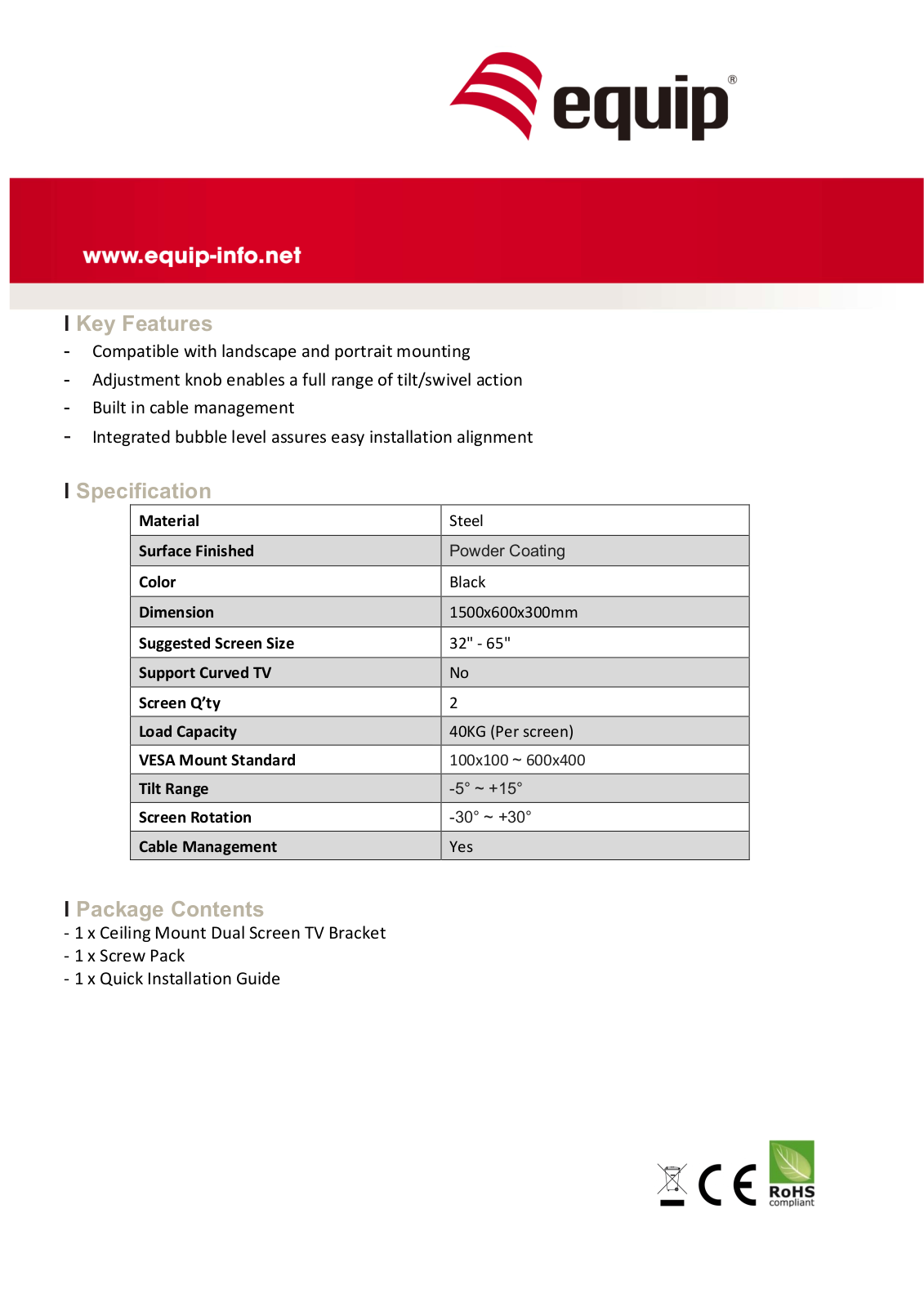

l Key Features

- Compatible with landscape and portrait mounting

- Adjustment knob enables a full range of tilt/swivel action

- Built in cable management

- Integrated bubble level assures easy installation alignment

l Specification

Material

Steel

Surface Finished

Powder Coating

Color

Black

Dimension

1500x600x300mm

Suggested Screen Size

32" - 65"

Support Curved TV

No

Screen Q’ty

2

Load Capacity

40KG (Per screen)

VESA Mount Standard

100x100 ~ 600x400

Tilt Range

-5° ~ +15°

Screen Rotation

-30° ~ +30°

Cable Management

Yes

l Package Contents

- 1 x Ceiling Mount Dual Screen TV Bracket

- 1 x Screw Pack

- 1 x Quick Installation Guide
