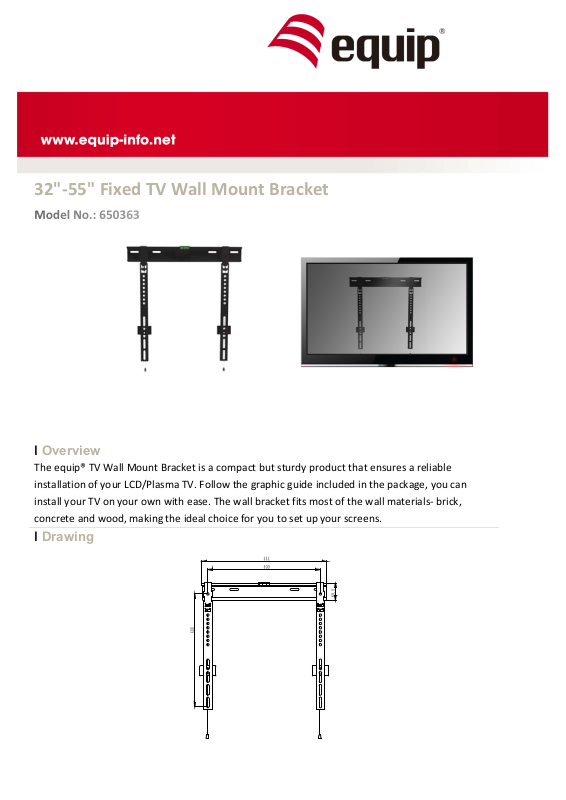

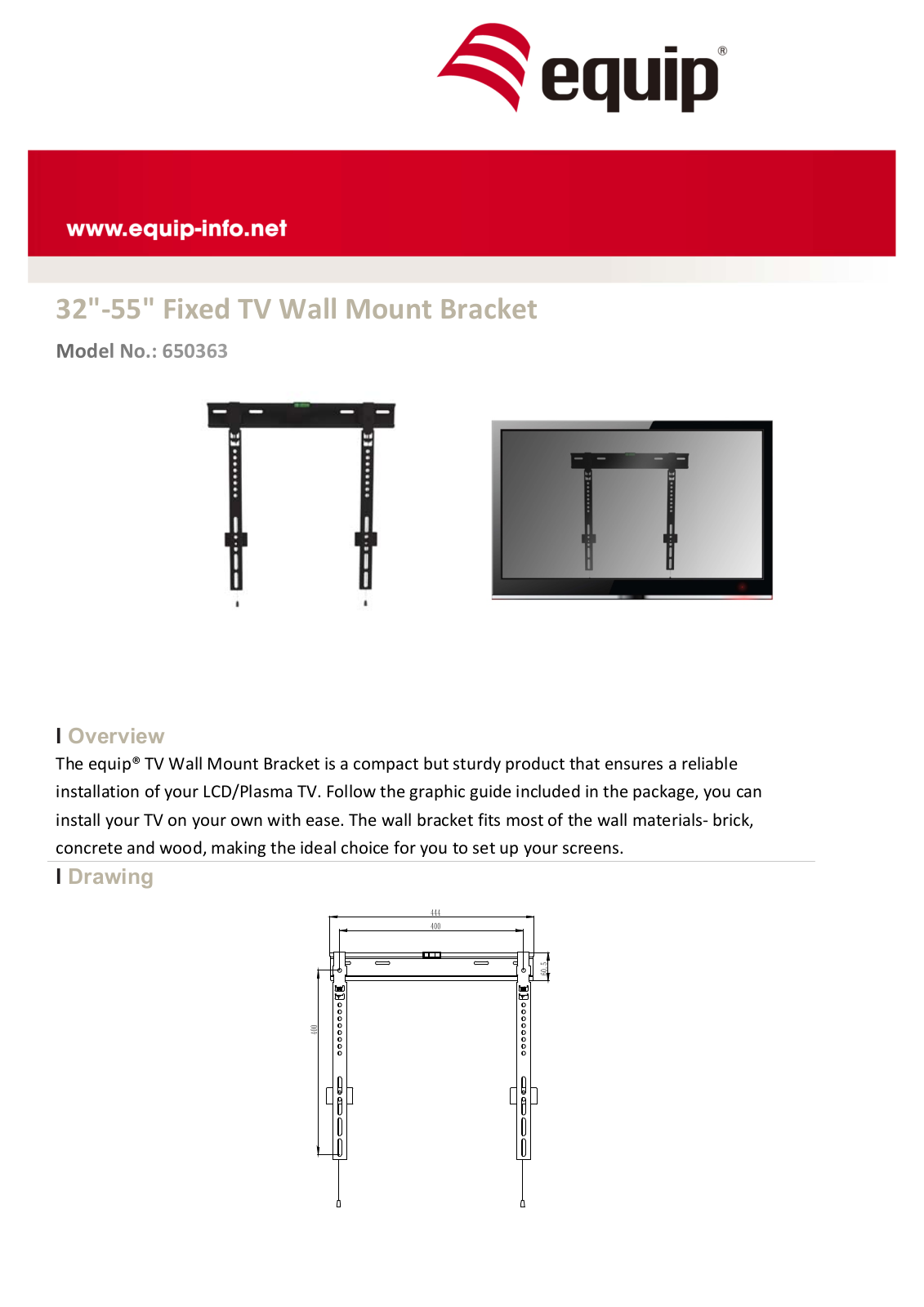

Equip 650363 User Manual
32"-55"&Fixed&TV&Wall&Mount&Bracket!
l Overview
The!equip®!TV!Wall!Mount!Bracket!is!a!compact!but!sturdy!product!that!ensures!a!reliable!
installation!of!your!LCD/Plasma!TV.!Follow!the!graphic!guide!included!in!the!package,!you!can!
install!your!TV!on!your!own!with!ease.!The!wall!bracket!fits!most!of!the!wall!materials-!brick,!
concrete!and!wood,!making!the!ideal!choice!for!you!to!set!up!your!screens.!
l Drawing
l Key Features
- Strong!magnetic!attachment!
- Built!in!bubble!level!
- VESA!standards!compliant

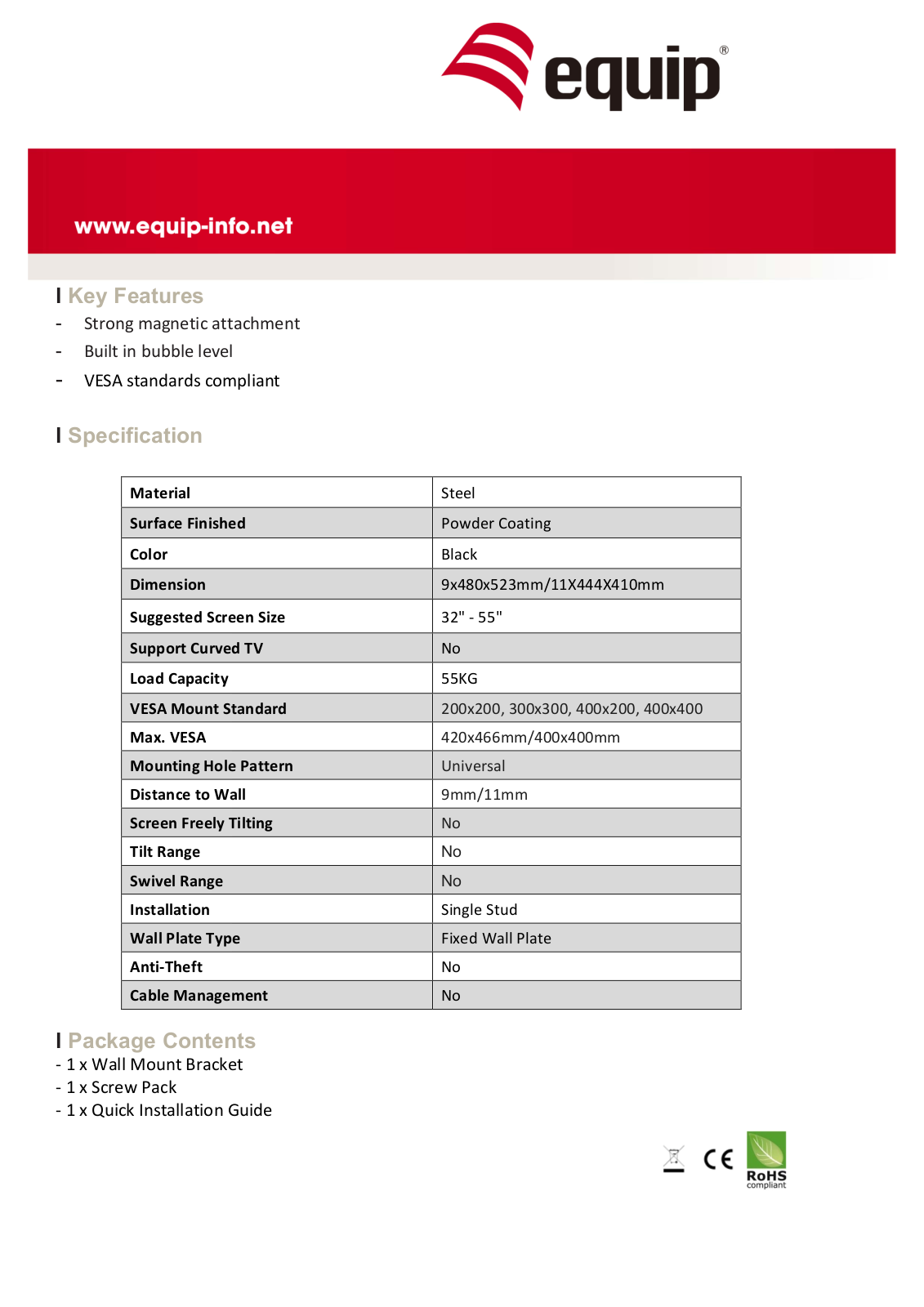

l Specification
Material&
Steel!
Surface&Finished&
Powder!Coating!
Color& &
Black!
Dimension&
9x480x523mm/11X444X410mm!
Suggested&Screen&Size&
32"!-!55"!
Support&Curved&TV&
No!
Load&Capacity&
55KG!
VESA&Mount&Standard&
200x200,!300x300,!400x200,!400x400!
Max.&VESA&
420x466mm/400x400mm!
Mounting&Hole&Pattern&
Universal!
Distance&to&Wall&
9mm/11mm!
Screen&Freely&Tilting&
No!
Tilt&Range&
No
Swivel&Range&
No
Installation&
Single!Stud!
Wall&Plate&Type&
Fixed!Wall!Plate!
Anti-Theft&
No!
Cable&Management&
No!
l Package Contents
-!1!x!Wall!Mount!Bracket!
-!1!x!Screw!Pack!
-!1!x!Quick!Installation!Guide!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
