19"-55" Push-In Pop-Out TV Wall Mount Bracket

l Overview

The equip® Push-In Pop-Out TV Wall Mount Bracket is a video wall solution quick to install, and easy to

configure. Made especially for video wall applications. This is a professional mount focusing on multiple

screen installations, easy and fast installation and simplified maintenance. The Push-In Pop-out feature

gives easy-access to any display for quick serviceability. This is one of the major functions needed when

building a video wall mounting solution or when integrating a single screen into the wall.

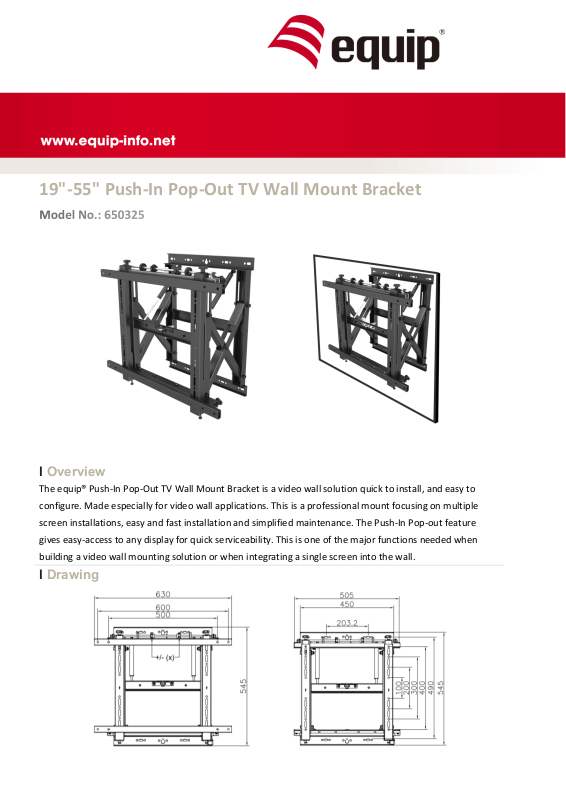

l Drawing

l Key Features

- Compatible with landscape and portrait mounting

- Push-In Pop-Out for easy access and after service

- Built in cable management

- Modular mount with unlimited video display configurations

l Specification

Material

Steel

Surface Finished

Powder Coating

Color

Black

Dimension

630x545x113~ 310mm

Suggested Screen Size

37" - 70"

Support Curved TV

No

Screen Q’ty

1

Load Capacity

50KG

VESA Mount Standard

100x100 ~ 600x400

Tilt Range

0° ~ 10°

Screen Rotation

+180° ~ -180°

Distance to Wall

110~295mm

Pop-Out Wall Distance

300~310mm

Cable Management

Yes

l Package Contents

- 1 x Push-In Pop-Out TV Wall Mount Bracket

- 1 x Screw Pack

- 1 x Quick Installation Guide
