Equip 650324 User Manual

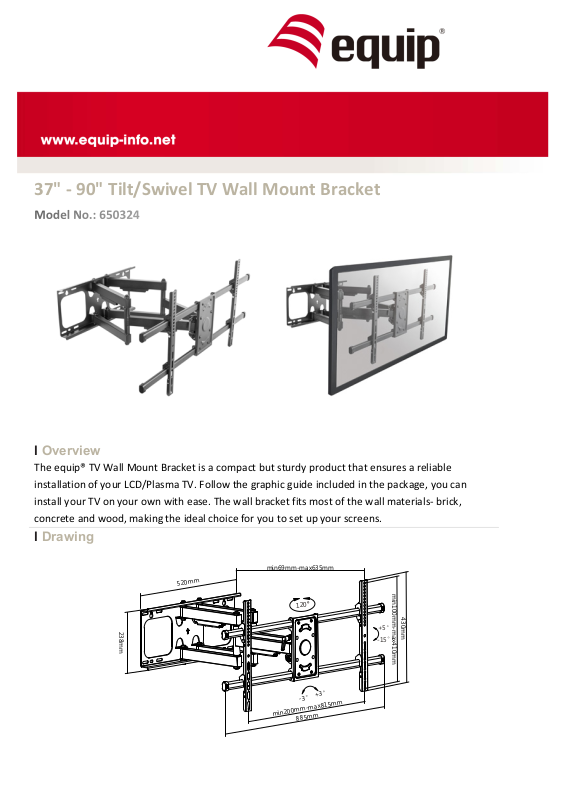

37"$-$90"$Tilt/Swivel$TV$Wall$Mount$Bracket!

!

l Overview

The!equip®!TV!Wall!Mount!Bracket!is!a!compact!but!sturdy!product!that!ensures!a!reliable!

installation!of!your!LCD/Plasma!TV.!Follow!the!graphic!guide!included!in!the!package,!you!can!

install!your!TV!on!your!own!with!ease.!The!wall!bracket!fits!most!of!the!wall!materials-!brick,!

concrete!and!wood,!making!the!ideal!choice!for!you!to!set!up!your!screens.

l Drawing

1

2

0

-15

+5

520mm

238m

m

4
3
0
m

m

m
i

n
1
0
0
m

m

­m

a
x
4
1
0
m

m

885mm

min200mm-max815mm

min69mm-max635mm

-3

+3

l Key Features

- Swivel!and!tilt!wall!mount!

- Built-in!level!adjustment!ensures!perfect!positioning! !

- Swiveling!arm!offer!maximum!viewing!flexibility!

- VESA!standards!compliant

l Specification

Material$

Steel!

Surface$Finished$

Powder!Coating!

Color$ $

Black!

Dimension$

635x885x430mm!

Pipe$Size$

40x25x1.5mm!

Suggested$Screen$Size$

37"!-!90"!

Support$Curved$TV$

Yes!

Load$Capacity$

75KG!

VESA$Mount$Standard$

200x200,! 300x300,! 400x200,! 400x400,!

600x400,!800x400!

Max.$VESA$

816x410mm!

Mounting$Hole$Pattern$

Universal!

Distance$to$Wall$

69!~!635mm!

Screen$Freely$Tilting$

No!

Tilt$Range$

-15° ~ +5°

Screen$Level$

-3°~ +3°

Swivel$Range$

-60° ~ +60°

Installation$

Single!Stud!

Wall$Plate$Type$

Fixed!Wall!Plate!

Anti-Theft$

No!

Cable$Management$

Yes!

l Package Contents

-!1!x!Wall!Mount!Bracket!

-!1!x!Screw!Pack!

-!1!x!Quick!Installation!Guide!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
