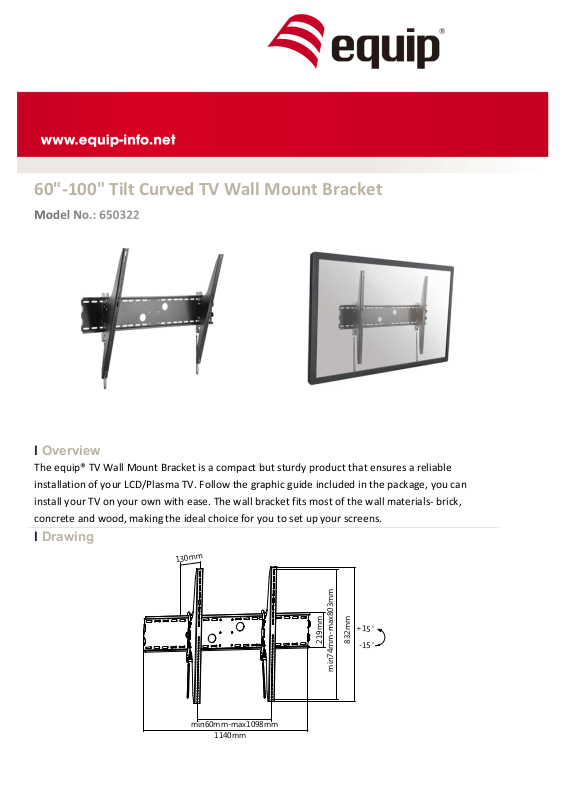

60"-100"&Tilt&Curved&TV&Wall&Mount&Bracket!
!
l Overview
The!equip®!TV!Wall!Mount!Bracket!is!a!compact!but!sturdy!product!that!ensures!a!reliable!
installation!of!your!LCD/Plasma!TV.!Follow!the!graphic!guide!included!in!the!package,!you!can!
install!your!TV!on!your!own!with!ease.!The!wall!bracket!fits!most!of!the!wall!materials-!brick,!
concrete!and!wood,!making!the!ideal!choice!for!you!to!set!up!your!screens.
l Drawing
1140mm
130mm
+15
-15
832mm
min74mm-max803mm
min60mm-max1098mm
219mm
l Key Features
- Automatically!click-in!spring!lock!
- Tool!less!Tilt!
- VESA!standards!compliant
l Specification
Material&
Steel!
Surface&Finished&
Powder!Coating!
Color& &
Black!
Dimension&
1140x832x130mm!
Panel&Type&
Detachable!Panel!
Suggested&Screen&Size&
60"!-!100"!
Support&Curved&TV&
Yes!
Load&Capacity&
100KG!
VESA&Mount&Standard&
200x200,! 300x300,! 400x200,! 400x400,!
600x400,! 800x400,! 800x600,! 1000x400,!
1000x600,!1000x800!
Max.&VESA&
1098x807mm!
Mounting&Hole&Pattern&
Universal!
Distance&to&Wall&
130mm!
Screen&Freely&Tilting&
No!
Tilt&Range&
-15° ~ +15°
Installation&
Single!Stud!
Wall&Plate&Type&
Fixed!Wall!Plate!
Anti-Theft&
No!
Cable&Management&
No!
l Package Contents
-!1!x!Wall!Mount!Bracket!
-!1!x!Screw!Pack!
-!1!x!Quick!Installation!Guide!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
