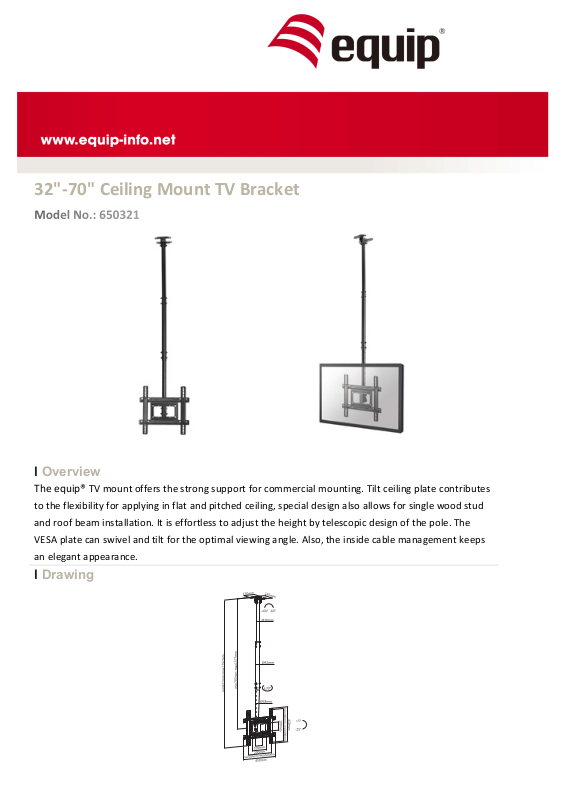

Equip 650321 User Manual
32"-70"'Ceiling'Mount'TV'Bracket!
l Overview
The!equip®!TV!mount!offers!the!strong!support!for!commercial!mounting.!Tilt!ceiling!plate!contributes!
to!the!flexibility!for!applying!in!flat!and!pitched!ceiling,!special!design !also!a llows !for!single!w o od !stud !
and!roof!beam!installation.!It!is!effortless!to !ad ju s t!th e !h eig h t!b y !te les co p ic !d es ign !o f!t h e!p o le .!Th e !
VESA!plate!can!swivel!and!tilt!for!the!optimal!viewing!angle.!Also,!the!inside!cable!management!keeps!
an!elegant!appearance.!
l Drawing
l Key Features
- Telescoping!height!adjustment!
- Free-tilting!&!swiveling!design!for!multiple!TV!viewing!angles!
- Built!in!Cable!management!
- VESA!standards!compliant
l Specification
Material'
Steel,!Plastic!
Surface'Finished'
Powder!Coating!
Color' '
Black!
Dimension'
1792x450x185mm!
Suggested'Screen'Size'
32"!-!70"!
Support'Curved'TV'
No!
Load'Capacity'
50KG!
VESA'Mount'Standard'
100x100,! 200x100,! 100x200,! 200x200,!
300x200,! 300x300,! 400x200,! 400x300,!
400x400!
Max.'VESA'
425x400mm!
Mounting'Hole'Pattern'
Standard!VESA,!Universal!
Distance'to'Wall'
707!~!1577mm!
Screen'Freely'Tilting'
No!
Tilt'Range'
+5° ~ -25°
Swivel'Range'
+30° ~ -30°
Installation'
Single!Stud,!Ceiling!
Wall'Plate'Type'
Fixed!Wall!Plate!
Anti-Theft'
No!
Cable'Management'
Yes!
l Package Contents
-!1!x!Wall!Mount!Bracket!
-!1!x!Screw!Pack!
-!1!x!Quick!Installation!Guide!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
