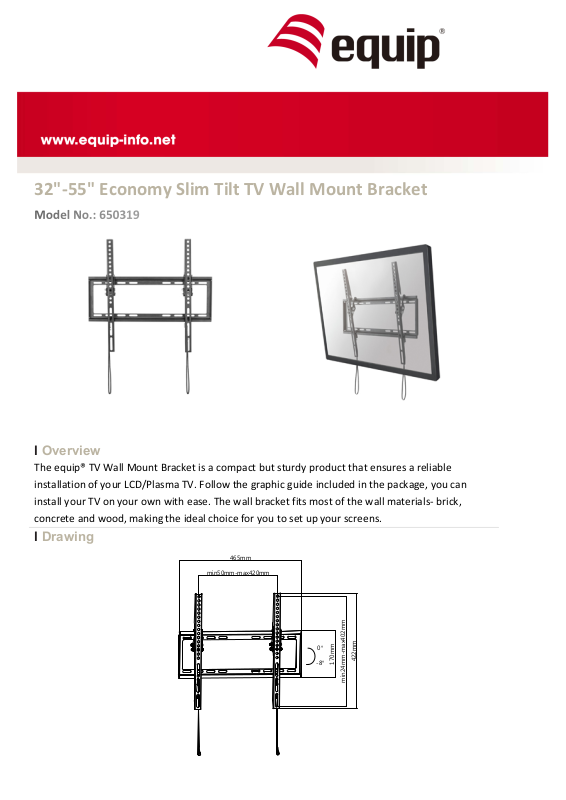

Equip 650319 User Manual

32"-55"&Economy&Slim&Tilt&TV&Wall&Mount&Bracket!

!

l Overview

The!equip®!TV!Wall!Mount!Bracket!is!a!compact!but!sturdy!product!that!ensures!a!reliable!

installation!of!your!LCD/Plasma!TV.!Follow!the!graphic!guide!included!in!the!package,!you!can!

install!your!TV!on!your!own!with!ease.!The!wall!bracket!fits!most!of!the!wall!materials-!brick,!

concrete!and!wood,!making!the!ideal!choice!for!you!to!set!up!your!screens.

l Drawing

465mm

min50mm-max420mm

422mm

min24mm-max402mm

170mm

0°

-8°

l Key Features

- Ultra!Slim!profile!for!space!saving!

- Free-tilting!design!for!multiple!monitor!viewing!angles!

- Automatically!click-in!spring!lock!helps!TV!brackets!snap!into!place!

- VESA!standards!compliant

l Specification

Material&

Steel,!Plastic! !

Surface&Finished&

Powder!Coating!

Color& &

Textu r e !Bl a c k!

Dimension&

465x422x20.5mm!

Suggested&Screen&Size&

32"-55"!

Support&Curved&TV&

No!

Load&Capacity&

35KG!

VESA&Mount&Standard&

200x200,! 300X200,! 300X300,! 400x200,!

400X300,!400x400,!600x400!

Max.&VESA&

402x438mm!

Screen&Freely&Tilting&

Yes!

Distance&to&Wall&

20.5mm!

Tilt&Range&

0°~!-8°!

Installation&

Solid!Wall,!Double!Stud!

Wall&Plate&Type&

Fixed!Wall!Plate!

Height&Adjustment&

No!

Cable&Management&

No!

l Package Contents

-!1!x!Wall!Mount!Bracket!

-!1!x!Screw!Pack!

-!1!x!Quick!Installation!Guide!
