Equip 650318 User Manual
37"$-$70"$Low$Profile$TV$Wall$Mount$Bracket!

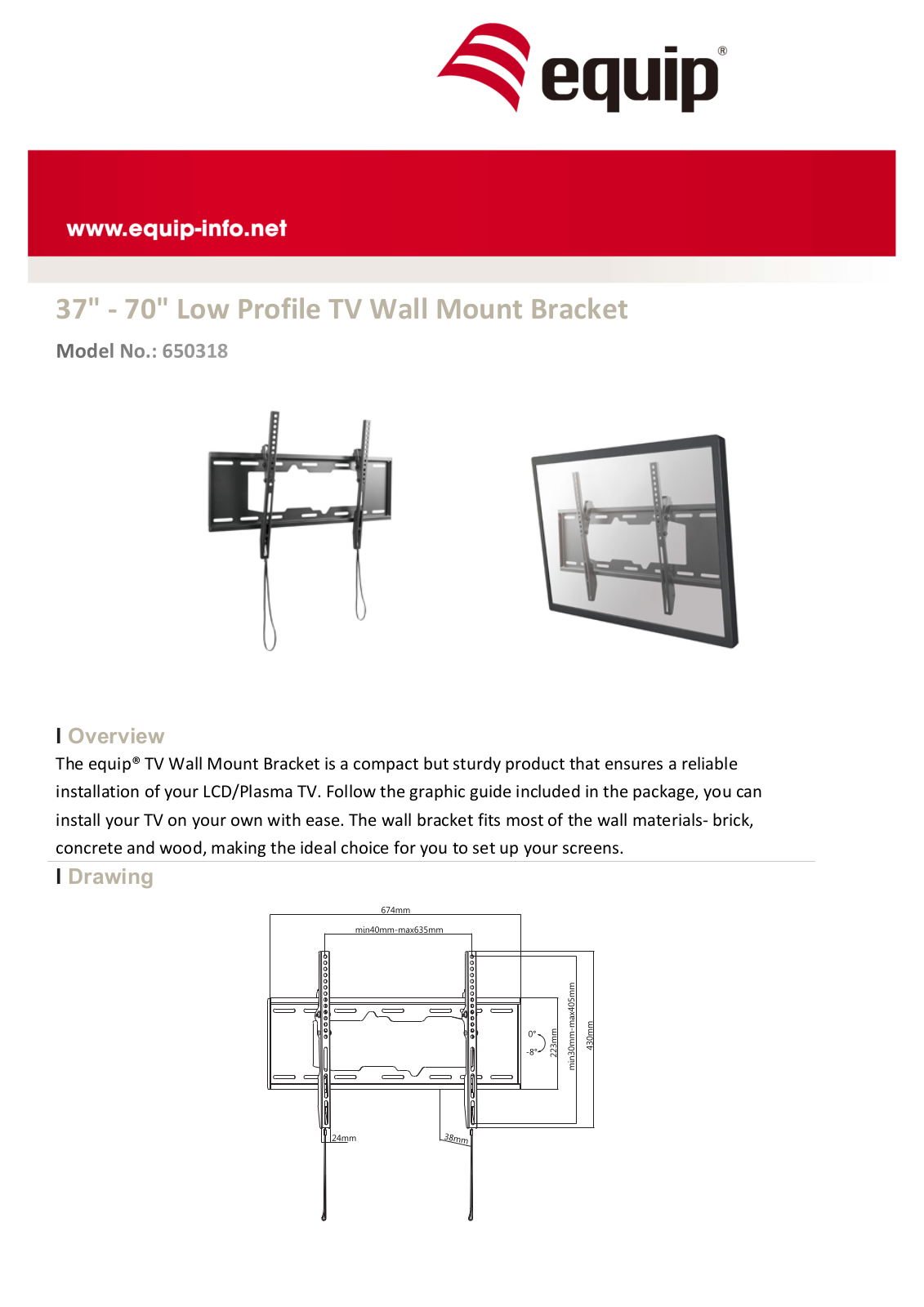

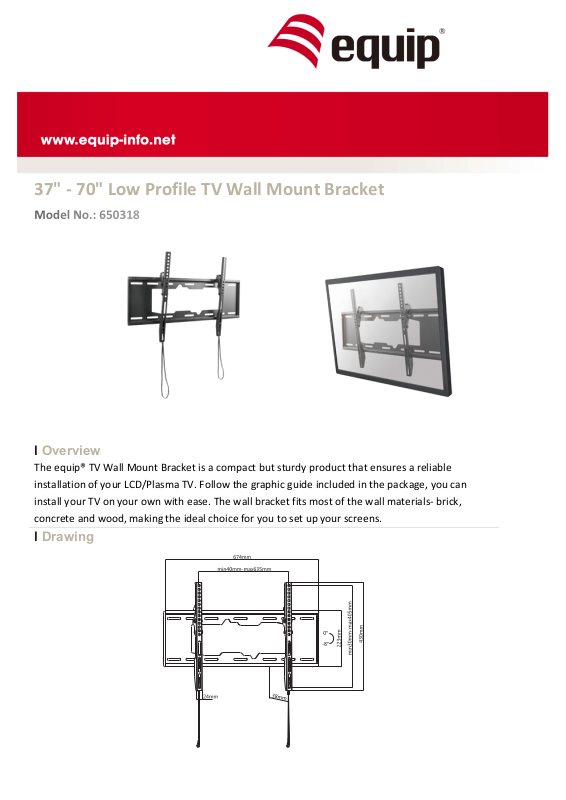

l Overview
The!equip®!TV!Wall!Mount!Bracket!is!a!compact!but!sturdy!product!that!ensures!a!reliable!
installation!of!your!LCD/Plasma!TV.!Follow!the!graphic!guide!included!in!the!package,!you!can!
install!your!TV!on!your!own!with!ease.!The!wall!bracket!fits!most!of!the!wall!materials-!brick,!
concrete!and!wood,!making!the!ideal!choice!for!you!to!set!up!your!screens.!
l Drawing

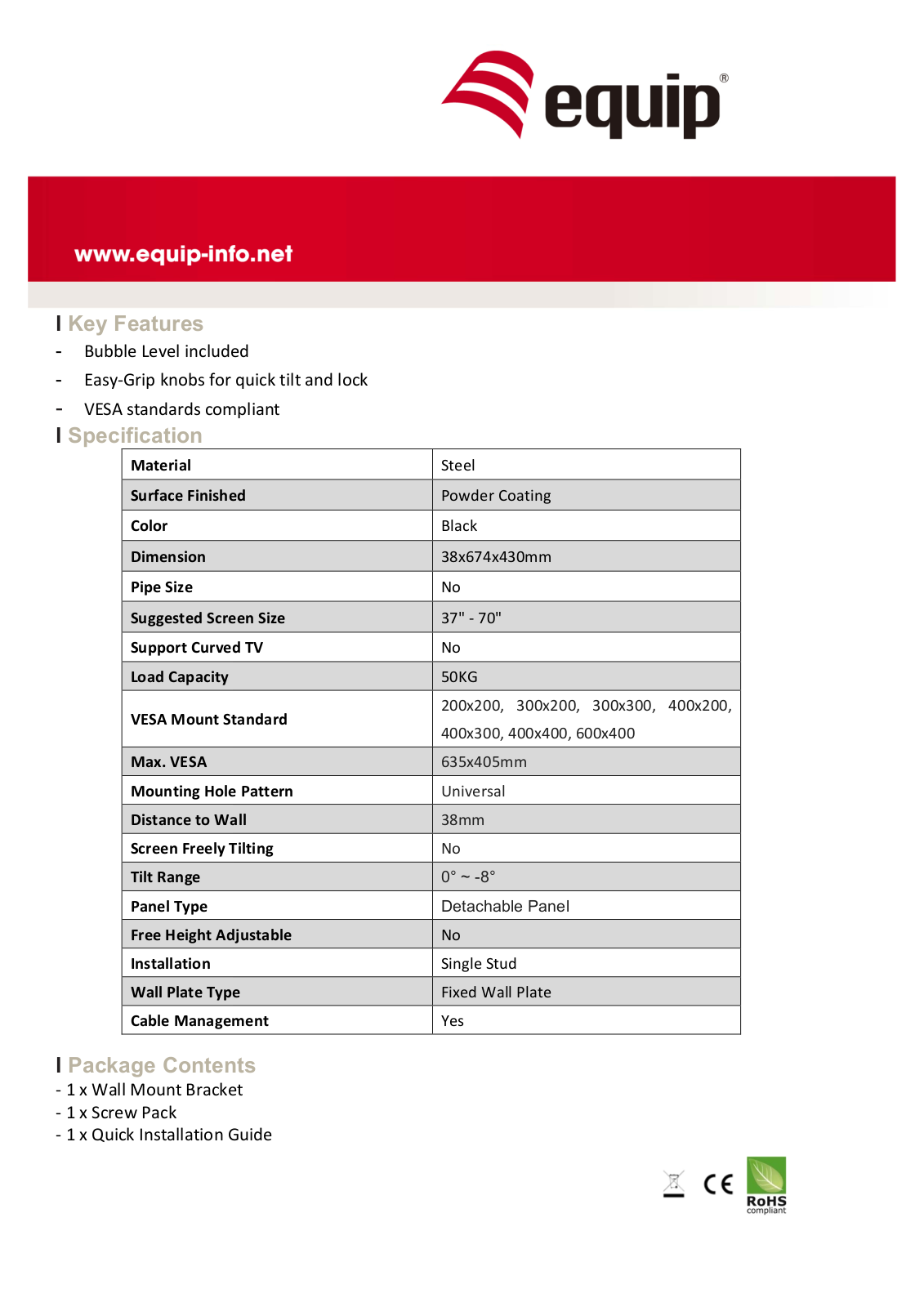

l Key Features
- Bubble!Level!included!
- Easy-Grip!knobs!for!quick!tilt!and!lock! !
- VESA!standards!compliant
l Specification
Material$
Steel!
Surface$Finished$
Powder!Coating!
Color$ $
Black!
Dimension$
38x674x430mm!
Pipe$Size$
No!
Suggested$Screen$Size$
37"!-!70"!
Support$Curved$TV$
No!
Load$Capacity$
50KG!
VESA$Mount$Standard$
200x200,! 300x200,! 300x300,! 400x200,!
400x300,!400x400,!600x400! !
Max.$VESA$
635x405mm!
Mounting$Hole$Pattern$
Universal!
Distance$to$Wall$
38mm!
Screen$Freely$Tilting$
No!
Tilt$Range$
0° ~ -8°
Panel$Type$
Detachable Panel
Free$Height$Adjustable$
No
Installation$
Single!Stud!
Wall$Plate$Type$
Fixed!Wall!Plate!
Cable$Management$
Yes!
l Package Contents
-!1!x!Wall!Mount!Bracket!
-!1!x!Screw!Pack!
-!1!x!Quick!Installation!Guide!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
