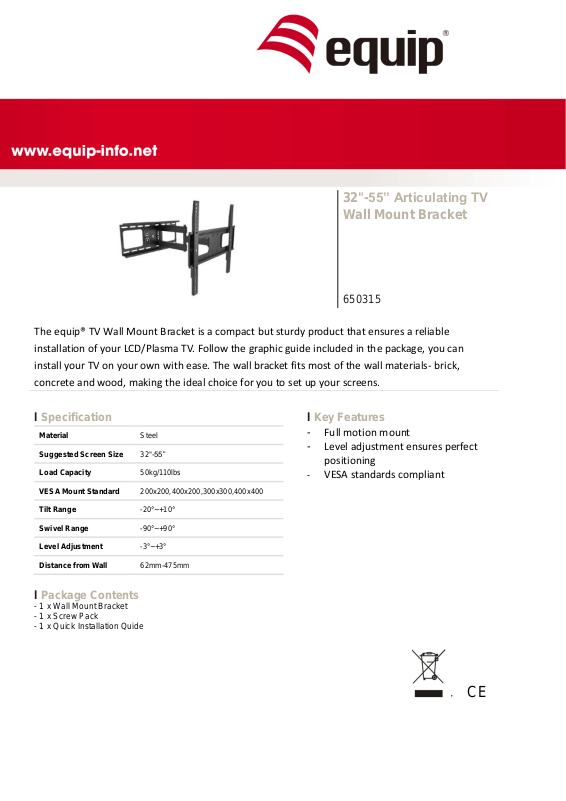

Equip 650315 User Manual

32"-55” Articulating TV
Wall Mount Bracket

650315

The equip® TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable

installation of your LCD/Plasma TV. Follow the graphic guide included in the package, you can

install your TV on your own with ease. The wall bracket fits most of the wall materials- brick,

concrete and wood, making the ideal choice for you to set up your screens.

l Specification

Material

Steel

Suggested Screen Size

32"-55”

Load Capacity

50kg/110lbs

VESA Mount Standard

200x200,400x200,300x300,400x400

Tilt Range

-20°~+10°

Swivel Range

-90°~+90°

Level Adjustment

-3°~+3°

Distance from Wall

62mm-475mm

l Key Features

- Full motion mount

- Level adjustment ensures perfect

positioning

- VESA standards compliant

l Package Contents

- 1 x Wall Mount Bracket

- 1 x Screw Pack

- 1 x Quick Installation Quide

， CE
