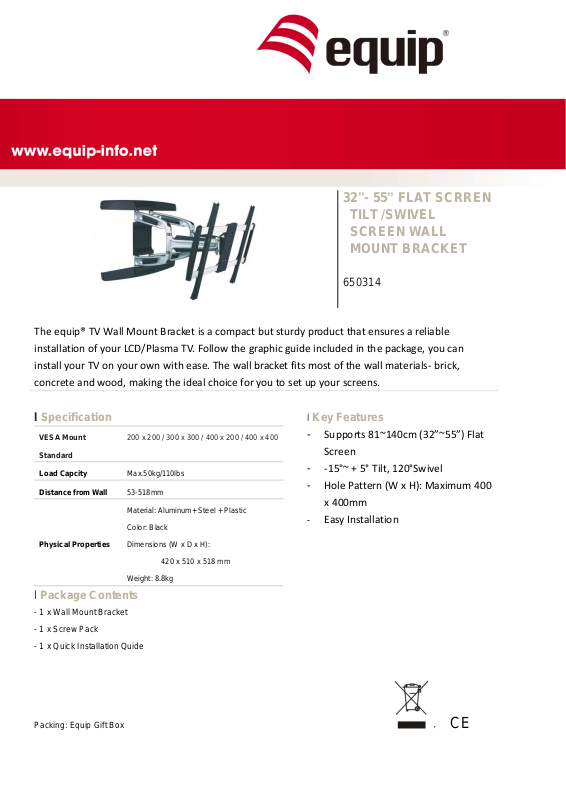

Equip 650314 User Manual

32”- 55” FLAT SCRREN

TILT /SWIVEL
SCREEN WALL
MOUNT BRACKET

650314

The equip® TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable
installation of your LCD/Plasma TV. Follow the graphic guide included in the package, you can
install your TV on your own with ease. The wall bracket fits most of the wall materials- brick,

concrete and wood, making the ideal choice for you to set up your screens.

l Specification

VESA Mount
Standard

200 x 200 / 300 x 300 / 400 x 200 / 400 x 400

Load Capcity

Max.50kg/110Ibs

Distance from Wall

53-518mm

Physical Properties

Material: Aluminum+ Steel + Plastic
Color: Black
Dimensions (W x D x H):

420 x 510 x 518 mm

Weight: 8.8kg

l Key Features

- Supports 81~140cm (32”~55”) Flat

Screen

- -15°~ + 5° Tilt, 120°Swivel

- Hole Pattern (W x H): Maximum 400

x 400mm

- Easy Installation

l Package Contents

- 1 x Wall Mount Bracket

- 1 x Screw Pack

- 1 x Quick Installation Quide

Packing: Equip Gift Box ， CE
