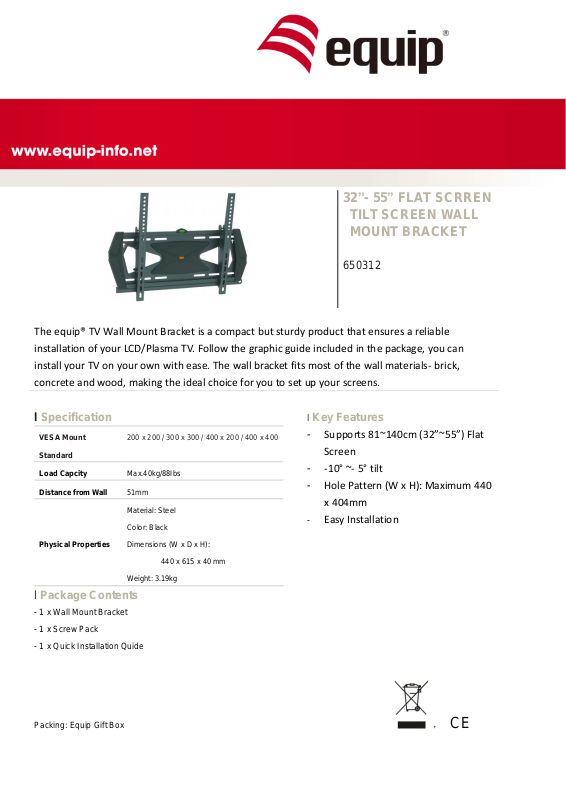

32”- 55” FLAT SCRREN

TILT SCREEN WALL
MOUNT BRACKET

650312

The equip® TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable
installation of your LCD/Plasma TV. Follow the graphic guide included in the package, you can
install your TV on your own with ease. The wall bracket fits most of the wall materials- brick,

concrete and wood, making the ideal choice for you to set up your screens.

l Specification

VESA Mount
Standard

200 x 200 / 300 x 300 / 400 x 200 / 400 x 400

Load Capcity

Max.40kg/88Ibs

Distance from Wall

51mm

Physical Properties

Material: Steel
Color: Black
Dimensions (W x D x H):

440 x 615 x 40 mm

Weight: 3.19kg

l Key Features

- Supports 81~140cm (32”~55”) Flat

Screen

- -10° ~- 5° tilt

- Hole Pattern (W x H): Maximum 440

x 404mm

- Easy Installation

l Package Contents

- 1 x Wall Mount Bracket

- 1 x Screw Pack

- 1 x Quick Installation Quide

Packing: Equip Gift Box ， CE
