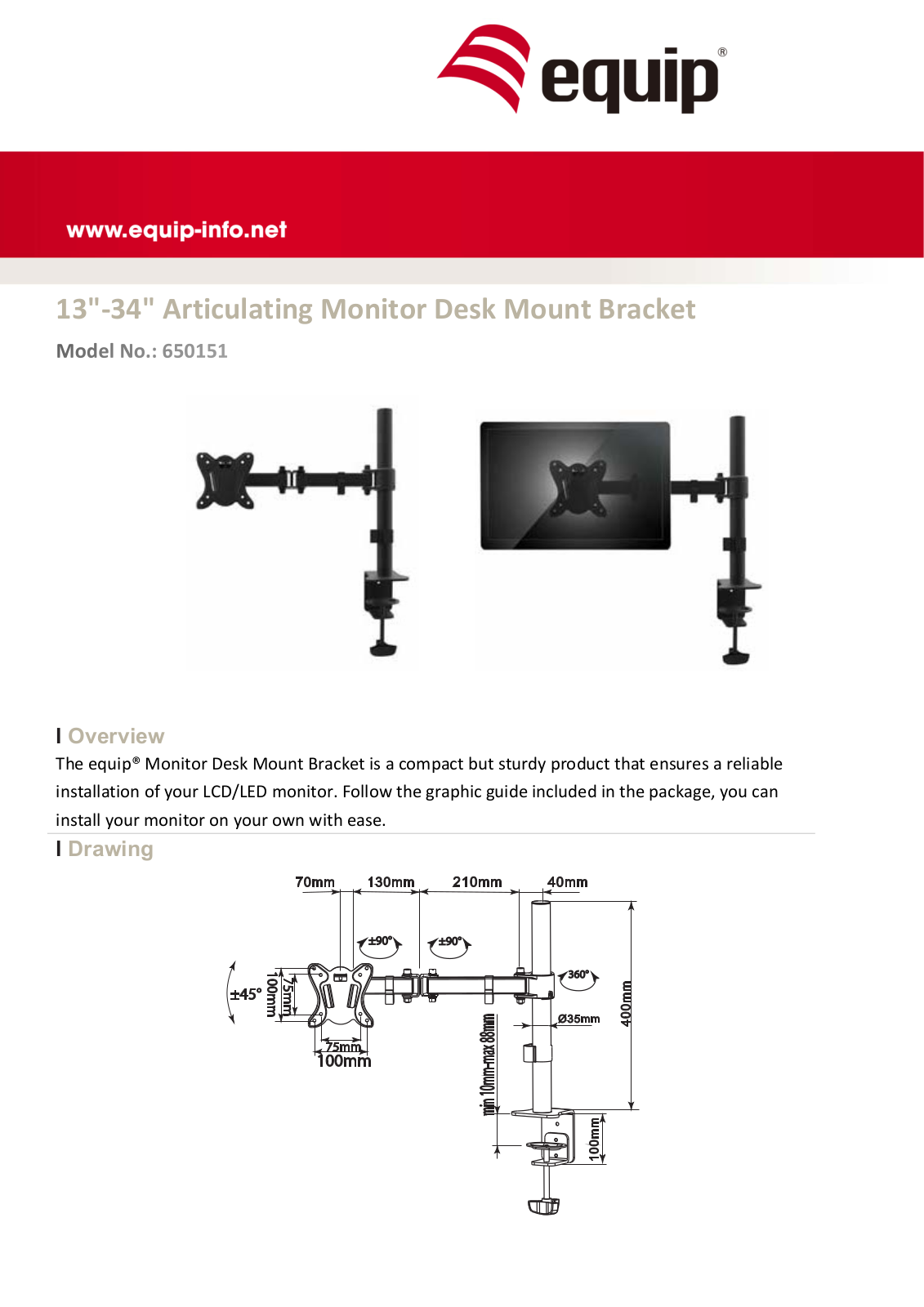

Equip 650151 User Manual

13"-34" Articulating Monitor Desk Mount Bracket

l Overview

The equip® Monitor Desk Mount Bracket is a compact but sturdy product that ensures a reliable

installation of your LCD/LED monitor. Follow the graphic guide included in the package, you can

install your monitor on your own with ease.

l Drawing

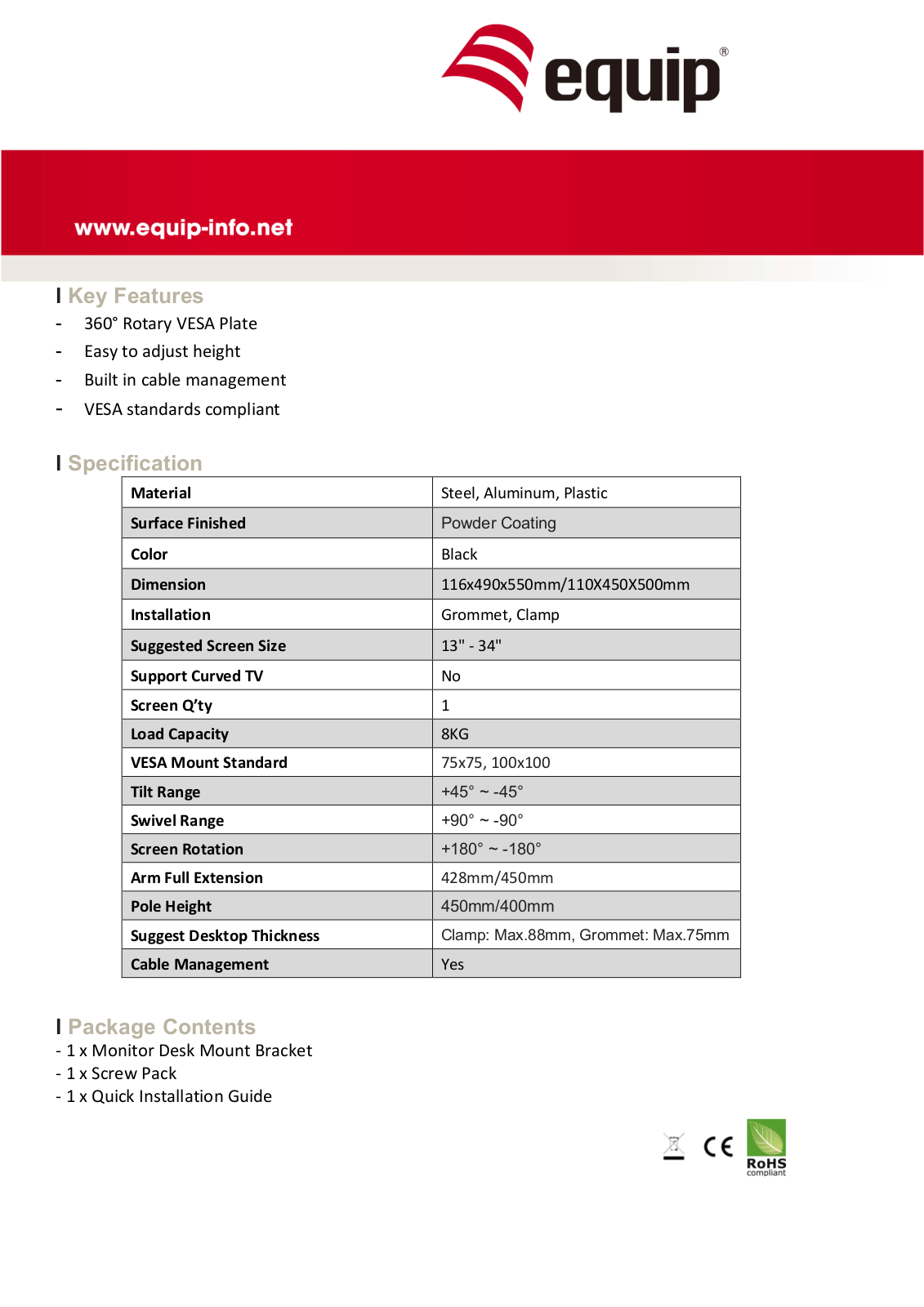

l Key Features

- 360° Rotary VESA Plate

- Easy to adjust height

- Built in cable management

- VESA standards compliant

l Specification

Material

Steel, Aluminum, Plastic

Surface Finished

Powder Coating

Color

Black

Dimension

116x490x550mm/110X450X500mm

Installation

Grommet, Clamp

Suggested Screen Size

13" - 34"

Support Curved TV

No

Screen Q’ty

1

Load Capacity

8KG

VESA Mount Standard

75x75, 100x100

Tilt Range

+45° ~ -45°

Swivel Range

+90° ~ -90°

Screen Rotation

+180° ~ -180°

Arm Full Extension

428mm/450mm

Pole Height

450mm/400mm

Suggest Desktop Thickness

Clamp: Max.88mm, Grommet: Max.75mm

Cable Management

Yes

l Package Contents

- 1 x Monitor Desk Mount Bracket

- 1 x Screw Pack

- 1 x Quick Installation Guide
