Equip 650117 User Manual

13"-27"'Articulating'Quad'Monitor'Desk'Mount'Bracket!

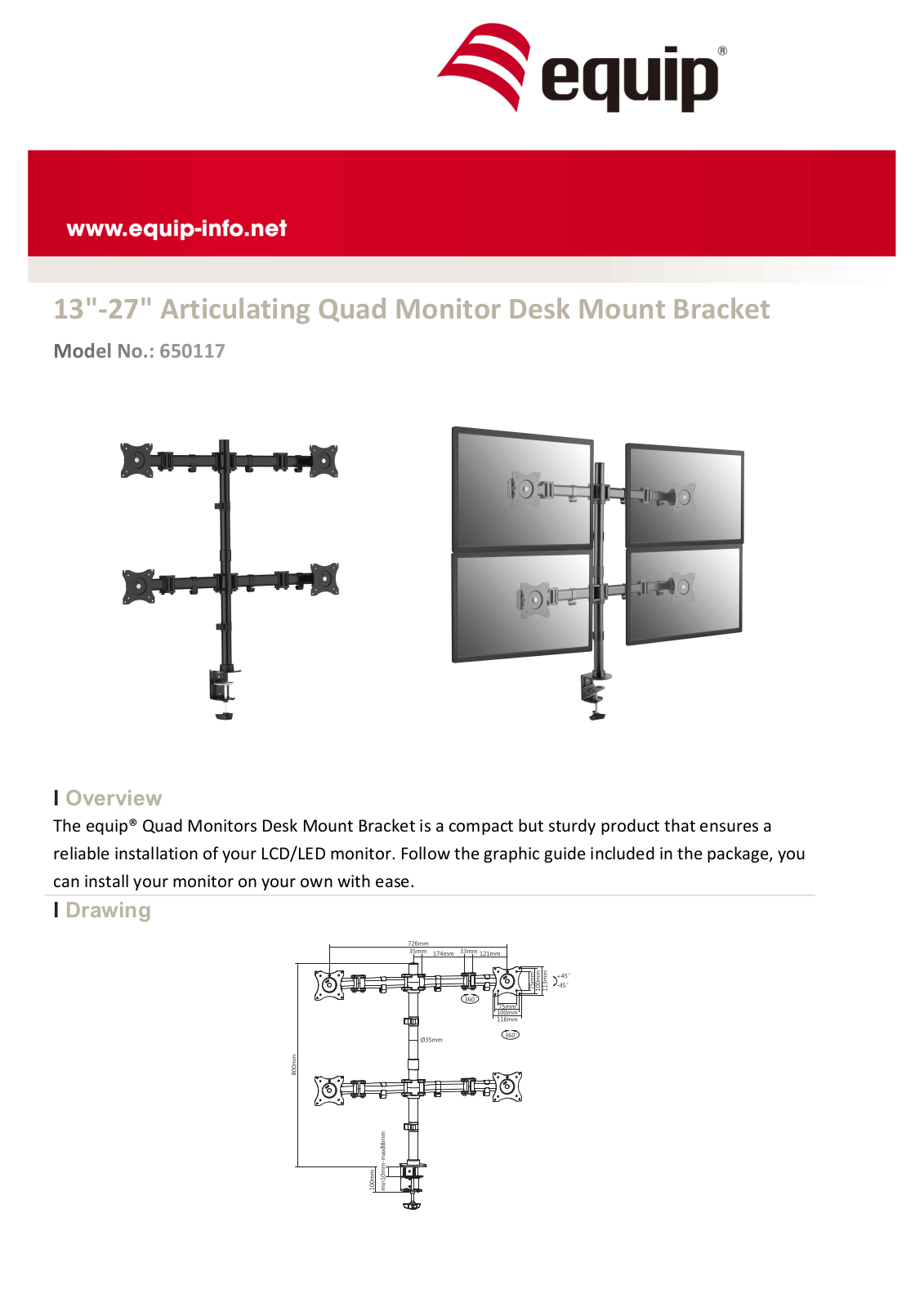

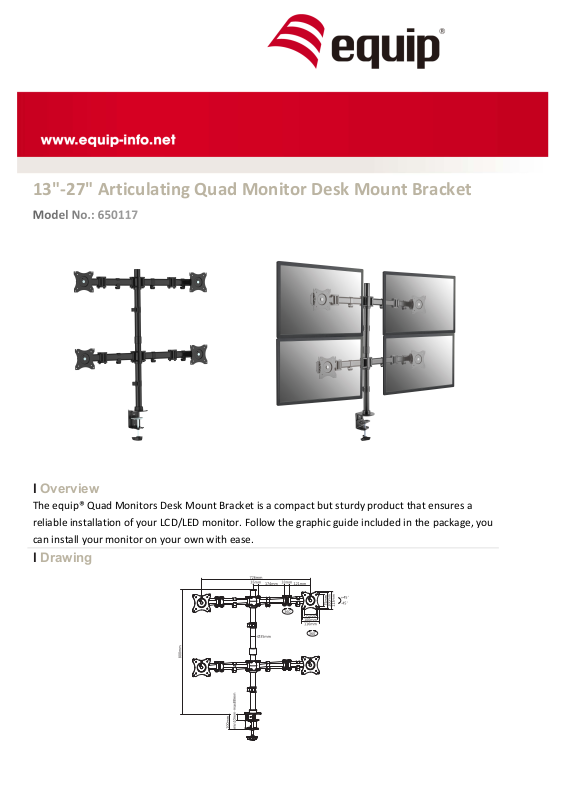

l Overview

The!equip®!Quad!Monitors!Desk!Mount!Bracket!is!a!compact!but!sturdy!product!that!ensures!a!

reliable!installation!of!your!LCD/LED!monitor.!Follow!the!graphic!guide!included!in!the!package,!you!

can!install!your!monitor!on!your!own!with!ease.!

l Drawing

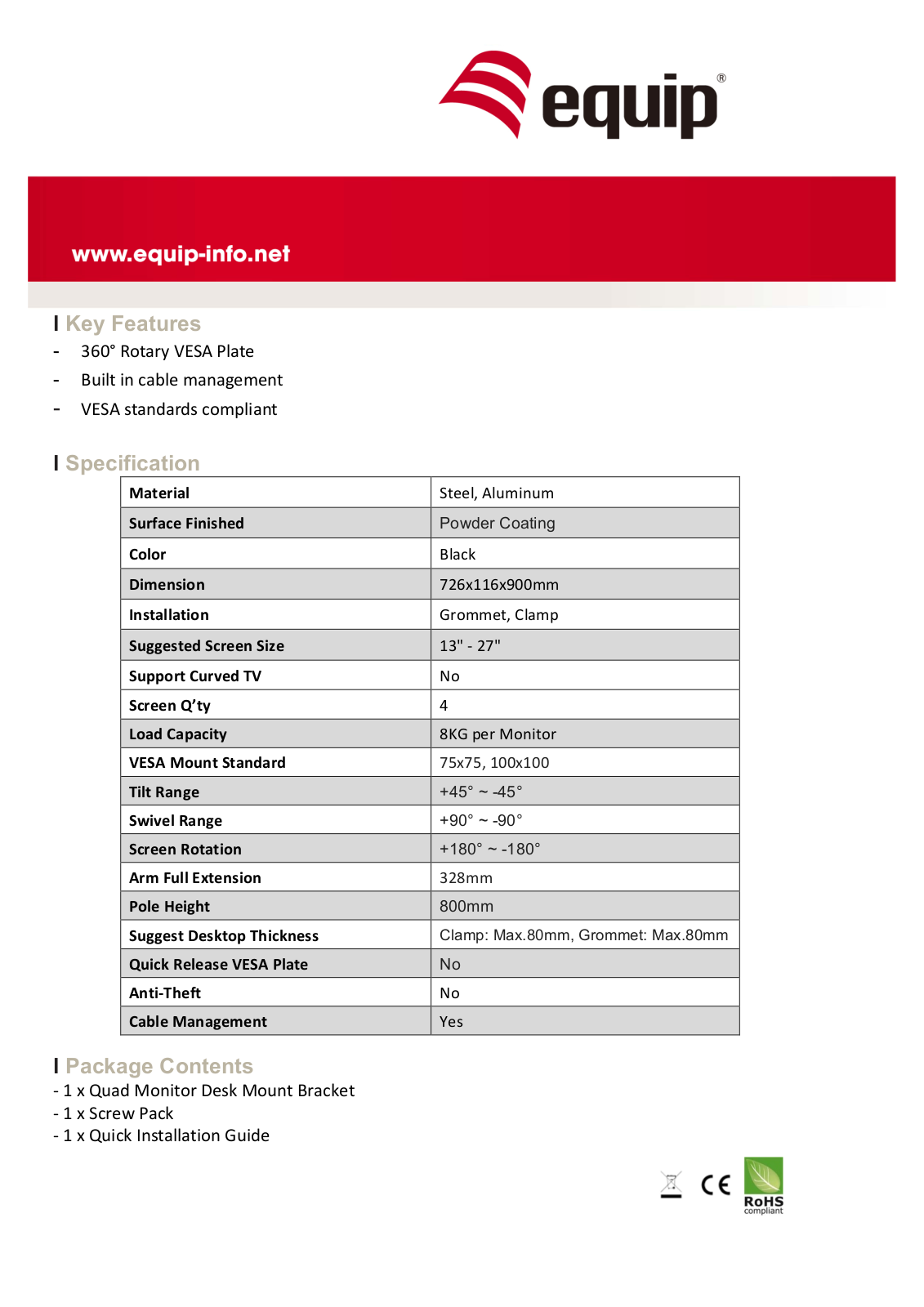

l Key Features

- 360°!Rotary!VESA!Plate!

- Built!in!cable!management! ! !

- VESA!standards!compliant

l Specification

Material'

Steel,!Aluminum!

Surface'Finished'

Powder Coating

Color' '

Black!

Dimension'

726x116x900mm!

Installation'

Grommet,!Clamp!

Suggested'Screen'Size'

13"!-!27"!

Support'Curved'TV'

No!

Screen'Q’ty'

4!

Load'Capacity'

8KG!per!Monitor!

VESA'Mount'Standard'

75x75,!100x100! !

Tilt'Range'

+45° ~ -45°!

Swivel'Range'

+90° ~ -90°!

Screen'Rotation'

+180° ~ -180°!

Arm'Full'Extension'

328mm!

Pole'Height'

800mm

Suggest'Desktop'Thickness'

Clamp: Max.80mm, Grommet: Max.80mm

Quick'Release'VESA'Plate'

No

Anti-Theft'

No!

Cable'Management'

Yes!

l Package Contents

-!1!x!Quad!Monitor!Desk!Mount!Bracket!

-!1!x!Screw!Pack!

-!1!x!Quick!Installation!Guide!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
