Equip 650114 User Manual

13"-27"'Articulating'Monitor'Desk'Mount'Bracket!

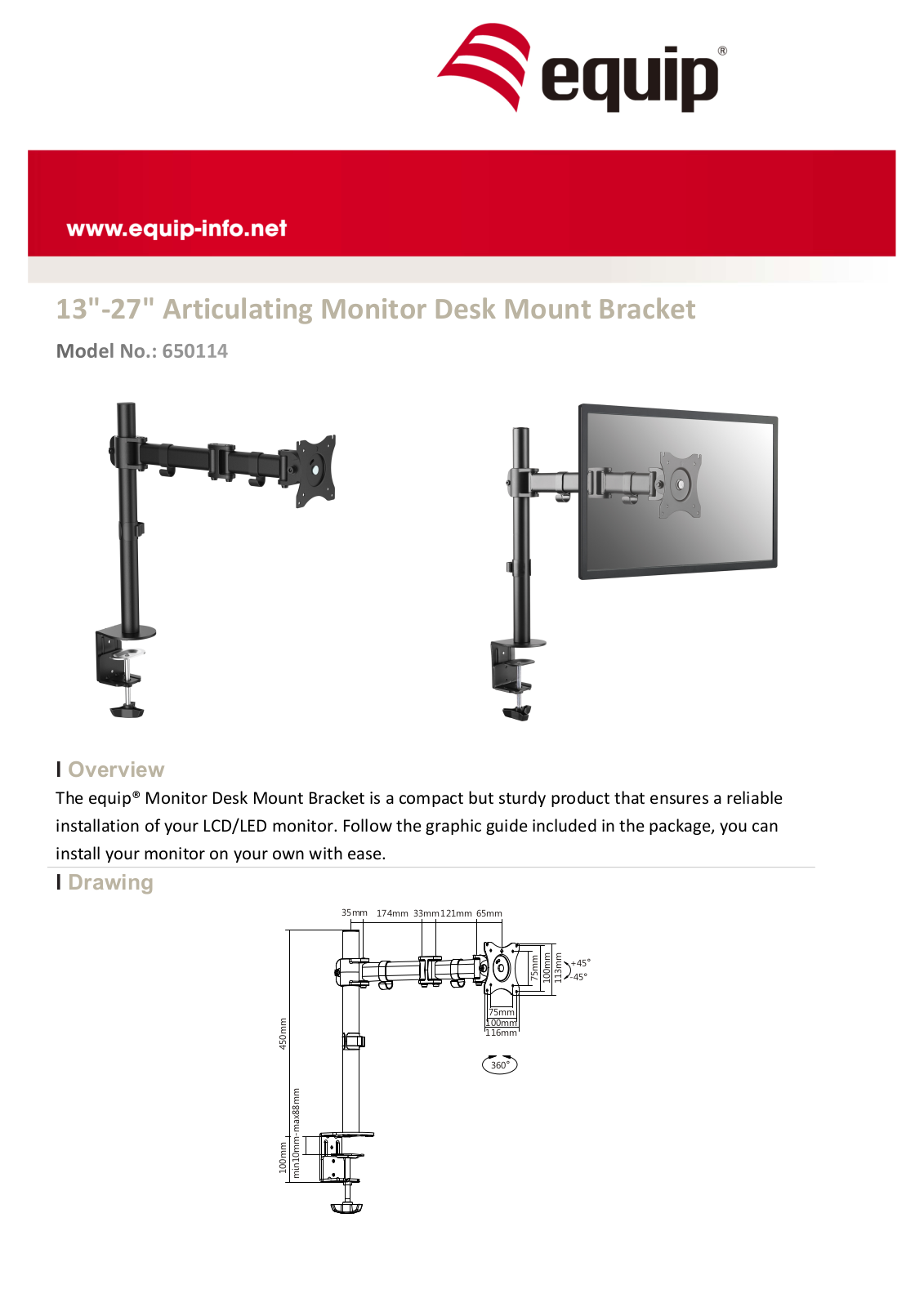

l Overview

The!equip®!Monitor!Desk!Mount!Bracket!is!a!compact!but!sturdy!product!that!ensures!a!reliable!

installation!of!your!LCD/LED!monitor.!Follow!the!graphic!guide!included!in!the!package,!you!can!

install!your!monitor!on!your!own!with!ease.!

l Drawing

360

450mm

min10mm-max88mm

100mm

100mm

75mm

100mm

75mm

-45

+45

35mm

174mm

33mm

121mm

65mm

116mm

113mm

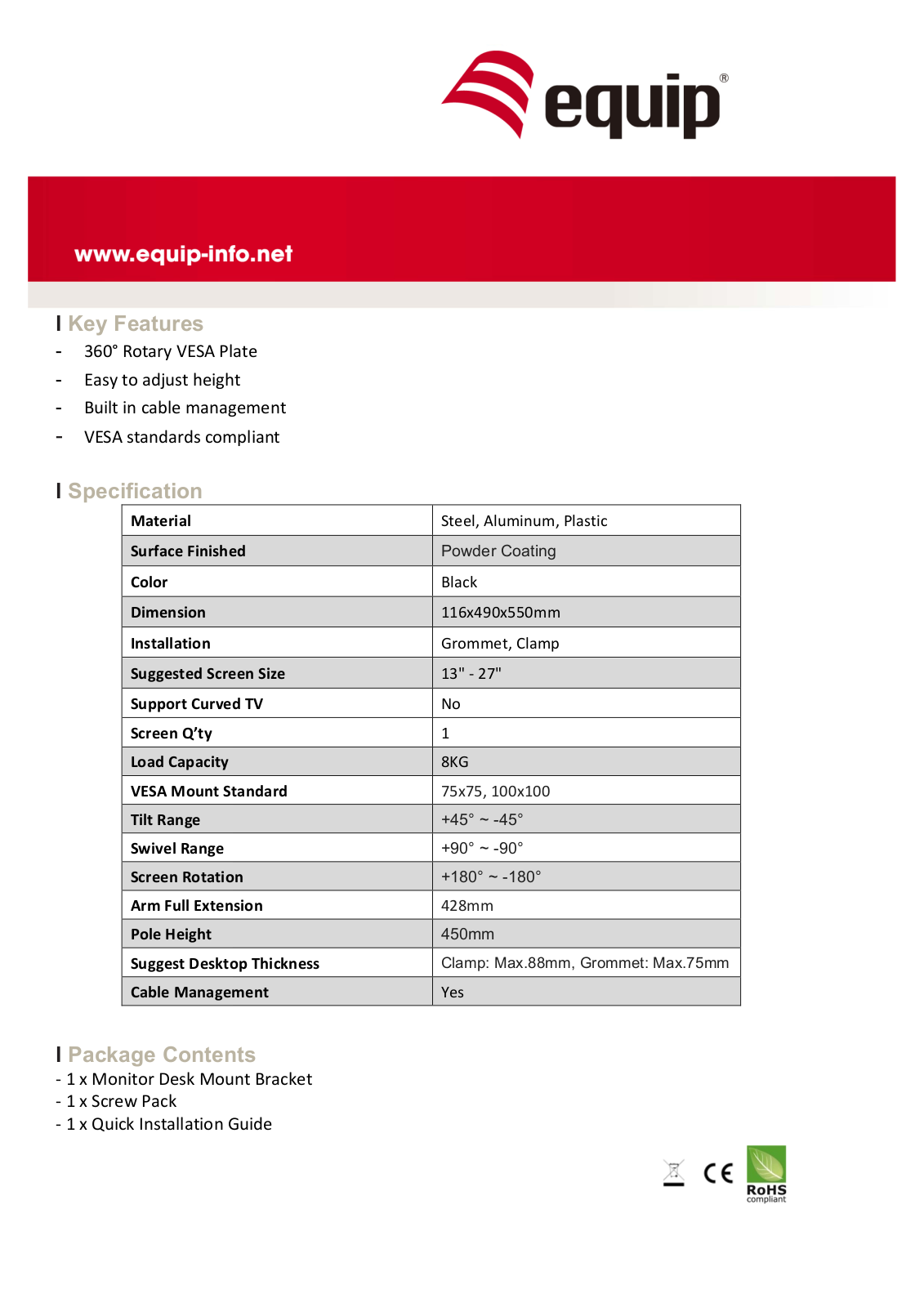

l Key Features

- 360°!Rotary!VESA!Plate!

- Easy!to!adjust!height! !

- Built!in!cable!management! ! !

- VESA!standards!compliant

l Specification

Material'

Steel,!Aluminum,!Plastic!

Surface'Finished'

Powder Coating

Color' '

Black!

Dimension'

116x490x550mm!

Installation'

Grommet,!Clamp!

Suggested'Screen'Size'

13"!-!27"!

Support'Curved'TV'

No!

Screen'Q’ty'

1!

Load'Capacity'

8KG!

VESA'Mount'Standard'

75x75,!100x100! !

Tilt'Range'

+45° ~ -45°!

Swivel'Range'

+90° ~ -90°!

Screen'Rotation'

+180° ~ -180°!

Arm'Full'Extension'

428mm!

Pole'Height'

450mm

Suggest'Desktop'Thickness'

Clamp: Max.88mm, Grommet: Max.75mm

Cable'Management'

Yes!

l Package Contents

-!1!x!Monitor!Desk!Mount!Bracket!

-!1!x!Screw!Pack!

-!1!x!Quick!Installation!Guide!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
