Equip 650108 User Manual

23"-55" Articulating TV Wall Mount Bracket!

l Overview

The!equip®!TV!Wall!Mount!Bracket!is!a!compact!but!sturdy!product!that!ensures!a!reliable!

installation!of!your!LCD/Plasma!TV.!Follow!the!graphic!guide!included!in!the!package,!you!can!

install!your!TV!on!your!own!with!ease.!The!wall!bracket!fits!most!of!the!wall!materials-!brick,!

concrete!and!wood,!making!the!ideal!choice!for!you!to!set!up!your!screens.!

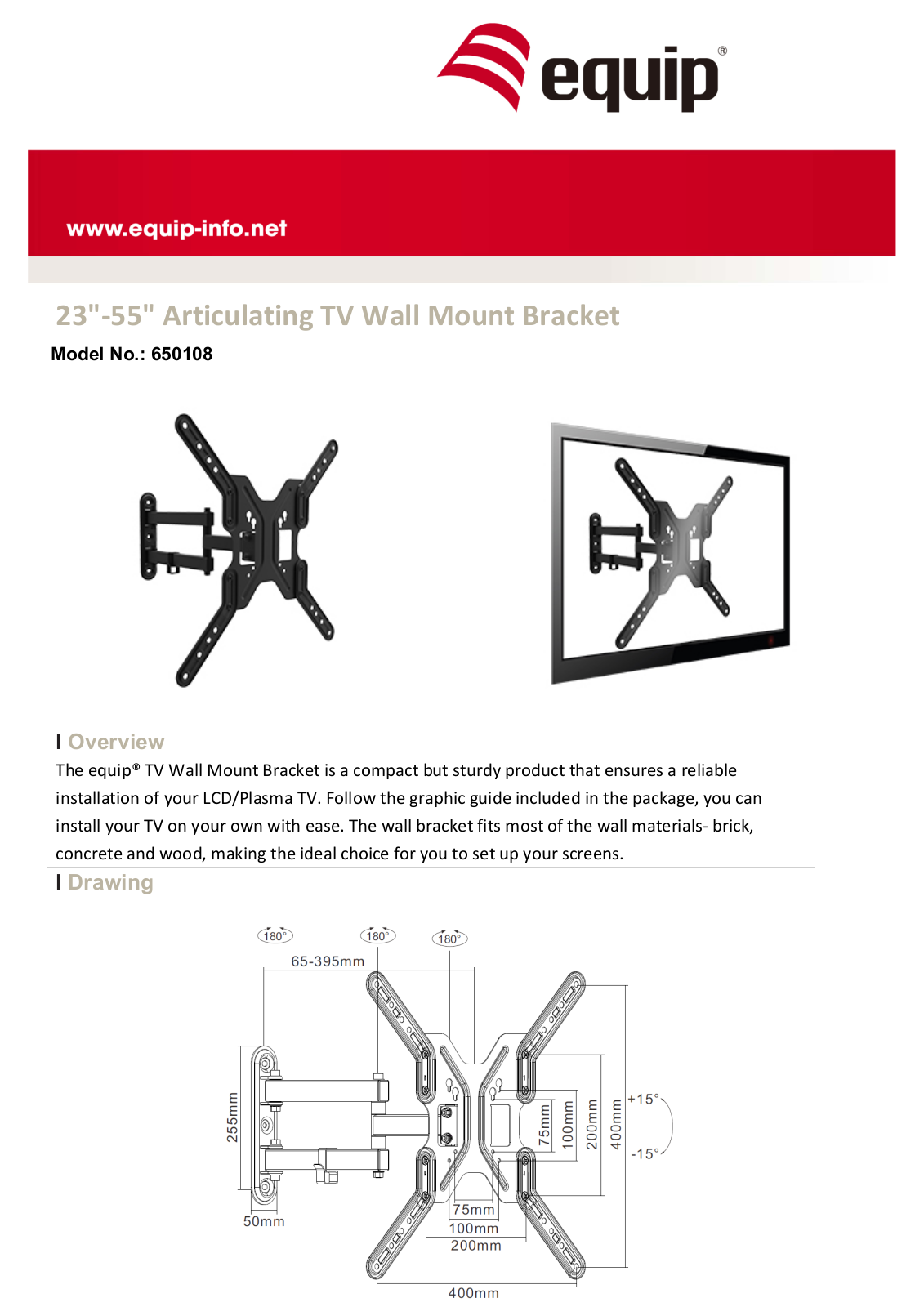

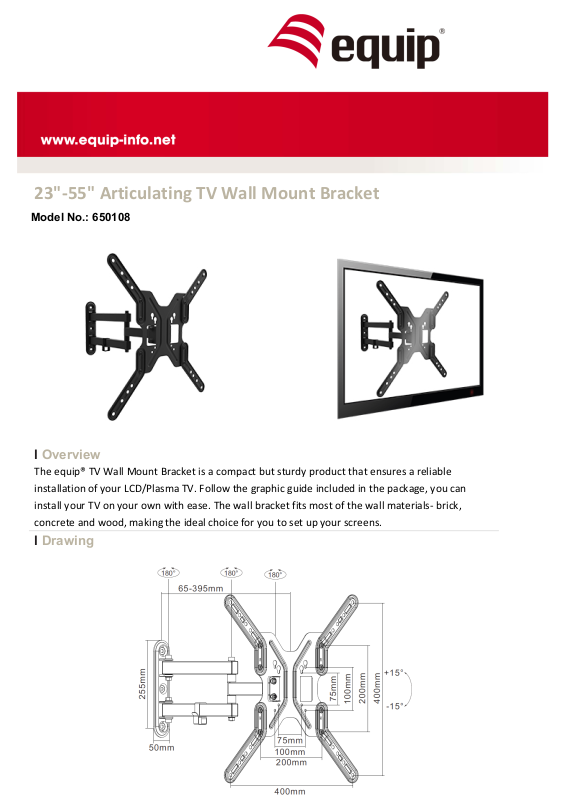

l Drawing

Model No.: 650108

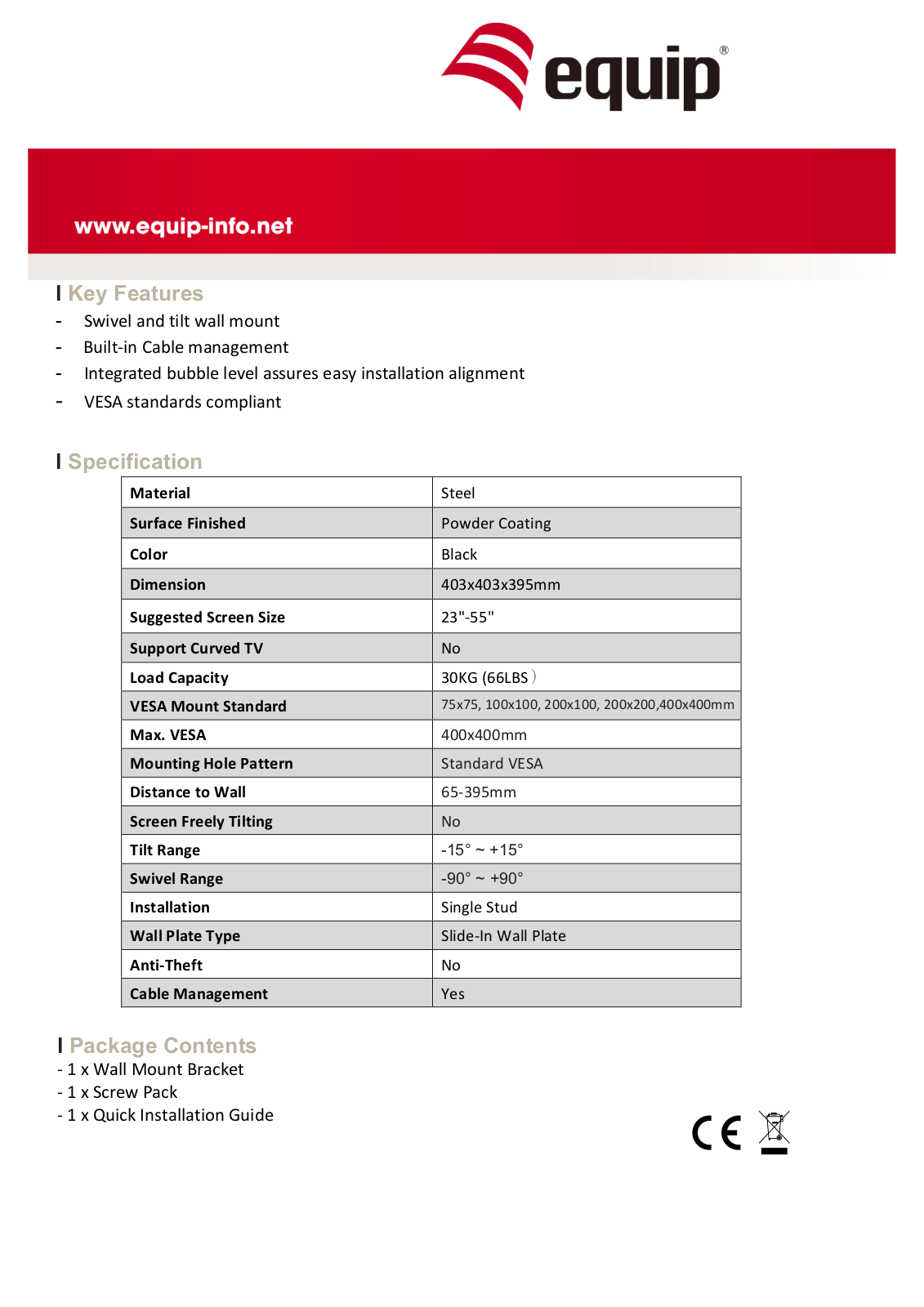

l Key Features

Material'

Surface'Finished'

Powder!Coating!

Color'

Dimension'

Suggested'Screen'Size'

Support'Curved'TV'

No!

Load'Capacity'

VESA'Mount'Standard'

Max.'VESA'

Mounting'Hole'Pattern'

Standard!VESA!

Distance'to'Wall'

Screen'Freely'Tilting'

No!

Tilt'Range'

Swivel'Range'

-90° ~ +90°

Installation'

Single!Stud!

Wall'Plate'Type'

Slide-In!Wall!Plate!

Anti-Theft'

No!

Cable'Management'

Yes!

- Swivel!and!tilt!wall!mount!

- Built-in Cable management

- Integrated!bubble!level!assures!easy!installation!alignment!

- VESA!standards!compliant

l Specification

Steel!

Black!

403x403x395mm!

23"-55"!

30KG (66LBS）!

75x75,!100x100,!200x100,!200x200,400x400mm!

400x400mm!

l Package Contents

-!1!x!Wall!Mount!Bracket!

-!1!x!Screw!Pack!

-!1!x!Quick!Installation!Guide

65-395mm!

-15° ~ +15°
