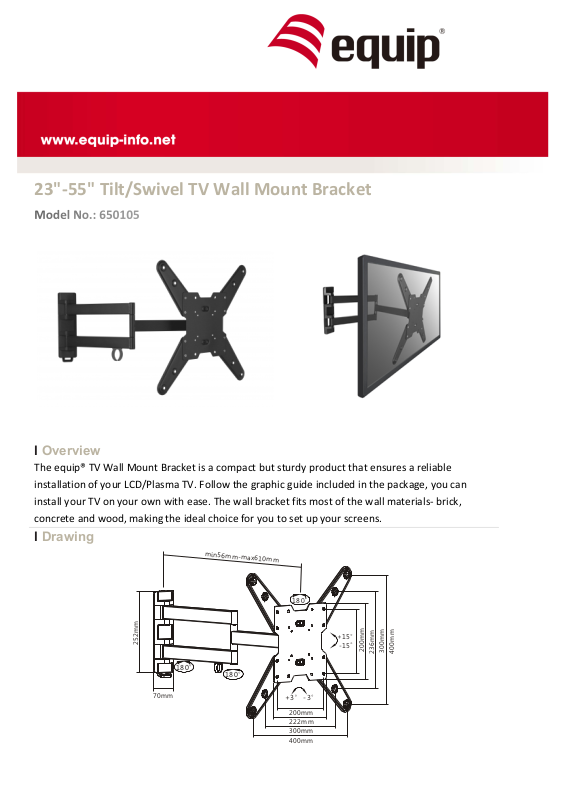

23"-55"&Tilt/Swivel&TV&Wall&Mount&Bracket!

!

l Overview

The!equip®!TV!Wall!Mount!Bracket!is!a!compact!but!sturdy!product!that!ensures!a!reliable!

installation!of!your!LCD/Plasma!TV.!Follow!the!graphic!guide!included!in!the!package,!you!can!

install!your!TV!on!your!own!with!ease.!The!wall!bracket!fits!most!of!the!wall!materials-!brick,!

concrete!and!wood,!making!the!ideal!choice!for!you!to!set!up!your!screens.

l Drawing

20 0m m

23 6m m

30 0m m

40 0m m

22 2m m

20 0m m

30 0m m

40 0m m

m

i

n

5

6

mm

-

m

a

x

6

1

0

m

m

25 2m m

70 mm

18 0

18 0

+3 -3

+1 5

-1 5

18 0

l Key Features

- Swivel!and!tilt!wall!mount!

- Adjustment!knob!enables!a!full!range!of!tilt/swivel! !

- Swiveling!arm!offer!maximum!viewing!flexibility!

- VESA!standards!compliant

l Specification

Material&

Steel,!Plastic!

Surface&Finished&

Powder!Coating!

Color& &

Black!

Dimension&

610x450x450mm!

Pipe&Size&

40x20x1.5mm!

Suggested&Screen&Size&

23"-55"!

Support&Curved&TV&

Yes!

Load&Capacity&

35KG!

VESA&Mount&Standard&

75x75,! 100x100,! 200x100,! 200x200 ,!

300x300,!400x200,!400x400!

Max.&VESA&

400x400mm!

Mounting&Hole&Pattern&

Standard!VESA!

Distance&to&Wall&

56!~!610mm!

Screen&Freely&Tilting&

Yes!

Tilt&Range&

-15° ~ +15°

Screen&Level&

-3°~ +3°

Swivel&Range&

180°

Installation&

Single!Stud!

Wall&Plate&Type&

Fixed!Wall!Plate!

Anti-Theft&

No!

Cable&Management&

Yes!

l Package Contents

-!1!x!Wall!Mount!Bracket!

-!1!x!Screw!Pack!

-!1!x!Quick!Installation!Guide!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
