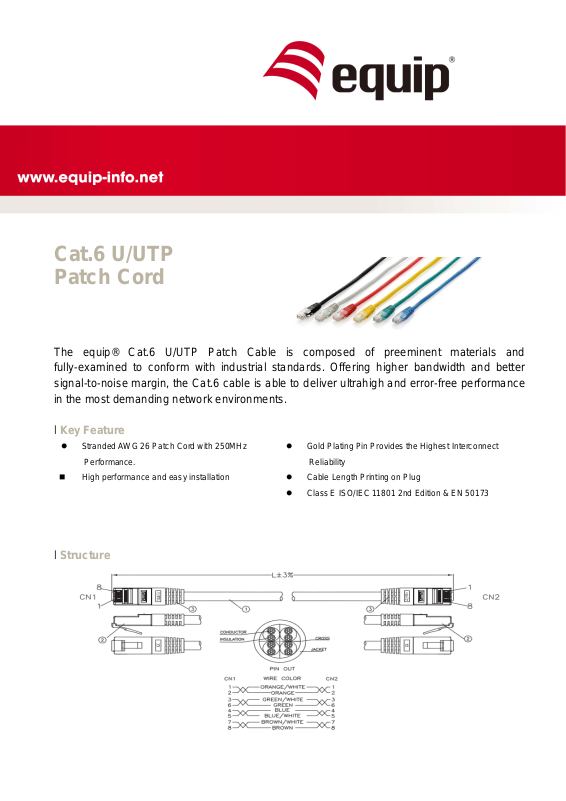

Cat.6 U/UTP
Patch Cord

The equip® Cat.6 U/UTP Patch Cable is composed of preeminent materials and
fully-examined to conform with industrial standards. Offering higher bandwidth and better
signal-to-noise margin, the Cat.6 cable is able to deliver ultrahigh and error-free performance
in the most demanding network environments.

l Key Feature

 Stranded AWG 26 Patch Cord with 250MHz

Performance.

 High performance and easy installation

 Gold Plating Pin Provides the Highest Interconnect

Reliability

 Cable Length Printing on Plug
 Class E ISO/IEC 11801 2nd Edition & EN 50173

l Structure

l Specification

Conductor

Construction

26AWG, 7/0.16 ± 0.015mm

Insulation

Thickness

MIN at any point: 0.11mm MAX AVG:0.13mm

Diameter

0.74± 0.02mm

Colors

Blue/White-Blue, Orange/White-Orange, Green/White-Green, Brown/White-Brown

Jacket

Material

PVC

Thickness

MIN at any point: 0.45mm MAX AVG: 0.55mm

Diameter

5.0± 0.3mm

Marking

equip CAT6 U/UTP PATCH CABLE 4PR 26AWG

Connector

RJ45 Plug

8P8C, 3u”

Typical Applications

IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T ; 10GBASE-T
IEEE 802.5 16 MB; ISDN; TPDDI; ATM

l Ordering Information

Beige

Red

Blue

Green

Black

Yellow

0.25m

625413

625423

625433

625443

625453

625463

0.5m

625417

625427

625437

625447

625457

625467

1.0m

625410

625420

625430

625440

625450

625460

2.0m

625411

625421

625431

625441

625451

625461

3.0m

625412

625422

625432

625442

625452

625462

5.0m

625414

625424

625434

625444

625454

625464

7.5m

625415

625425

625435

625445

625455

625465

10m

625416

625426

625436

625446

625456

625466

15m

625418

625428

625438

625448

625458

625468

20m

625419

625429

625430

625449

625459

625469

Packing: Poly bag
