Equip 605717 User Manual

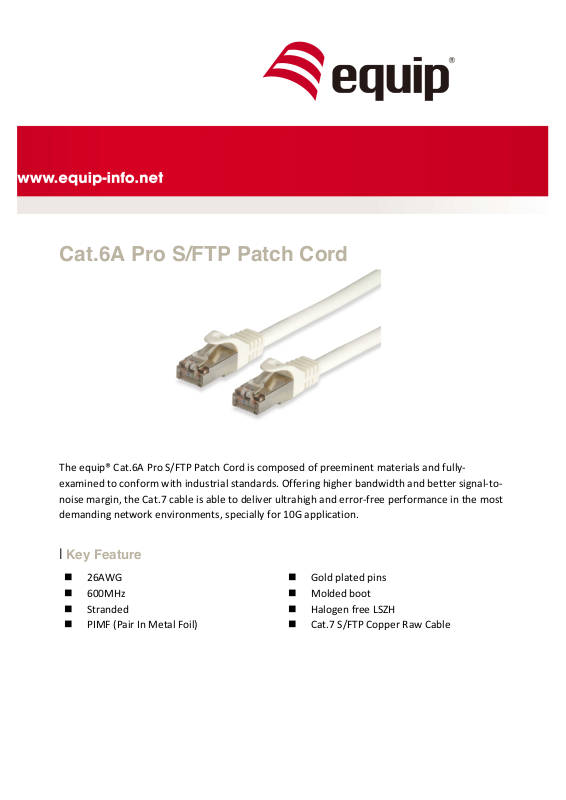

Cat.6A Pro S/FTP Patch Cord

The$equip®$Cat.6A$Pro$S/FTP$Patch$Cord$is$composed$of$preeminent$materials$and$fully­examined$to$conform$with$industrial$standards.$Offering$higher$bandwidth$and$better$signal-to­noise$margin,$the$Cat.7$cable$is$able$to$deliver$ultrahigh$and$error-free$performance$in$the$most$
demanding$network$environments,$specially$for$10G$application.$
$

l Key Feature

n 26AWG$
n 600MHz$
n Stranded$
n PIMF$(Pair$In$Metal$Foil)$

n Gold$plated$pins$
n Molded$boot$
n Halogen$free$LSZH$
n Cat.7$S/FTP$Copper$Raw$Cable$

l Specification

Conductor)

Material$ $

Bare$Copper$

Construction$

26AWG,$7/0.16$±$0.005mm$

Insulation)

Thickness$

MIN$at$any$point:$0.2$mm$/$MAX$AVG:0.35$mm$

Diameter$

1.05$±$0.05mm$

Colors$

Blue-White/Blue,Orange-White/Orange,Green-White/Green,$Brown-White/Brown$

Jacket)

Material$

LSZH$

Thickness$

MIN$at$any$point:$0.50mm$/$MAX$AVG:$0.60mm$

Diameter$

6.2$±$0.2mm$

l Ordering Information

Length$

Model$No.$

0.5m$

605717$

1m$

605710$

2m$

605711$

3m$

605712$

5m$

605714$

7.5$

605715$

10m$

605716$

15m$

605718$

20m$

605719$

Packing:$equip$ZIP$Bag$ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $
