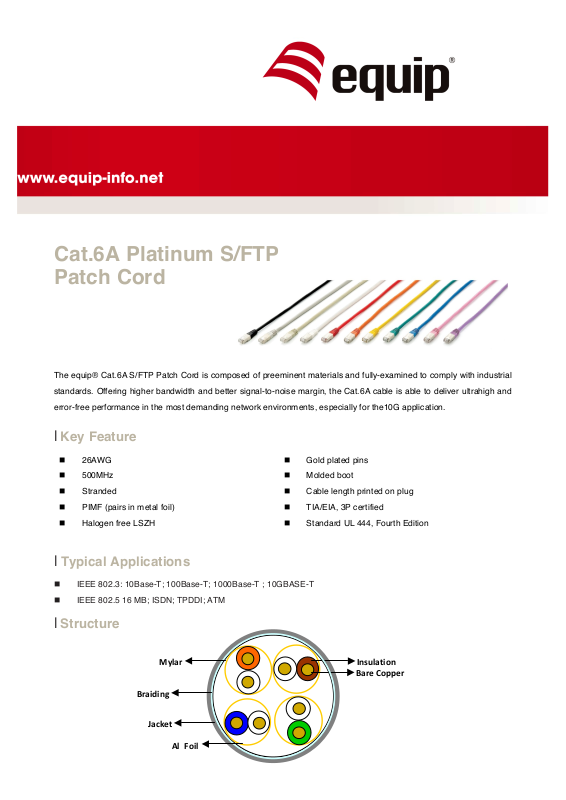

Equip 605617 User Manual

Cat.6A Platinum S/FTP
Patch Cord

The equip® Cat.6A S/FTP Patch Cord is composed of preeminent materials and fully-examined to comply with industrial

standards. Offering higher bandwidth and better signal-to-noise margin, the Cat.6A cable is able to deliver ultrahigh and

error-free performance in the most demanding network environments, especially for the10G application.

l Key Feature

n 26AWG

n 500MHz

n Stranded

n PIMF (pairs in metal foil)

n Halogen free LSZH

n Gold plated pins

n Molded boot

n Cable length printed on plug

n TIA/EIA, 3P certified

n Standard UL 444, Fourth Edition

l Typical Applications

n IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T ; 10GBASE-T

n IEEE 802.5 16 MB; ISDN; TPDDI; ATM

l Structure

Insulation*

Bare*Copper*

Jacket*

Mylar*

Braiding*

Al* Foil*

l Specification

Conductor

Material

Bare Copper

Construction

26AWG, 7/0.152 ± 0.005mm

Insulation

Thickness

MIN at any point: 0.2 mm / MAX AVG:0.35 mm

Diameter

1.05 ± 0.05mm

Colors

Blue-White/Blue, Orange-White/Orange, Green-White/Green, Brown-White/Brown

Jacket

Material

LSZH

Thickness

MIN at any point: 0.50mm / MAX AVG: 0.60mm

Diameter

6.1 ± 0.2mm

Marking

equip CAT.6A S/FTP 10 GIGABIT ETHERNET PATCH CABLE ISO/IEC 11801 & EN

50288 & TIA/EIA-568-B.2 & IEC 332.1 26AWGX4P LSOH

l Ordering Information

Packing: equip zip bag
