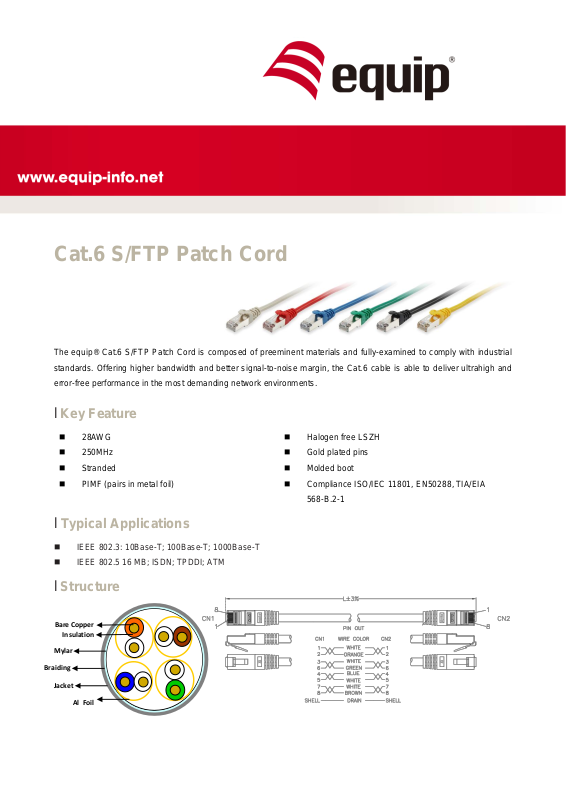

Cat.6 S/FTP Patch Cord

The equip® Cat.6 S/FTP Patch Cord is composed of preeminent materials and fully-examined to comply with industrial
standards. Offering higher bandwidth and better signal-to-noise margin, the Cat.6 cable is able to deliver ultrahigh and
error-free performance in the most demanding network environments.

l Key Feature

 28AWG
 250MHz
 Stranded
 PIMF (pairs in metal foil)

 Halogen free LSZH
 Gold plated pins
 Molded boot
 Compliance ISO/IEC 11801, EN50288, TIA/EIA

568-B.2-1

l Typical Applications

 IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T
 IEEE 802.5 16 MB; ISDN; TPDDI; ATM

l Structure

Insulation

Bare Copper

Jacket

Mylar

Braiding

Al Foil

l Specification

Conductor

Material

Bare Copper

Construction

28AWG

Insulation

Thickness

MIN at any point: 0.29 mm / MAX AVG:0.31 mm

Diameter

1.05 ± 0.01mm

Colors

Blue-White/Blue, Orange-White/Orange, Green-White/Green, Brown-White/Brown

Jacket

Material

LSZH

Thickness

MIN at any point: 0.48mm / MAX AVG: 0.50mm

Diameter

5.8 ± 0.2mm

Marking

Connector

RJ45 Plug

8P8C, Two Fork 50u” Gold

l Ordering Information

Packing: equip zip bag

equip CAT.6 S/FTP 28AWGX4P PATCH TYPE LSOH IEC 332.3.C – ISO/IEC
11801 Ed.2 & EN50288 & TIA/EIA-568-B.2-1 GHMT VERIFIED
