Equip 603001 User Manual

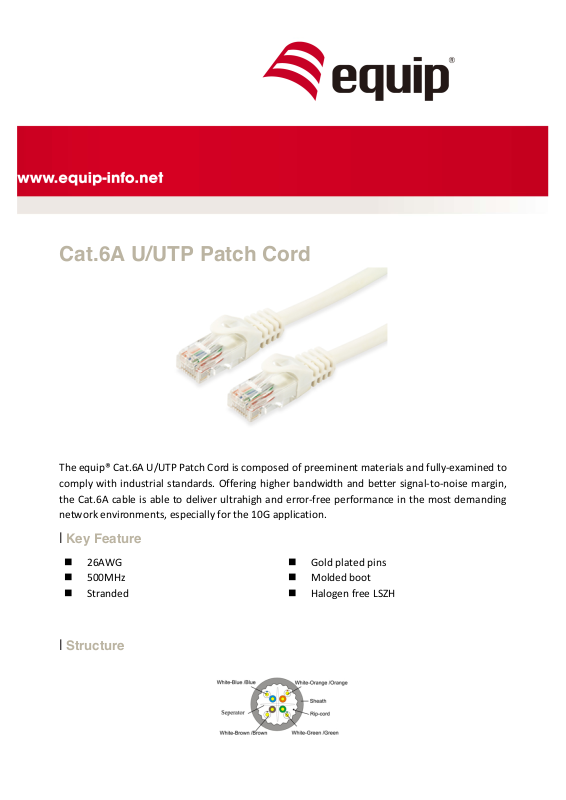

Cat.6A U/UTP Patch Cord

The$equip®$Cat.6A$U/UTP$Patch$Cord$is$composed$of$preeminent$materials$and$fully-examined$to$
comply$with$industrial$standards.$Offering$higher$ bandwidth$ and$ better$signal-to-noise$margin,$
the$Cat.6A$cable$is$able$to$deliver$ultrahigh$and$error-free$performance$in$the$most$demanding$
network$environments,$especially$for$the$10G$application.$

l Key Feature

n 26AWG$
n 500MHz$
n Stranded$

n Gold$plated$pins$
n Molded$boot$
n Halogen$free$LSZH$

l Structure

l Specification

Conductor)

Material$ $

Bare$Copper$

Construction$

26AWG,$7/0.16$±$0.005mm$

Insulation)

Thickness$

MIN$at$any$point:$0.2$mm$/$MAX$AVG:0.35$mm$

Diameter$

1.05$±$0.05mm$

Colors$

Blue-White/Blue,Orange-White/Orange,Green-White/Green,$Brown-White/Brown$

Jacket)

Material$

LSZH$

Thickness$

MIN$at$any$point:$0.50mm$/$MAX$AVG:$0.60mm$

Diameter$

5.5$±$0.2mm$

l Ordering Information

Length$

Model$No.$

0.5m$

603001$

1m$

603002$

2m$

603003$

3m$

603004$

5m$

603005$

7.5$

603006$

10m$

603007$

15m$

603008$

20m$

603009$

Packing:$equip$ZIP$Bag$ $ $ $ $ $ $ $ $ $ $ $$$$$$$$$$$$$$$$$$$$$
